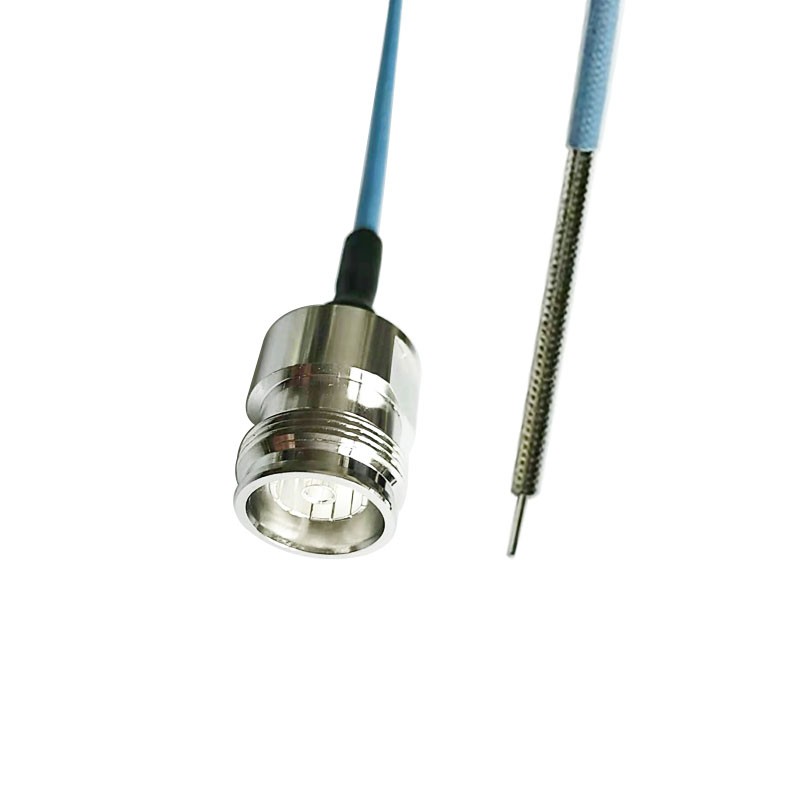

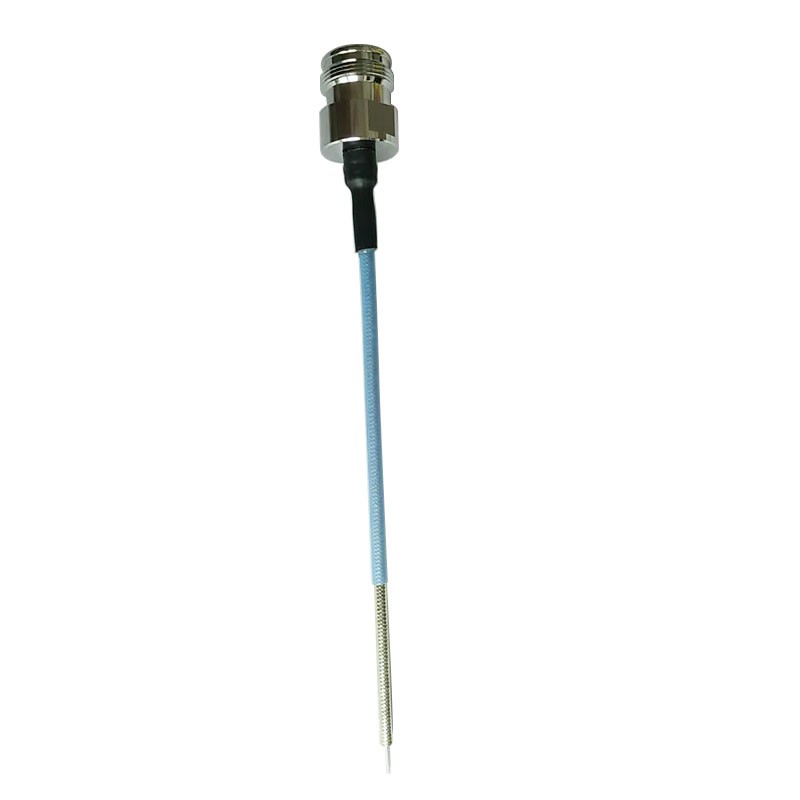

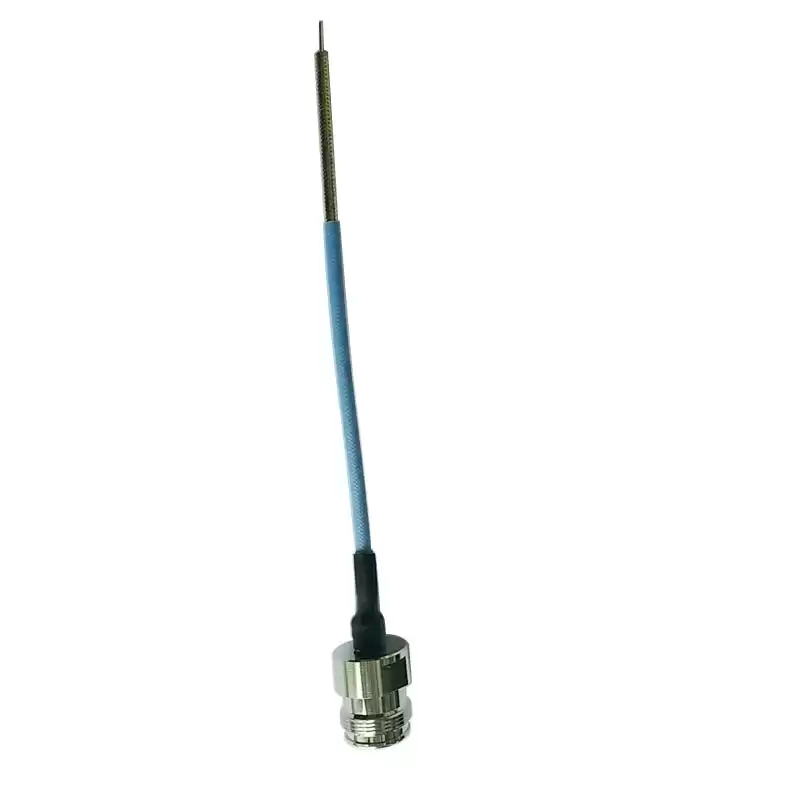

Straight RF Coaxial 4.3-10 Female Connector with RG402 Cable Assembly
The 4.3-10 with cable assembly can use flexible or corrugated coaxial cable such as LMR240, TFT402, LDF4-50A (1/2"); the body of 4.3-10 with cable assembly is right angle or straight connectors which is female with cable or male with cable. ROHO's 4.3-10 with cable assembly is a low PIM cable. This 4.3-10 female with cable assembly uses a 50ohm straight type 4.3-10 for connector 1 and cable is 50ohm RG402 cable.
Specifications
| ELECTRICAL DATA |
|
| Connector 1 Series |
4.3-10 |
| Connector 1 Style |
Str Female |
| Cable Type |
RG402 |
| Connector 2 Series |
- |
| Connector 2 Style |
- |
| Contact Termination |
Solder |
| Shield Termination |
Crimp |
| Impedance (Ohms) |
50 |
| Low PIM |
Yes |
| Max Frequency |
6 GHz |
| Working Temperature |
-65°C to +165°C |
| MATERIAL DATA |
|
Body Material
|
Brass |
Body Finish
|
Nickel/Ternary alloy |
Contact Material
|
Phosphor Bronze/Beryllium Copper |
Contact Finish
|
Gold/Silver |
Insulator Material
|
PTFE |
Applications
- Multi-Carrier Communication Systems
- Low PIM Applications
- Distributed Antennas Systems (DAS)
- Outdoor Installations
- Plenum Installations
