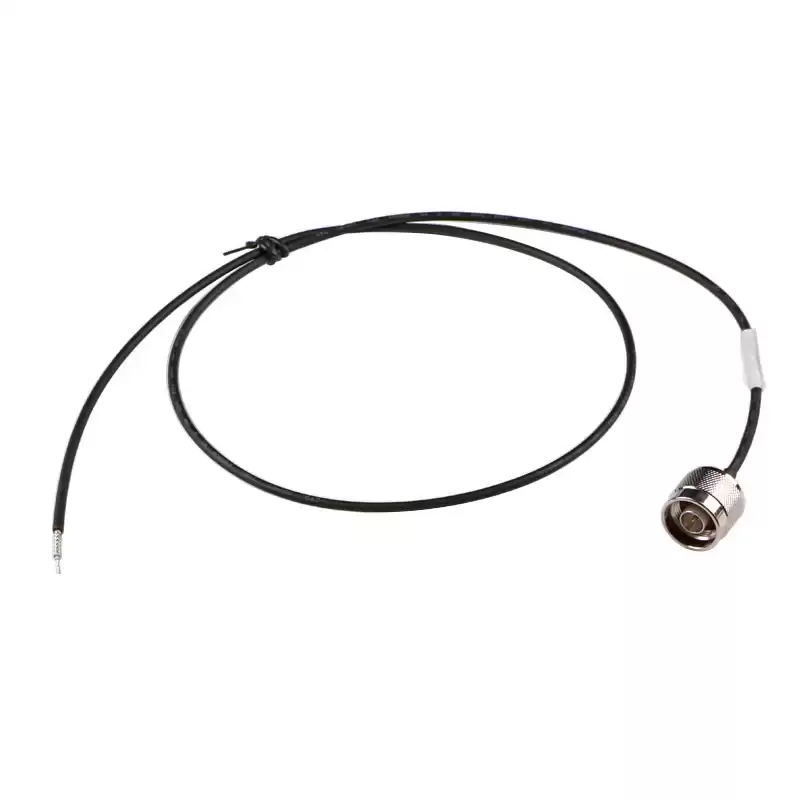

Straight RF Coaxial N Male Connector with RG58 Cable Assembly
The Type N with cable assembly can use corrugated, flexible, formable or semirigid coaxial cable such as 1/2" Helical, 1/2" Superflexible, 1/4" Superflexible, LMR195, LMR240, LMR400, LMR600, RG11, RG141, RG142, RG174, RG178, RG179, RG187, RG188, RG213, RG214, RG217,RG218, RG223, RG225, RG316, RG393, RG400, RG401, RG402, RG405, RG55, RG58, RG59, RG6, RG62, RG8 or TFT402 cable; the body of Type N with cable assembly is right angle or straight connectors which is female with cable or male with cable. ROHO's type N with cable assembly is a low PIM cable, This N female with cable assembly uses a 50ohm straight type N for connector 1 and cable is 50ohm RG58 cable.
Specifications
| ELECTRICAL DATA |
|
| Connector 1 Series |

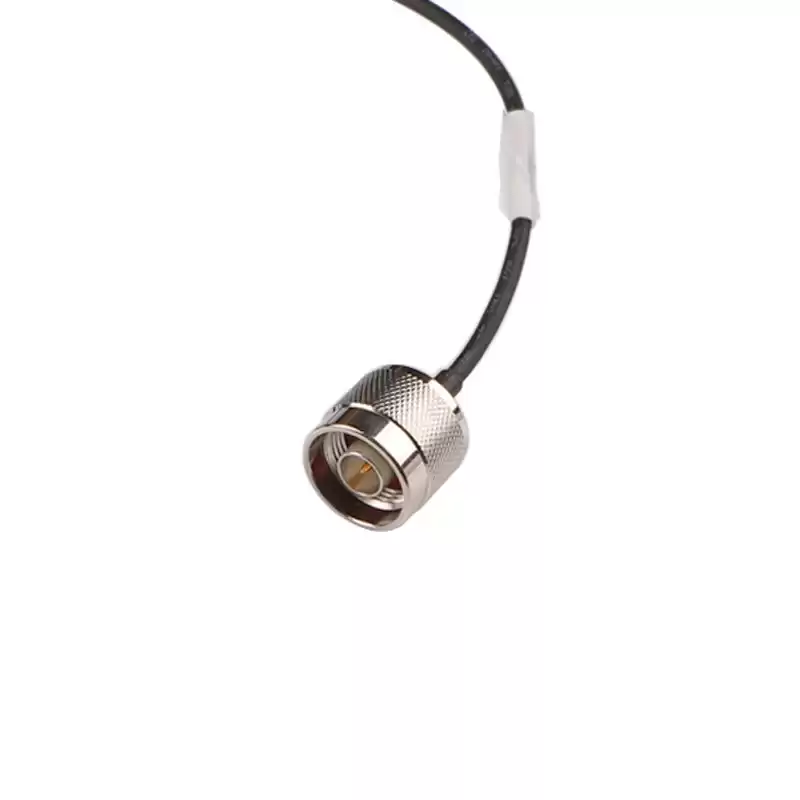

N Type |
| Connector 1 Style |
Str Male |
| Cable Type |

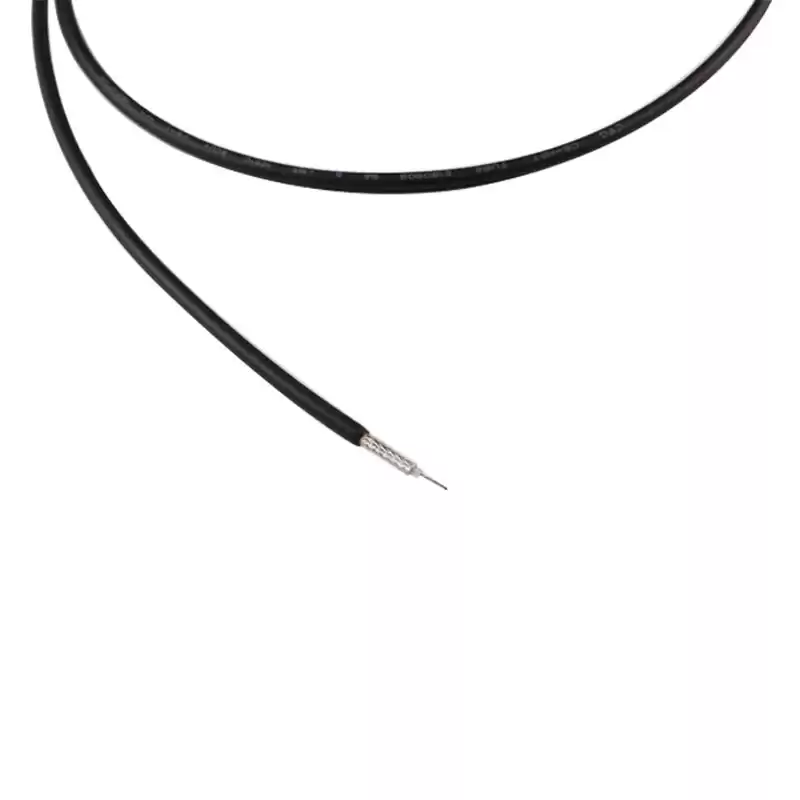

RG58 |
| Connector 2 Series |
- |
| Connector 2 Style |
- |
| Contact Termination |
Solder |
| Shield Termination |
Crimp |
| Impedance (Ohms) |
50 |
| Low PIM |
Yes |
| Max Frequency |
11 GHz |
| Working Temperature |
-65°C to +165°C |
| MATERIAL DATA |
|
Body Material
|
Brass |
Body Finish
|
Nickel/Ternary alloy |
Contact Material
|
Phosphor Bronze/Beryllium Copper |
Contact Finish
|
Gold/Silver |
Insulator Material
|
PTFE |
Applications
- WLAN
- Base Stations
- Satellite Systems
- Instrumentation
- Antennas
- Radar Systems
