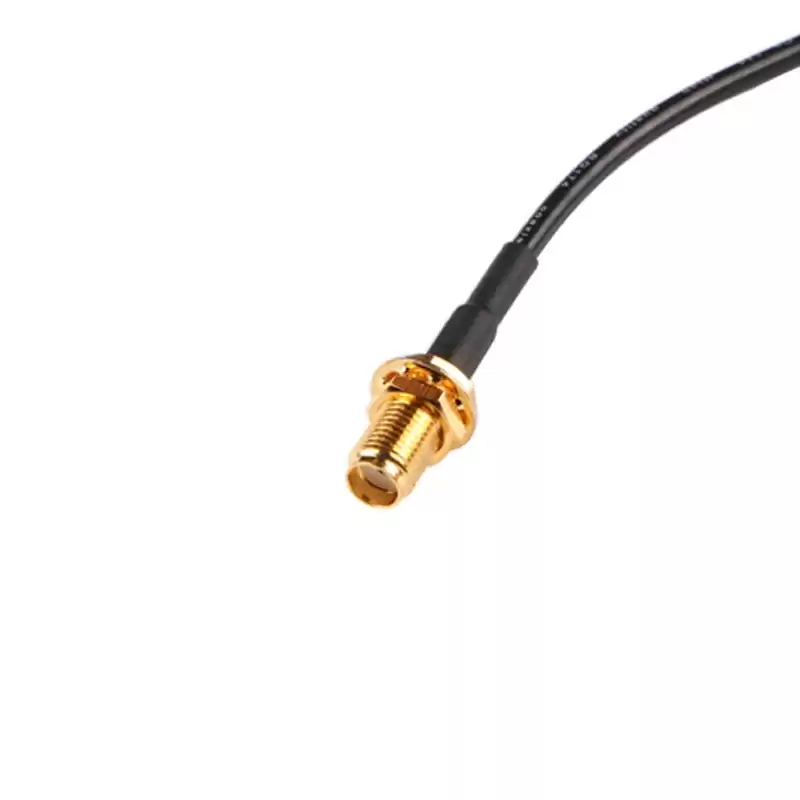

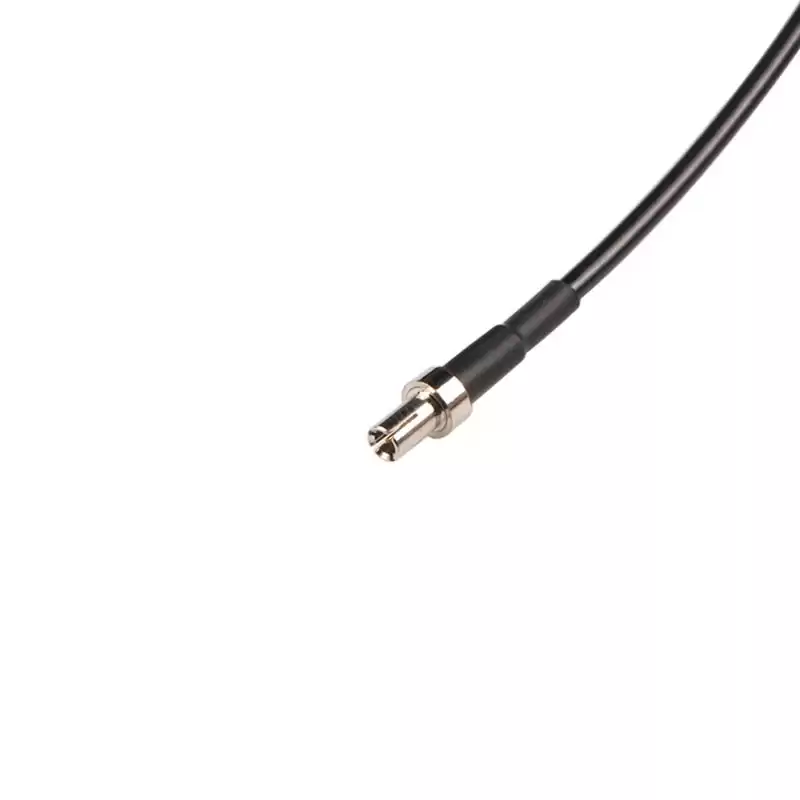

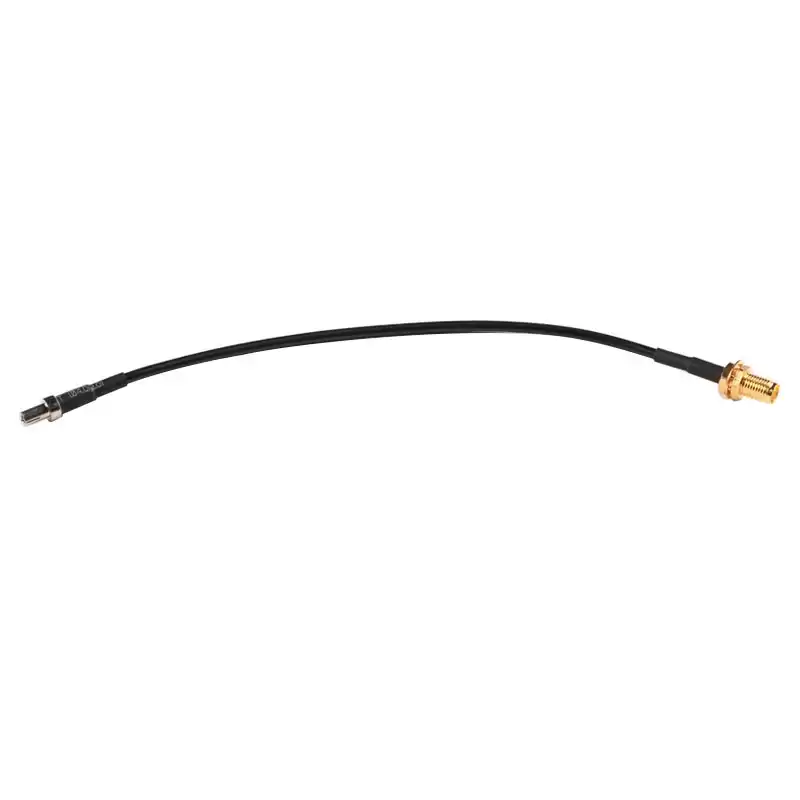

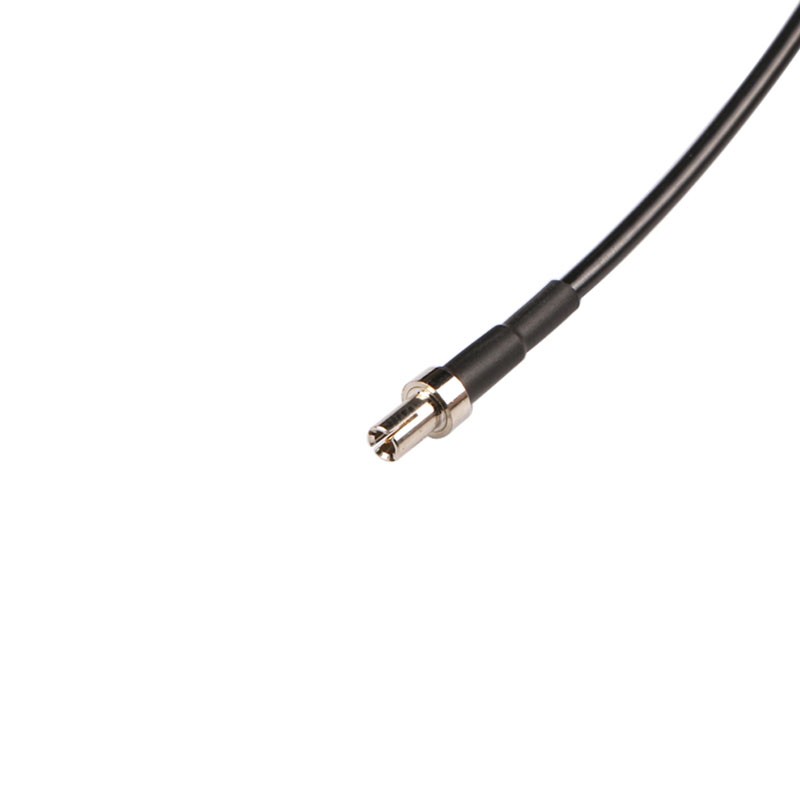

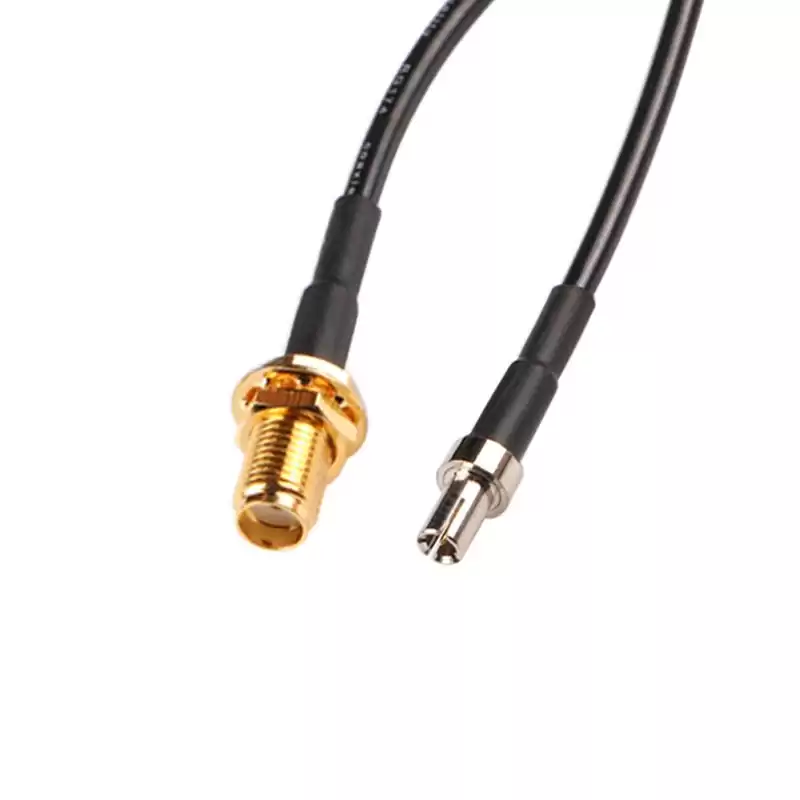

Straight SMA Female Bulkhead to CRC9 Male RF Coaxial Connector Cable Assembly with RG174 Cable
The SMA cable assembly can use corrugated, flexible, formable or semirigid coaxial cablesuch as 0.81mm, 1.13mm, 1.37mm, 1/4" Superflexible, LMR100, LMR-195, LMR200, LMR-240, LMR400, RG141, RG142, RG174, RG178, RG179, RG180, RG187, RG188, RG196, RG213, RG214, RG223, RG303, RG316, RG393, RG400, RG401, RG402, RG405, RG55, RG58, RG59, RG62, RG8, TFT-402 or Tinned 047 cable; the body of SMA to CRC9 cable assembly is right angle or straight connectors which is female to female, female to male, male to female or male to male gender. This SMA female to CRC9 male cable assembly uses a 50ohm straight SMA for connector 1 and a 50ohm straight CRC9 for connector 2, Cable is 50ohm RG174.
Specifications
| ELECTRICAL DATA |
|
| Connector 1 Series |
SMA |
| Connector 1 Style |
Str Female |
| Cable Type |
RG174 |
| Connector 2 Series |
CRC9 |
| Connector 2 Style |
Str Male |
| Contact Termination |
Solder |
| Shield Termination |
Crimp |
| Impedance (Ohms) |
50 |
| Low PIM |
No |
| Max Frequency |
3GHz |
| Working Temperature |
-65°C to +165°C |
| MATERIAL DATA |
|
Body Material
|
Brass |
Body Finish
|
Nickel/Ternary alloy |
Contact Material
|
Phosphor Bronze/Beryllium Copper |
Contact Finish
|
Gold/Silver |
| Insulator Material |
PTFE |
Applications
- Used as an RF Test Probe to 6 GHz
- RF PCB board measurements
- Signal injection
