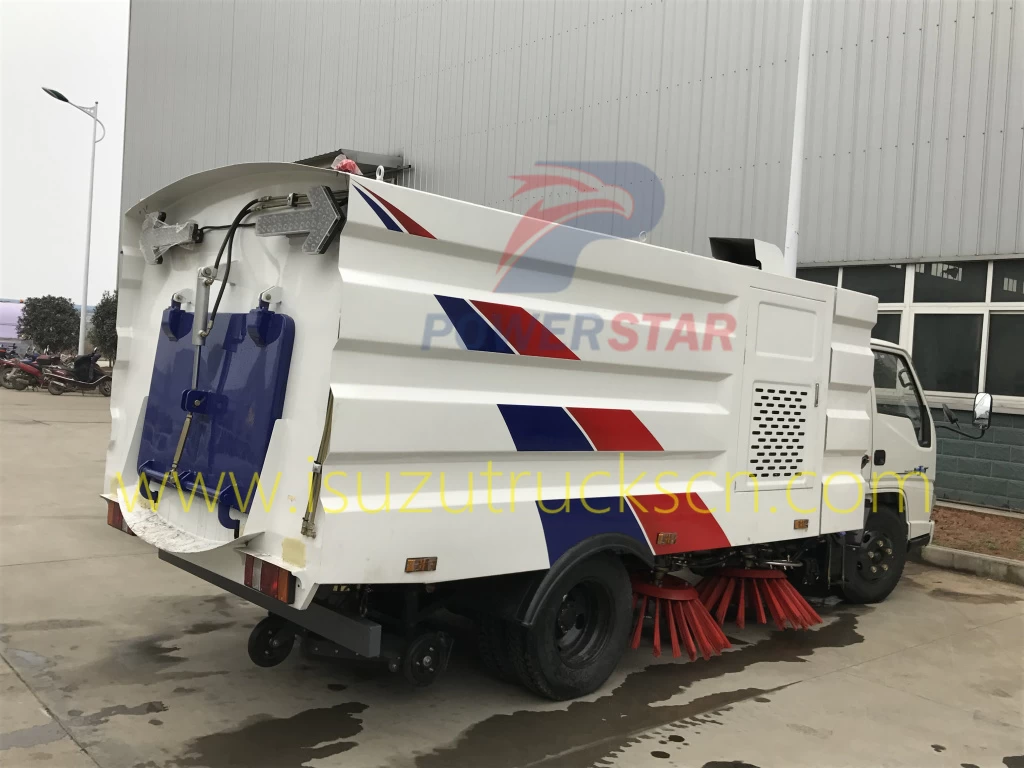

Street Sweeper Trcuk JMC
Function:
Street Sweeper JMC (also called as vacuum road sweeper, multi functioinal road sweeper, dustbin road sweeping truck, truck mounted street sweeper, street cleaning sweeper, new road sweeping vehicle, sanitation vacuum sweeper, sweeper vacuum road cleaner, road cleaning sweeper truck) This sweeper trukc has a simple and proper structure with four brushes in the middle and a suction port at the back part of the vehicle. The efficient suction system makes low noises when the vehicle is working.
Specifications:
Street Sweeper Truck JMC
(4 CBM dustbin + 1.5 CBM water tank)
|
General
|
Vehicle Brand
|
POWERSTAR
|
Chassis Brand
|
JMC
|
Overall Dimension
|
6020 * 2000 * 2490 mm
|
GVW / Kerb Weight
|
8,000kg / 4,890kg
|
Cab
|
Cab Capacity
|
2 persons allowed
|
Air Conditioner
|
Heating/cooling air conditioner
|
Engine
|
Fuel Type
|
Diesel
|
Engine Brand
|
XICHAI 490
|
Power
|
109 HP
|
Displacement
|
2771 ml
|
Emission Standard
|
Euro 2 or 3
|
Chassis
|
Drive Type
|
4X2, (left hand drive or Right hand drive)
|
Transmission
|
5 speed levers with 1 reverse
|
Wheelbase/No. of axle
|
3360 mm / 2
|
Tire Specification
|
7.00-16
|
Tire Number
|
6 tires and 1 spare tire
|
Max Speed
|
95 km/h
|
Paint
|
Metallic paint
|
Superstructure
|
Dustbin Capacity
|
4 CBM
|
Dustbin Material
|
Stainless Steel
|
Water Tank volume
|
1,500 Liters
|
Water Tank Material
|
Stainless Steel
|
Sweeping Capacity
|
45,000 m³/h
|
Sweeping Speed
|
3-15 km/h
|
Max Sweeping Width
|
3000 mm
|
Brooms
|
2 sets at each side
|
Sweeping efficiency
|
≥96%
|
Garbage dump angle
|
50°
|
Max suction capacity
|
Suction density 2.0g/cm3
Suction fineness 100mm
|
Auxiliary Engine
|
ISUZU tech engine
77 HP (57 KW), super powerful
|
All standard accessories: Warning lights, music alarm, basic tool kit, English manual……
|
Optional
|
** Backup alarm can be equipped.
** Camera can be equipped.
** Operation language can be English or Appointed language.
|
Detail Images
 |
|
 |
One man easy control in Cab
|
|
Simple structure |
 |
|
 |
English Control panel
(can be your language)
|
|
High-performance air blower |
 |
|
 |
| Side brush (80mm) |
|

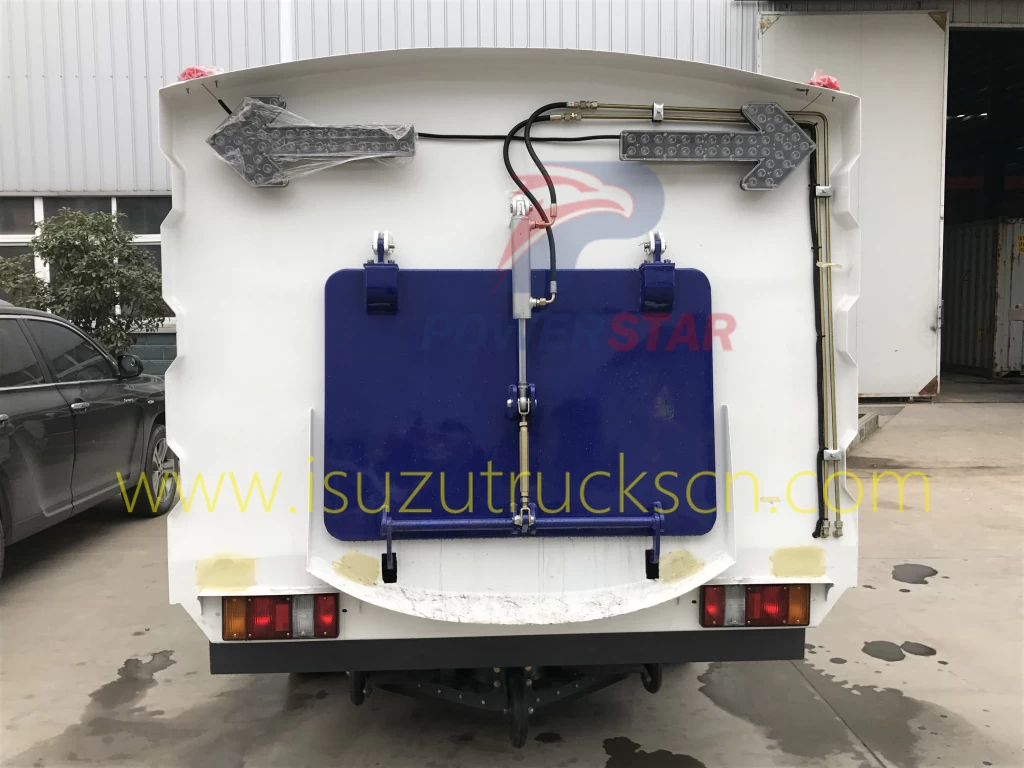

Suction port |
