Street Sweeper Truck Isuzu
Basic Description
Street sweeper truck ISUZU (also called as road sweeping trucks, Mobile street sweeper truck, Road cleaning sweeper truck, sanitation road sweeper truck, Street sweeper suction truck) This Isuzu street sweeper truck has a simple and proper structure with four brushes in the middle and a suction port at the back part of the vehicle. The efficient suction system makes low noises when the vehicle is working. The whole vehicle is stable in performance.
With the structure of four mid-mounted disk brushes and one rear-mounted suction nozzle, which provide a large sweeping width, high sweeping efficiency and good traffic ability. Also convenient for adjustment and maintenance of sweeper device and nozzle.
The sweeping disk has the protection function and automatic reset function, which can avoid obstacles automatically and return automatically.
Key Features
ISUZU NKR Chassis, Durable & Performance.
Sweeping, Sprinkling and garbage transportation
Stainless steeel garbage bin & Stainless water tank, longer service life
Fuel Dispenser, Flow meter, Level gauage can be optional
POWERSTAR 20 years’ experience on road sweeper truck exporting.
Main specifications
|
Street Sweeper Truck ISUZU
(5 CBM dustbin +
1 CBM water tank)
|
|
General
|
Vehicle Brand
|
POWERSTAR
|
|
Chassis Brand
|
ISUZU
|
|
Overall Dimension
|
5900 * 2000 * 2490 mm
|
|
GVW / Kerb Weight
|
7,300kg / 5,770kg
|
|
Cab
|
Cab Capacity
|
2 persons allowed
|
|
Air Conditioner
|
Heating/cooling air conditioner
|
|
Engine
|
Fuel Type
|
Diesel
|
|
Engine Brand
|
ISUZU
|
|
Power
|
120 HP (88 KW)
|
|
Displacement
|
5900 ml
|
|
Emission Standard
|
Euro IV or V
|
|
Chassis
|
Drive Type
|
4X2, left hand drive
|
|
Transmission
|
ISUZU gear box, no overhaul within
500,000km
|
|
Wheelbase/No. of axle
|
3360 mm / 2
|
|
Tire Specification
|
7.00-16
|
|
Tire Number
|
6 tires and 1 spare tire
|
|
Max Speed
|
105 km/h
|
|
Paint
|
Metallic paint
|
|
Superstructure
|
Dustbin Capacity
|
5 CBM
|
|
Dustbin Material
|
Stainless Steel
|
|
Water Tank volume
|
1,000 Liters
|
|
Water Tank Material
|
Stainless Steel
|
|
Sweeping Capacity
|
45,000 m³/h
|
|
Sweeping Speed
|
3-15 km/h
|
|
Max Sweeping Width
|
3000 mm
|
|
Brooms
|
2 sets at each side
|
|
Sweeping efficiency
|
≥96%
|
|

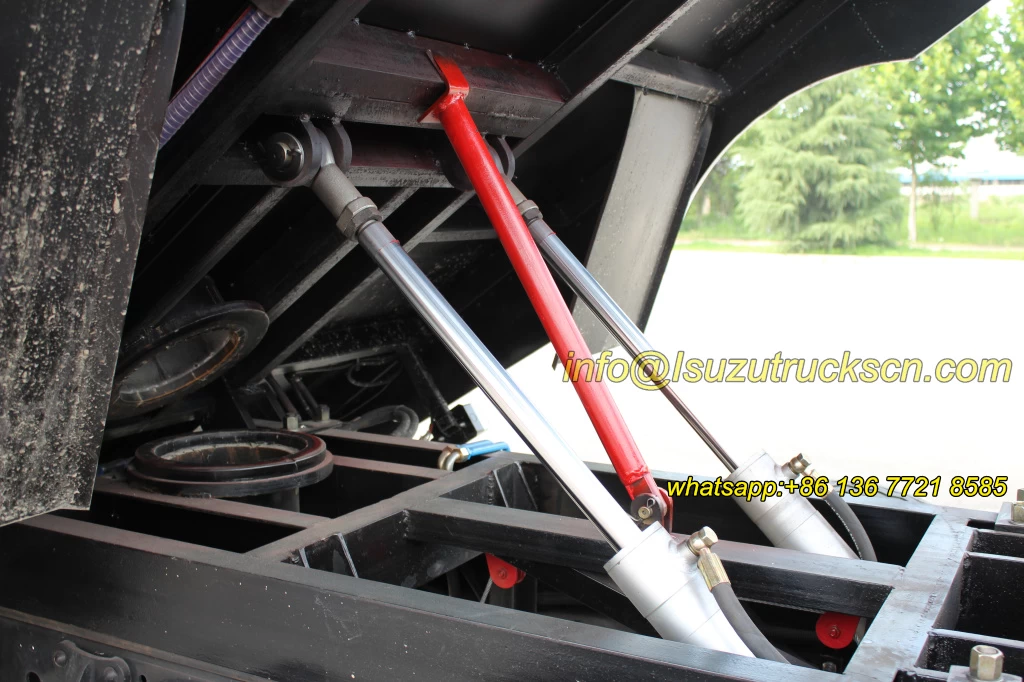

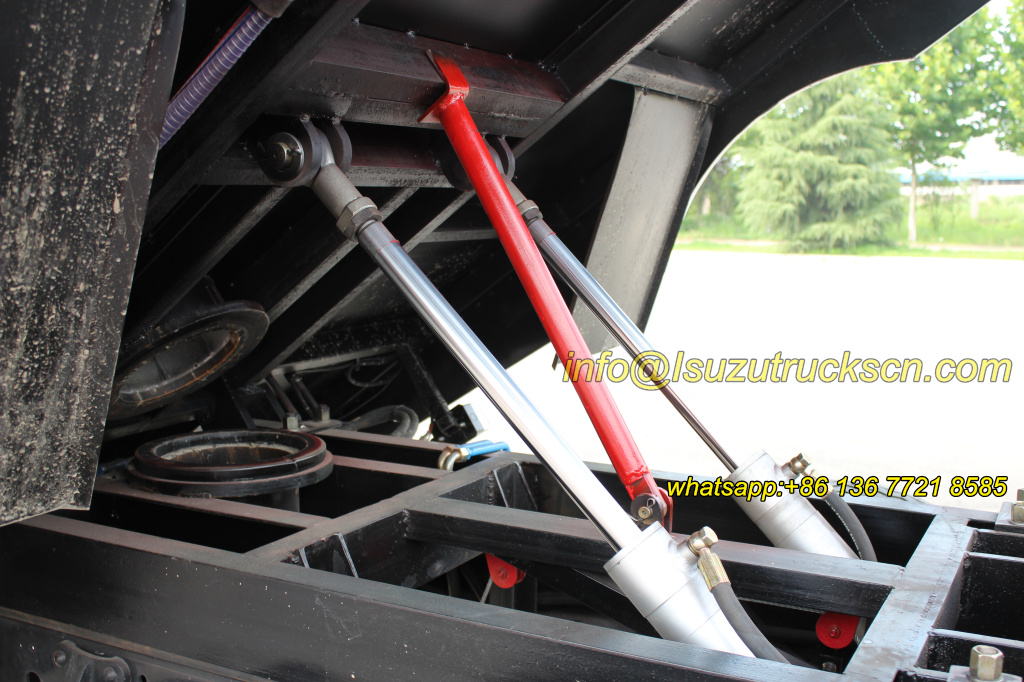

Garbage dump angle
|
50°
|
|
Max suction capacity
|
Suction density 2.0g/cm3
Suction fineness 100mm
|
|

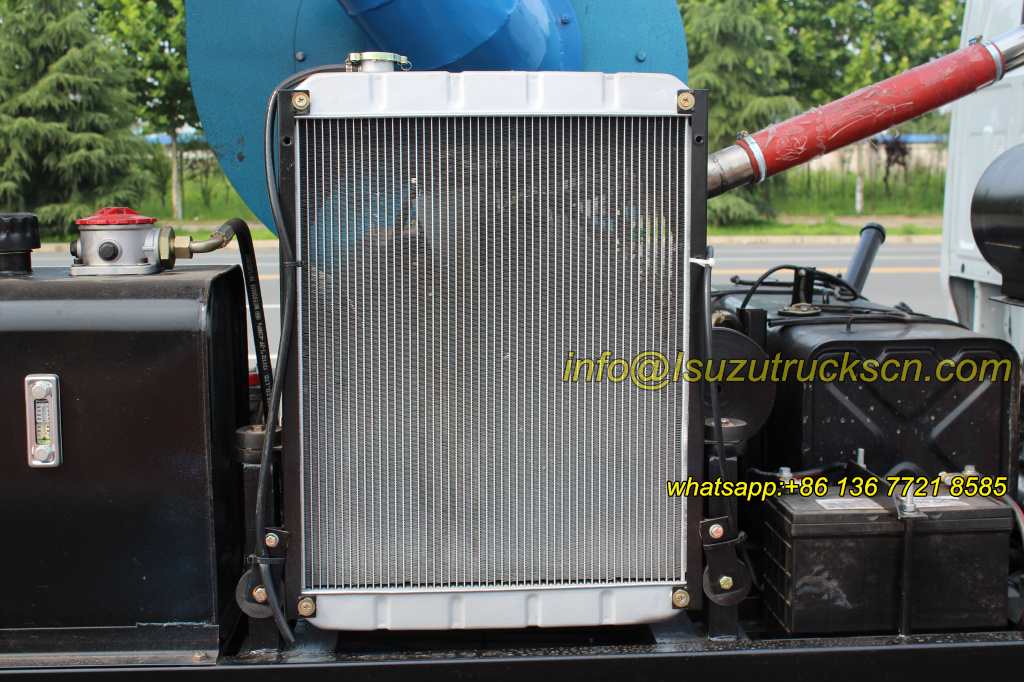

Auxiliary Engine
|
ISUZU engine
77 HP (57 KW), super powerful
|
|
All standard accessories: Warning
lights, music alarm, basic tool kit, English manual……
|
|
Optional
|
** Backup alarm can be equipped.
** Camera can be equipped.
** Operation language can be English or Appointed language.
|
Detail Images
 |
|
 |

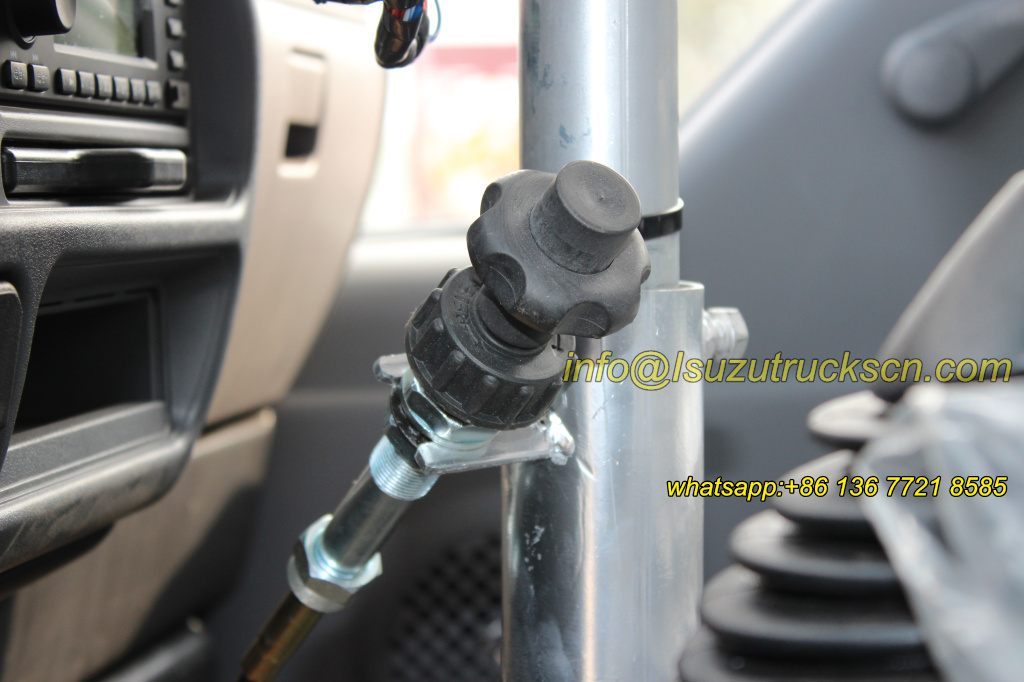

| One man easy control in Cab |
|
Simple structure |
| |
|
|
 |
|
 |
| Control panel (can be your language) |
|

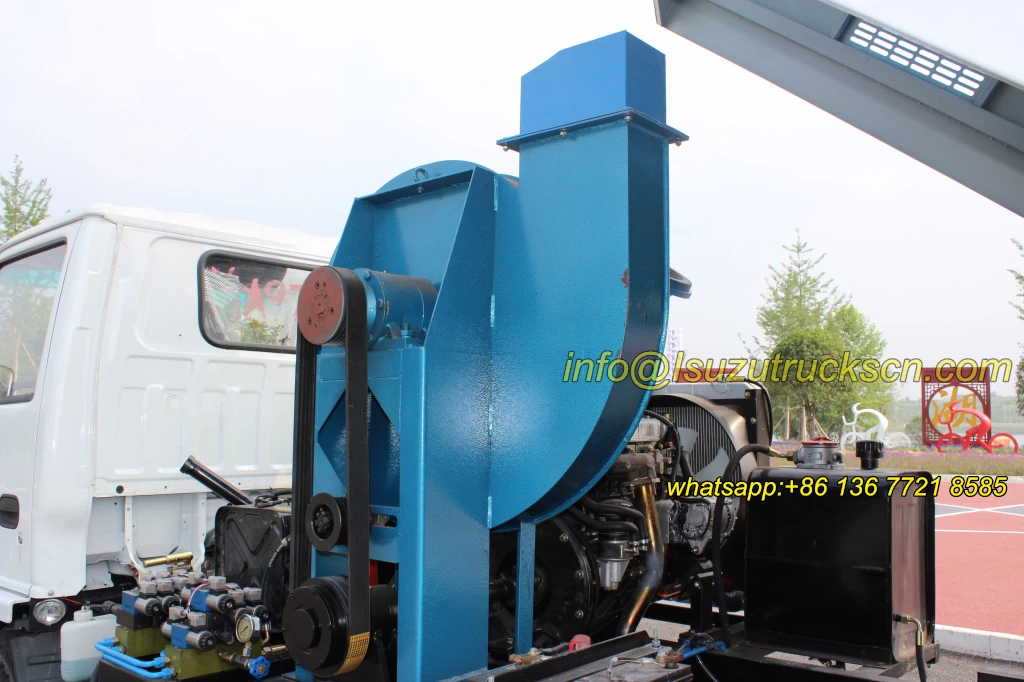

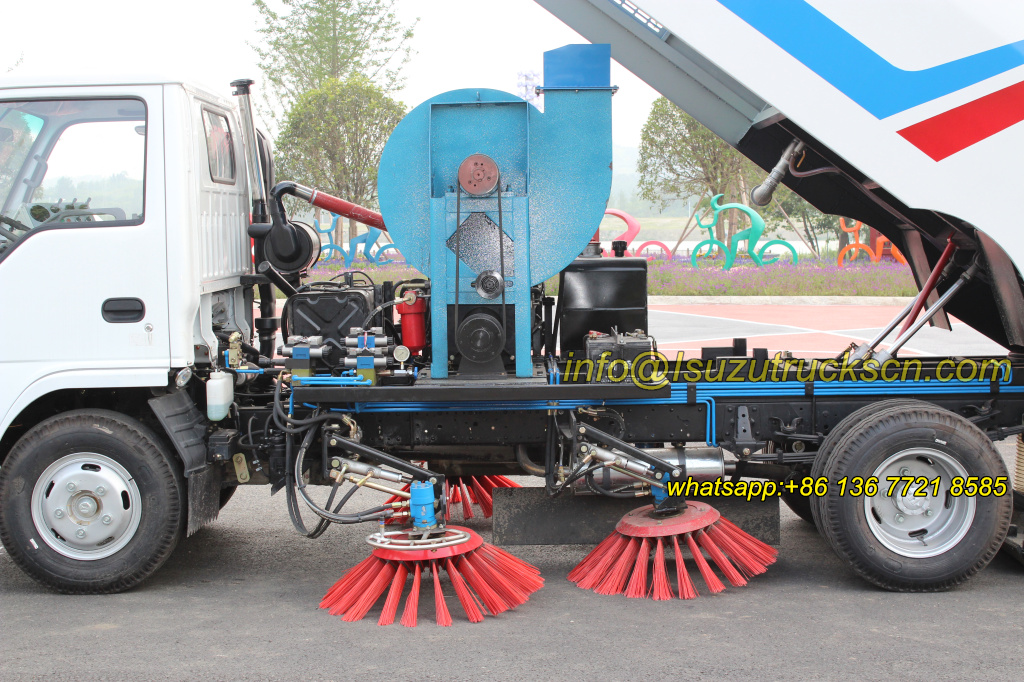

High-performance air blower |
| |
|
|
 |
|
 |

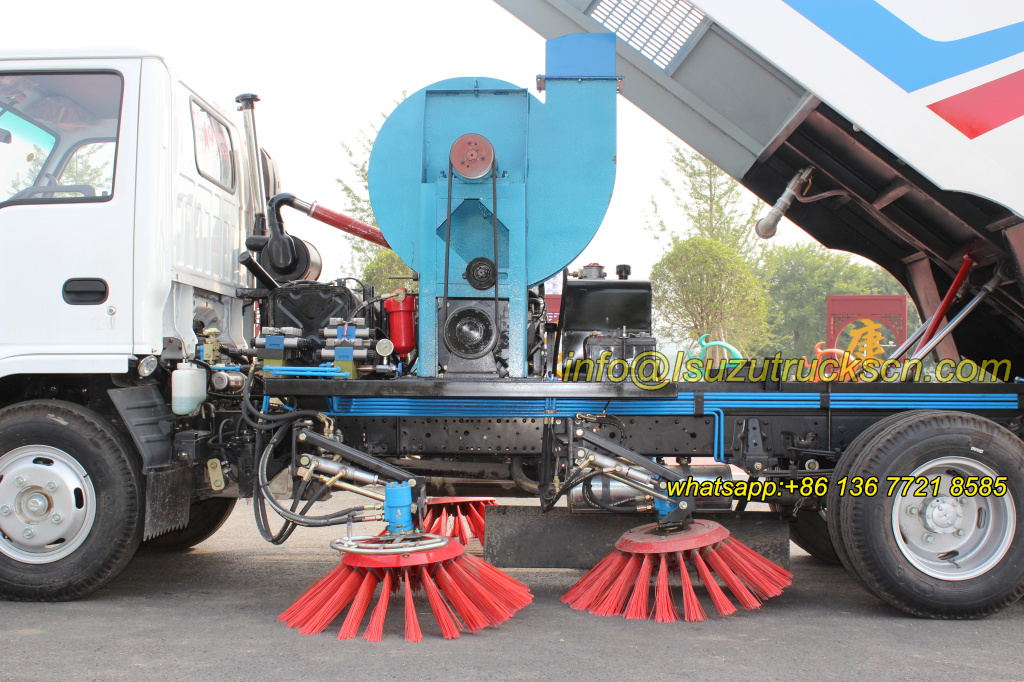

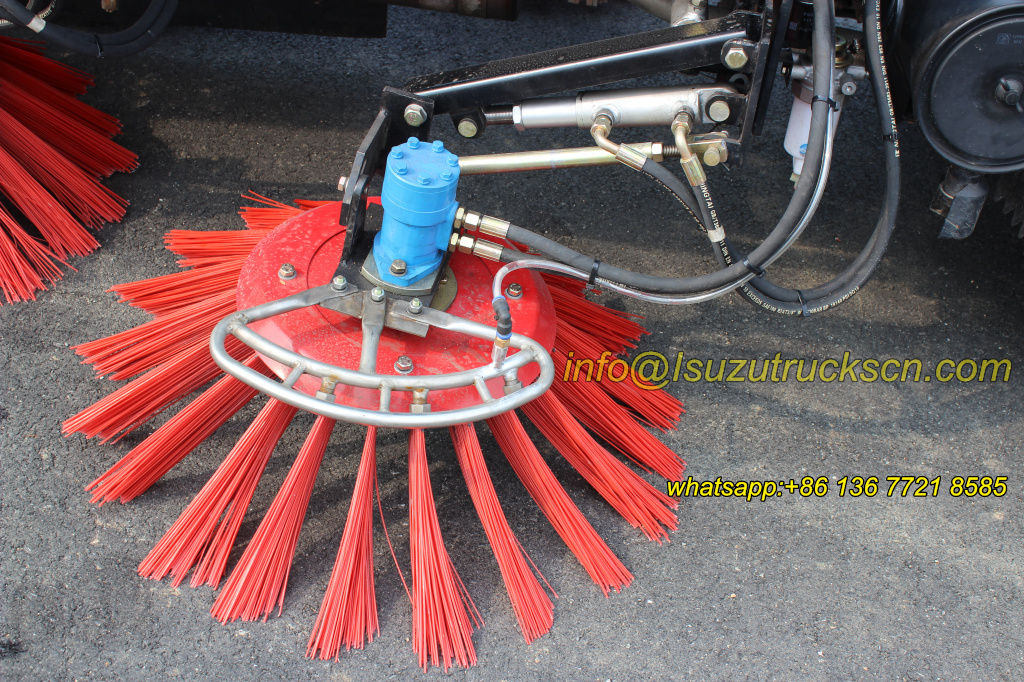

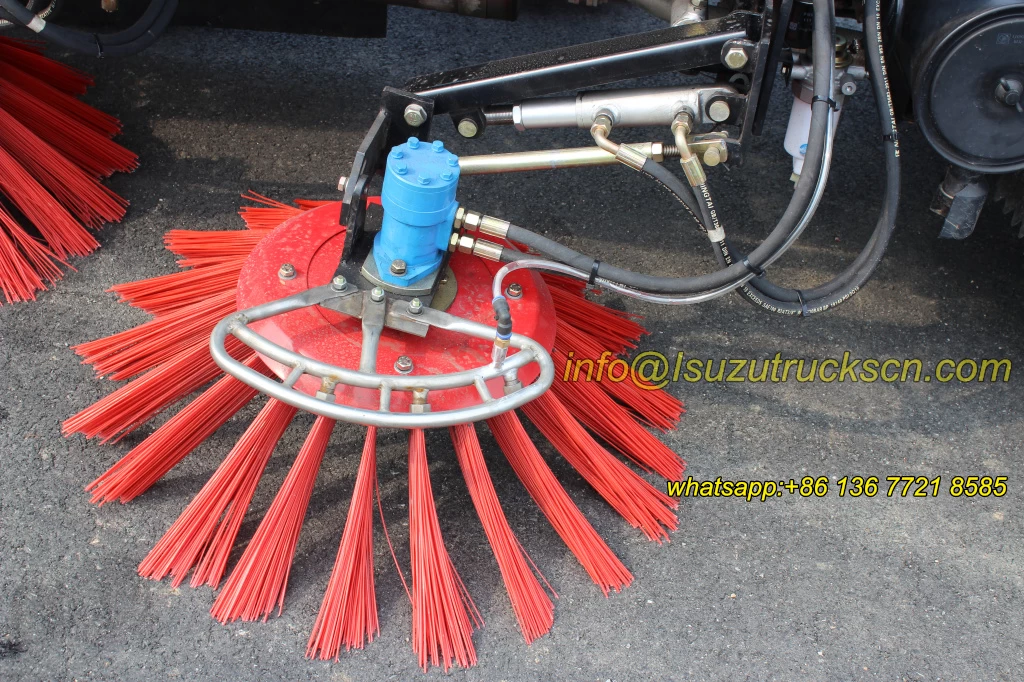

| Side brush (80mm) |
|

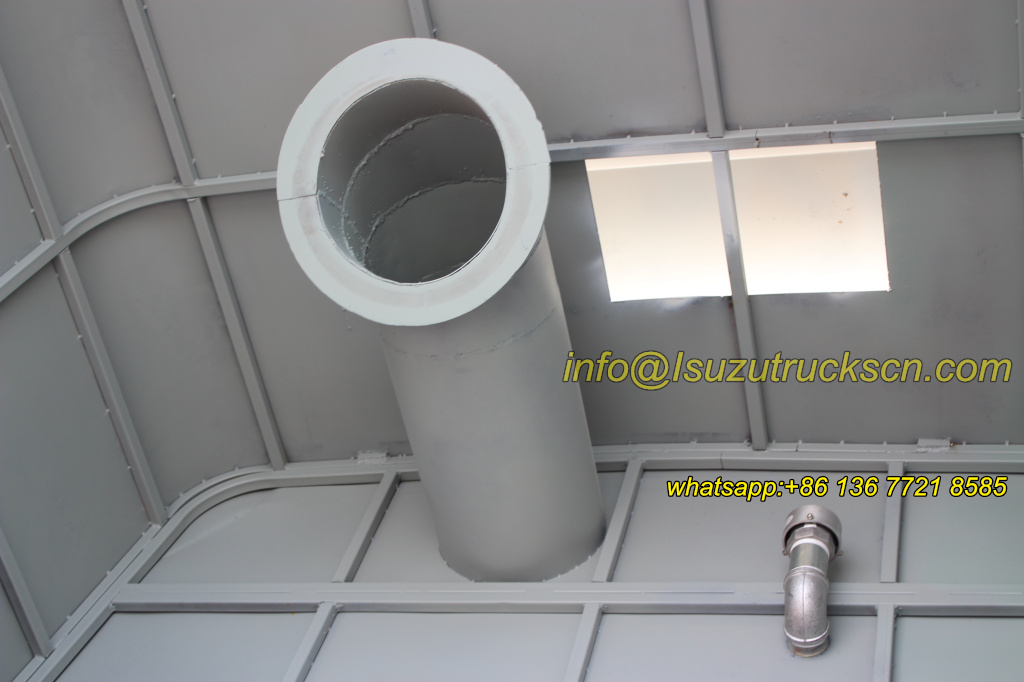

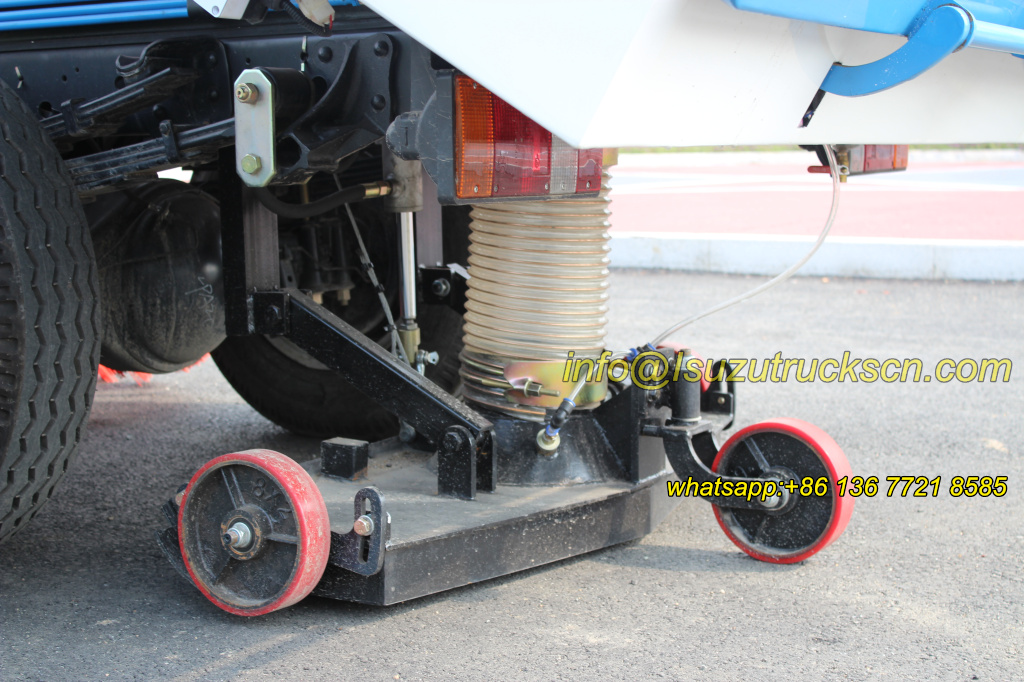

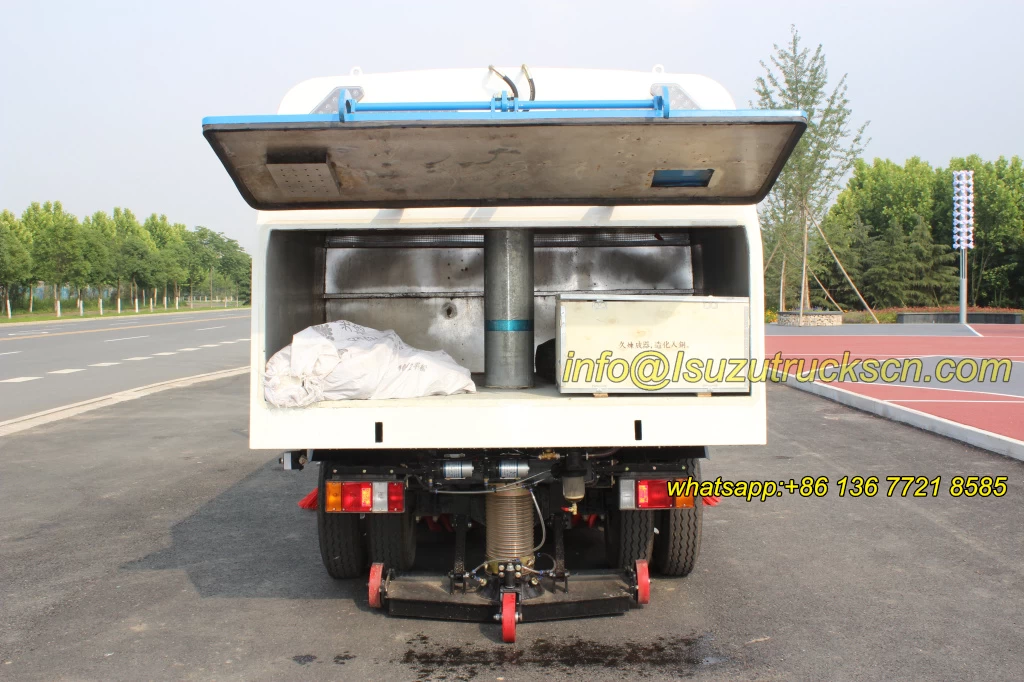

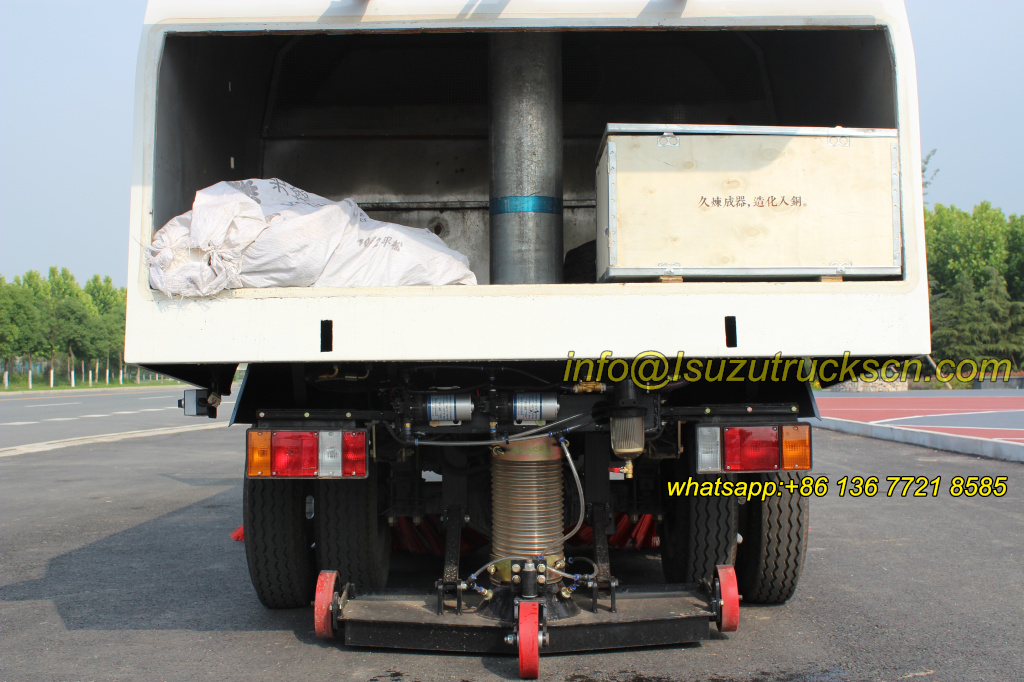

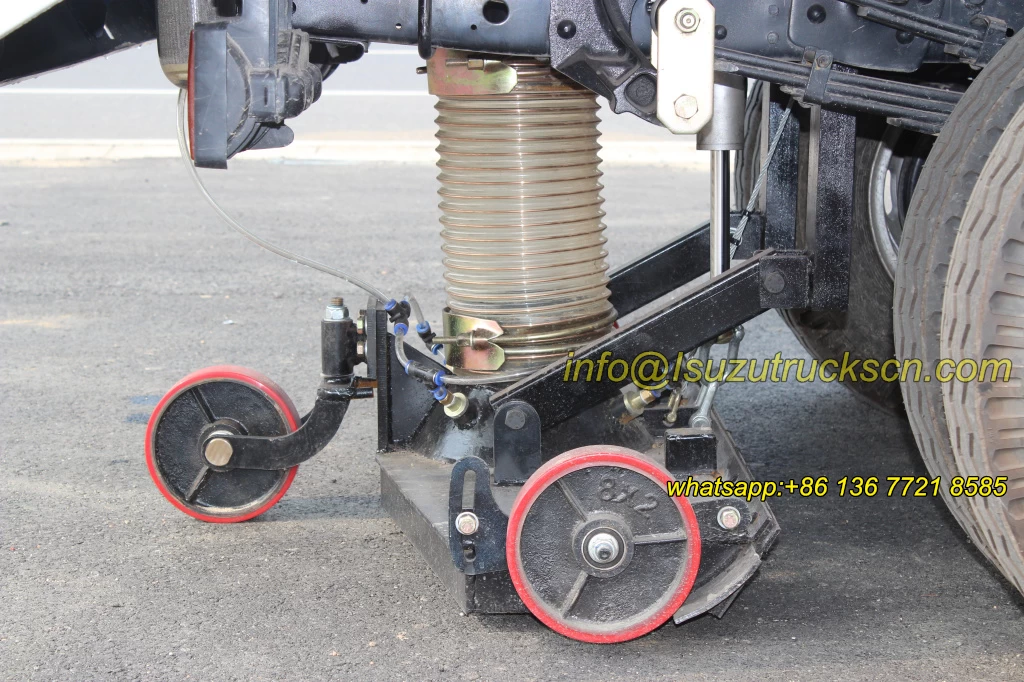

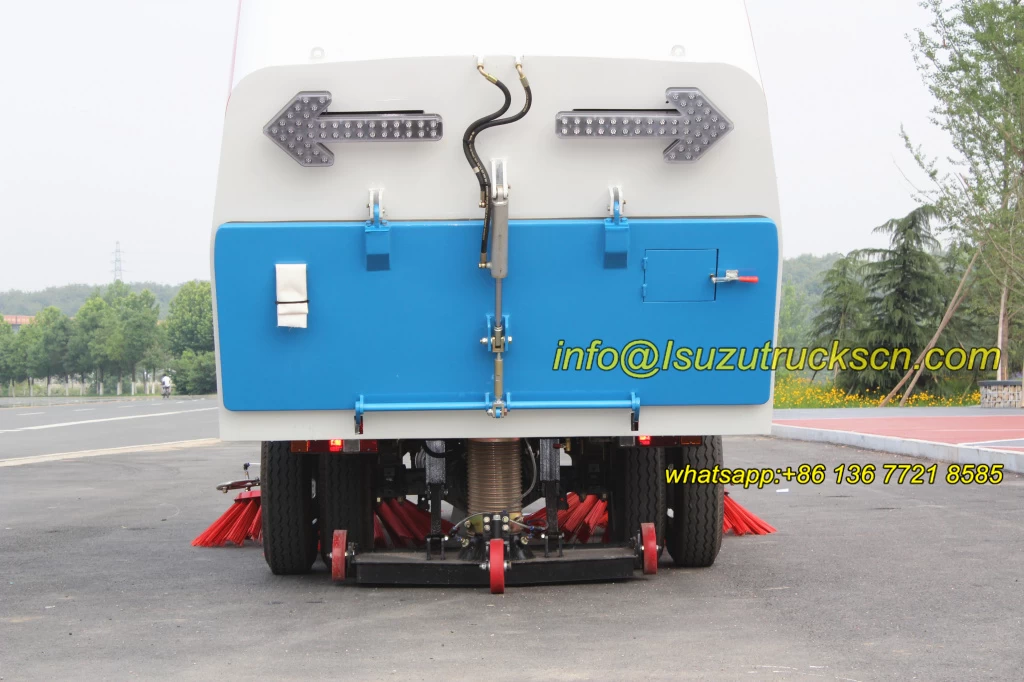

Suction port |

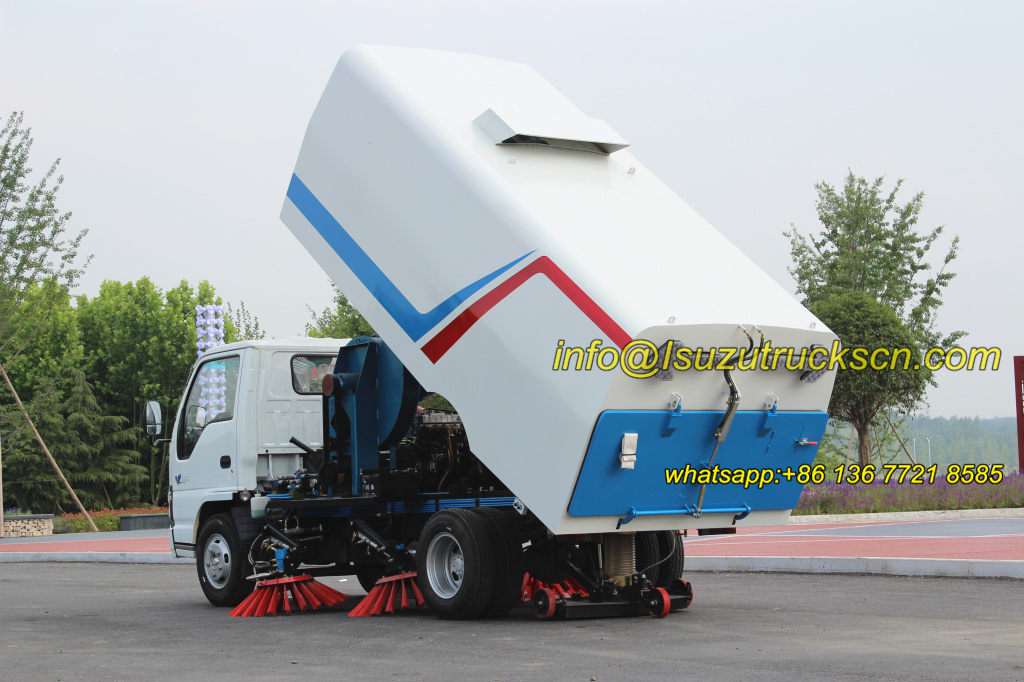

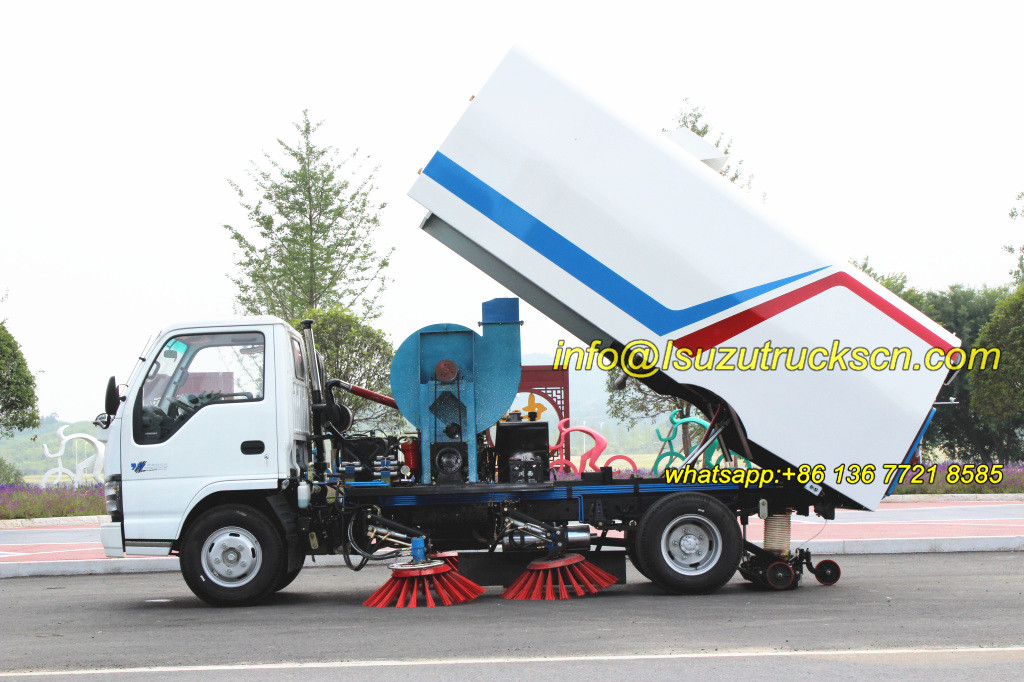

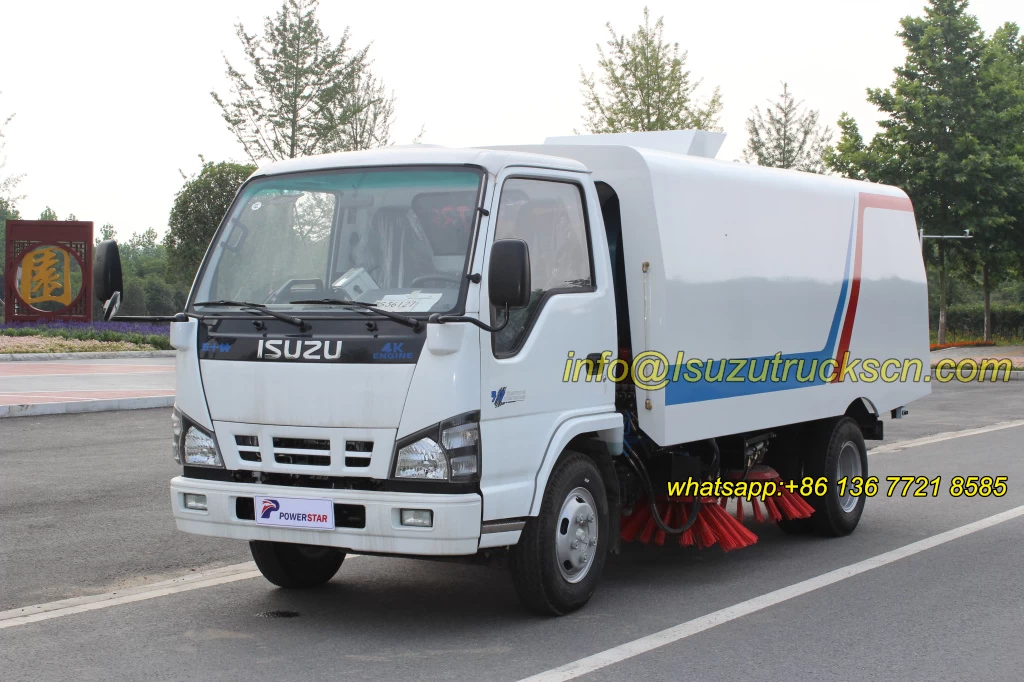

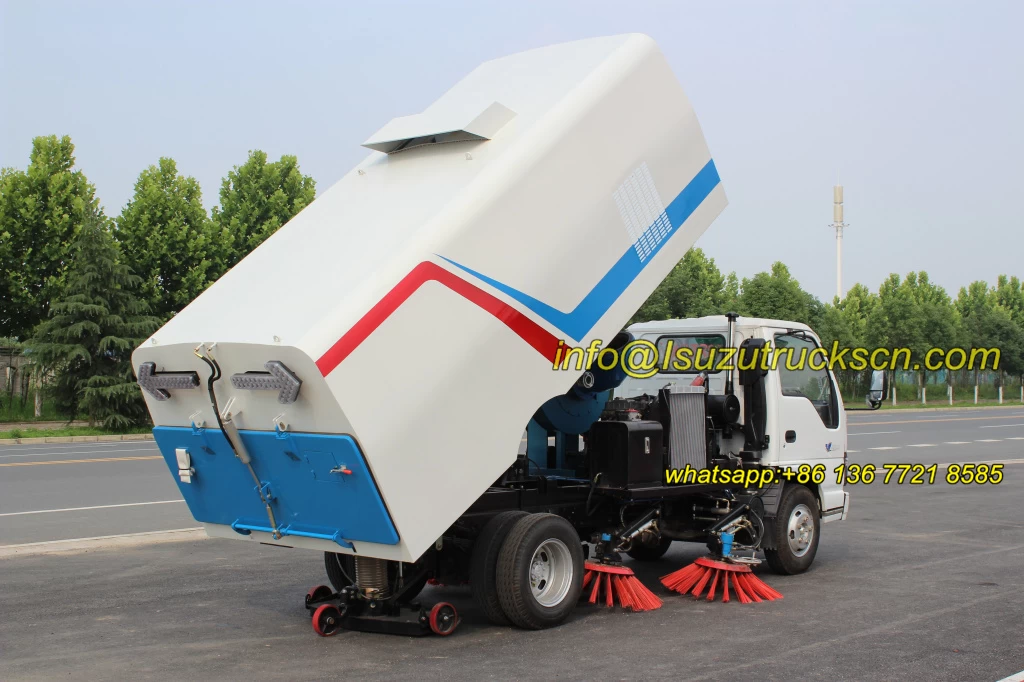

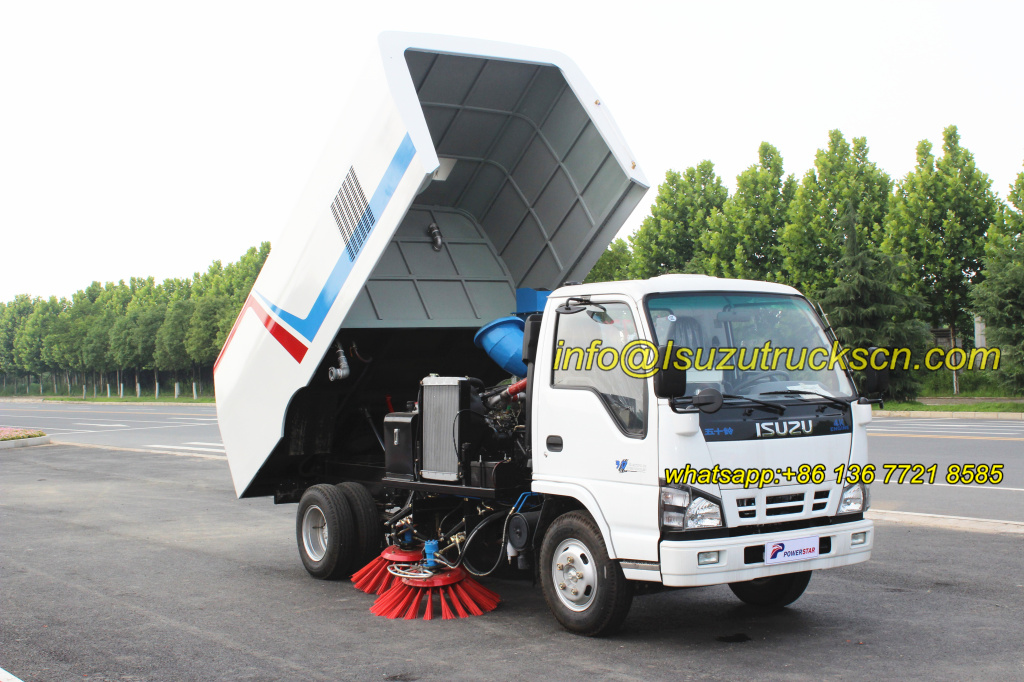

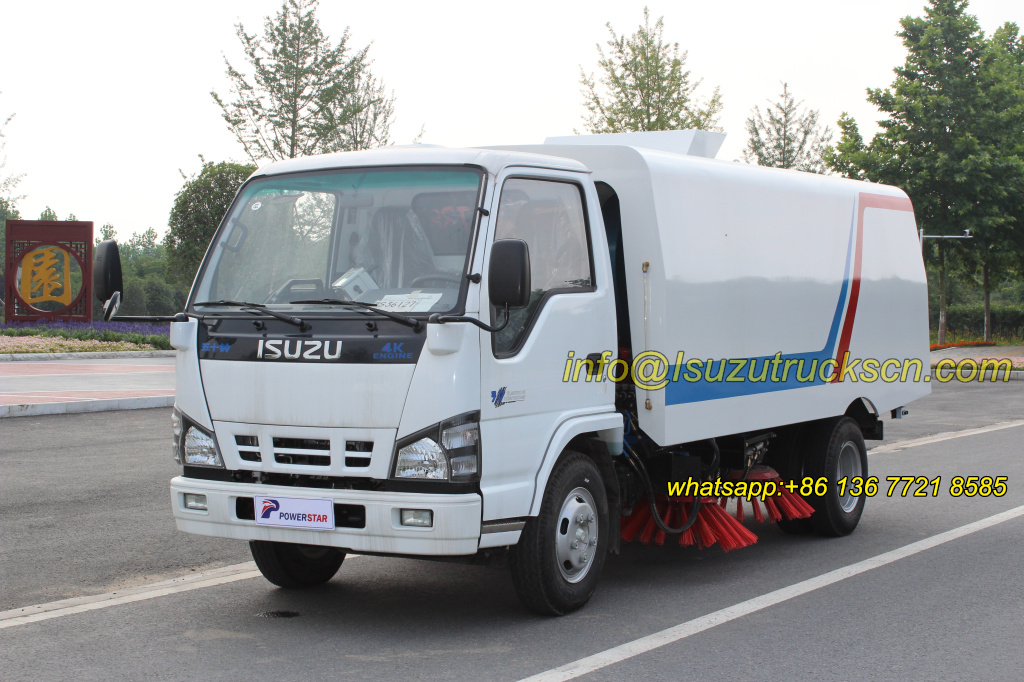

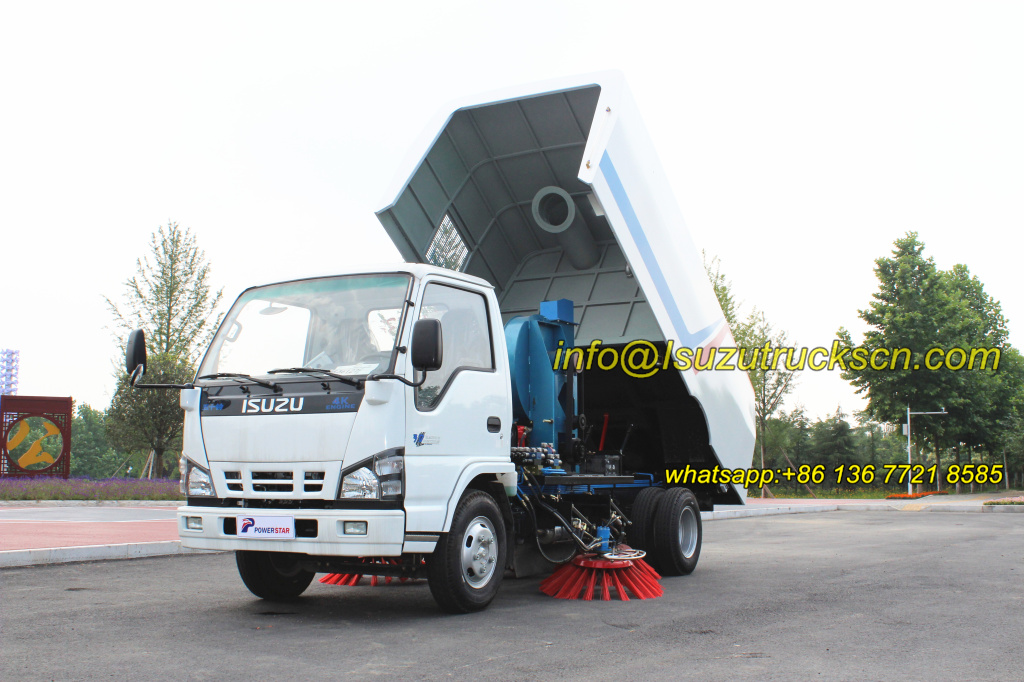

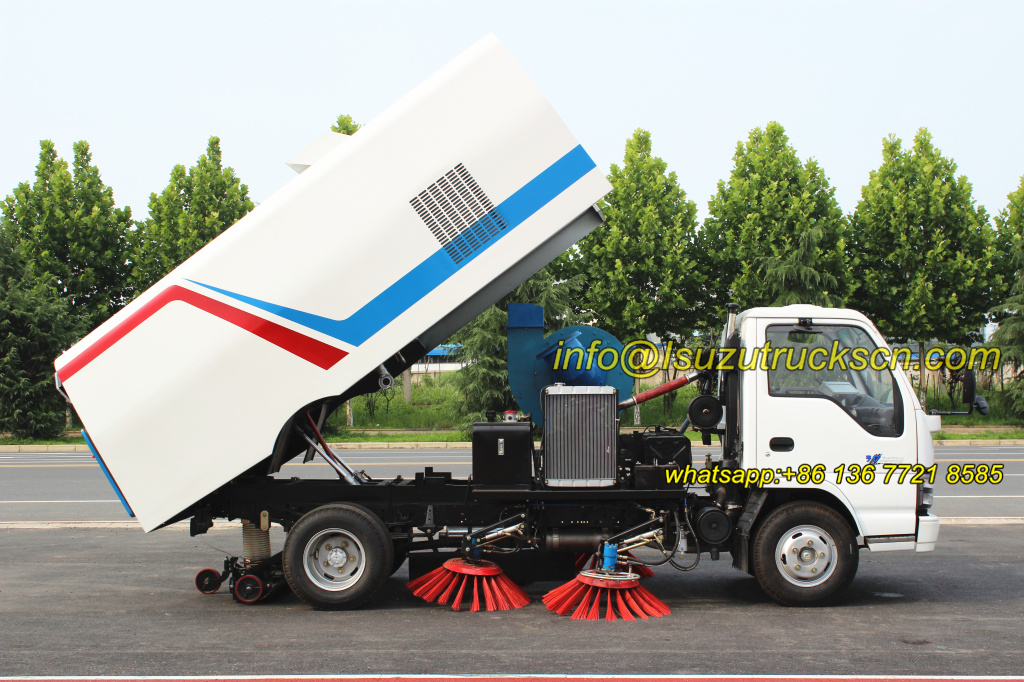

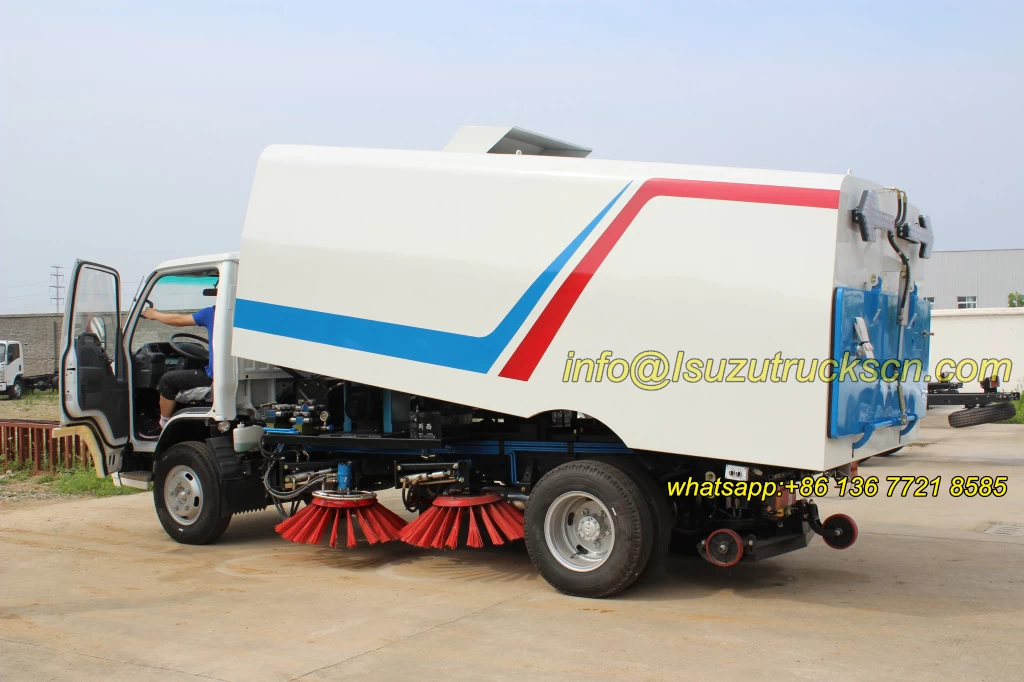

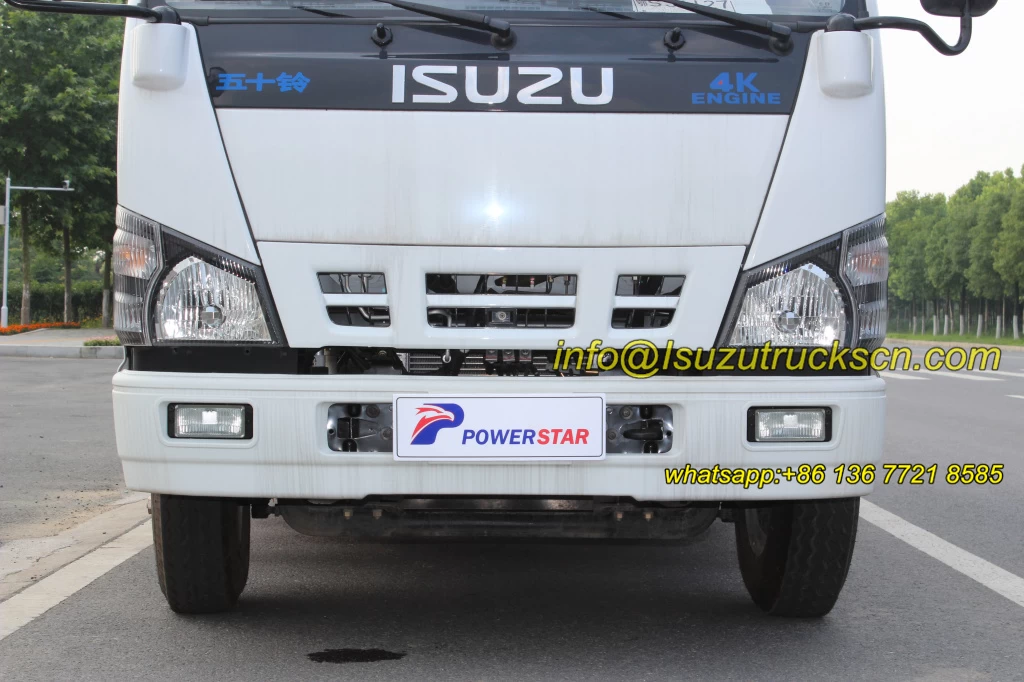

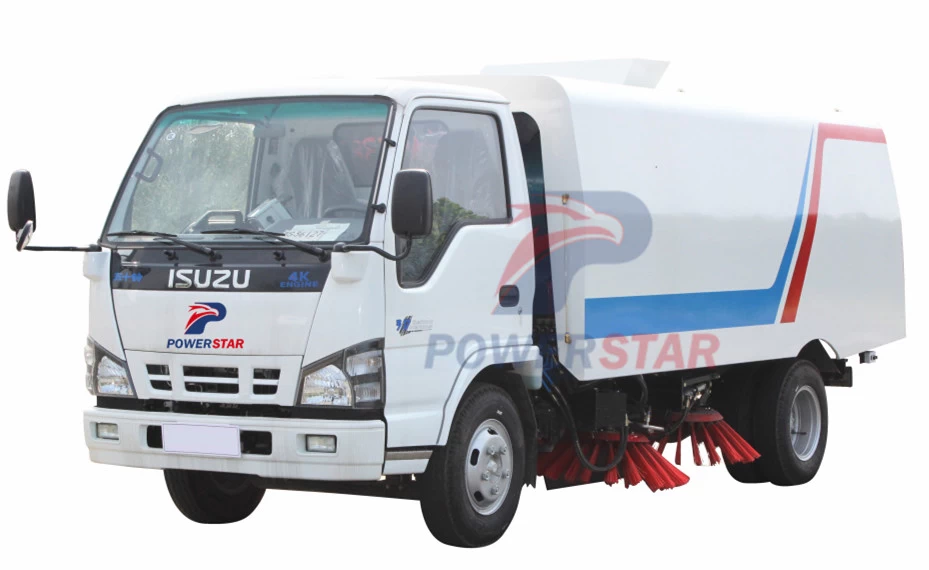

Overview of the street sweeper truck Isuzu

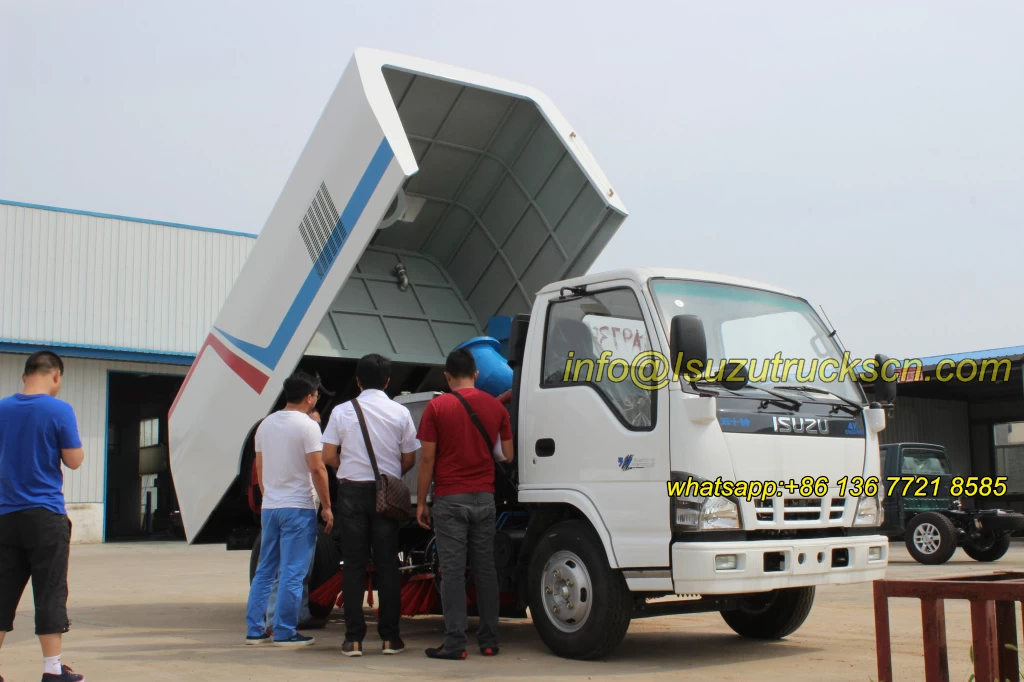

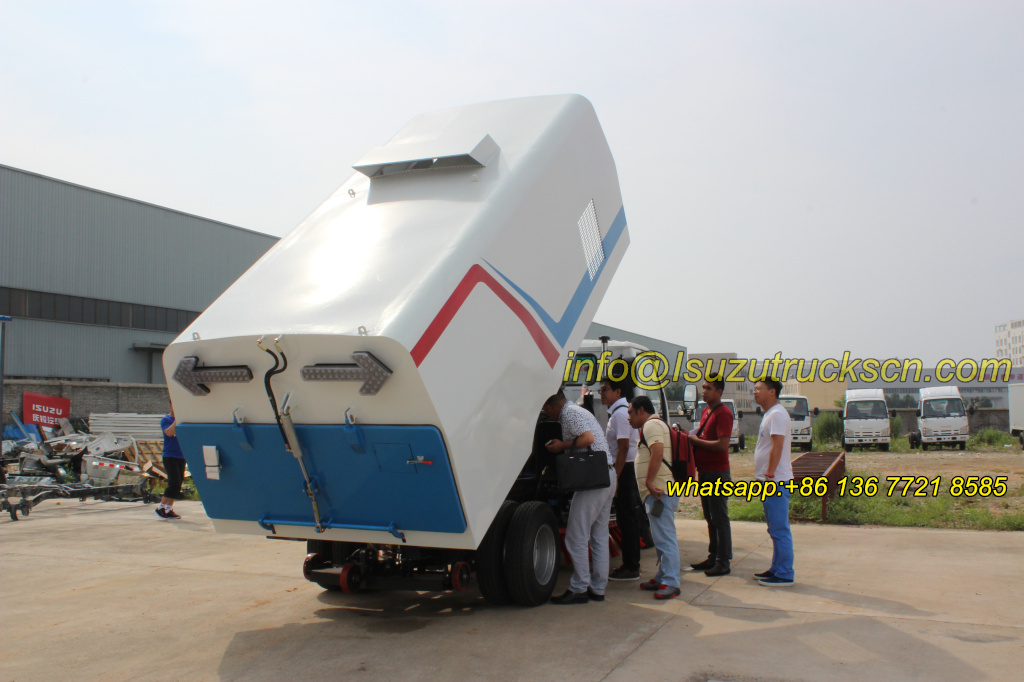

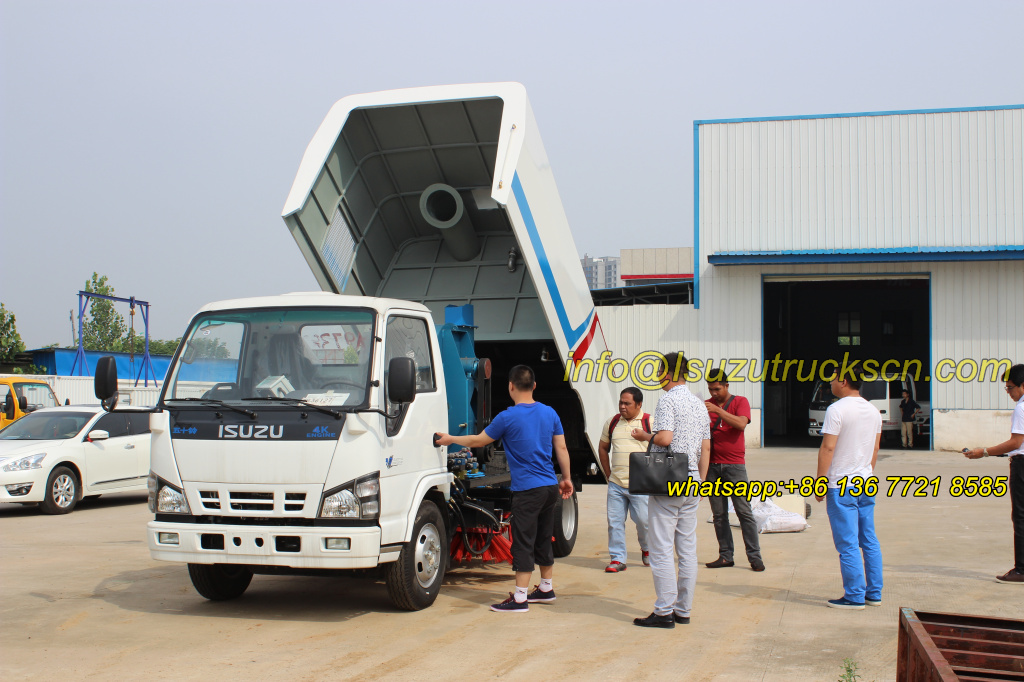

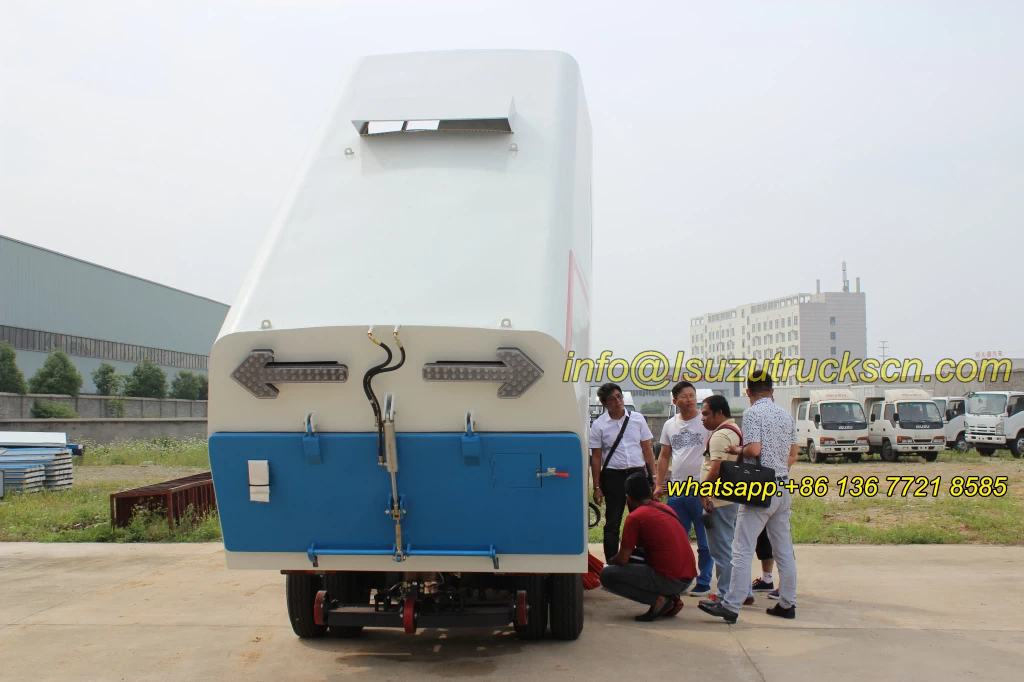

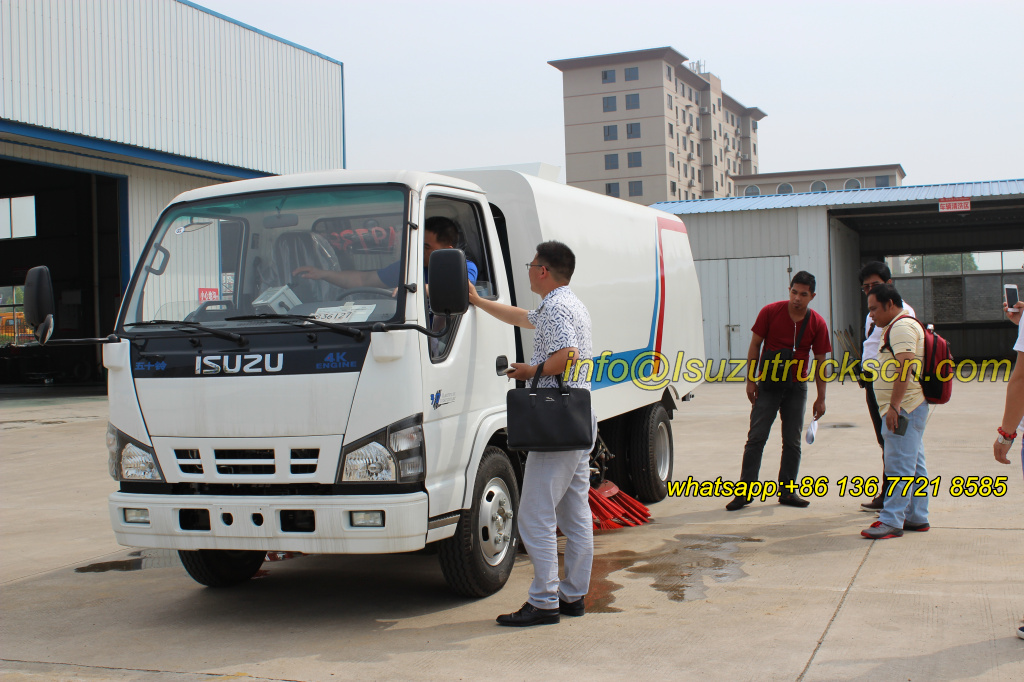

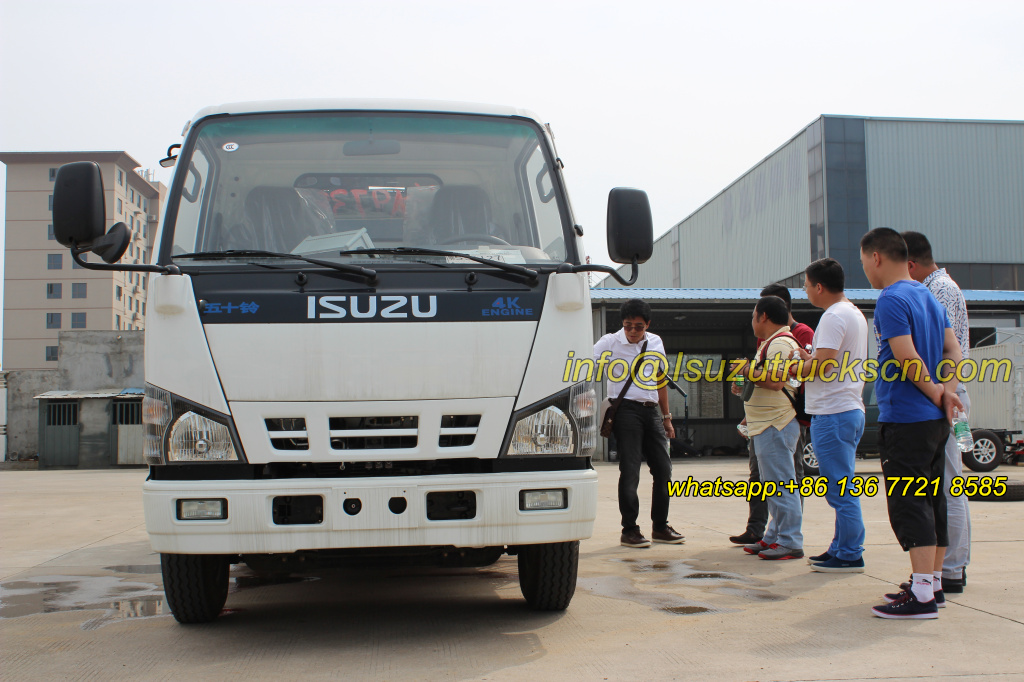

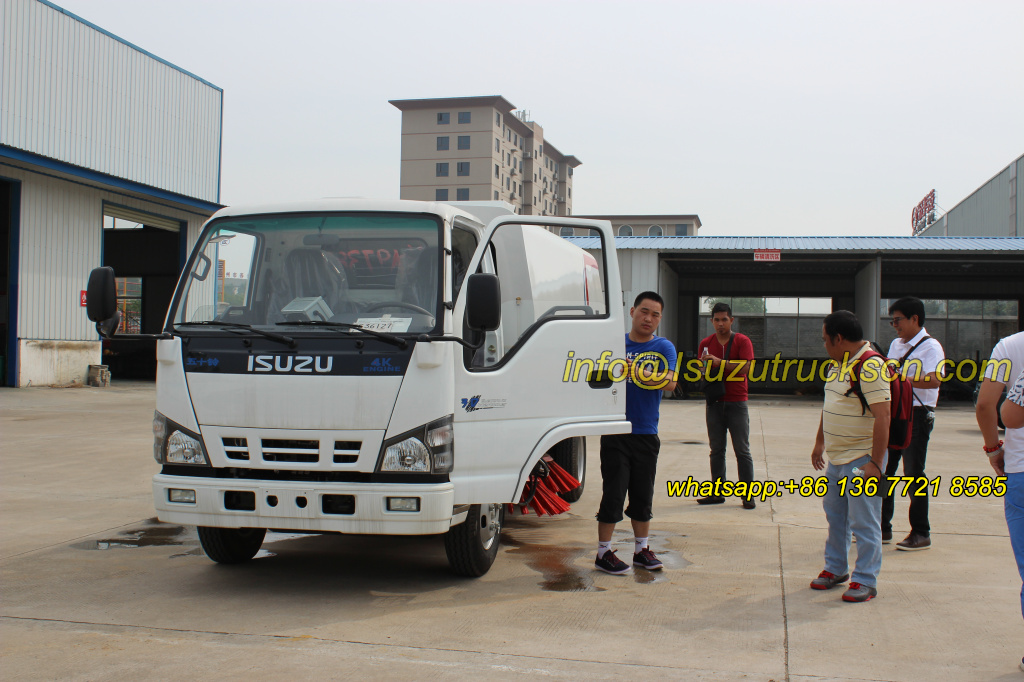

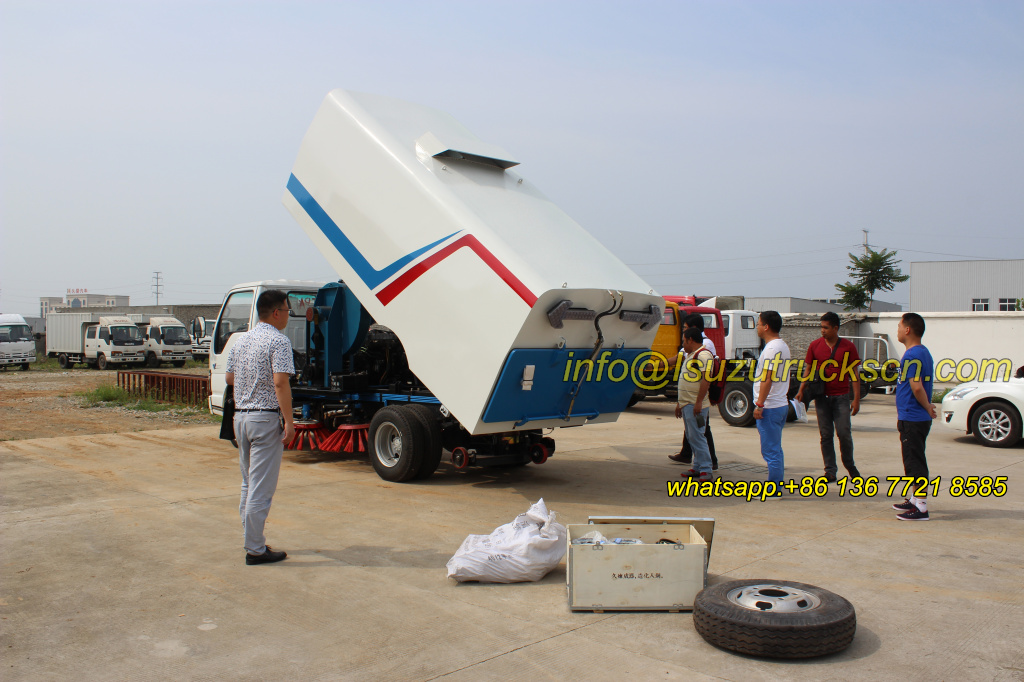

Customer inspection and test the Isuzu street sweeper truck:

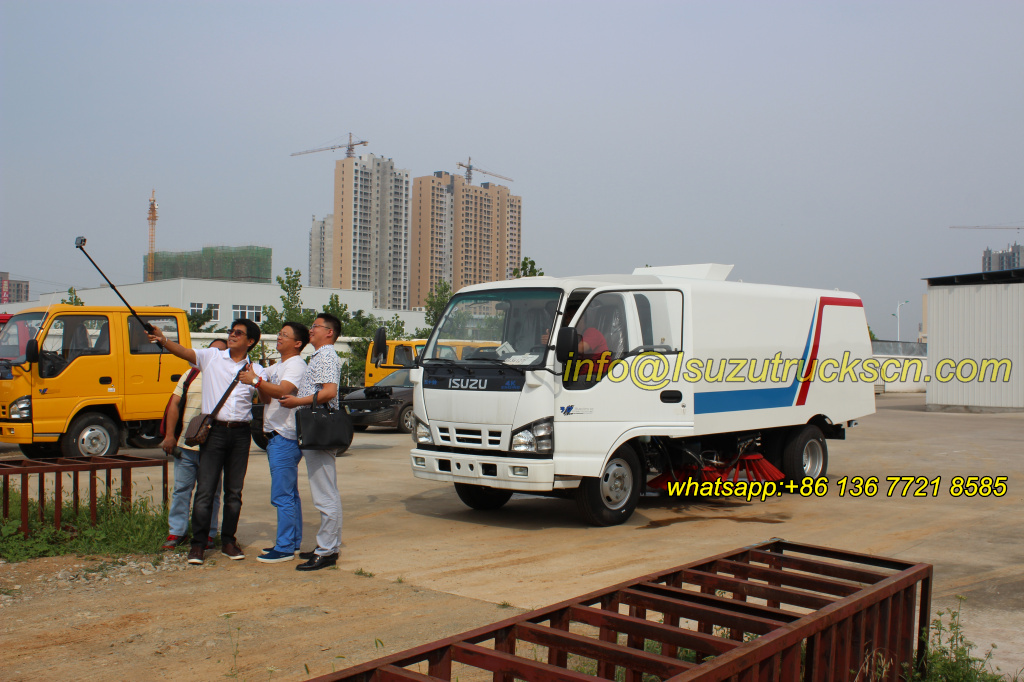

Custom test the street sweeper truck Isuzu
Custom test the street sweeper truck Isuzu
Custom test the street sweeper truck Isuzu
Custom test the street sweeper truck Isuzu
Custom happy for the performance of the street sweeper truck Isuzu
Watch Street sweeper truck on YOUTUBE.
