Stringer Stair for Ring Lock System Scaffolding

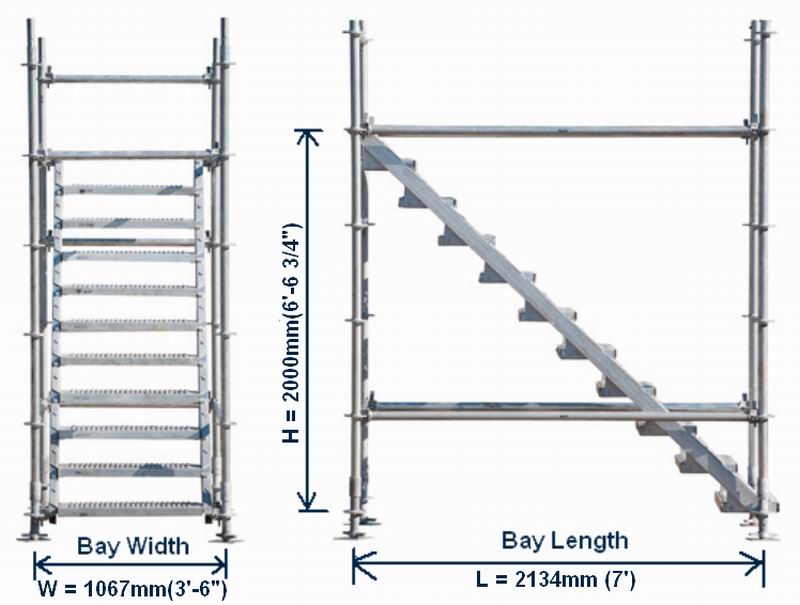

Stringer Stair is a popular stairway for system scaffolding in American market. It is set for 7' scaffold bay length, 6'7" high rising and for 3'6" wide access. The stair stringers and treads can be seperated. It can help to reduce job difficulty of when installing or dismantling the stair. Also it is much more convenient for material storage and transportation.

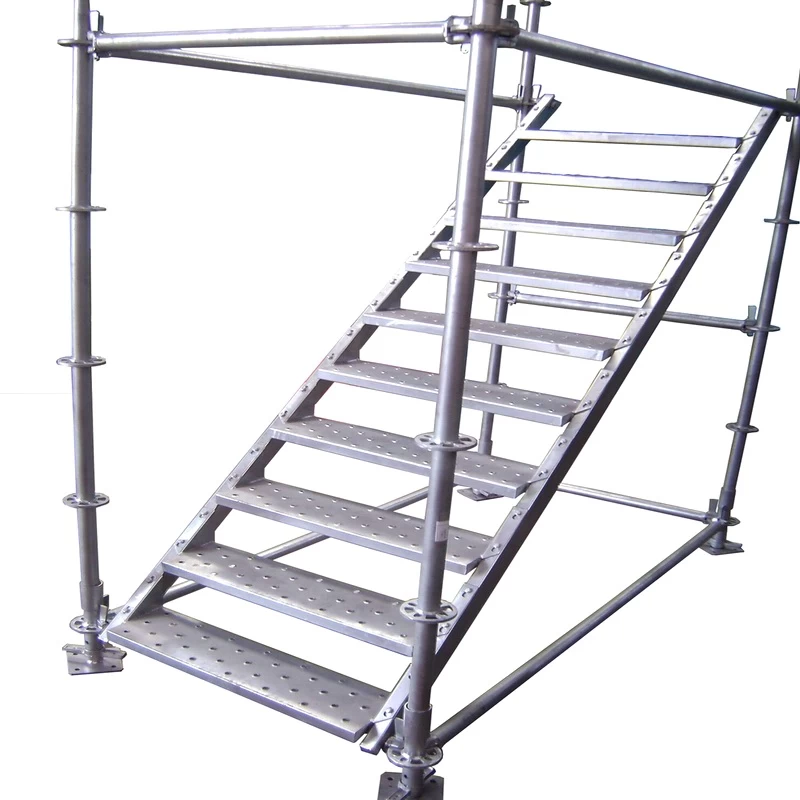

Ring Lock Scaffolding Stringer Stair
Product Details:
| Code | Description | Material | Size | Weight(kg) | Weight(lbs) |
| RS.ST.213 | 7' Stringer Stair set | 8# channel steel stringer, stair tread t=2.0mm; Q235 | W: 1067mm; L: 2134mm; H: 2000mm | 134.25 | 296 |
| RS.ST.STR | 7' Stringer | L: 2134mm; H: 2000mm | 25.56 | 56.35 | |
| RS.ST.TRD | 32" Tread | W: 813mm | 8.31 | 18.33 |
Features:

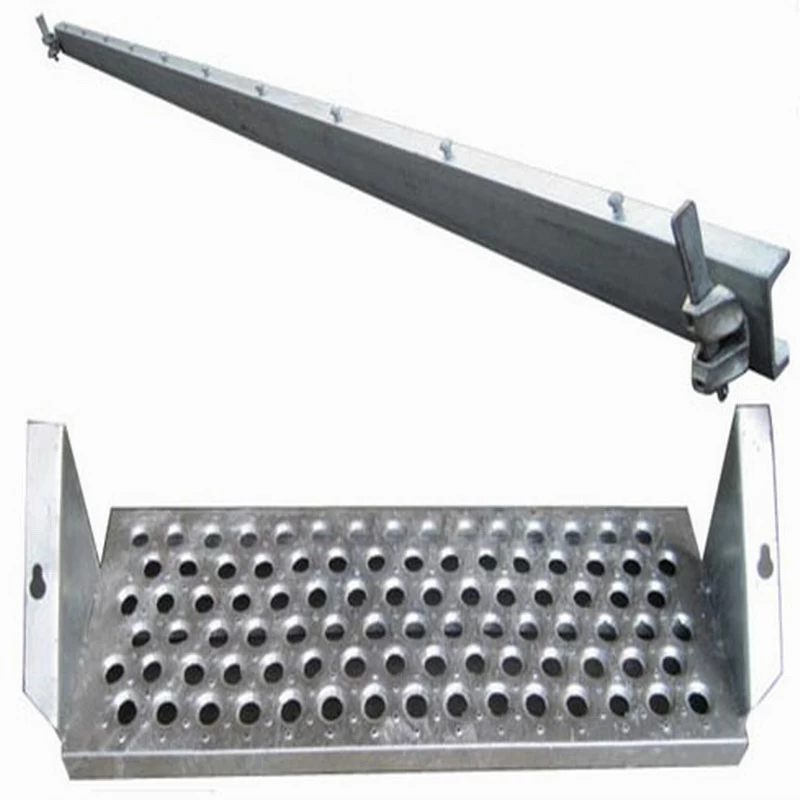

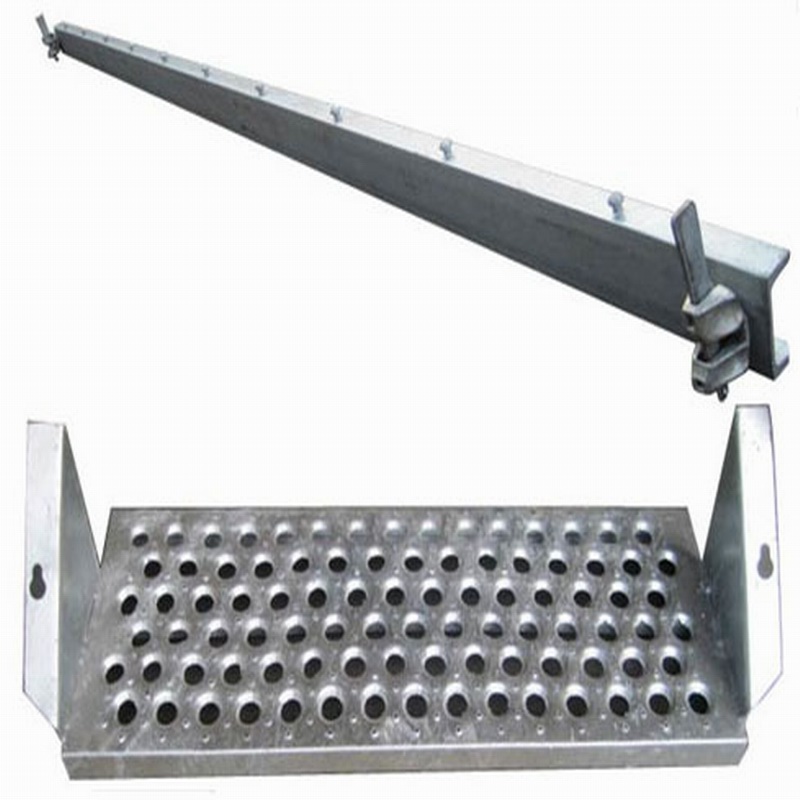

Stringer: 8# channel steel is recommanded. RHS tube 80x40x2mm is also available.
Tread: 2.0mm/1.8mm thickness is available.
Steel Grade: Q235
Ledger Fitting: Casting Steel
Ledger Wedge Pin: 6mm
Suface Finishing: Hot Dip Galvanized; Powder Coated, Painted
Quality Standard: EN12810, ANSI A10.8
