Strong quality Head truck Beiben 1830 NG80 trailer head truck

Beiben 1830 offroad camion tracteur, best NG80B prime mover for Africa customer, WEICHAI WP10.300N engine, FAST 9-shift manual gearbox for easy operation, JOST 90# single direction towing seat with towing capacity over 50T



Beiben Tractor Head Truck, also called tractor head, tractor head truck, heavy haul tractor, tractor truck, tractor unit, tractor unit truck, mobile tractor unit, mobile tractor unit, road tractor, semi tractor, semi truck tractor, tractor semi truck, prime mover,etc. which is a specialized towing engine that provides motive power for hauling a towed or trailered load.



Algeria Beiben 1830 prime mover supplier



Beiben 1830 prime mover



Beiben 1829, 1830 semitrailer tractor truck also can be called Beiben 4*2 tractors, north benz 1830 towing truck and beiben offroad tractor head trucks, provided by authorized beiben heavy truck company supplier CEEC TRUCKS, which has plant which located in Hubei Suizhou, all beiben tractor trucks use Germany Mecedes Benz technology and heritage are manufactured to the highest international standards and the strictest military quality controls.



beiben tractor trucks manufacturer supplier



Algeria Customer Choose beiben 4*2 tractor head from supplier CEEC TRUCKS:

Beiben 4*2 Tractor chassis ensures perfect driving performance.
WEICHAI WP10.300N engine, super powerful; reliable performance.
Nice shape, rational structure
High strength fifth wheel coupling
Strong, durable, perfect performance
Prolonged service life



Beiben 1830 prime mover for sale



Beiben 1830 prime mover for sale



Similar Key Words: NG80 tractor, beiben 4*2 tractor head truck, beiben NG80B tractor unit truck, North Benz 4*2 mobile tractor unit, semi truck tractor, tractor semi truck, prime mover, towing truck

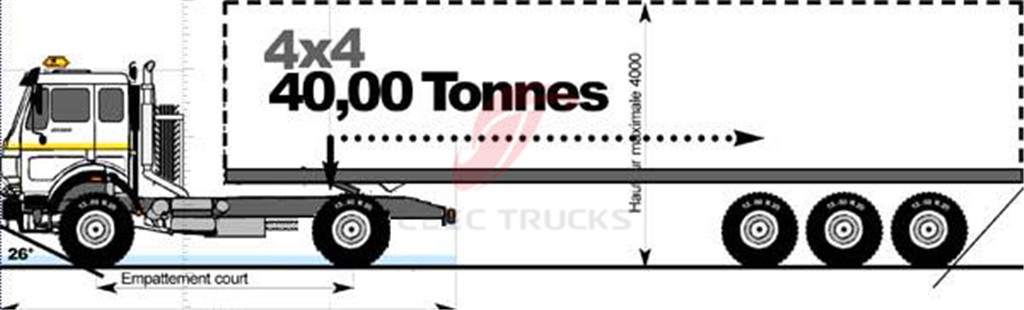

Beiben 1830 towing trucks benz technology 4*2 prime mover for Algeria

Dimension

5995*2495*3095mm

Approaching angle/Departure angle

16/40°

Overhang(front/rear)

1410/1085mm

Wheel base

3500mm

Max speed

110km/h

Curb weight

5800kg

Max towing weight

35870kg

Max loading on fifth wheel, Permitted(kg)

12070kg

Slope climbing capability

Max.40%

Engine

Model

WP10.340E32,water-cooled,4 Strokes 6 cylinders in line,turbocharged, directly injection

Displacement

9.726L/Diesel

Stroke

126/130mm

Max. power

220/2200 (kw/rpm)

Max.torque

1160/1200-1600(Nm/rpm)

Emission stantard

Euro

Fuel tanker capacity

400L

Clutch

#420, Single dry frictional disc,Hydraulic boosting

Gearbox

9JS119B, mechanism,9 forward gears,1 reverse gear, manual operated

Gear ratio of gear box

11.02/6.55/4.64/3.36/2.71/1.95/1.38/1.00/0.81 R: 11.52

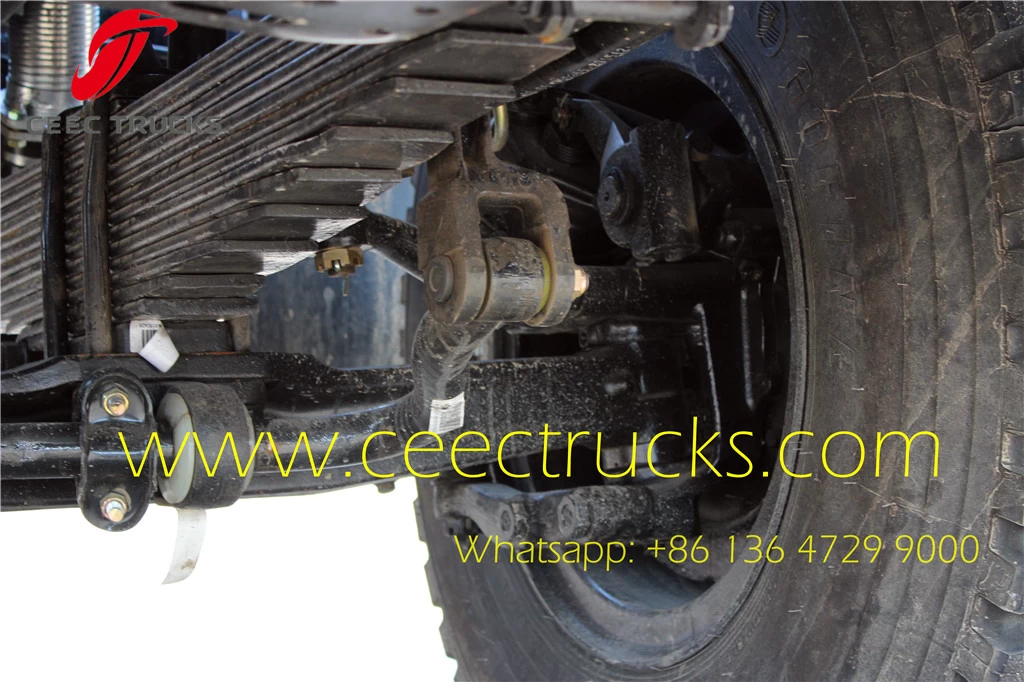

Suspension system

Front

Non-free standing leaf spring,telescopic shock absorber with stablizer bar suspension , 9pcs

Rear

Non-free standing stablization spring, balance suspension system, 9+6pcs

Brake system

Service brake

Brake gap can be adjusted automatically, double circulation air brake system

Assistant brake

Engine exhaust brake

Park brake

Potential springs pressing on middle and rear wheels

Steering system

D50,whole circulation in ball, hydraulic booster

Frame

Fish belly shape, variable width, variable sections

Front axle (Mercedes Technology)

Double-shoe pneumatic brake, non-driving steering axle

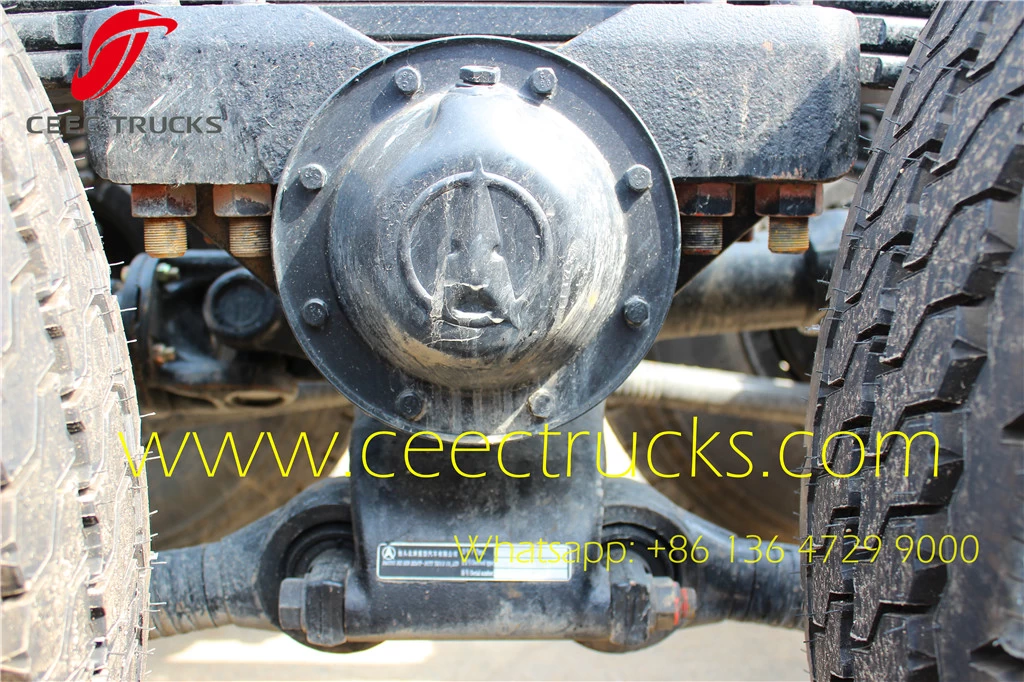

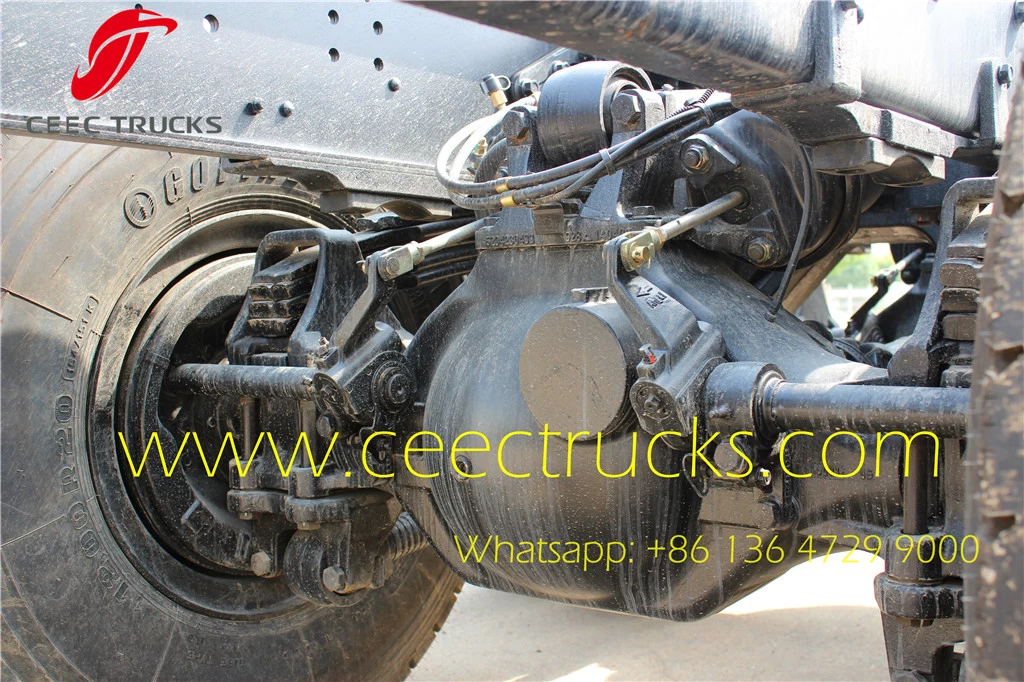

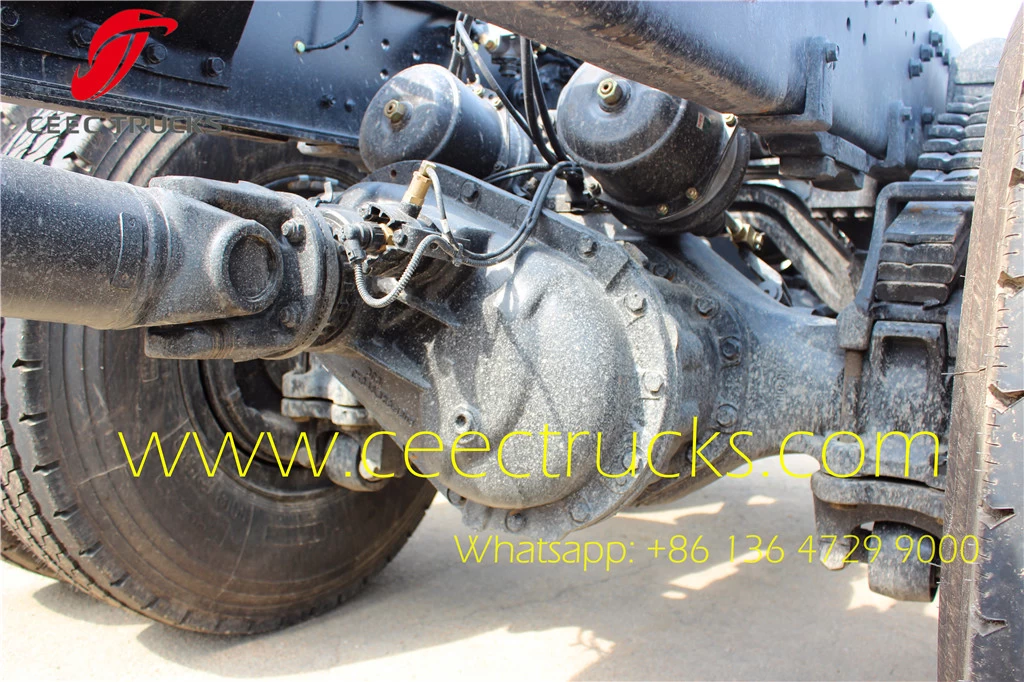

Middle and Rear axle (Mercedes Technology)

Double-shoe pneumatic brake, ductile casting casing, with hub redactor, double reduction driving axle

Tyre

315/80R22.5

Electrical system

Battery

2X12V/135Ah

Generator

28V-35A

Starter

5.4Kw/24V

Cabin

NG80B Long-Flat roof cabin with single sleeper
Full steel skeleton structure, covered with double layer steel plate;
Can be tipped forwardly;
High back seat for driver;Electric lifting window ;
With inner A/C

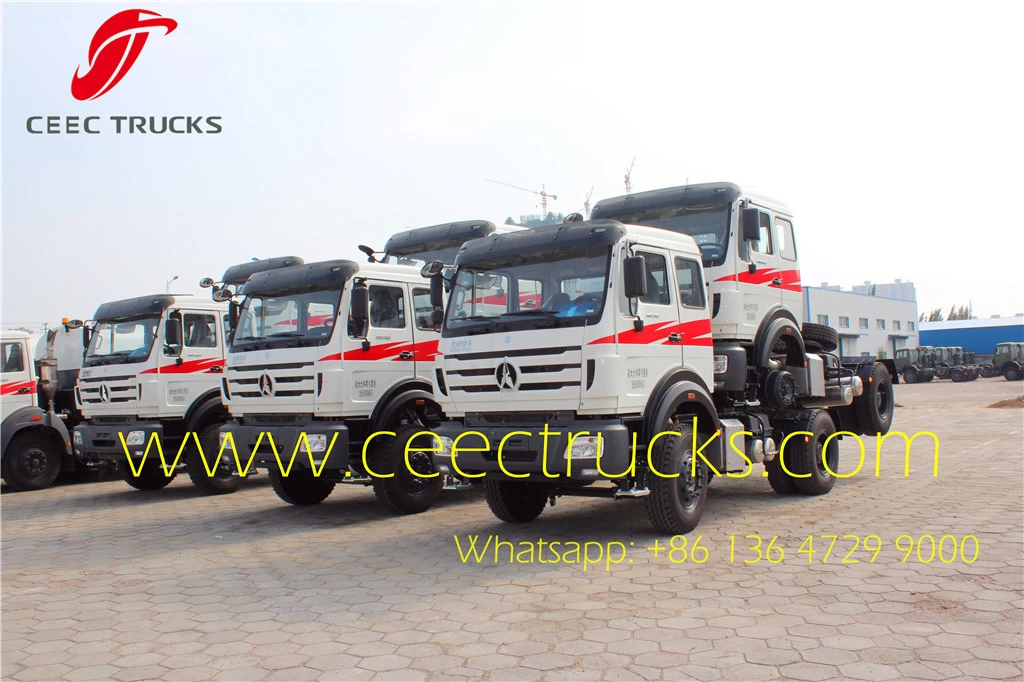

Beiben 1830 prime mover for sale

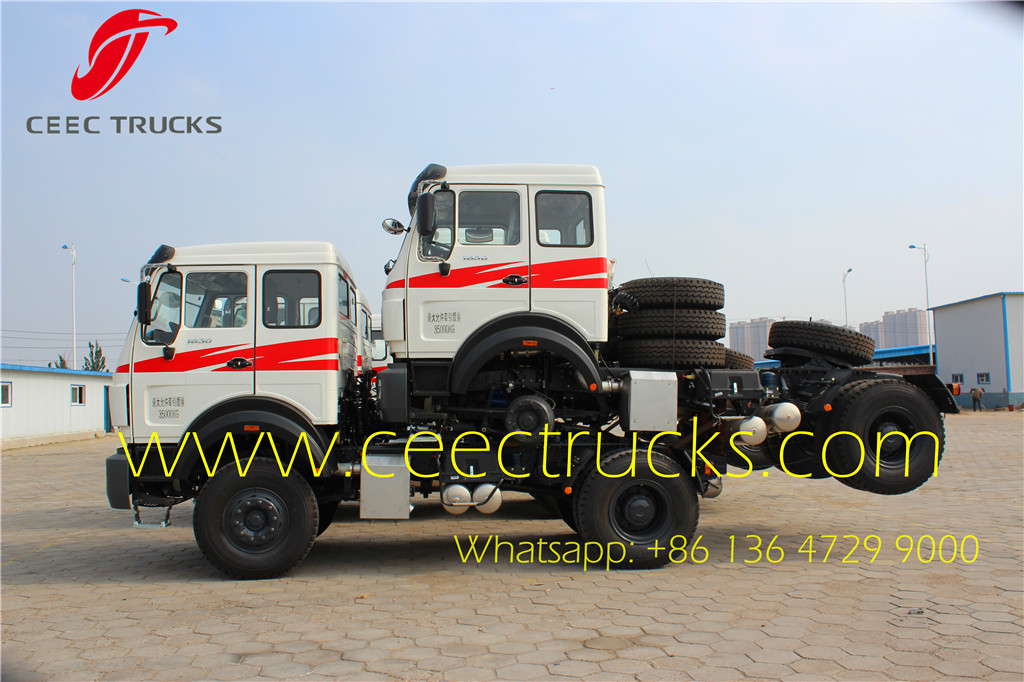

Beiben 1830 prime mover for sale    Beiben 1830 prime mover for sale

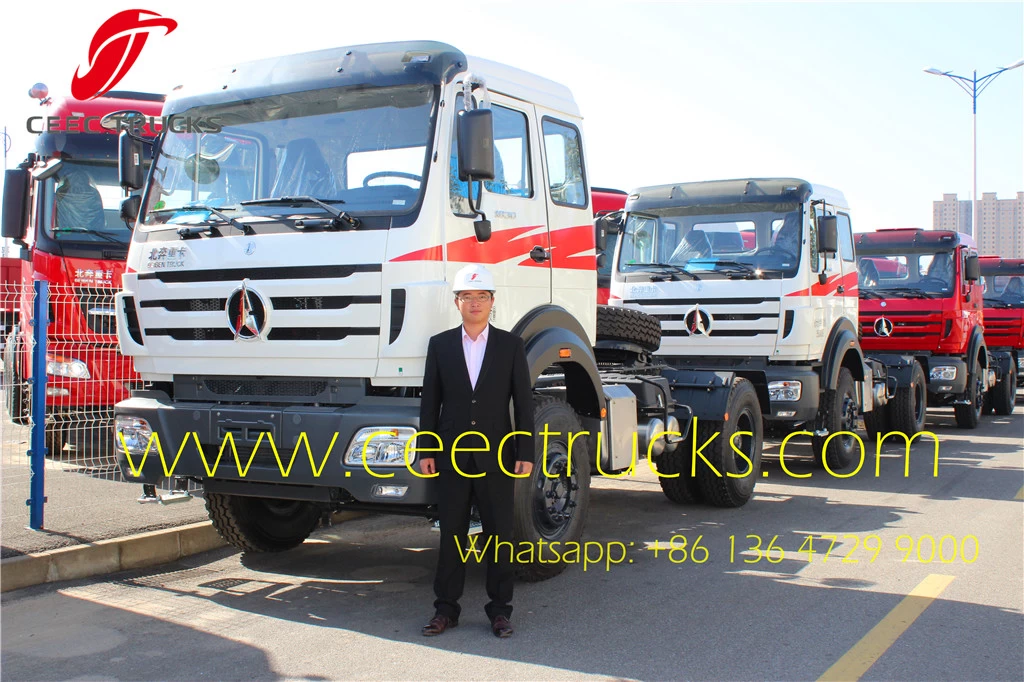

Beiben 1830 prime mover for sale

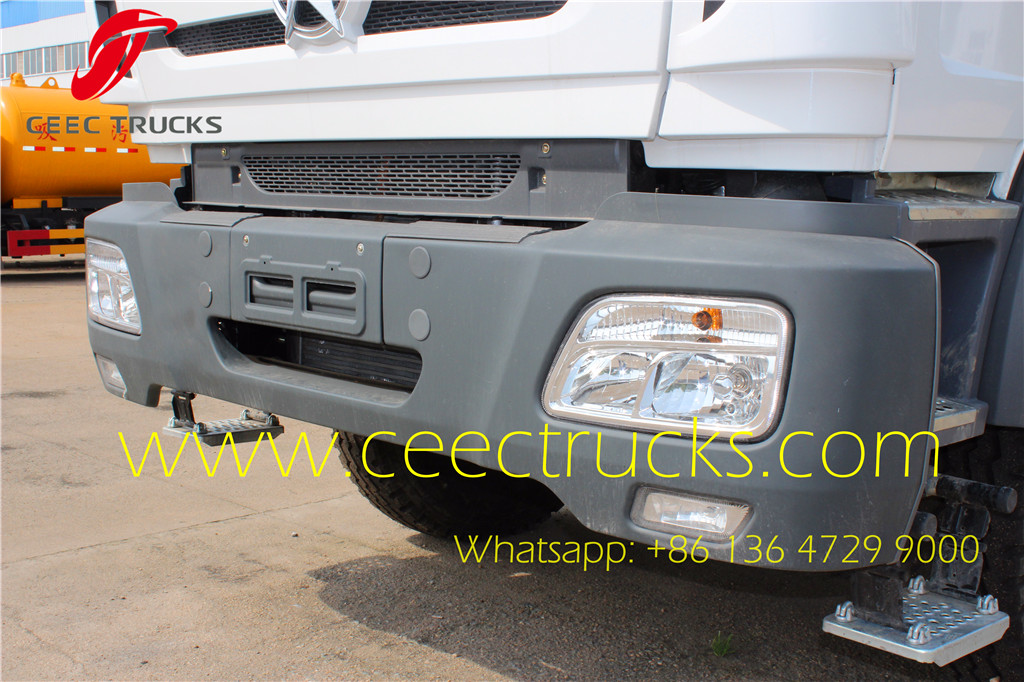

Beiben 1830 prime mover for sale

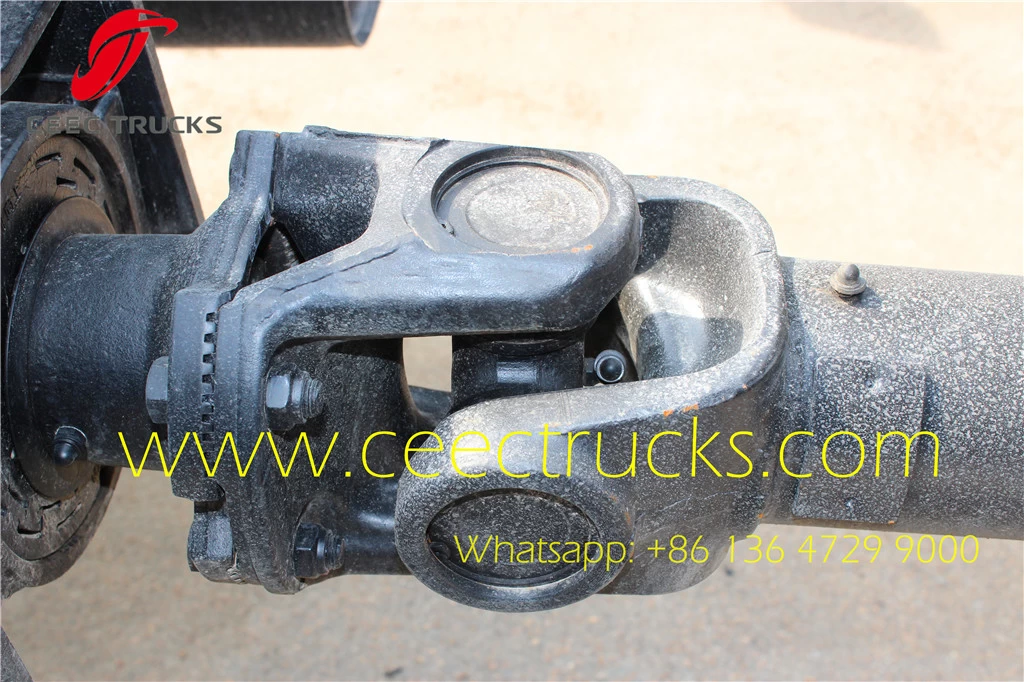

Beiben 1830 prime mover for sale    Beiben 1830 prime mover for sale

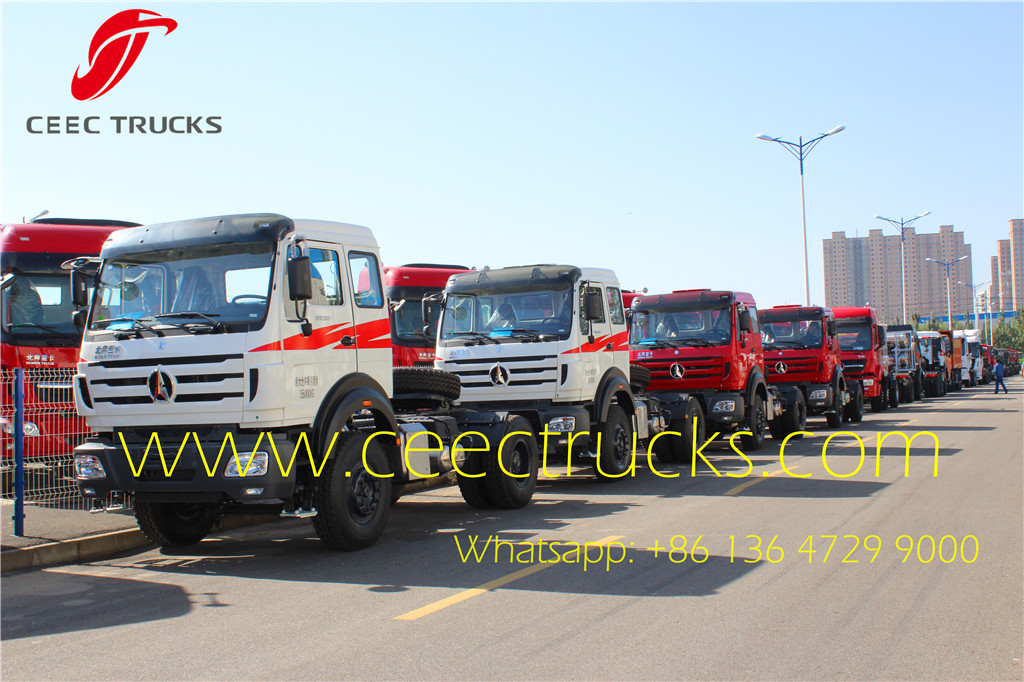

Beiben 1830 prime mover for sale    Beiben 1830 prime mover for sale
