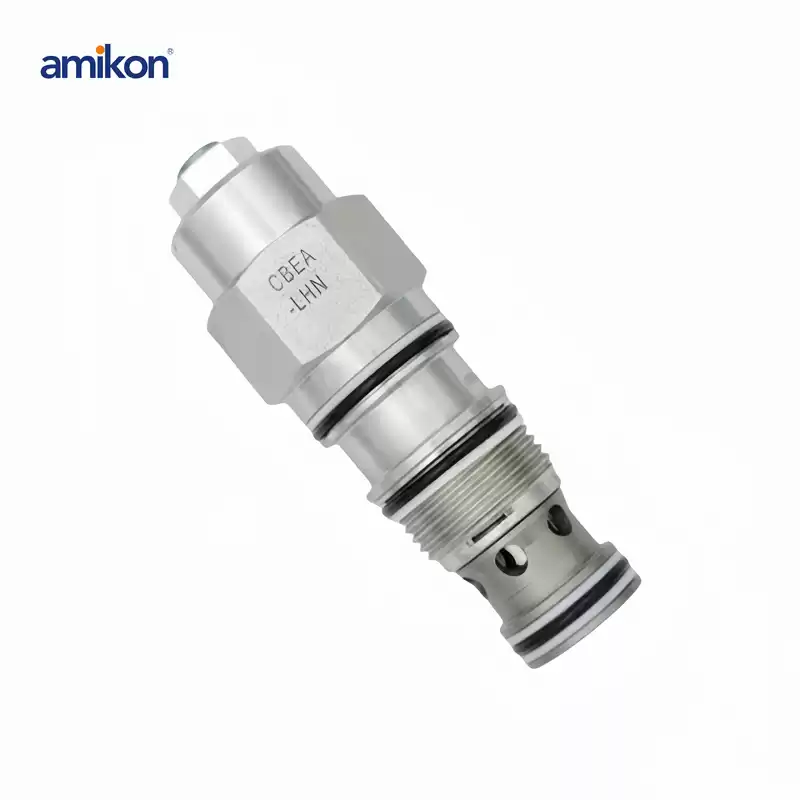

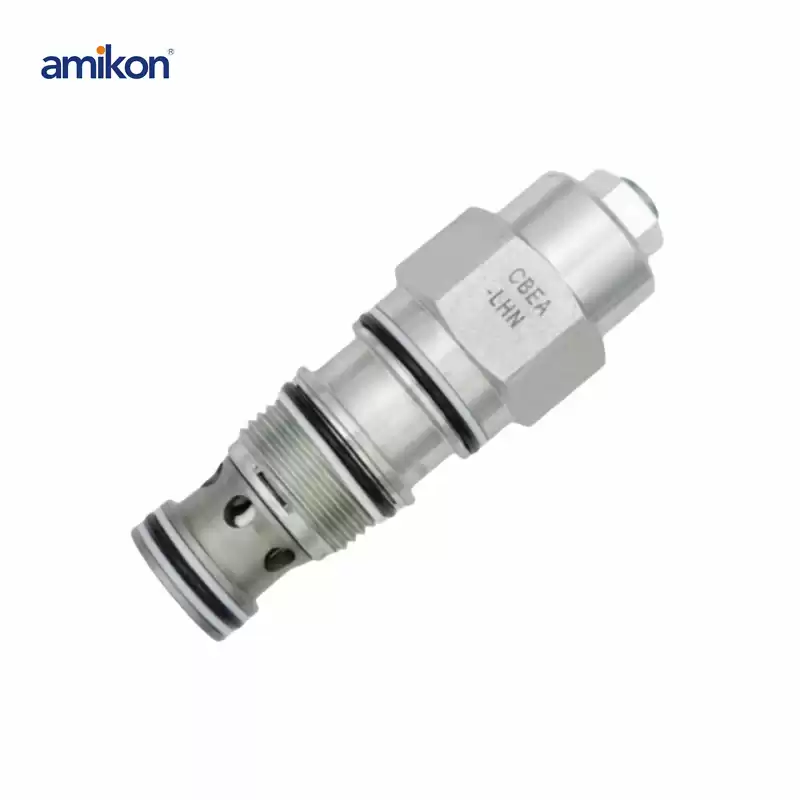

SUN CBEA-LHN-XAW/S Counterbalance Valves
|
Specifications
|
|
Product Name:
|
CBEA-LHN-XAW/S
|
Lead Time:
|
In stock
|
|
Product Orgin:
|
USA
|
Service:
|
One-Stop Service
|
|
Brand:
|
SUN
|
Weight:
|
0.5 kg
|
|
Payment:
|
T/T
|
dimension
|
144 x 145 x 35 mm
|
Contact Information!
Discuss pricing and delivery time with a sales representative
+86 189 6519 6563
sales17@amikon.cn
+86-189 6519 6563
The SUN CBEA-LHN-XAW/S is a counterbalance valve designed for hydraulic systems. Counterbalance valves are critical components in hydraulic systems to manage the movement of hydraulic cylinders and ensure stable operation, especially in lifting or tilting applications.
Key Features:
1. **Function**:
- **Counterbalance Valve**: Provides load holding and prevents uncontrolled movement of hydraulic cylinders. It maintains a constant counteracting force to stabilize the load and control descent rates.
2. **Design**:
- **Type**: Typically, counterbalance valves are designed to handle high pressure and manage the flow of hydraulic fluid in both directions. The specific model, CBEA-LHN-XAW/S, would be designed for precise control and reliable operation in demanding environments.
- **Construction**: Built with durable materials to withstand high pressures and harsh operating conditions. It includes components such as a spool, spring, and pilot control mechanisms.
3. **Operation**:
- **Pressure Setting**: The valve is set to open at a predetermined pressure to allow fluid flow, which can be adjusted based on the application requirements.
- **Load Holding**: Prevents unintended movement of the load by maintaining a counteracting force that stabilizes the system when there is no active hydraulic force.
4. **Mounting and Port Configuration**:
- **Mounting**: Usually designed for easy integration into hydraulic systems with standard mounting configurations.
- **Ports**: Includes ports for hydraulic fluid input and output, with configurations designed to handle high flow rates and pressures.
5. **Adjustability**:
- **Pressure Adjustment**: Many counterbalance valves, including this model, offer the ability to adjust the pressure settings to match specific load requirements and system conditions.
