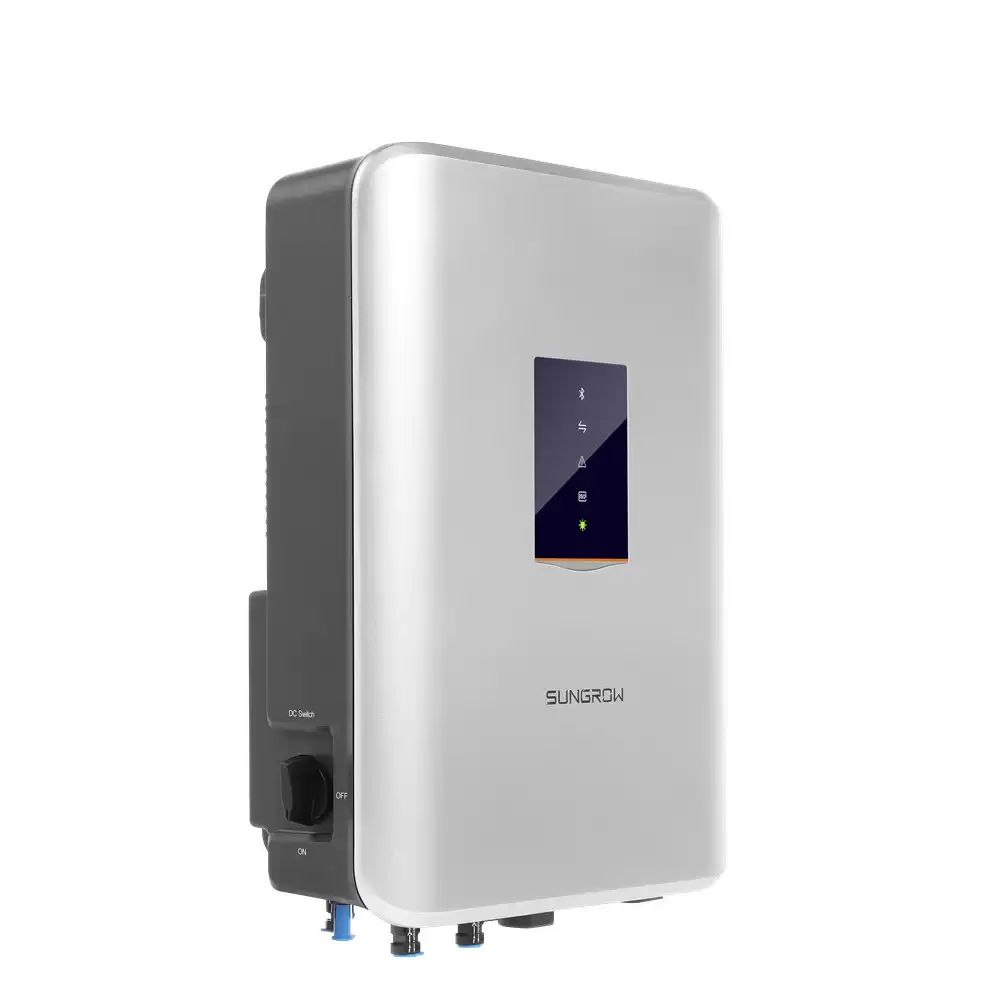

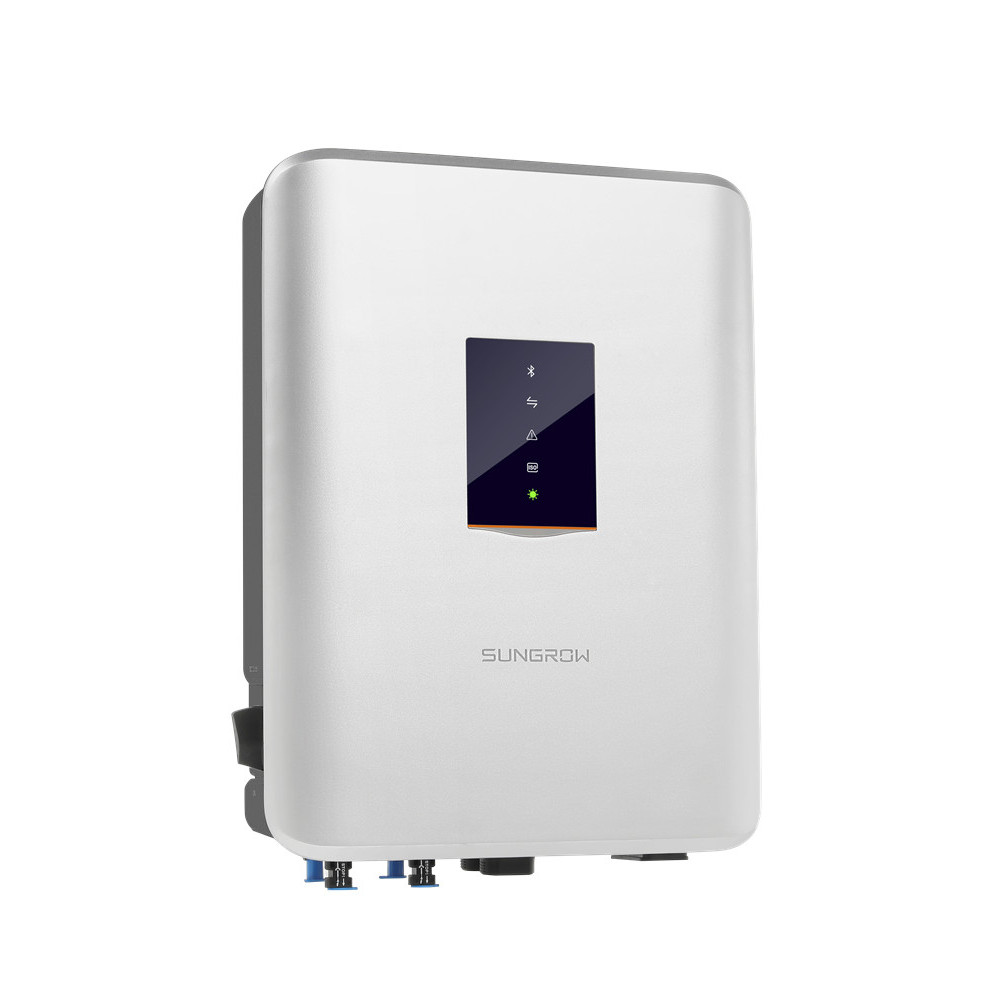

Sungrow Multi MPPT String Inverter 12KW 10KW Solar Inverter

Multi-MPPT String Inverter for 1000 Vdc System


  • Environmental Protection RatingIP65
  • Dimensions (W/H/D) in mm370*485*160
  • Maximum Efficiency98.6%
  • Max Output Current15A~18A
  • Max AC apparent Power10000KVA~12000KVA
  • AC Nominal Power10000W~12000W

Sungrow Multi MPPT String Inverter 12000VA 10000VA Solar Inverter


Sungrow Power Supply Co., Ltd. is a China-based company principally engaged in the research, development and manufacture of photovoltaic solar inverters. This Sungrow Residential Single Phase Inverter is suitable for solar energy system, household, commercial, agricultural, outdoor use, etc.




Sungrow 10kw SG10KTL-M/SG12KTL-M Specification:


Input (DC) SG10KTL-M SG12KTL-M
Max. PV input voltage 1100 V
Max. PV input voltage / Startup voltage 200 V / 250 V
Nominal input voltage 600 V
MPP voltage range 200 – 950 V
MPP voltage range for nominal power 470 – 850 V 550 – 850 V
No. of MPPTs 2
Max. number of PV strings per MPPT 1
Max. PV input current 22 A (11 A / 11 A)
Max. current for input connector 12:00 AM
Max. DC short-circuit current 24 A (12 A / 12 A )
Output (AC)
Nominal AC power (at 45˚C) 10000 W 12000 W
Max. AC output at PF=1 (at 45 ˚C) 10000 W 12000 W
Max. AC apparent power (at 45 ˚C) 10000 VA 12000 VA
Max. AC output current 15 A 18 A
Nominal AC voltage 3 / N / PE, 230 / 400 V
AC voltage range 270 – 480 V
Nominal grid frequency / Grid frequency range 50 Hz / 45 – 55 Hz, 60 Hz / 55 – 65 Hz
THD < 3 % (at nominal power)
DC current injection < 0.5 % In
Power factor at nominal powe / Adjustable power factor > 0.99 / 0.8 leading – 0.8 lagging
Feed-in phases / Connection phases 3/3
Efficiency
Max. efficiency / Euro. efficiency 98.6 % / 98.1 %
Protection
DC reverse connection protection Yes
AC short-circuit protection Yes
Leakage current protection Yes
Grid monitoring Yes
DC switch / AC switch Yes / No
DC fuse No
PV string current monitoring Yes
Overvoltage protection DC Type III / AC Type III
General Data
Dimensions (W*H*D) 370*485*160 mm
Weight 20 kg
Isolation method Transformerless
Degree of protection IP65
Night power consumption < 2 W
Operating ambient temperature range -25 to 60 (> 45 derating)
Allowable relative humidity range (non-condensing) 0 – 100%
Cooling method Natural cooling
Max. operating altitude 4000 m (> 3000 m derating)

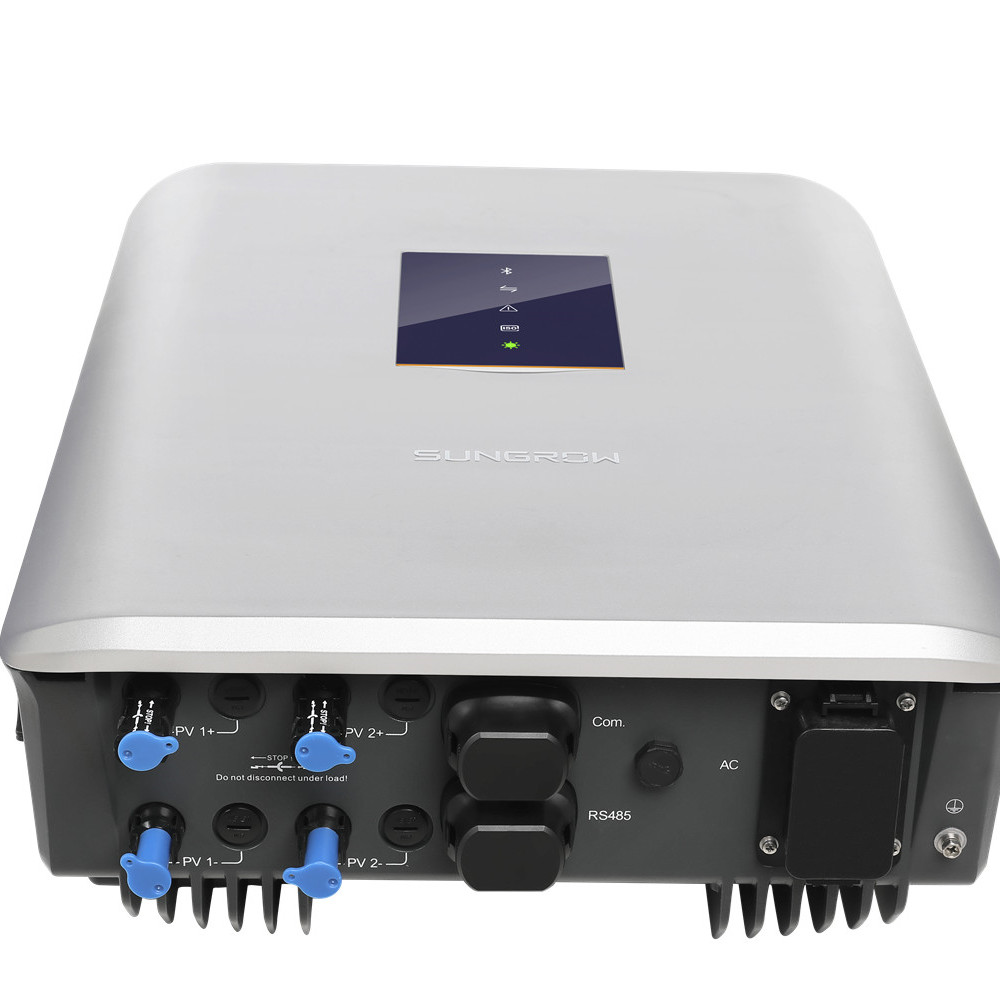

Display / Communication LED, Bluetooth + APP / RS485
DC connection type MC4 (Max. 6 mm² )
AC connection type Plug and play connector (Max. 6 mm² )
Compliance CE, VDE0126-1-1/4105, EN62109-1/-2, G59/3
Grid support Active & reactive power control and power ramp rate control
