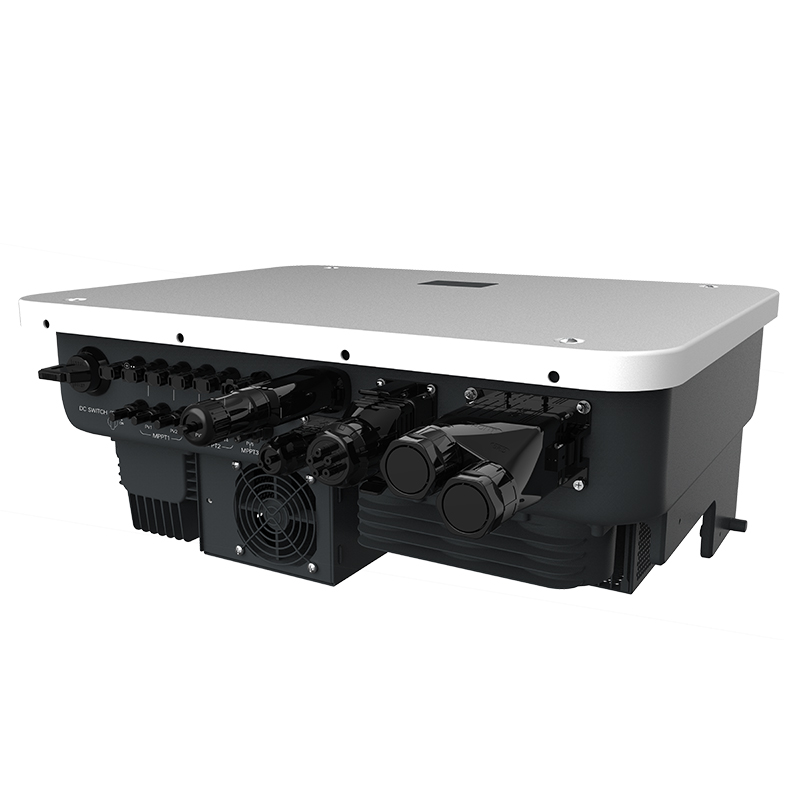

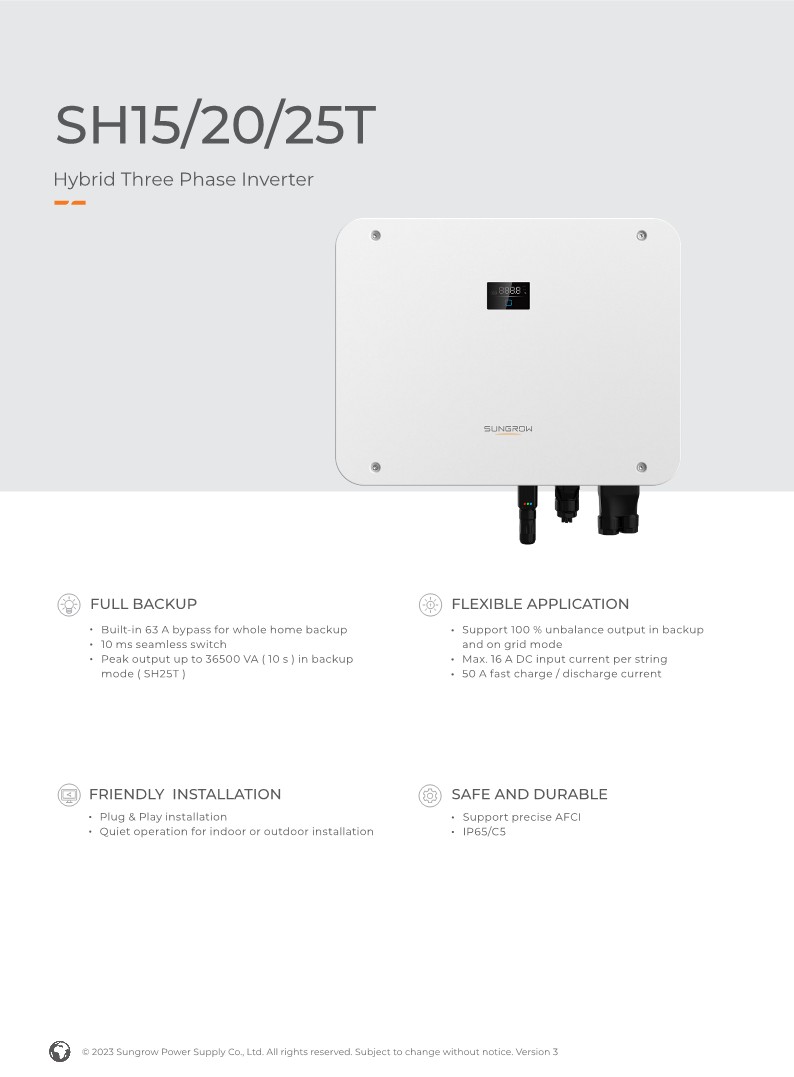

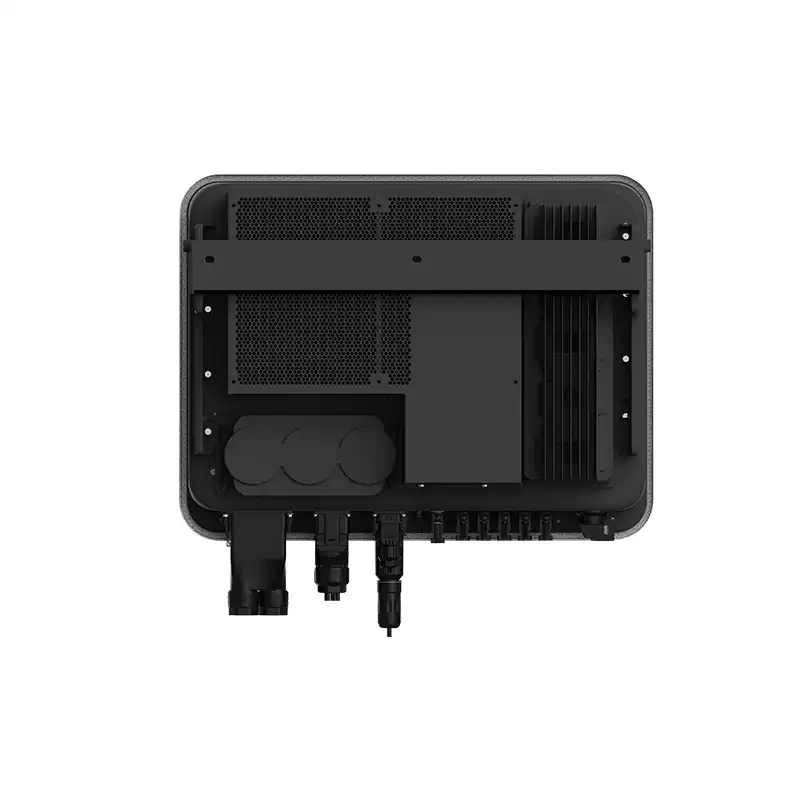

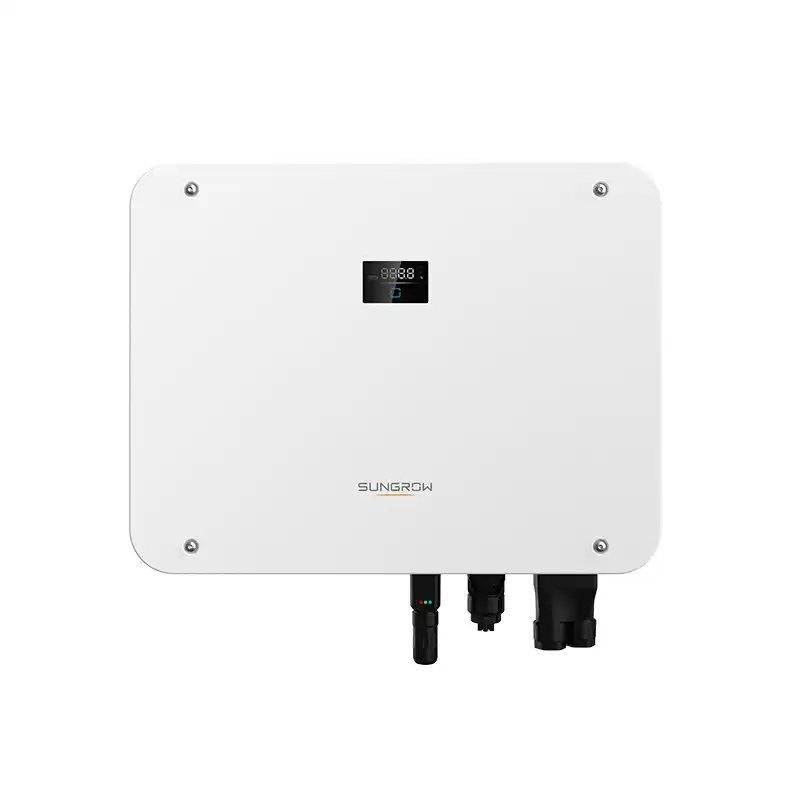

| Type designation |
SH15T SH20T SH25T |
| Input (DC) |
|
Recommended max. PV input power
Max. PV input voltage * |
30000 Wp 40000 Wp 50000 Wp
1000 V |
| Min. PV input voltage / Startup input voltage |
150 V / 180 V |
| Rated PV input voltage |
600 V |
| MPPT operating voltage range ** |
150 V - 950 V |
| No. of independent MPP trackers |
3 |
| No. of PV strings per MPPT |
2 / 2 / 1 |
| Max. PV input current |
80 A ( 32 A / 32 A / 16 A ) |
| Max. DC short-circuit current |
100 A ( 40 A / 40 A / 20 A ) |
| Max. current for input connector |
30 A |
| Battery data |
|
| Battery type |
Li-ion battery |
| Battery voltage range |
100 V - 700 V |
| Max. charge / discharge current *** |
50 A / 50 A |
| Max. charge / discharge power |
30000 W / 15000 W 30000 W / 20000 W 30000 W / 25000 W |
| Input and Output (AC) |
|
| Max. AC power f rom grid **** |
43000 VA |
| Rated AC output power |
15000 W 20000 W 25000 W |
| Max. AC output apparent power |
15000 VA 20000 VA 25000 VA |
| Max. AC output current |
22.8 A 30.4 A 37.9 A |
| Rated AC voltage |
3 / N / PE, 220 V / 380 V ; 230 V / 400 V; 240 V / 415 V |
| AC voltage range |
270 V - 480 V |
| Rated grid f requency |
50 Hz / 60 Hz |
| Grid f requency range |
45 Hz - 55 Hz / 55 Hz - 65 Hz |
| Harmonic (THD) |
< 3 % ( of rated power ) |
| Power factor at rated power / Adjustable power factor |
> 0.99 / 0.8 leading to 0.8 lagging |
| Feed-in phases / connection phases |
3 / 3-N-PE |
| Backup data(on grid mode) |
|
| Max. output power for backup load **** |
43000 W |
| Max. output current for backup load |
3 * 63 A |
| Backup data(off-grid mode) |
|
| Rated voltage |
3 / N / PE, 220 / 380 V; 230 / 400 V; 240 / 415 V ( ± 2 % ) |
| Rated f requency |
50 Hz / 60 Hz ( ± 0.2 % ) |
| THDV ( @Linear load ) |
2 % |
| Backup switch time |
< 10 ms |
| Rated output power |
15000 W / 15000 VA 20000 W / 20000 VA 25000 W / 25000 VA |
| Peak output power ***** |
25500 W / 32000 W / 36500 W /
25500 VA ,10 s 32000 VA ,10 s 36500 VA ,10 s |
| Efficiency |
|
| Max. efficiency / European efficiency |
98.1 % / 97.6 % |
98.2 % / 97.8 % |
| Protection & Function |
|
| Grid monitoring |
Yes |
| DC reverse polarity protection |
Yes |
| AC short-circuit protection |
Yes |
| Leakage current protection |
Yes |
| DC switch (solar) |
Yes |
| Surge protection |
DC Type II / AC Type II |
| PID zero |
Yes |
| Battery input reverse polarity protection |
Yes |
| General data |
|
| Topology (solar / battery) |
Transformerless / Transformerless |
| Degree of protection |
IP65 |
| Dimensions (W * H * D) |
620 mm * 480 mm * 245 mm |
| Weight |
38 kg |
40 kg |
| Mounting method |
Wall-mounting bracket |
| Operating ambient temperature range |
-25 ℃ - 60 ℃ |
| Allowable relative humidity range(Non-condensing) |
0 % - 100 % |
| Cooling method |
Natural convection |
Fan cooling |
| Max. operating altitude |
2000 m |
| Noise(Typical) |
35 dB ( A ) |
50 dB ( A ) |
| Display |
LED |
| Communication |
RS485, WLAN, Ethernet, CAN |
| DI / DO |
DI * 4 / DO * 2 / DRM0 |
| DC connection type |
MC4 compatible connector ( PV,Max.6 mm² ) /Plug and play connector ( battery, Max.10 mm² ) |
| AC connection type |
Plug and play connector ( Max.16 mm² ) |
| Compliance |
IEC / EN 62109, IEC 61000-6, EN 62477-1, IEC 61727, IEC 62116, IEC 62920, EN 55011, CISPR 11,
VDE-AR-N-4105, EN 50549-1, NRS 097, AS/NZS 4777.2:2020, TOR Type A, R25, CEI 0-21 |
