Using SunRack , Enjoying Sunshine!
Using SunRack not only help you determine the best racking solution for solar power project,but also ensure you win the highest investment return and the most efficient of Enjoying Sunshine.
1. Lower cost, Incomparable value ;
2. Faster installation, Flexible attachment ;
3. More Perfect Service, Complete technical support ;
4.10 years limited warranty , 20 years design life .

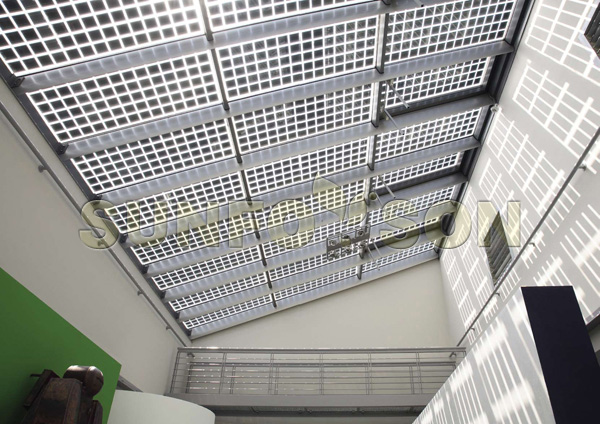

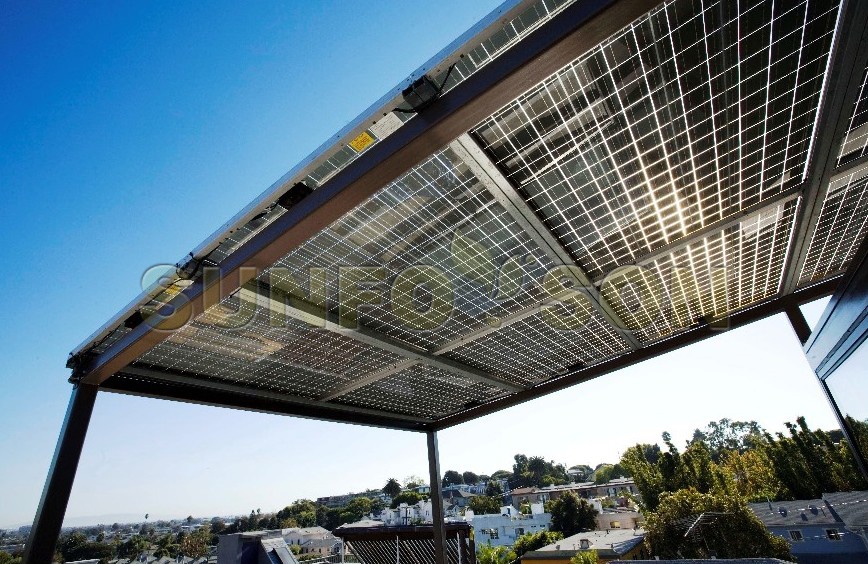

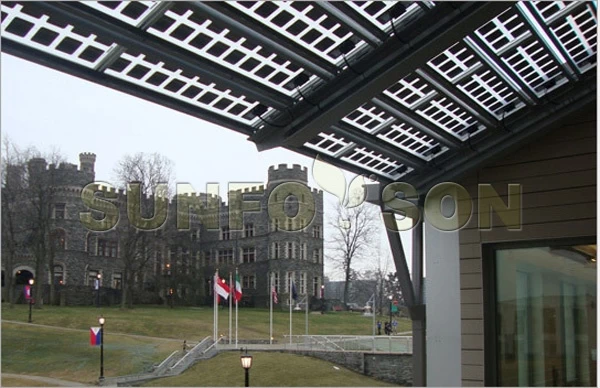

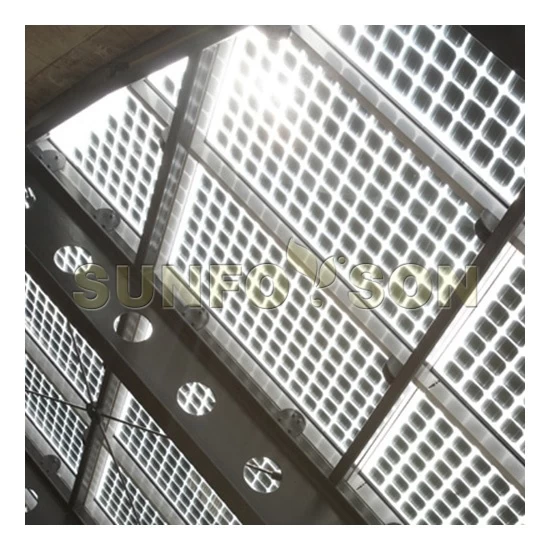

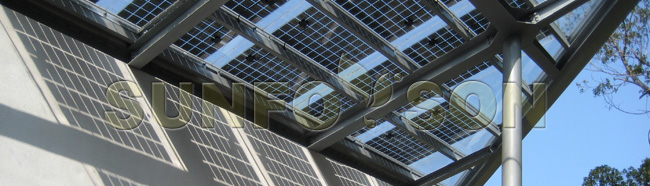

SFS-BIPV-01 SunRack BIPV System
The Sunforson “SunBIPV” leads the most advanced BIPV technology, gets rid off the metal sheet which many others primary BIPV solutions adopting- using metal sheet under panels increasing the cost and is not the real BIPV solution.The SunBIPV solution greatly cuts off the installation time and lower the cost, makes the final installation appearance is much better than primary solutions.
The SunRack BIPV Frame has been developed as a universal PV module mounting system for various building installations for water proof function. The innovative and patented aluminum rails, UV resistant EPDM and rubber clamp make the perfect function for water proof which realizes the panel roof integration.
Installation Site: Building Surface
Applicable Roof Cladding: Suitable for most types of cladding
Installation Angle:Same as the building
Max. Building Height: Up to the building
Wind Load: 130mph(60m/s)
Snow Load: 30psf(1.4kN/m2)
Applicable Module: Framed
Module Orientation: Landscape or portrait
Code Compliance:AS/NZS 1170;
Material: Aluminum, stainless steel
Warranty: 10 years on material

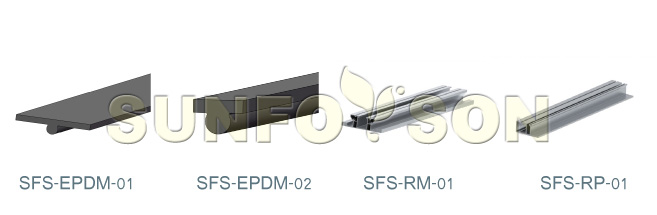

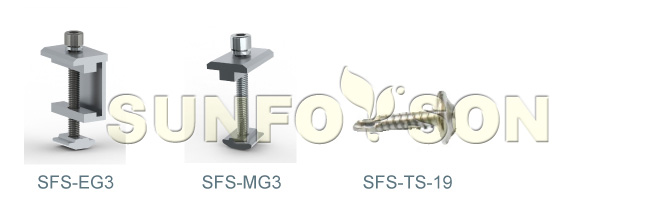

Overview of system components
1.Easy Installation
The innovative Sunforson solar rail and G-Screw modules have greatly simplified the installation of PV modules.The System can be installed with a single Hexagon Key and standard tool kit.The SolarRoof system is aided by a very high level of pressembly.The G-Screw module and unique rail extension method allow greatly reduced installation times.
2.Great Flexbilitity
With the Sunforson Solar Roof,frammed photovoltaic modules can be easily mounted on pitched roofs.The Solar Roof system has mounting accessories designed for use on almost every roof cladding available wiht unique rail .Excellent Compatibility.Designed as a unversal racking system,framed modules from all the popular manufacturers can be used.
3.High Accuracy
Without the need for onsite cutting,the use of our unique rail extending allows the system to be installed with millimetre accuracy.
4.Excellent Adaptability
The height adjustment of the rails from Sunforson allows a level PV array to be established,no matter how uneven the roof.Engineered To High Standard Sunforson SolarRoof is made to the highest standard,safe and strong its designed to Comply with AS/NZS 1170.
5.Maximum Lifespan
All components are made of quality extruded aluminium and stainless steel.The high corrosion resistance guarantees the maximun possible lifespan and is also completely recyclable.
6.Guaranteed Durability
Sunforson provides a guarantee of 10 years on the durability of all components used.
A Full Commitment To Quality
Top material, quality craftsmanship and easy installation design, supported by senior engineers with comprehensive and in-depth mounting industry experience and garanteed with a 10-year limited parts warranty
