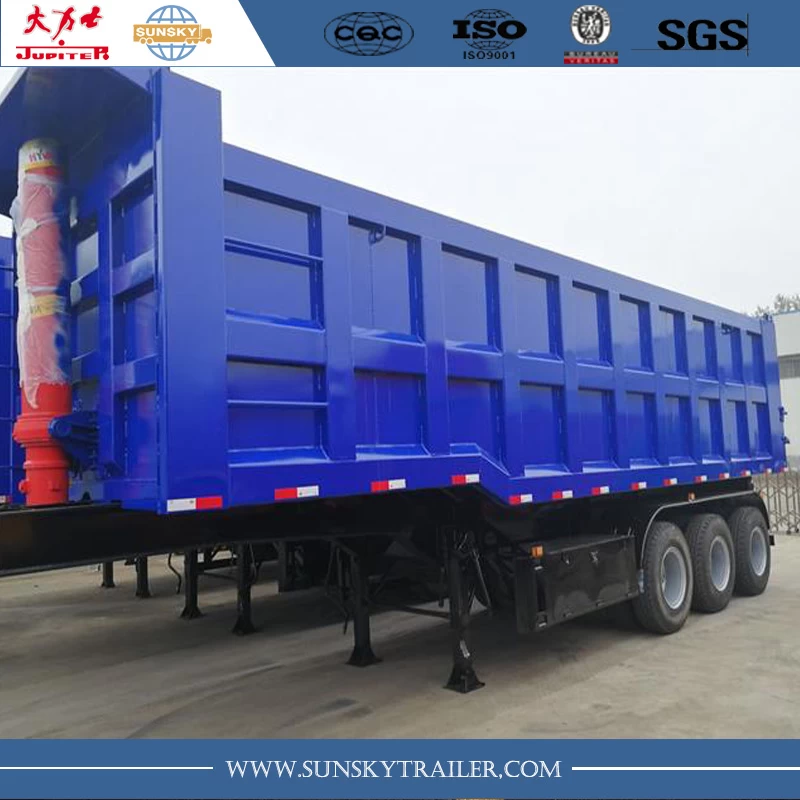

Sunsky brand 3-axle tipper semi-trailer
‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑
1.Sunsky dump trailers are equipped with HYVA cylinder that more safe and reliable for your trucking.
2.Dump trailer produced by SUNSKY is your ideal equipment to transport.Normally carrying sand, stone,mine,garbage etc
3.Equipped famous brand part in alxes,suspension，landing gear.Higher property for your transportation.More reliable and ensure the long life span of trailers.
4.SUNSKY Trailer have quality guarantee,some easily broken parts will be delivered with trailers.Spare parts like tires ,axles etc. can be supplied to you in cost price!
Features:
‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑
1.Cargo box can be designed as your requirements.
2.Equipped Well-known brand axles,suspension and other spare parts to ensure the reliable property of dump trailer.
3.SUNSKY 3 axles Tipper Semi Trailer are equipped with HYVA cylinder, more reliable and safer.
4.More than 10 years experience in export，Not only better quality in product but also good service can be supplied by SUNSKY.
Specification:
‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑
|
27cbm-40cbm 3-axle tipper
semi-trailer
|
|
Feature:
|
Carry Sand, Stone, Mine,
Garbage and so on
|
|
Dimension(L*W*H):
|
9700*2480*3300mm (27CBM)
10100*2480*3300mm(33CBM)
|
|
Main frame:
|
Heavy duty and extra durability design; Opting for high tensible low
carbon alloy Q345B steel; I beam welded by automotive arc-submerge process
|
|
The thickness of body
|
Side wall: 6mm
Bottom floor: 8mm
|
|
Model:
|
SS9600TJZT
|
|
Capacity(CBM):
|
27CBM-40CBM
|
|
Tare weight(kgs):
|
9,300kgs(27cbm)
10,500kgs(33cbm)
|
|
Kingpin:
|
The
world-famous JOST brand bolt-in/welded type 3.5”/2”
|
|
Landing
gear:
|
JOST brand
two-speed manual operation 19”
|
|
Tire size:
|
11.00R20、11R22.5、12R22.5、315/80R22.5、385/65R22.5
|
|
Rim size:
|
8.25*22.5、9.00*22.5、11.75*22.5
|
|
Axle:
|
Original BPW-12T/
FUWA-13T
|
|
Suspension
|
Germany type with
12pcs of leafs spring/ Fuwa brand with 8pcs of leafs spring/ Airbag
suspension
|
|
Brake
system:
|
Dual line
with WABCO brand Re-6 emergency relay valve, MBA brand T30/30 air chamber,
46L air tank
|
|
Electric
system:
|
One unit of
24V 7-pin ISO standard socket; with brake light, turn light, reverse light,
side light, reflector, fog light; one set of 6-pin standard cable
|
|
Hydraulic
system
|
Hyva brand
|
|
Painting:
|
S.A.2.5standard sandblasting; Two coat of anti-corrosion prime; one coat of finish
painting
|
|
Accessory:
|
One tool
box; one set of standard tool
|
|
We can
build the trailers according to customer’s design and requirement
|
Production detail:
‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑
Producing process:
‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑
Loading and Packing:
‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑
Our advantage and ability:
‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑
What others we can supply:
‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑
FAQ:
‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑
1. Who are we?
We are a group company; we have three semi-trailer factories in china,
one trading company in china and one company inHong Kong.
We are focus on semi-trailer, trucks and parts.
2. Why choose us
1) We have more than 30years experience in the trailer manufacturing.
Our brand”SUNSKY” and”JUPITER” had got high reputation in china and overseas
countries.
2)
We have more than 20 engineers to design the kinds of trailers according to the
requirement from you.
3) We had exported thousands of trailers to Africa, Middle East, Asia,Australia,South America and so on since 2006.
4) We are one of the biggest dealers of SINOTRUK HOWO truck in china, we
can supply kinds of HOWO brand truck with competitive price.
