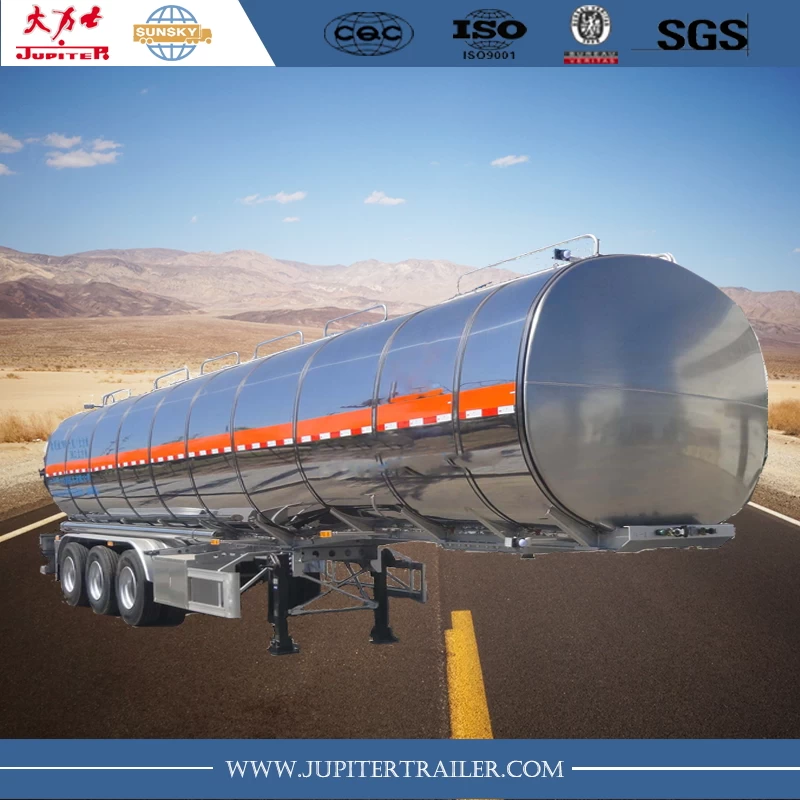

Item:Sunsky Brand 30,000L 3-Axle Aluminum Tank Semi-Trailer

Introduction of 3 Axle Aluminum Tanker Trailer

1.The main frame and tanker body of SUNSKY Tanker semi-trailer are designed by 3D-CAD,reasonable structure，made of high-tensile steel.
2.The tank body welded by automatic welding machine, high strength,smooth and aesthetic.
3.Its surface is processed by sand blasting and derusting, high-grade polyurethane bicomponent paint,excellent adhesion and antiseptic performance;
4.The axle,tyre and other accessories are the well-known products which supplied by the domestic and foreign professional manufacturers.
5.The continuous improvement of structure makes it much accord with practical loading&unloading and using requirements.
6.It’s optional to choose material of pure aluminium, aluminium alloy,stainless steel, to meet different medium requirements

Features：Aluminum Tanker semi-trailer

1) Manufacturer, 32 years professional experience.
2) Two years guarantee term provided freely.

3) Export more than 1000 units to Africa, Southeastern Asia, and South America.
4) Products can be custom-made according to your design.

Specification：Aluminum Fuel Tanker Trailer

30,000L 3-axle Aluminum Tank Semi-trailer
Feature:	Carry Drink water, Milk, Beer and chemical liquid
Dimension(L*W*H):	11000*2500*3700mm(30,000L)
Model	SS9300GRYX
Material:	Aluminum
Compartment:	4
Capacity(kgs):	30,000L
Tare weight(kgs):	6,000
Kingpin	The world-famous JOST brand bolt-in/welded type 3.5”/2”
Landing gear	JOST brand two-speed manual operation 19”
Tire size	11R22.5、12R22.5、315/80R22.5、385/65R22.5
Rim size	8.25*22.5、9.00*22.5、11.75*22.5
Axle	FUWA-13T
Leafs spring	Fuwa brand with 8pcs of leafs spring
Brake system	One unit WABCO RE 4 relay valve; four units T30/30 spring brake chamber; two units T30 spring brake chamber; two units reliable local brand 45L air tank; two units reliable local brand standard coppery air-connector.
Manhole:	Aluminum alloy ø500mm(20”) manhole with aluminum alloy cover; with breather valve;
Discharge Valve	Aluminum alloy discharge valve with cover
Foot Valve	Pneumatic control DN80 aluminum alloy foot valves
Pneumatic Control system	1set Pneumatic Control combined switch 1unit emergency switch
Discharge Hose	2 units 3”×6M factory PVC hose with quick coupling on both ends
Vapor Recovery & Overfill system	Optional
Fire Extinguisher Carrier	2 units at the left of rear of tanker, include 2 units 8kg dry powder type fire extinguisher inside
Electric system:	One unit of 24V 7-pin ISO standard socket; with brake light, turn light, reverse light, side light, reflector, fog light; one set of 6-pin standard cable
Prime & Topcoat painting	S.A.2.5standard sandblasting ;Zinc-rich & Polyurethane painting
We can build the trailers according to customer’s design and requirement

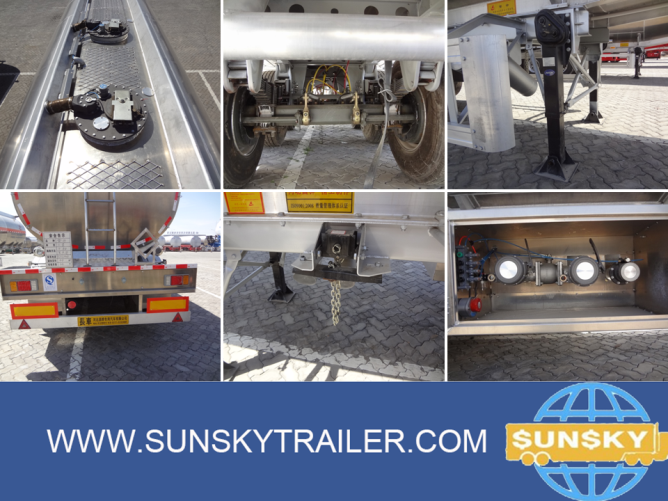

Product Detail：
