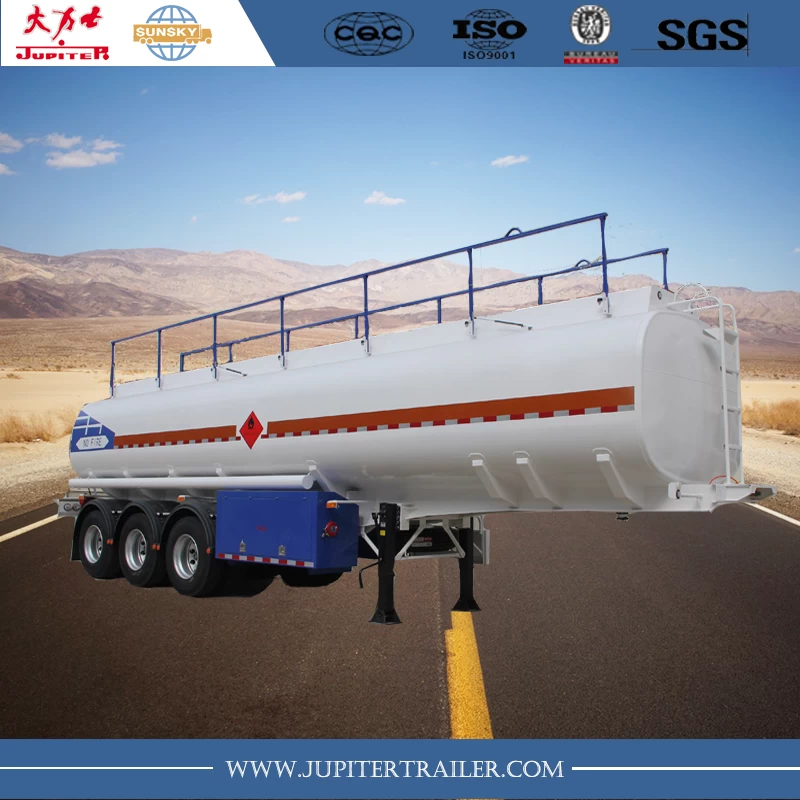

SUNSKY BRAND 36000L 3-Axle Fuel Tanker Semi-Trailer
1.SUNSKY BRAND 36,000 Liter，3 -5 compartment Fuel tank trailer，exported to Philippines,Malawi,Mozambique etc.
2.As the European standard to design，Lighter in Tare weight and unique design to reduce fuel consumption.
3.Advanced welding technology in tank ，Equip famous Brand parts in trailer,Ensure the safety of oil transport.
4.Some easily broken parts will be deliver with trailers.Also give you cost price if you buy parts from us.
5.Received good comment from our customers，SUNSKY worth you to trust.
Features：
1) Manufacturer, 32 years professional experience.
2) Two years guarantee term provided freely.
3) Export more than 1000 units to Africa, Southeastern Asia, and South America.
4) Products can be custom-made according to your design.
Specification：
|
36000L
3-axle Fuel Tank Semi-trailer
|
|
Feature:
|
Carry Fuel
|
|
Dimension(L*W*H):
|
11700*2500*3750mm
|
|
Model
|
SS9330GRX
|
|
Material:
|
Carbon Steel
|
Stainless Steel
|
|
Compartment:
|
3-5
|
|
Capacity(kgs):
|
36000L
|
|
Tare weight(kgs):
|
10,000-11,000kgs
|
10,000-11,000kgs
|
|
Kingpin
|
The
world-famous JOST brand bolt-in/welded type 3.5”/2”
|
|
Landing
gear
|
JOST
brand two-speed manual operation 19”
|
|
Tire
size
|
11.00R20、11R22.5、315/80R22.5、385/65R22.5
|
|
Rim size
|
8.25*22.5、9.00*22.5、11.75*22.5
|
|
Axle
|
Original
BPW-12T
|
|
Leafs
spring
|
Fuwa
brand with 8pcs of leafs spring/ Airbag suspension
|
|
Brake
system
|
One unit
WABCO RE 4 relay valve; four units T30/30 spring brake chamber; two units T30
spring brake chamber; two units reliable local brand 45L air tank; two units
reliable local brand standard coppery air-connector.
|
|
Manhole:
|
Aluminum
alloy ø500mm(20”) manhole with aluminum alloy cover; with breather valve;
|
|
Discharge
Valve
|
Aluminum alloy
discharge valve with cover
|
|
Foot
Valve
|
Pneumatic control
DN80 aluminum alloy foot valves
|
|
Pneumatic Control system
|
1set Pneumatic Control combined
switch
1unit emergency switch
|
|
Discharge
Hose
|
2 units
3”×6M factory PVC hose with quick coupling on both
ends
|
|
Vapor
Recovery & Overfill system
|
Optional
|
|
Fire
Extinguisher Carrier
|
2 units
at the left of rear of tanker, include 2 units 8kg dry powder type fire
extinguisher inside
|
|
Electric
system:
|
One unit
of 24V 7-pin ISO standard socket; with brake light, turn light, reverse
light, side light, reflector, fog light; one set of 6-pin standard cable
|
|
Prime & Topcoat painting
|
S.A.2.5standard sandblasting ;Zinc-rich
& Polyurethane painting
|
|
We
can build the trailers according to customer’s design and requirement
|

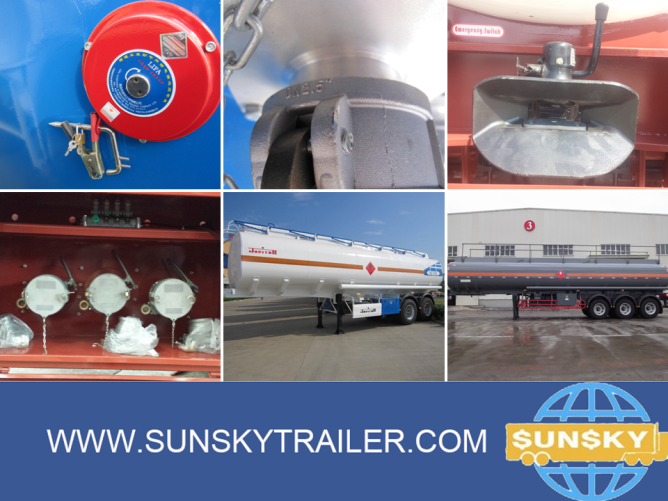

Product Detail：
Producing Process：
Loading and Packing：
Certificate and Technology：
Other Products：
Conact Us
XIAMEN SUNSKY TRAILER CO.,LTD
YUN DA HUI LIMITED
ADD: ROOM 501-1, NO.357 XIANYUE ROAD, SIMING DISTRICT, XIAMEN, FUJIAN PROVINCE, CHINA.
TEL: +86-592-2990180
MOBILE(whatsapp): +86-13666007515
FAX: +86-592-2683123
EMAIL: sales@jupitertrailer.com
Skype: edwin0221
WEBSITE: http://www.sunskytrailer.com
FAQ：
1.Who are we?
We are a group company; Have three semi-trailer factories , one trading company in china and one company in Hong Kong. We are focus on semi-trailer, trucks and parts.
2. Why choose us ?
1) Have more than 30 years experience in the trailer manufacturing. The brand”SUNSKY” and”JUPITER” had got high reputation in china and overseas countries.
2) Have more than 20 engineers to design the kinds of trailers according to the requirement from you.
3) Had exported thousands of trailers to Africa, Middle East, Asia,Australia,South America and so on since 2006.
4) One of the biggest dealers of SINOTRUK HOWO truck in china, we can supply kinds of HOWO brand truck with competitive price.
