Features
1) The capacity is 40 cbm,tanker with 3-6 compartment on your request.
2) Two years guarantee term provided freely.
3) Export more than 1000 units to Africa, Southeastern Asia, and South America.
4) Products can be custom-made according to your design.
Specification
|

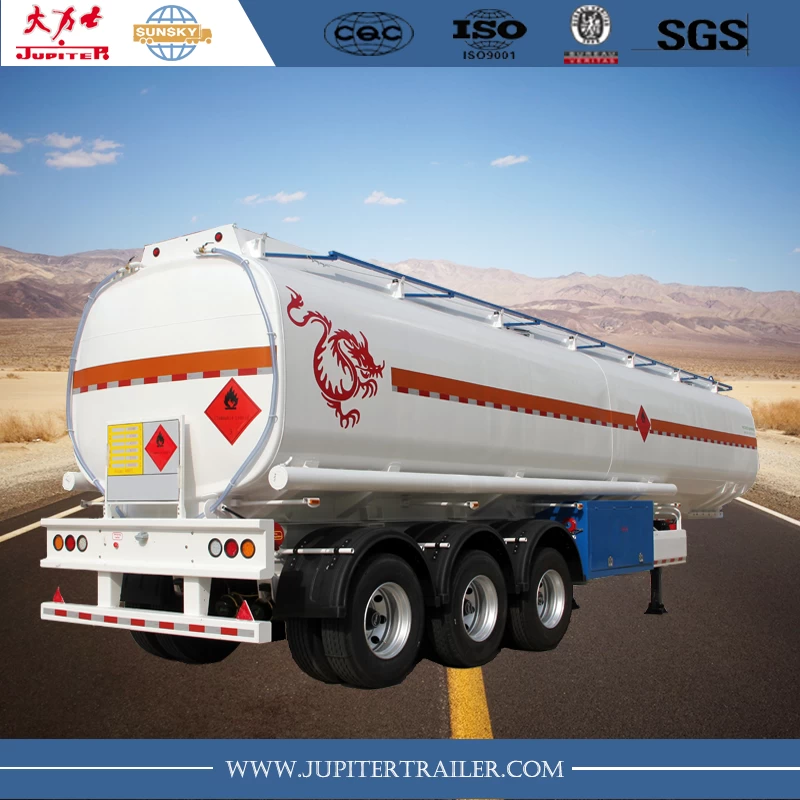

40,000L 3-axle Tank Semi-trailer
|
|
Feature:
|
Carry Fuel, Oil, Diesel, Drink water, Milk, Beer and other
chemical liquid
|
|
Dimension(L*W*H):
|
11700*2500*3750mm
|
|
Model
|
SS9360GRX
|
|
Material:
|
Stainless Steel
|
Aluminum
|
|
Compartment:
|
3-6
|
|
Capacity(kgs):
|
40,000L
|
|
Tare weight(kgs):
|
10,000-11,000kgs
|
6,000-7,000kgs
|
|
Kingpin
|
JOST
brand bolt-in 3.5”/2”
|
|
Landing
gear
|
JOST
brand two-speed manual operation 19”
|
|
Tire
size
|
11R22.5、12R22.5、315/80R22.5
|
|
Rim
size
|
8.25*22.5、9.00*22.5、11.75*22.5
|
|
Axle
|
FUWA-13T
|
|
Leafs
spring
|
Fuwa
brand with 8pcs of leafs spring/ Airbag suspension
|
|
Brake
system
|
One
unit WABCO RE 4 relay valve; four units T30/30 spring brake chamber; two
units T30 spring brake chamber; two units reliable local brand 45L air tank;
two units reliable local brand standard coppery air-connector.
|
|
Manhole:
|
Aluminum
alloy ø500mm(20”) manhole with aluminum alloy cover; with breather valve;
|
|
Discharge
Valve
|
Aluminum
alloy discharge valve with cover
|
|
Foot
Valve
|
Pneumatic
control DN80 aluminum alloy foot valves
|
|
Pneumatic Control system
|
1set Pneumatic Control combined
switch
1unit emergency switch
|
|
Discharge
Hose
|
2 units
3”×6M factory PVC hose with quick coupling on both
ends
|
|
Vapor
Recovery & Overfill system
|
Optional
|
|
Fire
Extinguisher Carrier
|
2 units
at the left of rear of tanker, include 2 units 8kg dry powder type fire
extinguisher inside
|
|
Electric
system:
|
One unit
of 24V 7-pin ISO standard socket; with brake light, turn light, reverse
light, side light, reflector, fog light; one set of 6-pin standard cable
|
|
Prime
& Topcoat painting
|
S.A.2.5standard sandblasting ;Zinc-rich & Polyurethane painting
|
|
We
can build the trailers according to customer’s design and requirement
|

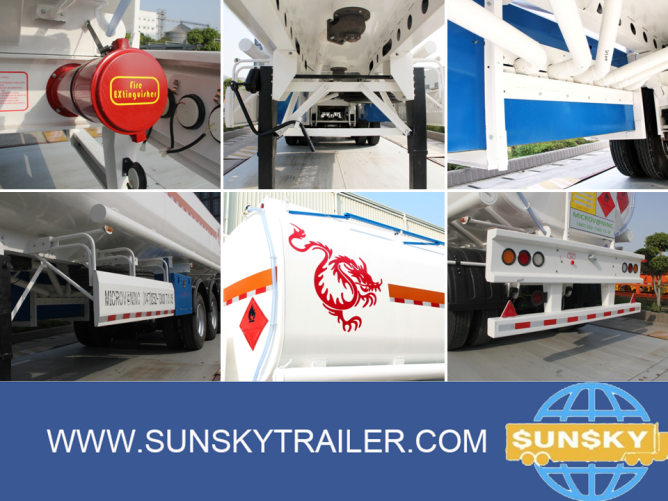

Product Detail

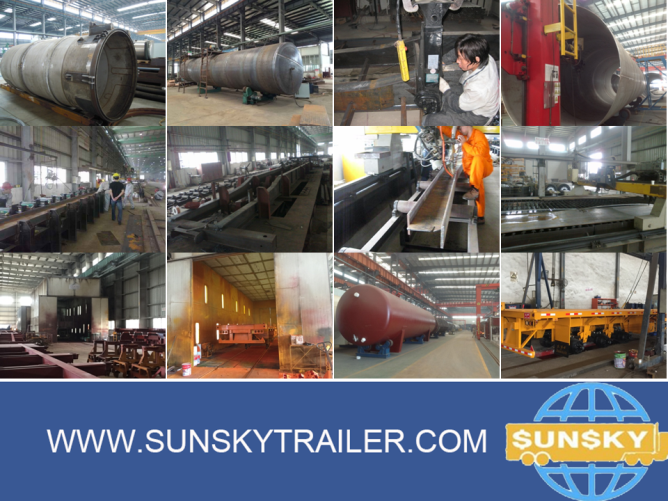

Producing Process

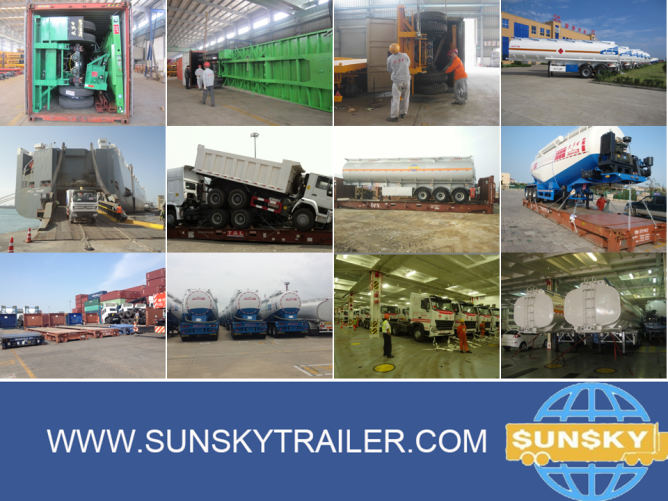

Loading and Packing
