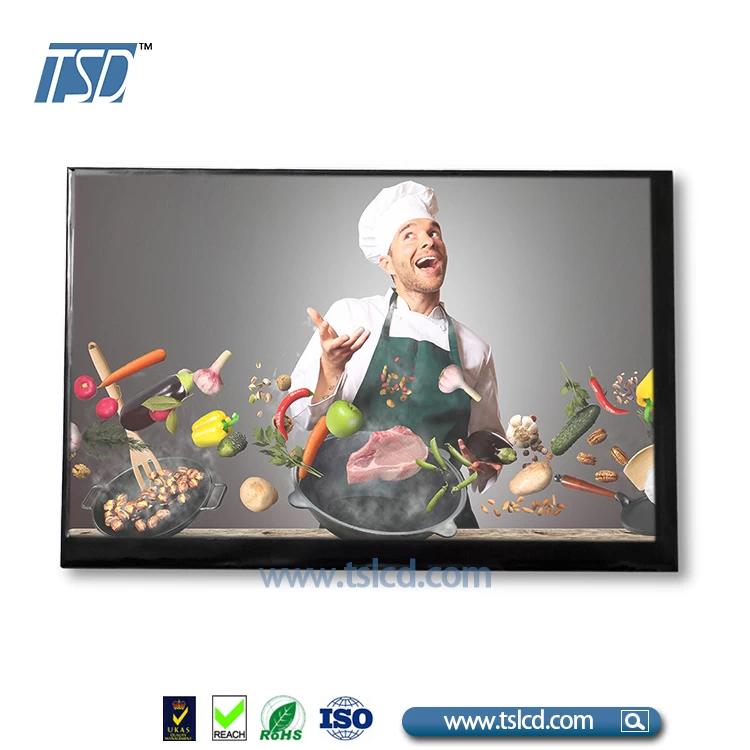

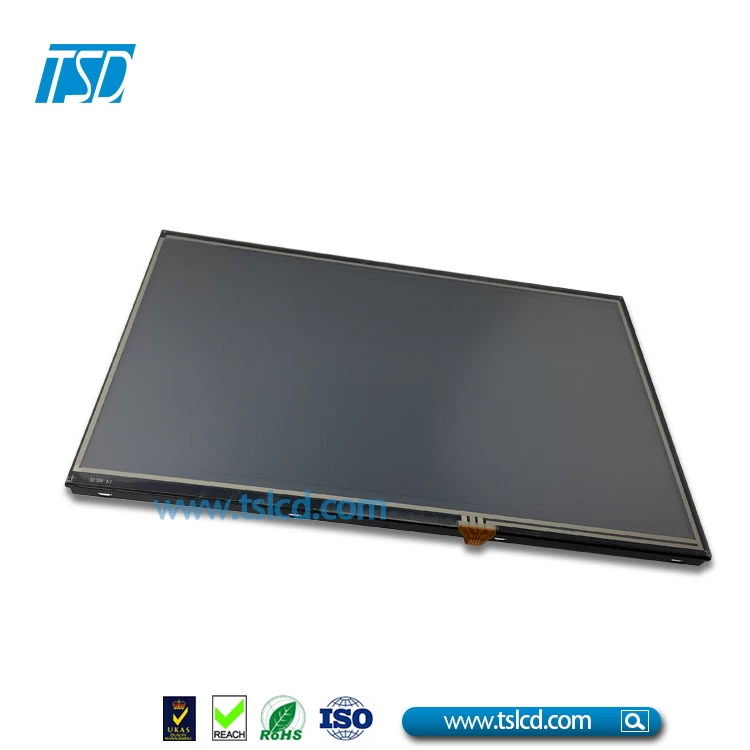

Super high brightness 1280x800 resolution 10.1 inch IPS TFT LCD module on hot sale
|
Specification
|
|
LCD type
|
10.1" tft lcd display Module
|
|
Display type
|
10.1 inch TFT, 16.7M color, normally white
|
|
Driver element
|
color active matrix thin film transistor
|
|
Backlight
|
36 white LED
|
|
Outline Dimension(mm)
|
229.46*149.1*2.7
|
|
Active Area.(mm)
|
216.96*135.6
|
|
Resolution(dots)
|
WSVGA 1280xRGBx800
|
Operating Voltage
|
3.3V
|
|
Operating temperature(°C)
|
-20-70
|
|
Storage temperature(°C)
|
-30-80
|
|
Pixel arrangement
|
RGB Vertical Stripe
|
|
Display mode
|
Normally white
|
|
Luminance(cd/m2)
|
1000(typ.)
|
|
Contrast Ratio
|
450(typ.)
|
|
Application
|
Notebook, advertisement display, etc.
|
|
IC
|
HX82822/HX8696
|
|
Interface
|
LVDS
|
|
Module lifetime(Hours)
|
50,000-100,000
|
