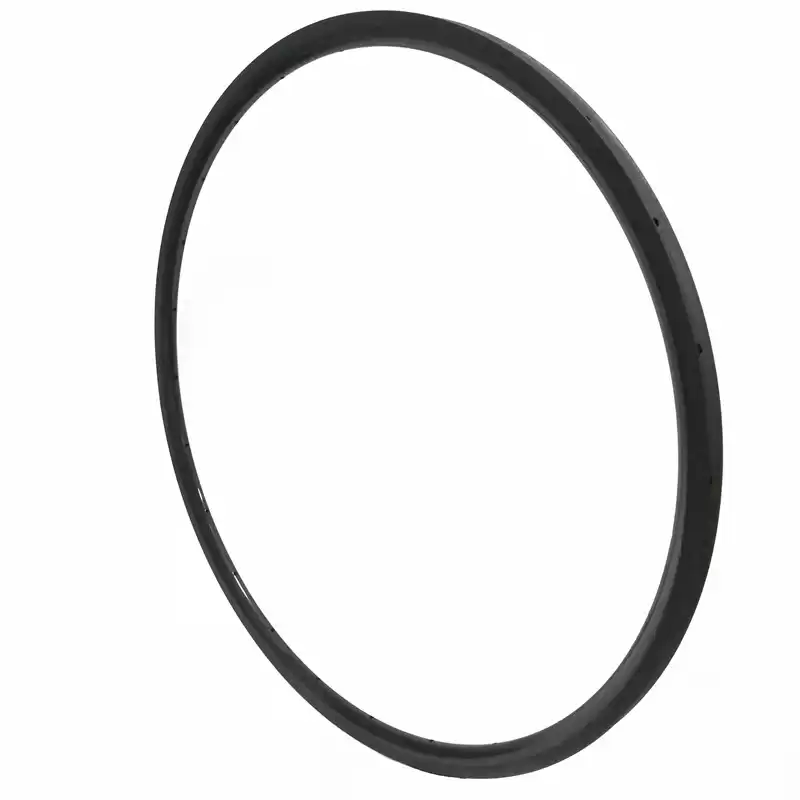

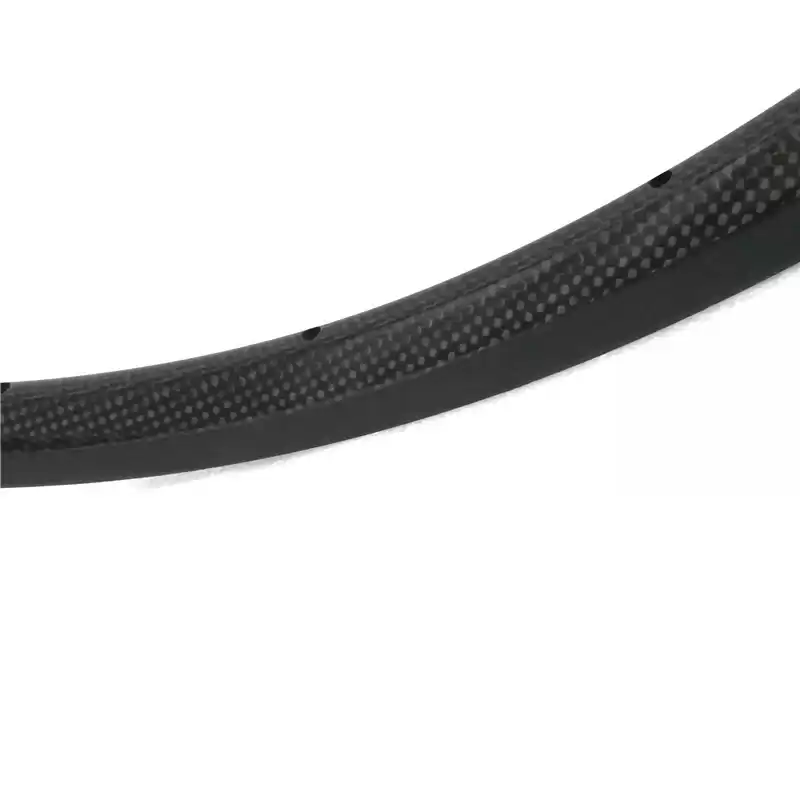

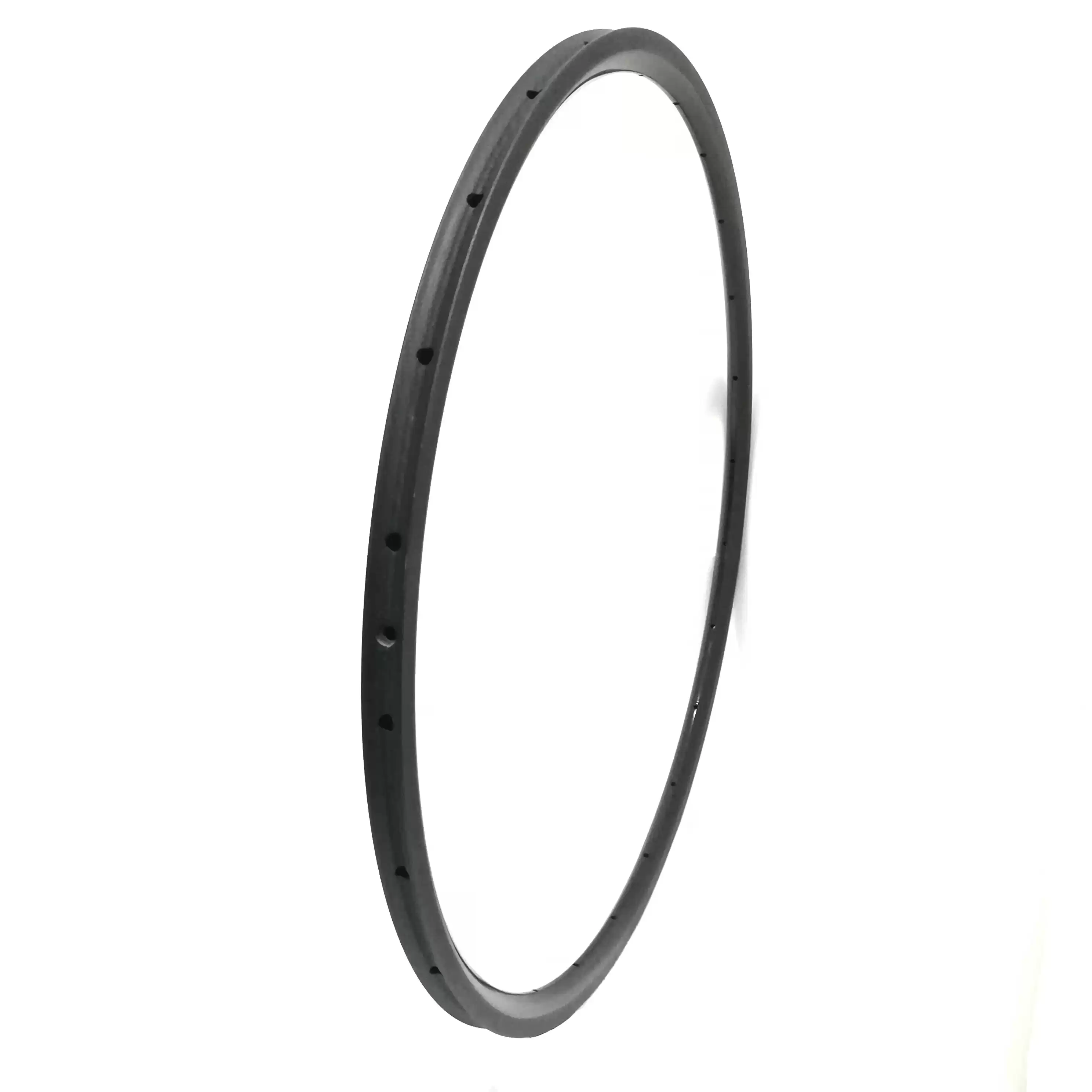

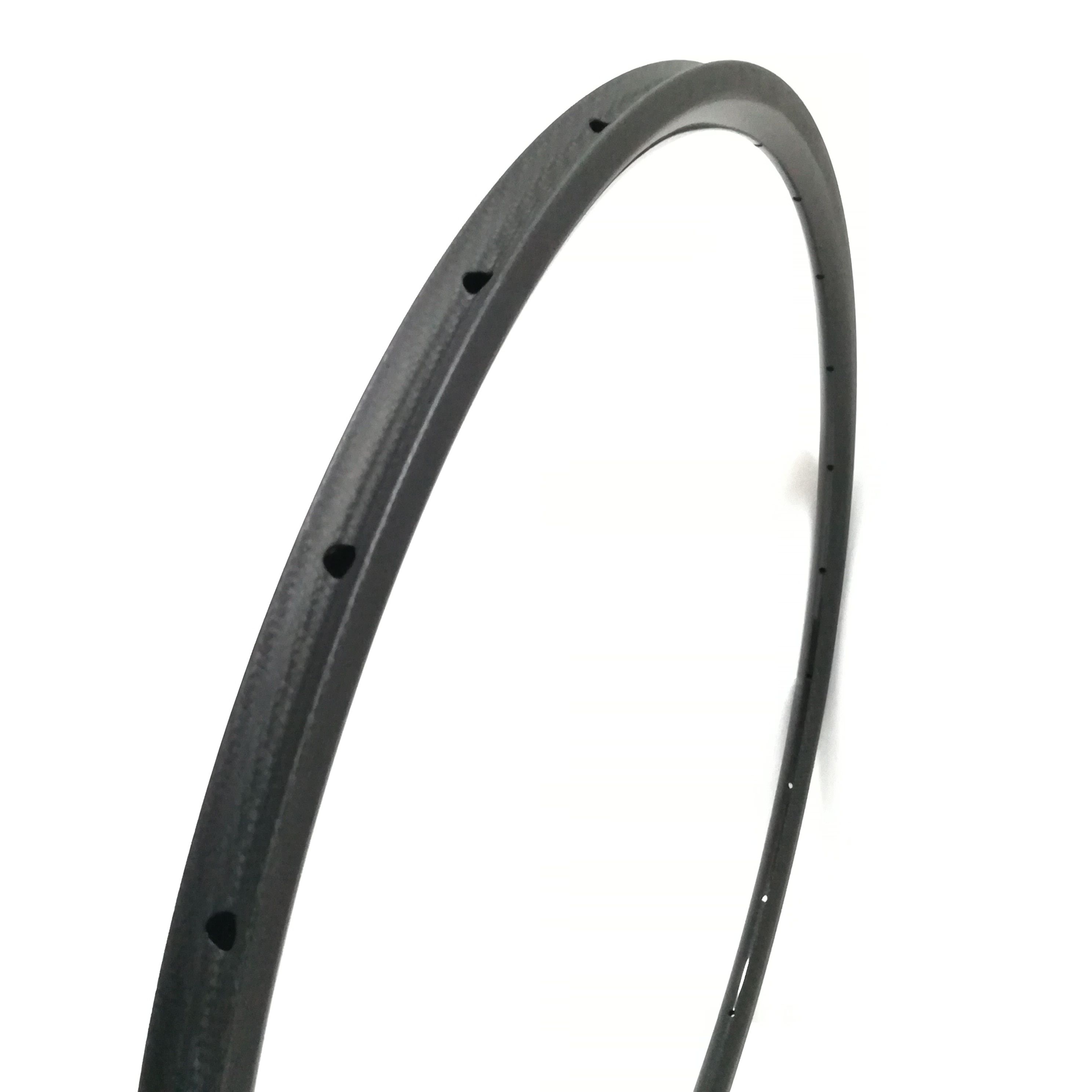

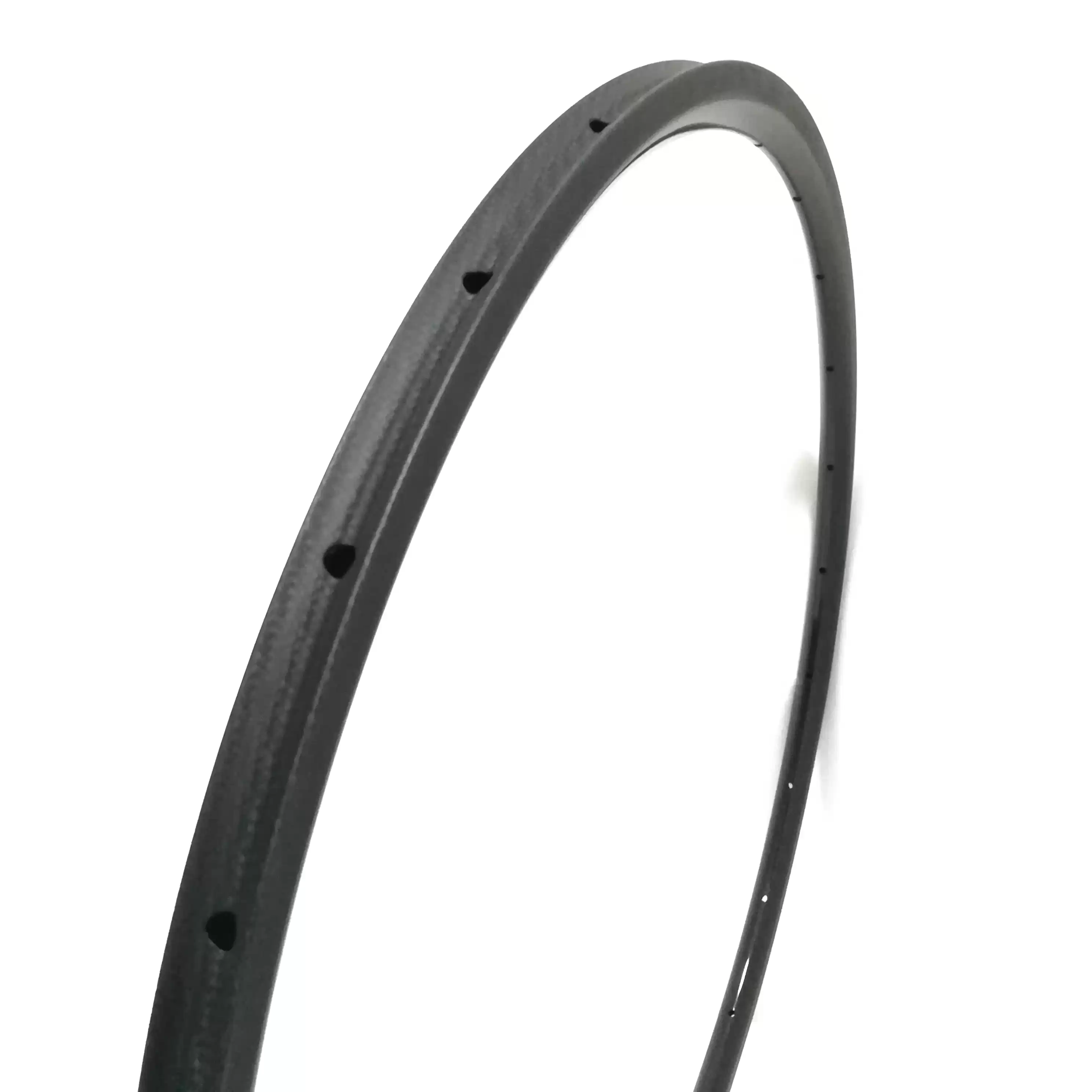

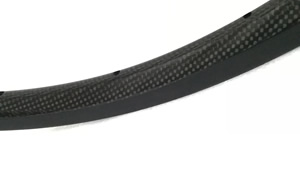

Product Model：Fat bike carbon rims 700C road bicycle 24mm Deep tubular rims
This 24mm Depth road bicycle carbon rims very light,with V shape,21mm width.
The tubular 24mm Deep rimsprofile offer aerodynamic advantage,easy handle the bike when the strong crosswind.
This 21mm wide carbon rims，Narrow rims makes the rim lighter and faster to ride.
The tubular rim made of Toray T700 andT800 carbon fiber.Can be used on rim or disc brakes.
High TG Resin brake surface avoid the deformation of brake track.
Tubular rims have become a lightweight choice for many riders.
OSFC Carbon rims Factory offer High quality road bike and MTB Bike carbon rimswith the wholesale price.
Features:
1.Rims material:OSFC carbon rimsmade of Full Toray T700 & T800 carbon fiber.
Use high TG resin system,can tolerate max250°C high temperature from braking.
2.OSFC bicycle carbon rims is not only lightweight but also strong,Strictly implement various high-quality standards in the production proces.
3.V shape design,better aerodynamics and stiffness.
4.OSFC carbon rims use basalt brake track,high temperature resistance,brake system is important for riding,more safety for cyclist.
5.Innovative one-piece molding,rim flange incl circle titanium,stronger and stabilized structure.
6.We have not MOQ limit,sample order are avaliable,we also can mixed product to order.
7.We offer decal and painting service for OEM your brands.
8.We can customized Different patterns of brake surface .
9.We are Chinese carbon rims manufacturer,many well-known brand suppliers.We develop more and more carbon fiber Road and MTB Rims.
10.Long warranty time：5 years warranty
Specification:
|
Model
|
R24T
|
|
Size
|
700C
|
|

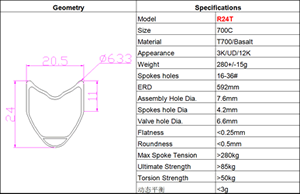

Sectional Drawing
|
|
|
Material
|
Toray T700 & T800
|
|
Depth
|
24mm
|
|
Wide
|
21mm
|
|
Weight
|
280+/-15g
|
|
Appearance
|
3K/UD OrCustomized
|
|
Spokes holes
|
18-36#Customized
|
|
ERD
|
592mm
|
|
Assembly Hole Dia.
|
7.6mm
|
|
Spokes hole Dia
|
4.2mm
|
|
Valve hole Dia.
|
6.6mm
|
|
Flatness
|
<0.25mm
|
|
Roundness
|
<0.5mm
|
|
Max Spoke Tension
|
>280kg
|
|
Ultimate Strength
|
>85kg
|
|
Torsion Strength
|
>50kg
|
|
Dynamic Equilibrium
|
<3g
|

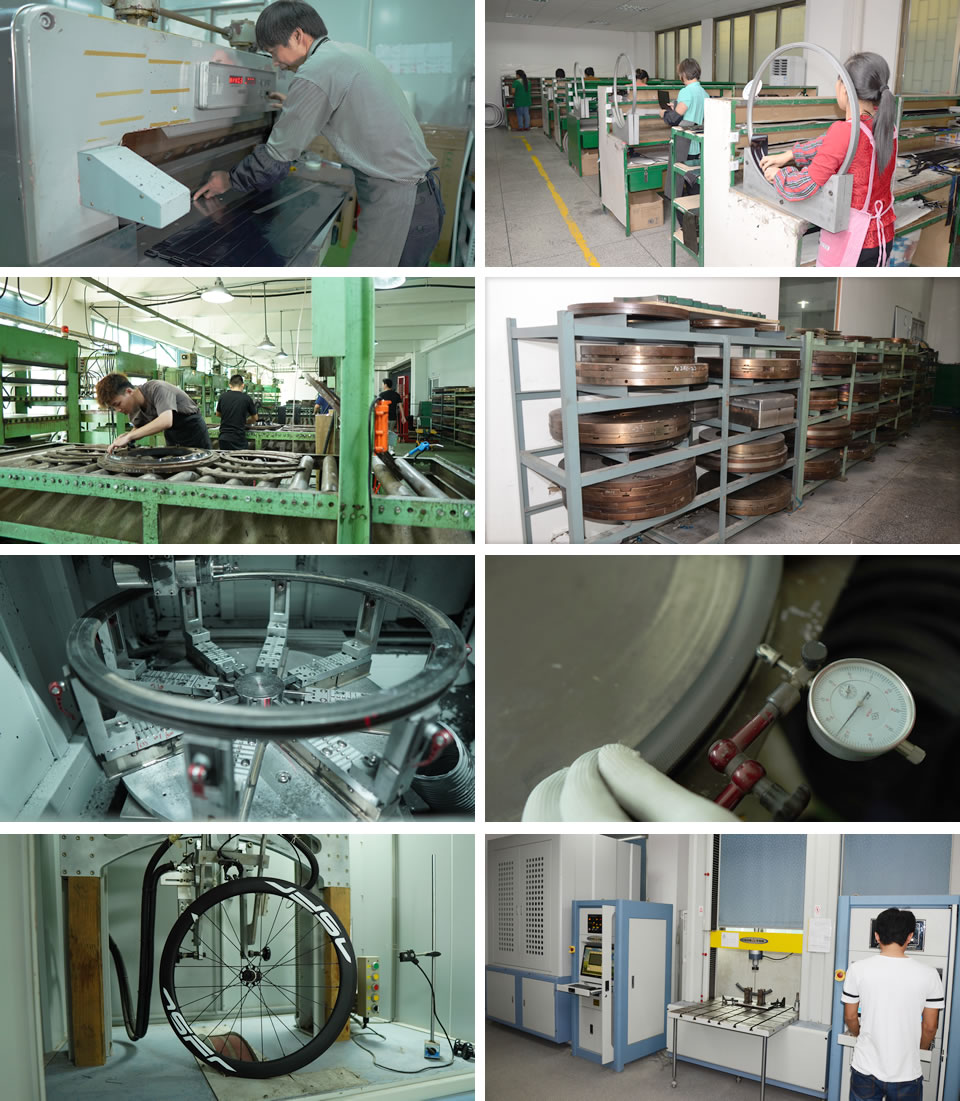

Factory production manufacture
100% Quality Inspection:
Our rims are made of100%Full carbon fiber material to ensure the highqualityof the goods.Each carbon rimby us has its uniqueserialID number, whichfollow every step of the product. And confirmevery rim to ensure the best after-sale service.
5 years warranty:
The warranty covers five years form the initial pruchase of the product.
The warranty applies to the original purchaser and the assignmnet is invalid.
The warranty requires proof of pruchase,product serial number and defect picture.
Pleasekeepyour proof of purchase for any future warrantyproblems.
This warranty does not cover:
1.Normal wear and tearand depreciation.
2.Anyman-made damage caused by accident,misuse,etc.
3.Improper installation,maintenance or other conduct by an unauthorized technician.
