Product name

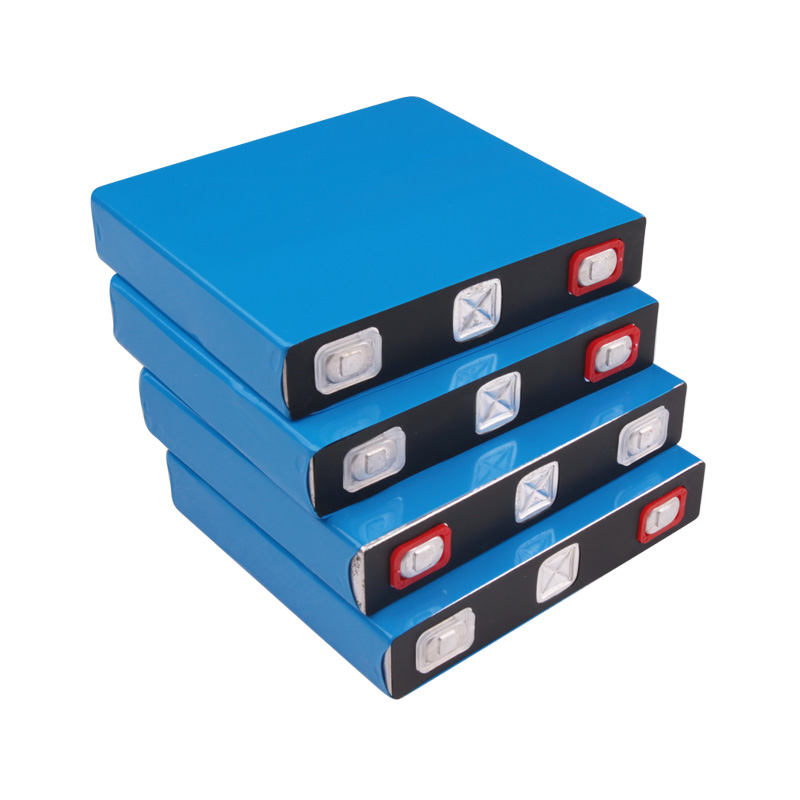

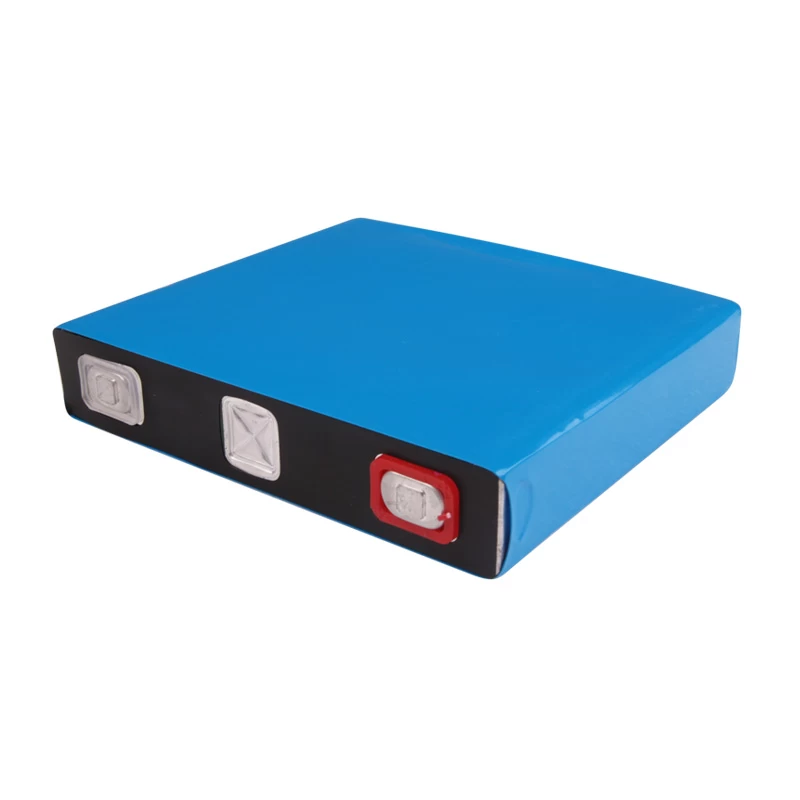

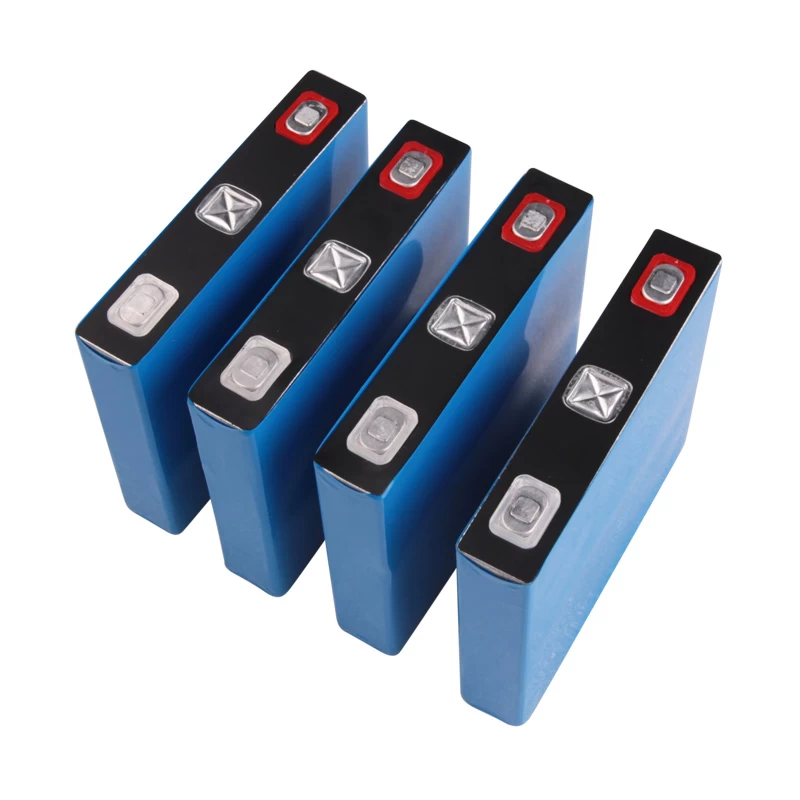

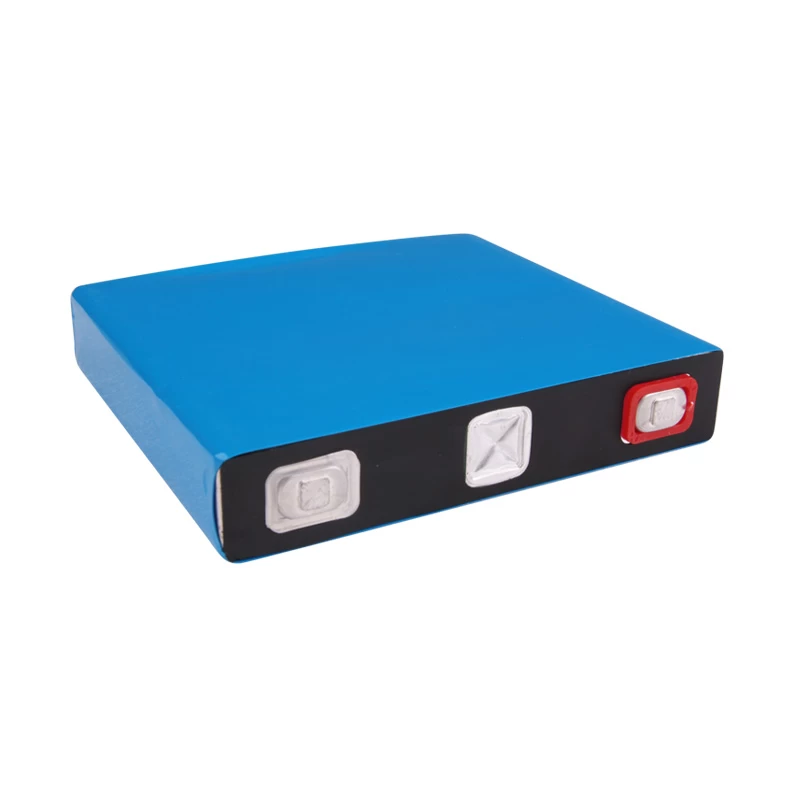

Super Long Cycle Life Lithium Titanate Battery Cells 2.4V 10AH
We can also assemble battery pack with laser spot welding machine .
Specification
|
Item
|
Parameters
|
|
Model
|
OSN-11622106-LTO10Ah
|
|
Materials
|
LTO
|
|
Nominal capacity
|
10Ah
|
|
Nominal voltage
|
2.4 V
|
|
Dimension
|
W116 × D22 × H106 mm
|
Cell construction type
|
Prismatic
|
|
Weight
|
510g
|
|
Internal Resistance
|
≤1mΩ
|
|
Operating voltage
|
Charge cut-off voltage
|
2.8 V
|
|
Discharge cut-off voltage
|
1.5 V
|
|
Output Power
|
1800W(SOC:50%, 10s, 25°C)
|
|
Input Power
|
1200W(SOC:50%, 10s, 25°C)
|
|
Cycle life
|
30000 times
|
|
Operating Thermal Ambient
|
Charging
|
-50℃~ 65℃
|
|
Discharging
|
-50℃~ 65℃
|
|
Storage Thermal Ambient
|
Short term
(within 1 month)
|
-20℃~ 45℃
|
|
Short term
(within 1 year)
|
-20℃~ 20℃
|
Highlight
Super long cycle life: over 30,000 times
Faster charge: 10mins fully charged
Higher Output Power: Up to 1800W
Wide working temperature range: -50°C ~ 65°C
High Safety(No fire, explosion,leakage)

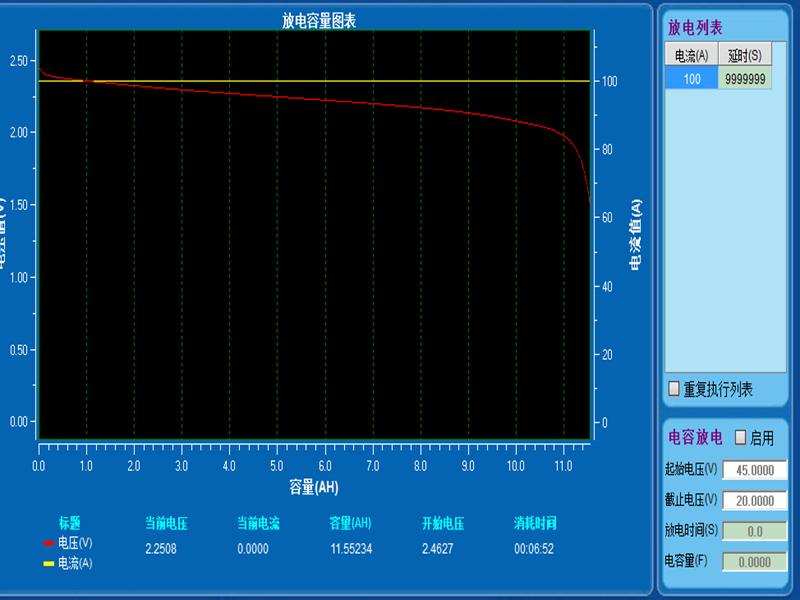

Discharge curve:
Related Product
Applications:
With 10 years experience of making LiFePO4/NCM/LTO packs, we can customize any packs for you.
Please email us at service@osnpower.com to get solution and quotation.
