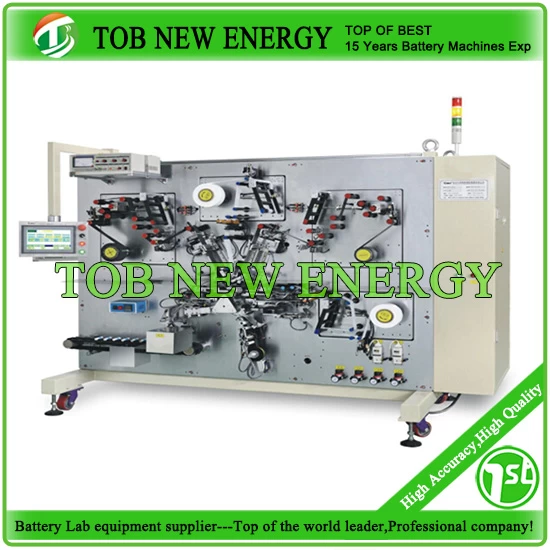

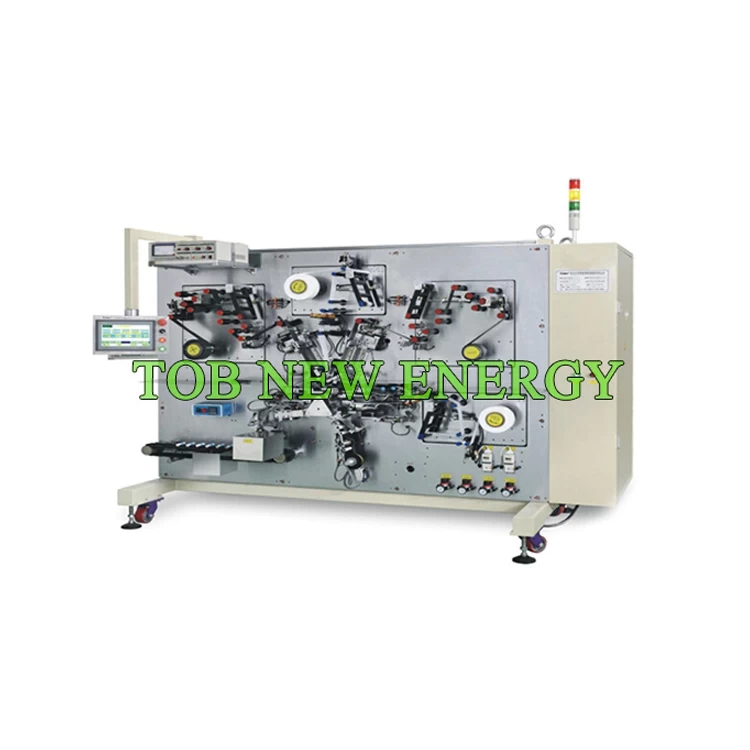

Automatic Winding Machine For Electrode Of Super Capacitor and Cylinder Battery
SPECIFICATIONS
1 This machine isfull automatic winding machineused for Capacitor and Cylinder Battery Winding machine.
2 The total winding process is full automatically.

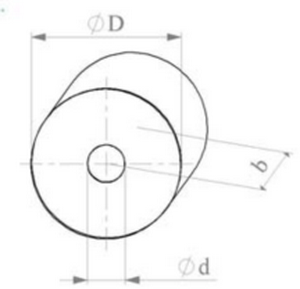

1) Finished battery core outside diameter ：D=φ25-φ70mm with tolerance ±0.8%.
2) Winding blade diameter ：φ8-φ20mm(standard d = φ8 mm)
3) Winding length ：1000-6000mm
4) Finished battery core height ：b=100–170mm
5) Termination of the protective tape : 1.1-2cycle, adjustable, stick position adjustable, Overlapping length ：50-360 mm

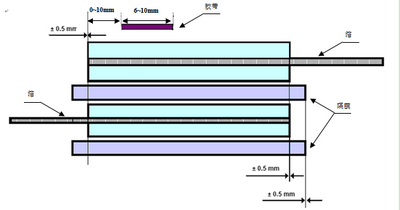

6) Finished battery core Degree of edge alignment as following

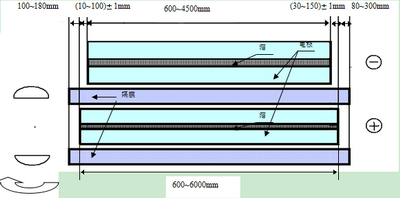

7）Winding mode as following
For materials
|
Material
|
Feeding mode
|
Length
(mm)
|
Width
(mm)
|
Thickness
(um)
|
Max outside diameter
(mm)
|
Inner diameter
（mm）
|
|
Electrode
|
Roller
|
600～6000
|
80-160
|
±0.1
|
100~320
|
±10
|
400
|
75.8
|
|
Separator
|
Rollers
|
80－160
|
±0.1
|
16~50
|
±4
|
350
|
75.8
|
|
Model
|
Capacitor and Cylinder Battery Winding machine TOB-AWM-3270C
|
|
Source voltage
|
AC220V/50Hz/Single phase. Customized according country request
|
|
Power
|
6KW
|
|
Warranty
|
One year limited warranty with lifetime support
|
|
Compressed air
|
0.45～0.6Mpa
|
|
Operating environment
|
Temperature : 20～35℃
Humidity : 30～55％HR
|
|
Tab welding skewness
|
±3°
|
|
Welding tension
|
≥15N
|
|
Cutter knife life
|
Cathode 500000times with repair
Anode 200000times with repair
According to tab thickness
|
|
Output
|
4-5pcs/min according to battery model
|
|
Dimension (L*W*H)
|
2400*1700*1900mm
|
|
Weight
|
1500kg
|
