Supercapacitor Automatic Roll-To-Sheet Cutting Machine

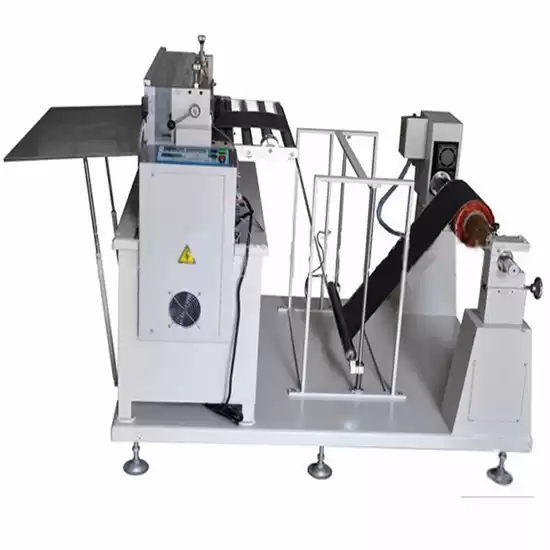

TMAX Limited manufactures the TMAX-ZHQ300, a new automatic Roll-to-Sheet Cutting Machine which can quickly and accurately transform a roll into the sheets with desired length.
Outstanding Features:
1. PLC Control is fully programmable and adaptable to the needs of each job.
2. Automatic operation eleminates the risks of accident in cutting operation.
3. Unreeling auto-tension control.
4. Stainless steel made transfer & tension rods help minimize the chloridion which may cause negtive effects to the electrode quality.
5. Continuous cutting with two selectable cutting modes: "Cut-to-length" and "Color Mark Detection Cutting".
6. Compensation adjustment at the cutting edge.
7. Set dsired number of cuts.
SPECIFICATIONS:
|
Working Voltage
|
Single-phase 208~240VAC, 50/60Hz
|
|
Max. Power Consumption
|
1.2KW
|
|
Cutting Modes
|
1. Cut-to-Length: Set the desire cutting length with in the range of 1~9999mm
2. Color Mark Detection Cutting: Allows a printed color mark on a continuous web to be detected and therefore for accurate control of downstream cutoff.
|
|
Cutting Accuracy
|
+/- 0.3mm
|
|
Acceptable Electrode Width
|
10~300mm
|
|
Linear Speed Allowed for Cutting
|
1. Cut-to Length: 5~250mm/s
2. Color Mark Sense Cutting: 5~150mm/s
|
|
Acceptable Electrode Roll Size
|
Max. 250mm O.D
|
|
Compress Air Requirement
|
0.5~0.8MPa
|
|
Warranty
|
One year limited manufacturer warranty with lifetime support.
|
|
Dimensions of Machine
|
L1400*W800*H700mm
|
|
Compliance
|
CE Certified
|
|
Net Weight
|
240kg
|
