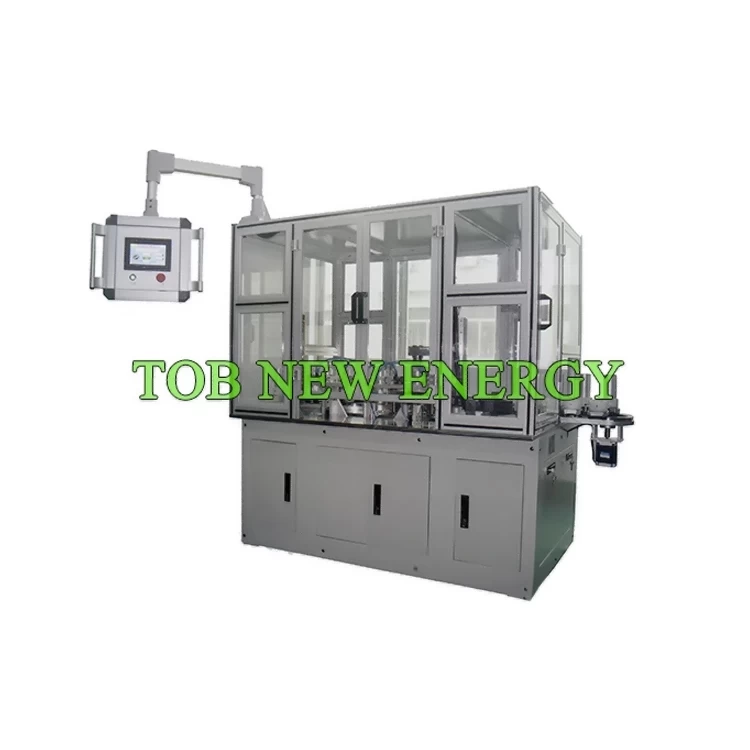

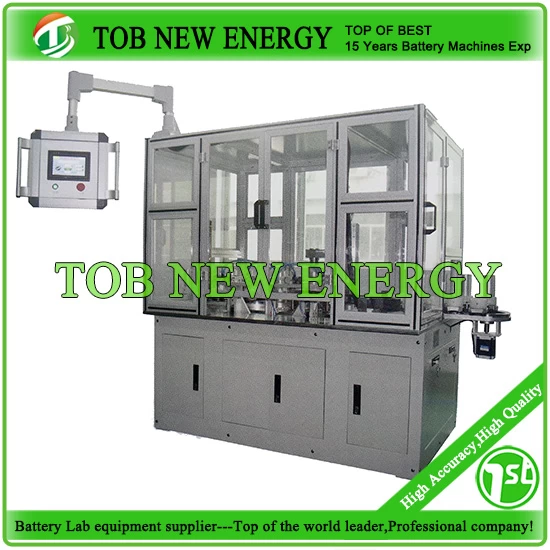

Supercapacitor case channeling machine
SPECIFICATION
Functional overview
The device is suitable for the channeling operation of cylindrical supercapacitor case.
Functional characteristics
1.Receiving or discharging product adopts ring guide rail, workstation conveying materials adopts servo ball screw.
2.Channeling and clamping device adopts cam mechanism, with stable Channeling depth and height, and high
controllable precision.
3.Channeling depth and height are adjustable, and the adjusted numerical value can be observed on human-computer interface duly.
4.Equipped with the imported two-dimension bar code scanner. Data can be stored and derived,
for the convenience of quality control and traceability on product.
5.Equipped with security guard shield and safety light grid, with safe and reliable device operation.
6.Adopt the imported PLC. Touch screen displays operation, conveniently and quickly.
7.Case adopts dust-proof glass cover. The device is top-grade and dust-proof.
Technical parameters
|
Channeling Accuracy (W)
|
±0.05mm
|
|
Channeling Accuracy (L)
|
±0.05mm
|
|
Channeling Adjustment range
|
0~100mm
|
|
Mould adjusting precision
|
≤0.01mm
|
|
Power source
|
AC220W50Hz
|
|
Power
|
2.5kw
|
|
Air source
|
0.4~0.7MPa 5L/min
|
|
Overall dimensions (L*W* H)
|
1500 x 1000 x1650mm
|
|
Weight
|
750kg
|
