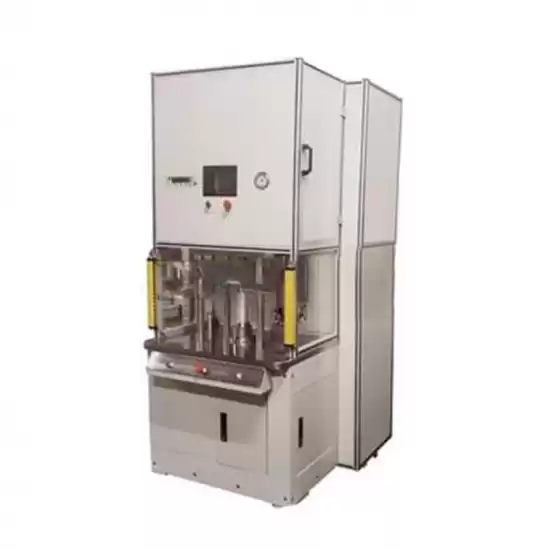

Supercapacitor Case Shaping Machine with PLC Control
SPECIFICATIONS
Suitable for case shaping of cylindrical supercapacitor.
Functional characteristics
1.PLC control, touch screen operation interface, easy to enter each function.
2.Parameters in the process of production can be recorded in data memory.
3.Provide manual and automatic operation modes.
Technical parameters
|
Power source
|
AC220V/50Hz
|
|
Air source
|
0.4~0.7MPa
|
|
Shell specification
|
φ60mm x (100~150)mm
|
|
Pressure holding time
|
1s~10s
|
|
Nominal pressure
|
30kN
|
|
Positioning accuracy(H)
|
±0.02mm
|
|
Shaping height error(H)
|
±0.05mm
|
|
Overall dimensions (LxWxH)
|
1100x1200x2100mm
|
