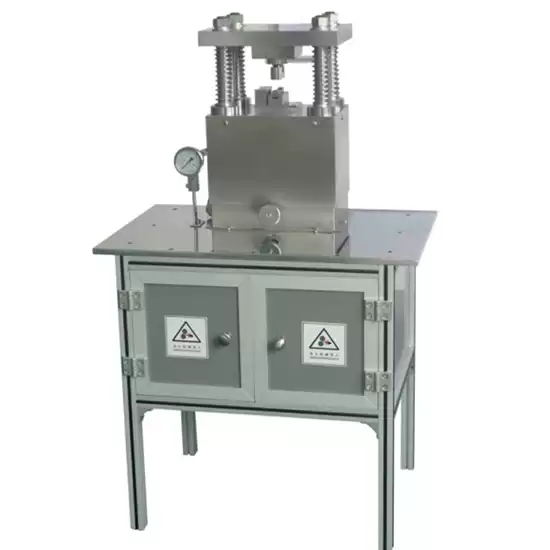

Supercapacitor Electric Riveting Press Machine For Supercapacitor Small Batch Production
This equipment is suitable for laboratory trial production or small batch production.
The riveting height is adjustable and easy to use.
The work surface is hard chrome-plated.
The riveting speed can be adjusted.
The riveting pressure can be controlled.
Technical parameters:
|
Battery specification
|
ø22~ø35mm
|
|
The outer diameter of the upper cover of the battery
|
ø20.5~ø33.5mm
|
|
Cell core cover terminal spacing
|
10mm
|
|
Battery core cover terminal outer diameter
|
ø2.5mm
|
|
Chuck stroke
|
20~40mm
|
|
Throat depth
|
150mm
|
|
Screw
|
M16×2.0
|
|
Dimensions
|
800 (L) x 520 (W) x 1000 (H) mm
|
|
Weight
|
80KG
|
