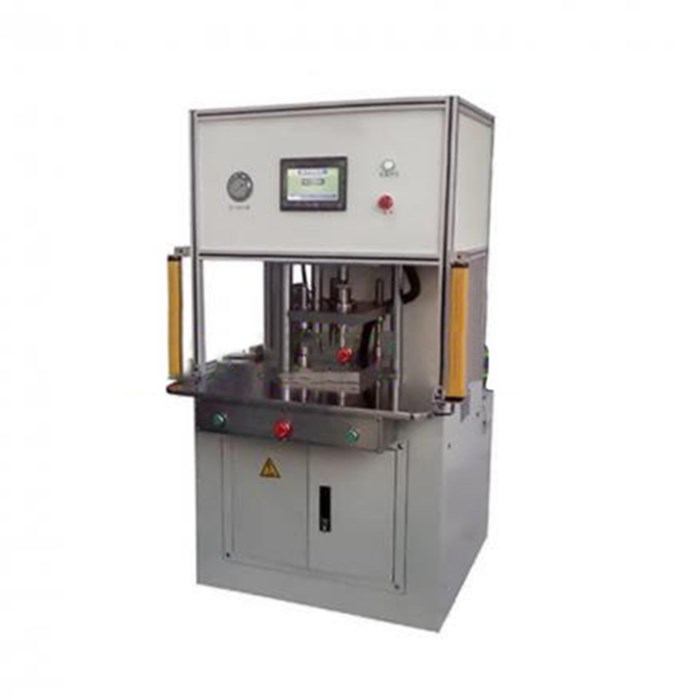

Stitching Machine for the Riveting Operation of Cell and end
Cover of Capacitor
Functional overview
The device is suitable for the riveting operation of cell and end cover of capacitor.
Functional characteristics
1.With manual and automatic operation modes.
2.The size and height of cell can be adjusted ranaomly by jigs, with convenient, safe and reliable operation.
3.Adopt disc-type rotation riveting, with accurate workstation feeding.
4.Adopt hydraulic system as the riveting power source, with big force and adjustable pressure.
5.Adopt the imported PLC program control. Touch screen displays operation, with high automation achievable.
Technical parameters
|
The outer diameter of the capacitor batteries
|
φ30~35mm,
Pitch:l0mm, Height:40~55mm
|
|
Air source
|
0.5~0.7MPa
|
|
Power soure
|
2kW
|
|
Overall dimensions(LxWxH)
|
1800 x 1600 x 1600mm
|
|
Weight
|
600kg
|
