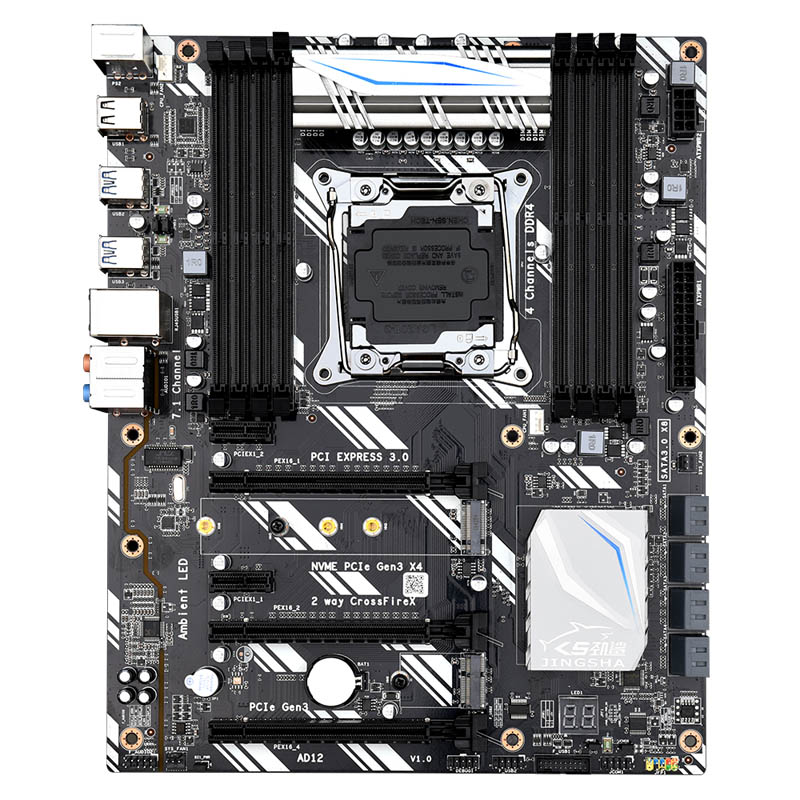

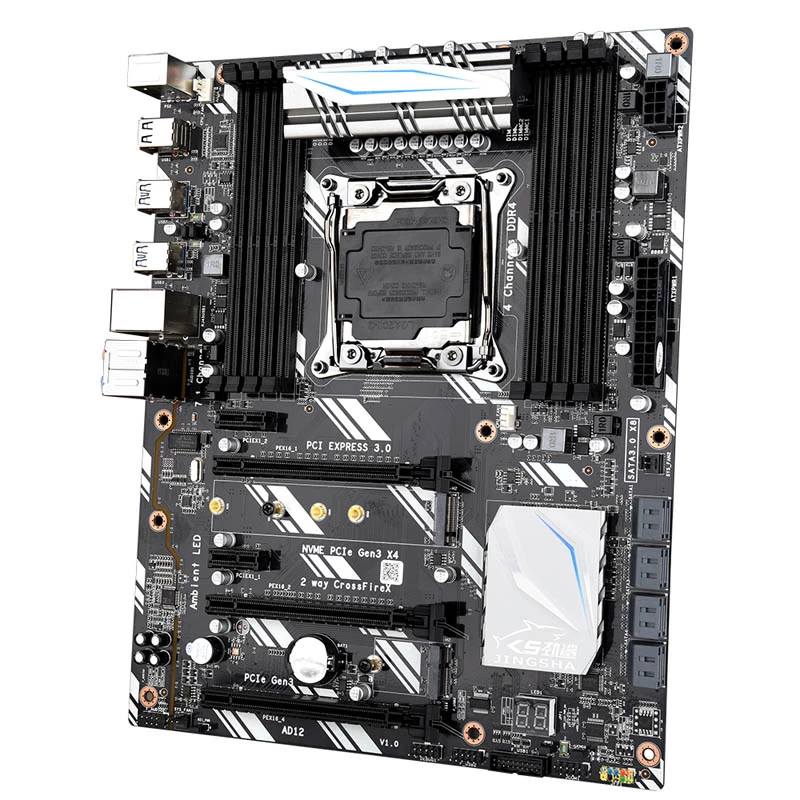

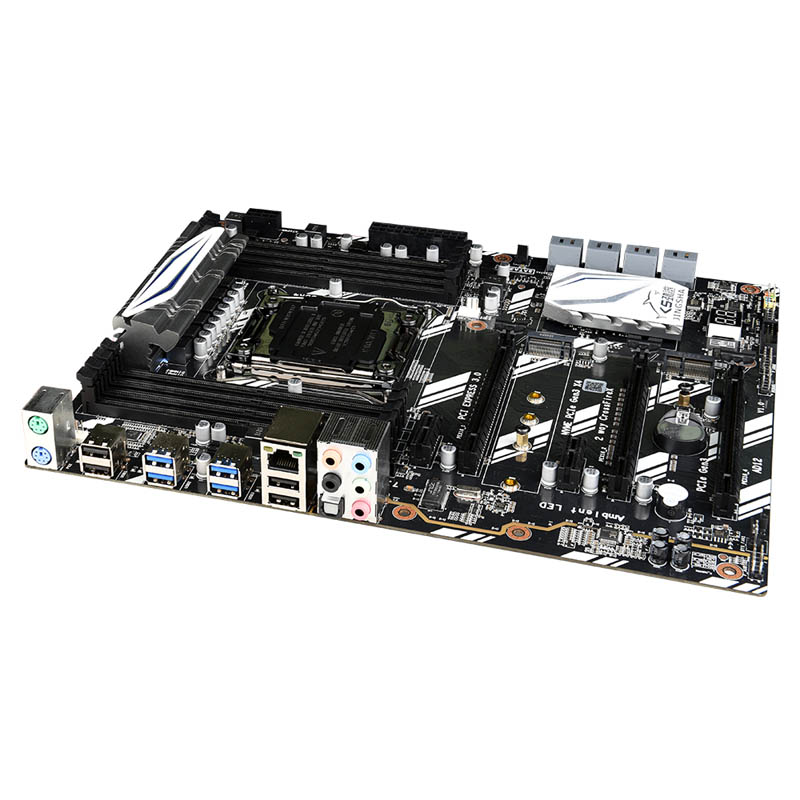

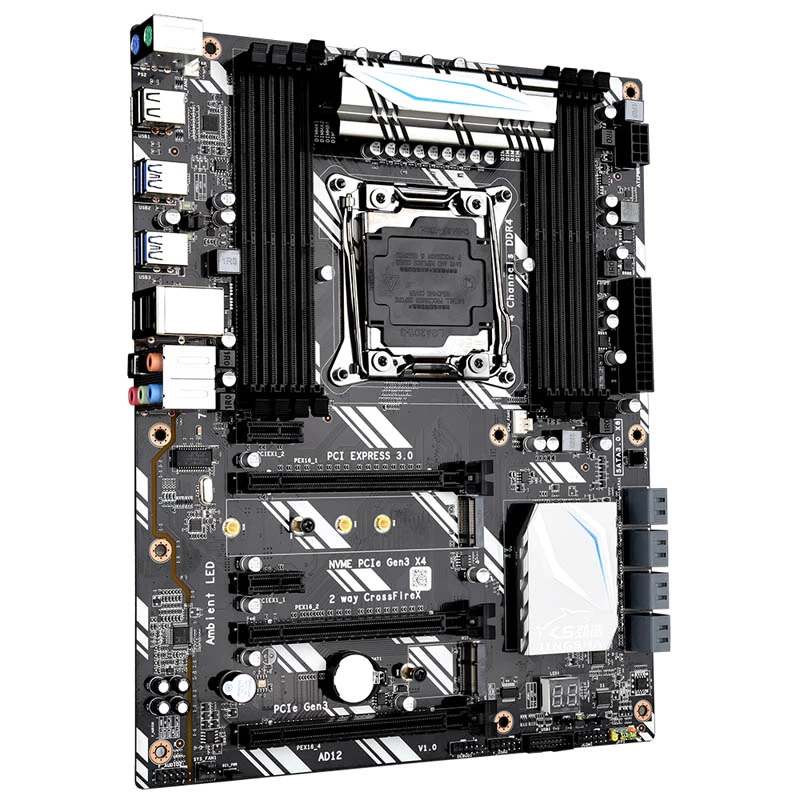

Superior performance Intel X99 chipset LGA2011-3 motherboard support REG ECC DDR4 RAM up to 256GB
- Extreme gaming Intel X99 chipset, LGA 2011-3 motherboard
-
Support Intel Xeon all series v3/v4 processor
- Quad channel DDR4 up to 256GB, support REG ECC server RAM
- Support 1066/1333/1600/1866/2133mhz
- 2-way PCIE 3rd Generation x16 3.0 slots, support CrossFire
- NVME 3rd Gen x4 M.2 slot, boot operating system in an instant
- Support WiFi Bluetooth M.2 port
- MemoryDual channel DDR4 support REG ECC server RAM
- ChipsetIntel X99 chipset
- CPU socketLGA 2011 v3
X99
Gaming Rig
Performance Monster
Brand new material, trustworthy
Intel x99 Motherboard
Superior Performance Details...
|
|

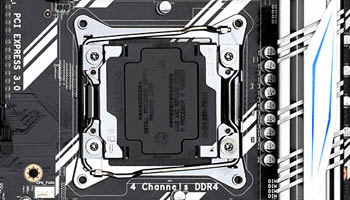

LGA2011-V3Support Intel all series CPU with LGA2011-V3 package |
 |
|

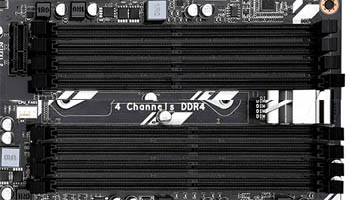

Dual channel DDR4Dual channel DDR4, run more programs, more fasterSupports 1066/1333/1600/1866/2133 mhz Support REG ECC server RAM |

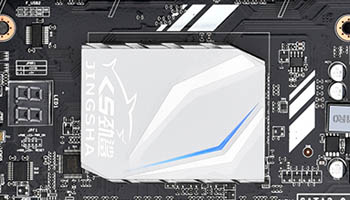

X99Intel X99 Chipset |
|
|

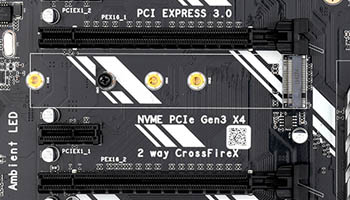

PCIE 3.02-way PCIE 3.0 16xSupport CrossFire |

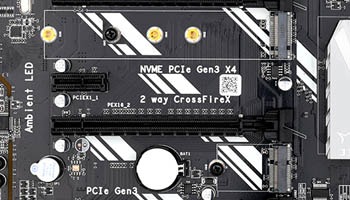

NVME M.21 x NVME M.2 slot1 x WiFi M.2 slot High speed boot up OS in an instant |
|
|

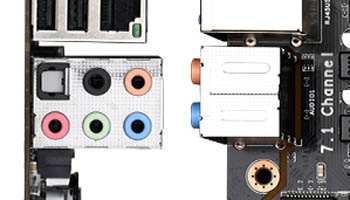

SPDIF + Audio1 x Optical lossless Audio output |

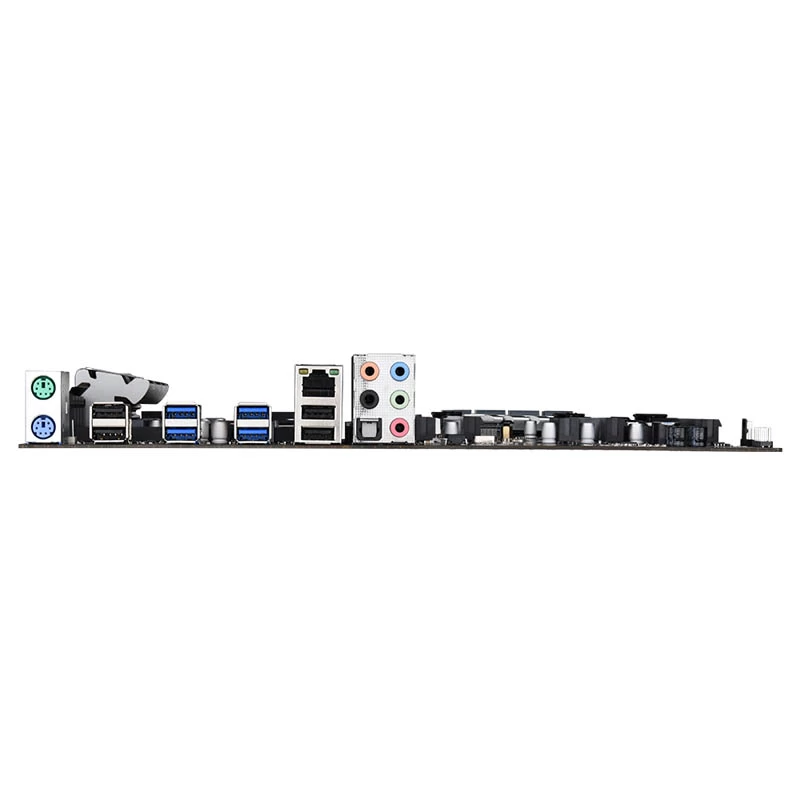

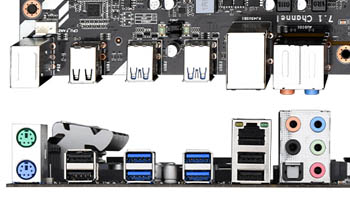

Comletibilies Ports4 x USB 2.04 x USB 3.0 1 x RJ45 port Gigabit LAN 5 x Audio components |
|
| Name | Socket | Cores | Threads | Frequency | Turbo Boost | Multiplier | L2 cache | L3 cache | PCIe 2.0 or 3.0 lanes | TDP |
| Haswell-E | ||||||||||
| Core i7-5820K[37] | LGA 2011 v3 | 6 | 12 | 3.3 GHz | 3.6 GHz | Unlocked | 6 x 256 KB | 15 MB | 28 (PCIe 3.0) | 140 W |
| Core i7-5930K[38] | 3.5 GHz | 3.7 GHz | 40 (PCIe 3.0) | |||||||
| Core i7-5960X Extreme Edition[39] | 8 | 16 | 3.0 GHz | 3.5 GHz | 8 × 256 KB | 20 MB | ||||
| Broadwell-E | ||||||||||
| Core i7-6800K[40] | LGA 2011 v3 | 6 | 12 | 3.4 GHz | 3.6 GHz | Unlocked | 6 x 256 KB | 15 MB | 28 (PCIe 3.0) | 140W |
| Core i7-6850K[41] | 3.6 GHz | 3.8 GHz | 40 (PCIe 3.0) | |||||||
| Core i7-6900K[42] | 8 | 16 | 3.2 GHz | 3.7 GHz | 8 x 256 KB | 20 MB | ||||
| Core i7-6950X[43] | 10 | 20 | 3.0 GHz | 3.5 GHz | 10 x 256 KB | 25 MB | ||||
| Single socket | ||||||||
| Name | Cores | Threads | Frequency | Turbo Boost | Cache | Bus speed | TDP | DDR4 speed |
| Xeon E5-1680 v3 | 8 | 16 | 3.2 GHz | 3.8 GHz | 20 MB | 5 GT/s | 140 W | 1333/1600/1866/2133 |
| Xeon E5-1660 v3 | 8 | 16 | 3 GHz | 3.5 GHz | 20 MB | 5 GT/s | 140 W | 1333/1600/1866/2133 |
| Xeon E5-1650 v3 | 6 | 12 | 3.5 GHz | 3.8 GHz | 15 MB | 5 GT/s | 140 W | 1333/1600/1866/2133 |
| Xeon E5-1630 v3 | 4 | 8 | 3.7 GHz | 3.8 GHz | 10 MB | 5 GT/s | 140 W | 1333/1600/1866/2133 |
| Xeon E5-1620 v3 | 4 | 8 | 3.5 GHz | 3.6 GHz | 10 MB | 5 GT/s | 140 W | 1333/1600/1866/2133 |
| Xeon E5-1607 v3 | 4 | 4 | 3.1 GHz | 10 MB | 5 GT/s | 140 W | 1333/1600/1866 | |
| Dual socket – mainstream | ||||||||
| Name | Cores | Threads | Frequency | Turbo Boost | Cache | Bus speed | TDP | DDR4 speed |
| Xeon E5-2699 v3 | 18 | 36 | 2.3 GHz | 3.6 GHz | 45 MB | 9.6 GT/s | 145 W | 1600/1866/2133 |
| Xeon E5-2698 v3 | 16 | 32 | 2.3 GHz | 3.6 GHz | 40 MB | 9.6 GT/s | 135 W | 1600/1866/2133 |
| Xeon E5-2697 v3 | 14 | 28 | 2.6 GHz | 3.6 GHz | 35 MB | 9.6 GT/s | 145 W | 1600/1866/2133 |
| Xeon E5-2695 v3 | 14 | 28 | 2.3 GHz | 3.3 GHz | 35MB | 9.6 GT/s | 120 W | 1600/1866/2133 |
| Xeon E5-2690 v3 | 12 | 24 | 2.6 GHz | 3.5 GHz | 30 MB | 9.6 GT/s | 135 W | 1600/1866/2133 |
| Xeon E5-2683 v3 | 14 | 28 | 2 GHz | 3 GHz | 35 MB | 9.6 GT/s | 120 W | 1600/1866/2133 |
| Xeon E5-2680 v3 | 12 | 24 | 2.5 GHz | 3.3 GHz | 30 MB | 9.6 GT/s | 120 W | 1600/1866/2133 |
| Xeon E5-2670 v3 | 12 | 24 | 2.3 GHz | 3.1 GHz | 30 MB | 9.6 GT/s | 120 W | 1600/1866/2133 |
| Xeon E5-2660 v3 | 10 | 20 | 2.6 GHz | 3.3 GHz | 25 MB | 9.6 GT/s | 105 W | 1600/1866/2133 |
| Xeon E5-2650 v3 | 10 | 20 | 2.3 GHz | 3 GHz | 25 MB | 9.6 GT/s | 105 W | 1600/1866/2133 |
| Xeon E5-2640 v3 | 8 | 16 | 2.6 GHz | 3.4 GHz | 20 MB | 8 GT/s | 90 W | 1600/1866 |
| Xeon E5-2630 v3 | 8 | 16 | 2.4 GHz | 3.2 GHz | 20 MB | 8 GT/s | 85 W | 1600/1866 |
| Xeon E5-2620 v3 | 6 | 12 | 2.4 GHz | 3.2 GHz | 15 MB | 8 GT/s | 85 W | 1600/1866 |
| Xeon E5-2609 v3 | 6 | 6 | 1.9 GHz | 15 MB | 6.4 GT/s | 85 W | 1600 | |
| Xeon E5-2603 v3 | 6 | 6 | 1.6 GHz | 15 MB | 6.4 GT/s | 85 W | 1600 | |
| Dual socket – frequency-optimised | ||||||||
| Name | Cores | Threads | Frequency | Turbo Boost | Cache | Bus speed | TDP | DDR4 speed |
| Xeon E5-2667 v3 | 8 | 16 | 3.2 GHz | 3.6 GHz | 20 MB | 9.6 GT/s | 135 W | 1600/1866/2133 |
| Xeon E5-2643 v3 | 6 | 12 | 3.4 GHz | 3.7 GHz | 20 MB | 9.6 GT/s | 135 W | 1600/1866/2133 |
| Xeon E5-2637 v3 | 4 | 8 | 3.5 GHz | 3.7 GHz | 15 MB | 9.6 GT/s | 135 W | 1600/1866/2133 |
| Xeon E5-2623 v3 | 4 | 8 | 3 GHz | 3.5 GHz | 10 MB | 8 GT/s | 105 W | 1600/1866 |
| Dual socket – low power | ||||||||
| Name | Cores | Threads | Frequency | Turbo Boost | Cache | Bus speed | TDP | DDR4 speed |
| Xeon E5-2650L v3 | 12 | 24 | 1.8 GHz | 2.5 GHz | 30 MB | 9.6 GT/s | 65 W | 1600/1866/2133 |
| Xeon E5-2630L v3 | 8 | 16 | 1.8 GHz | 2.9 GHz | 20 MB | 8 GT/s | 55 W | 1600/1866 |
| Dual socket – workstation | ||||||||
| Name | Cores | Threads | Frequency | Turbo Boost | Cache | Bus speed | TDP | DDR4 speed |
| Xeon E5-2687W v3 | 10 | 20 | 3.1 GHz | 3.5 GHz | 25 MB | 9.6 GT/s | 160 W | 1600/1866/2133 |
| Dual socket – storage and communications | ||||||||
| Name | Cores | Threads | Frequency | Turbo Boost | Cache | Bus speed | TDP | DDR4 speed |
| Xeon E5-2658 v3 | 12 | 24 | 2.2 GHz | 2.9 GHz | 30 MB | 9.6 GT/s | 105 W | 1600/1866/2133 |
| Xeon E5-2648L v3 | 12 | 24 | 1.8 GHz | 2.5 GHz | 30 MB | 9.6 GT/s | 75 W | 1600/1866/2133 |
| Xeon E5-2628L v3 | 10 | 20 | 2 GHz | 2.5 GHz | 25 MB | 8 GT/s | 75 W | 1600/1866 |
| Xeon E5-2618L v3 | 8 | 16 | 2.3 GHz | 3.4 GHz | 20 MB | 8 GT/s | 75 W | 1600/1866 |
| Xeon E5-2608L v3 | 6 | 12 | 2 GHz | 15 MB | 6.4 GT/s | 52 W | 1600/1866 | |
