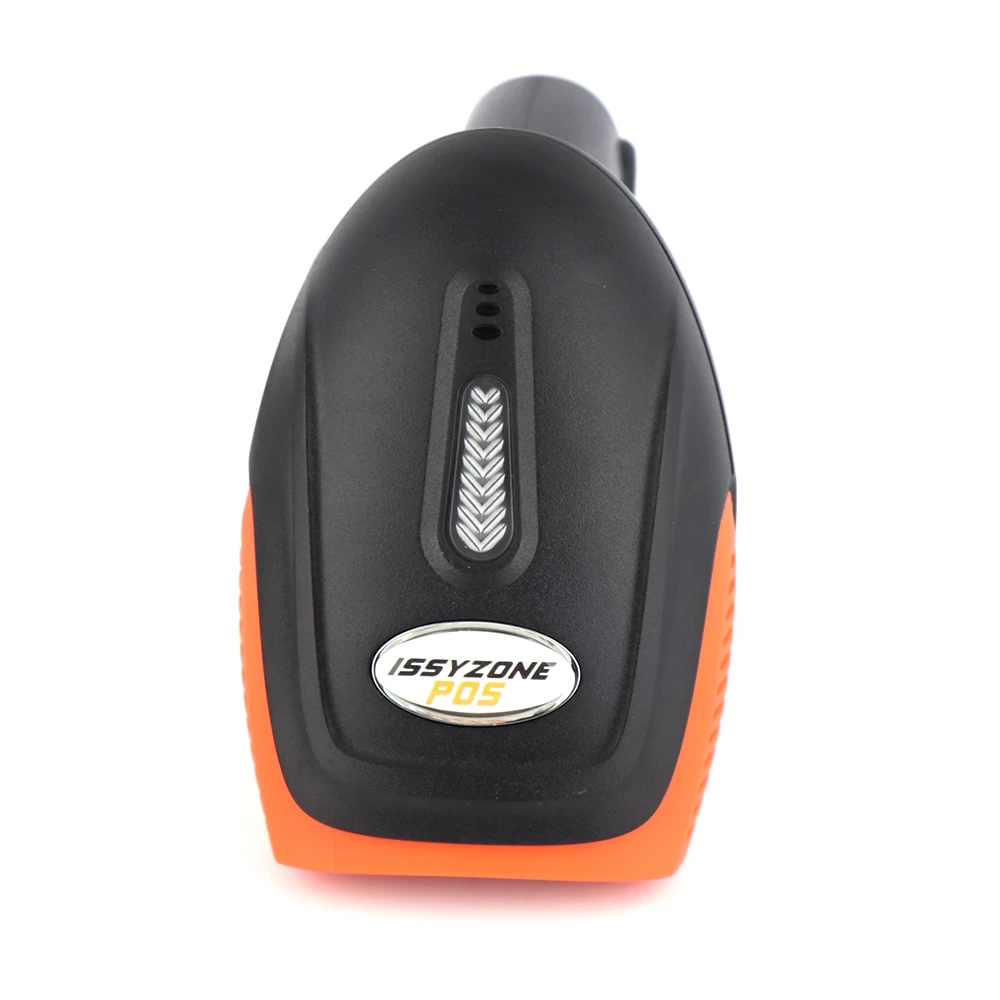

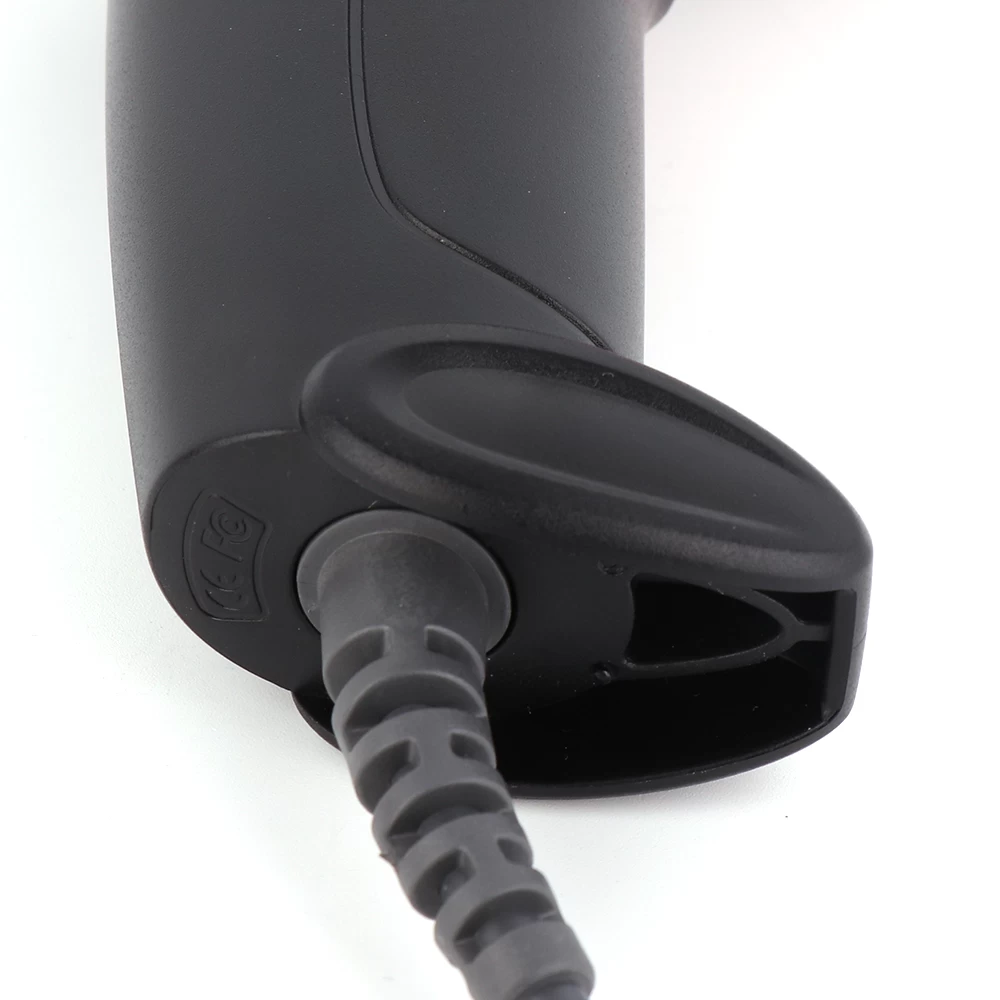

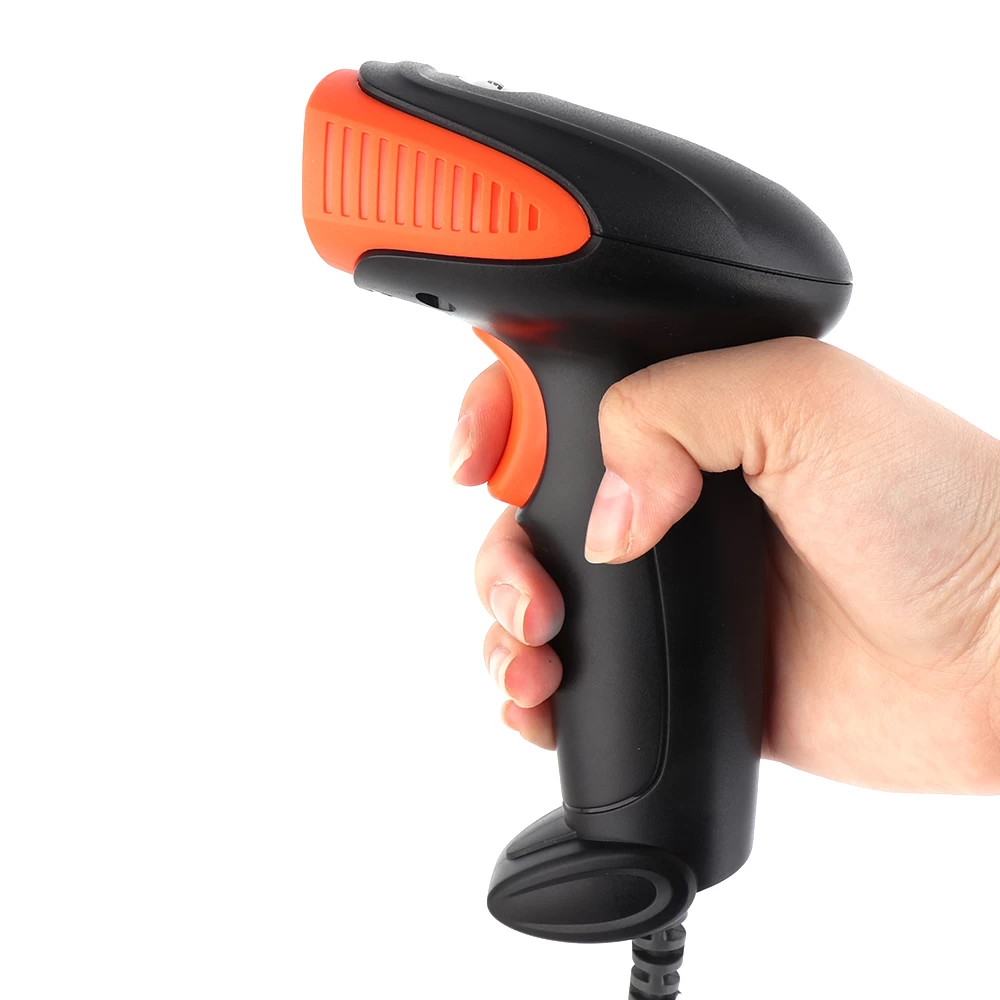

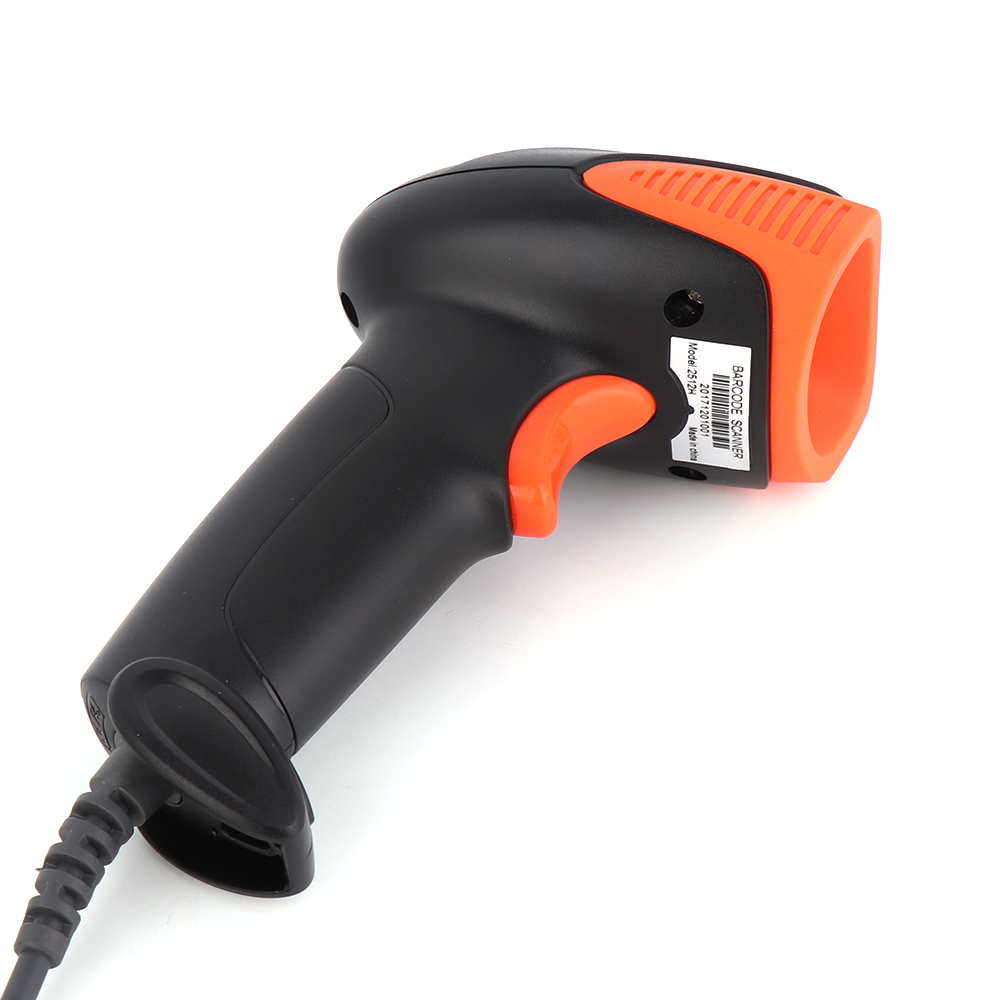

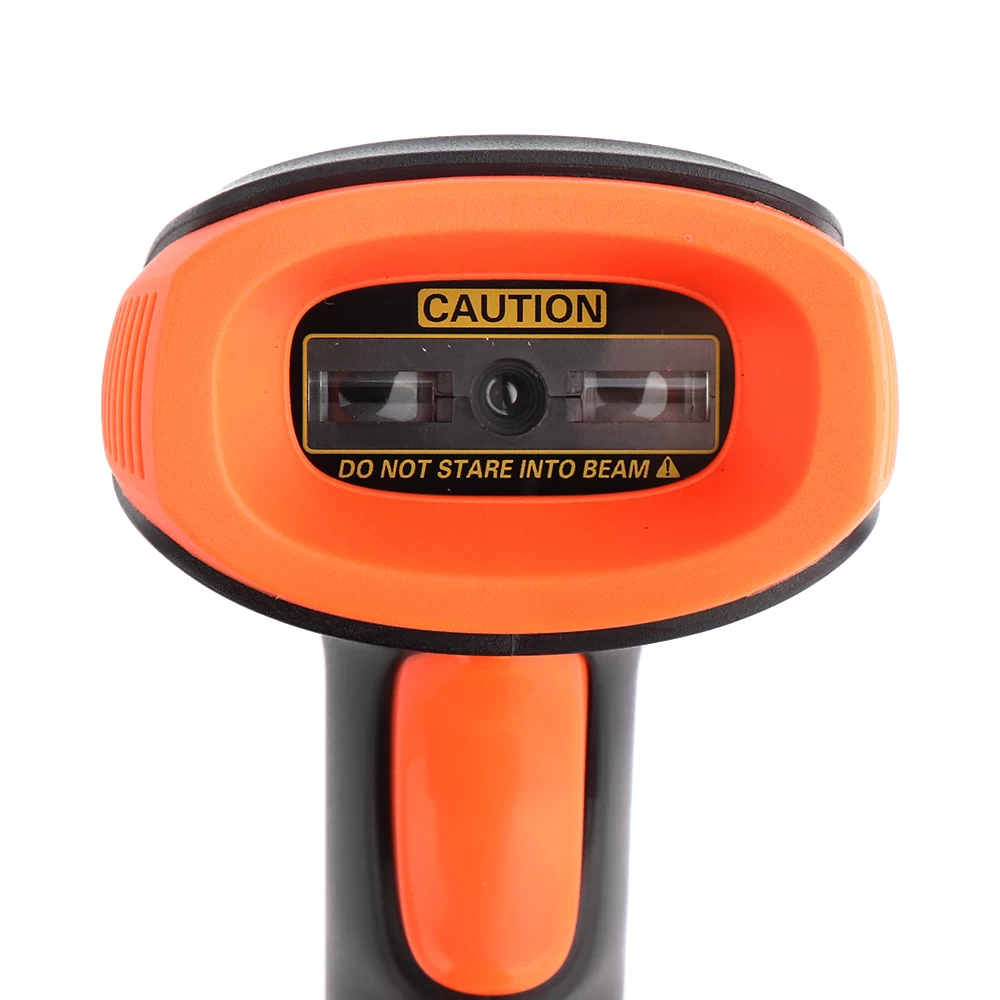

Supermarket 1D CCD Barcode Scanner with Red LED IPBS057

qr reader
1.Trial order acceptable
2.High quality, reasonable
3.Reasonable Price

Specification:
Light Source	Red LED ,660nm
Sensor	Linear CCD Sensor
Processor	ARM32-bit
Resolution	≥3mil/0.076mm(PCS90%,CODE 39)
Depth of scanning field	30mm-600mm
Scan Rate	300 scans per second
Reading angle	Test Conditions: CODE39,10mil/0.25mm,PCS90%
Roll/Pitch/Yaw Angle	Pitch: ±60° Roll: ±30° Skew: ±60°
Print Contrast	≥20%
Scan Mode	Manual/ Continuous scan/ Automatic induction
Indicator	LED, buzzer
Interface Support	USB, RS232, PS/2
Decode Capability	UPC-A,UPC-E,EAN-13,ISSN,ISBN,Code128,GS1-128,ISBT128,Code93,Interleaved2of5,ITF-6,ITF-14,Matrix2of5,Industrial2of5(IATA),Codabar(NW-7),
Decode Capability	Plessey,MSI Plessey,MSI Plesssey,RSS,etc.
Weight	190g(With cable)
Dimension	165mmL65mmW97mmH
Cable Lenght	1.8M
Housing Materials	ABS+PC
Voltage	DC 3.3V
Current	90mA(Operating mode)，30mA(Quiescent current)
Operating Temperature	-20℃to 50℃
Storage Temperature	-40℃to 70℃
Humility	5%to95%（non-condensing）
Impact Resistance	withstands multiple 5m drops to concrete
Temperature Test	30minutes for high Temp,30minutes for low Temp,
	high temperature: 60℃
	low temperature: -20℃
Certification	ROHS CE FCC
