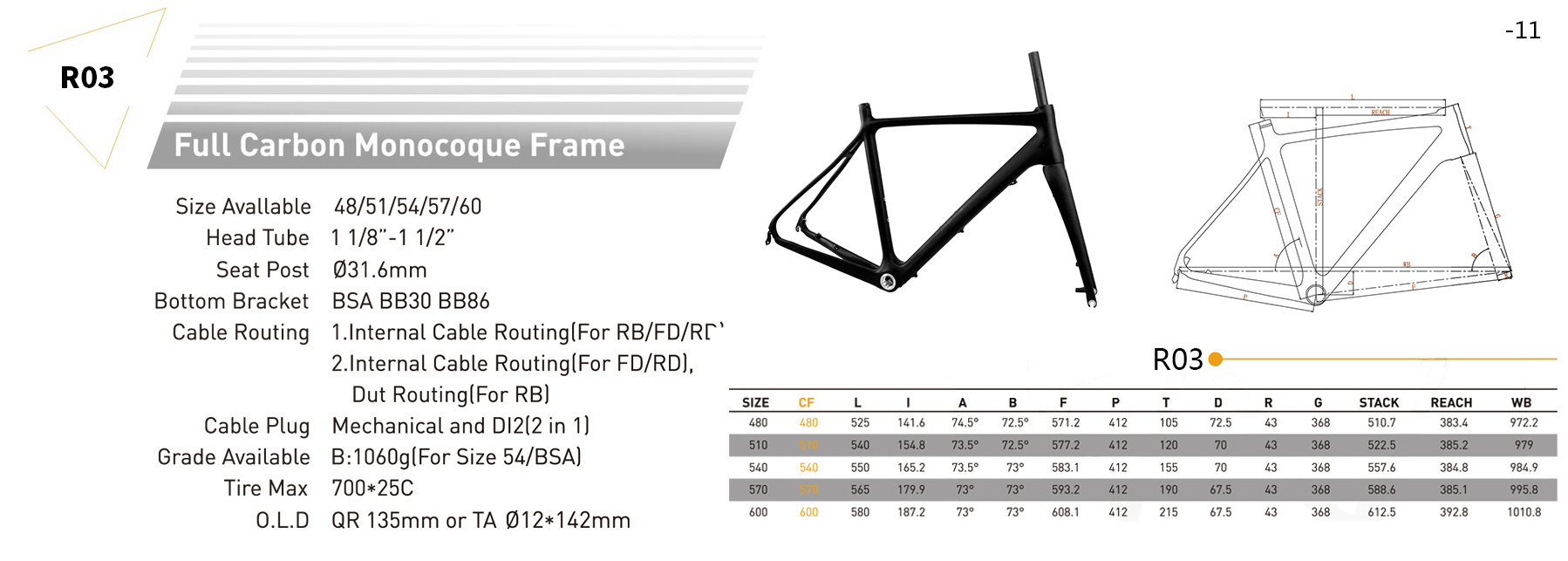

Model Number: R03
|
Type: Bike Frame
|
|
Material:Carbon, Totray Carbon T800
|
Travel：F 100m R 103mm
|
|
Size Available: 48/51/54/57/60
|
O.L.D: QR 130mm
|
|
Head Tube: 1 1/8"-1 1/2"
|
Cable Routing: Internal Cable Routing(For RB/FD/RD)
|
|
Bottom Bracket: BSA BB30 BB92 BB86
|
Tire Max: 700*25C"
|
|
Cable Plug: Mechanical and DI2(2 in 1)
|
Grande Available: B:1060g(For Size 54/BSA)
|
FAQ
1.What is the ERD?
ERD, short for Effective Rim Diameter, is the rim diameter measured at the nipple seats in the spoke holes, plus the thickness of the two nipple heads.as picture: It's used to calculate spoke length when preparing to build a wheel.
2.Can i mixed product to order ?
Yes, the answer will be Yes.
3.Decals
We can make any logo you need, please send the font file and pantone color for us.If you don’t have any ideas for the design,we have professional team will be service you and custom logo for you.
