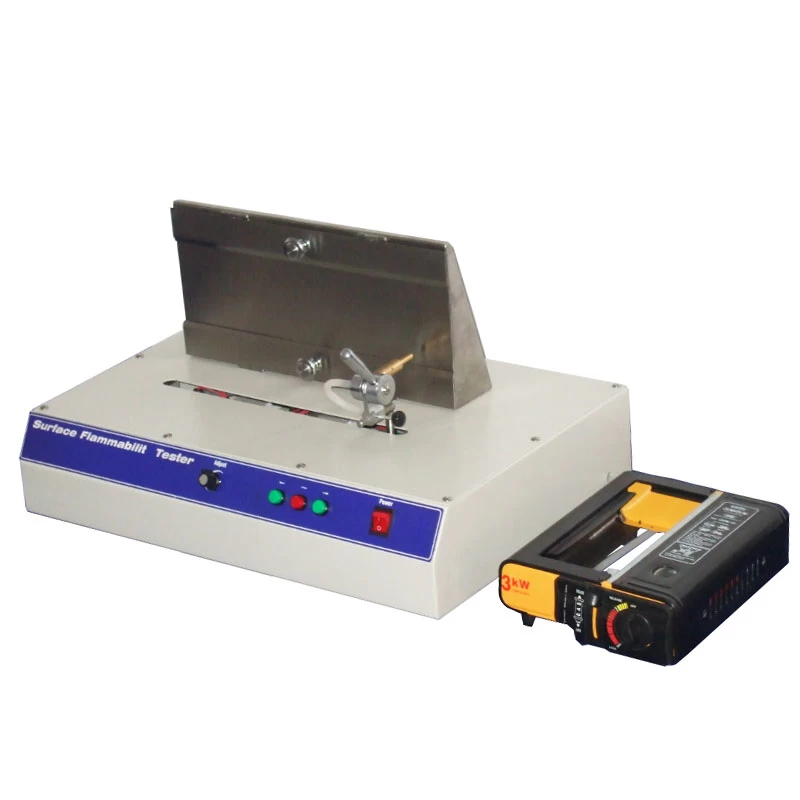

AT36-Surface Flammability Tester
Application Of Surface Flammability Tester
Surface Flammability Tester is suitable for testing the burning performance of fluff or fur fabrics.
Test Method Of Surface Flammability Tester
Using a prescribed flame to quickly move laterally from one end of the specimen surface to the other, the flame quickly spreads on the surface of the fabric, but the base fabric structure of the fabric does not burn, so as detecting if there's a surface flame on the specimen.
Standards Of Surface Flammability Tester
BS 4569, EN 71
Key Specification Of Surface Flammability Tester
|
Model
|
AT36 Surface
Flammability Tester
|
|
Fixture
length
|
400mm
|
|
Burner
movement speed
|
150±5mm/s
|
|
Burner
moving distance
|
≥300mm
|
|
Can
test fabric plush height
|
Max. 70mm
|
|
Two
clips spacing
|
100mm
|
|
Specimen
specifications
|
Length 200mm,
width≥130mm
|
|
Number
of specimens
|
2 pieces
|
|
Distance
between fire nozzle and specimen surface
|
5mm
|
|
Distance
between fire nozzle center and lower clip
|
15mm
|
|
Combustion
gas
|
Butane gas
|
|
Power
Supply
|
AC 220V 50/60HZ
3A
|
|
Dimension
|
60x41x32cm
|
|
Weight
(Kg)
|
20kg
|
