SUS304 Steel Hook #01 Solar Mounting System for Tile Roof

Hook Solar Mounting System is a common solution for ceramic tile and glazed tile rooftop. Unlike tin roofs, tile roofs have to maintain the integrity of the tiles. To avoid operations like drilling on the tile, steel hooks are used for solar mounting systems on tile roofs.


  • ApplicationTile Roof
  • Service Life>25 Years
  • Warranty10 Years
  • Max. Snow Load1.4 KN/m²
  • Max. Wind Speed60m/s
  • CertificationsISO9001/CE
  • StandardAS/NZS 1170

Production Details

Steel Hook Solar Mounting System is a common solution for ceramic tile and glazed tile rooftop. Unlike tin roofs, tile roofs have to maintain the integrity of the tiles. To avoid operations like drilling holes on the tile, steel hooks are used for solar mounting systems on tile roofs.

tile roof solar mounting system steel hook

We have our hooks with appropriate thicknesses and various styles to ensure that they are strong enough to connect directly to roofbeam under all kinds of tiles to support the solar bracket system.

Product Parameters

Brand ZIYUAN
Material Al6005/T5 &SUS304 &SUS410
Surface Coating Anodized
Design Code JIS C 8955 2017
Standard AS/NZS1170
Max. Wind Speed 60m/s
Max. Snow Load 1.4KN/m²
Warranty 10 years
Service Life >25 years
Mounting Type Roof Mounting
Tilt Angle Other


Mounting Parts Details

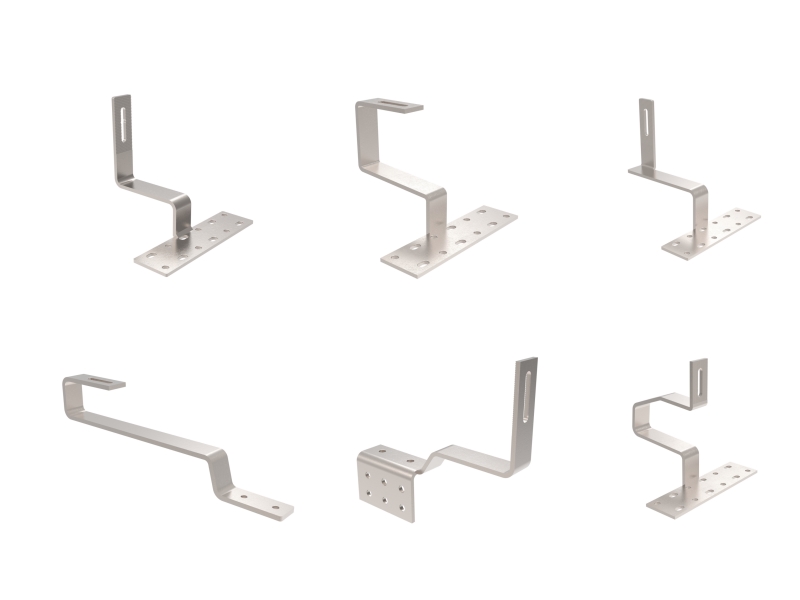

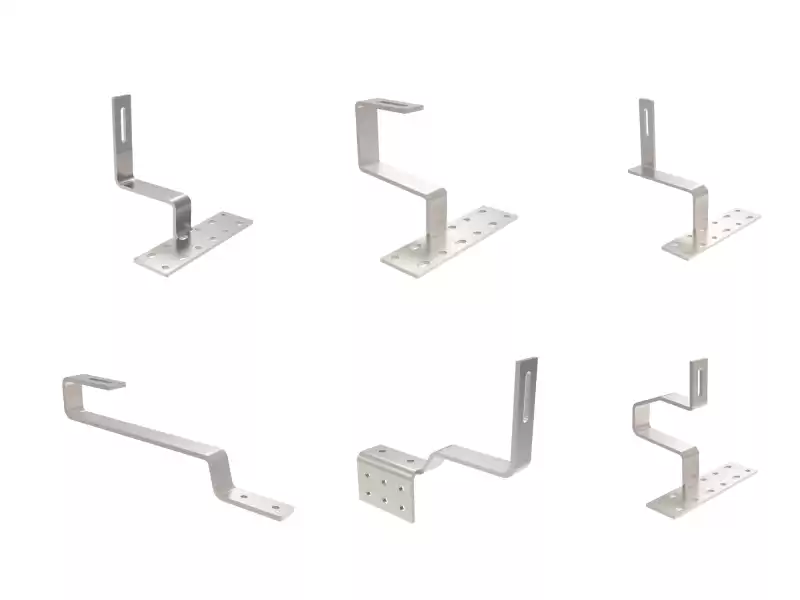

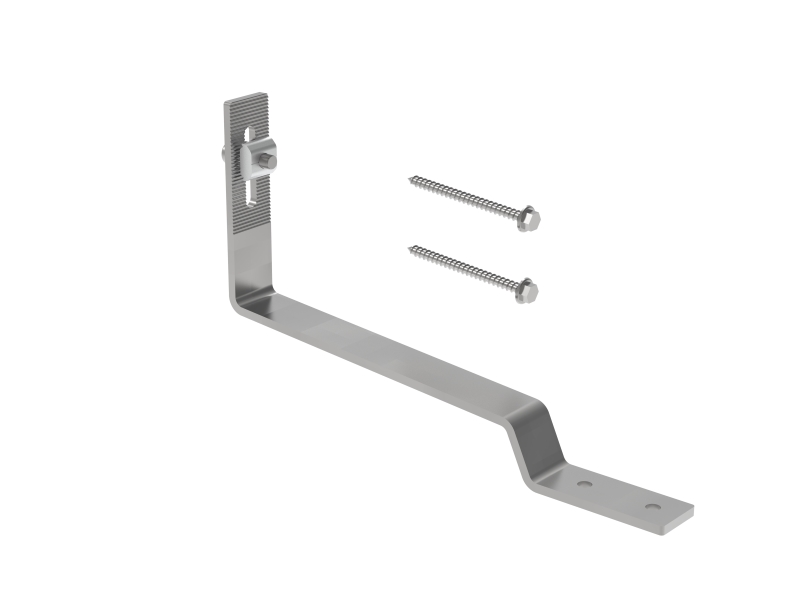

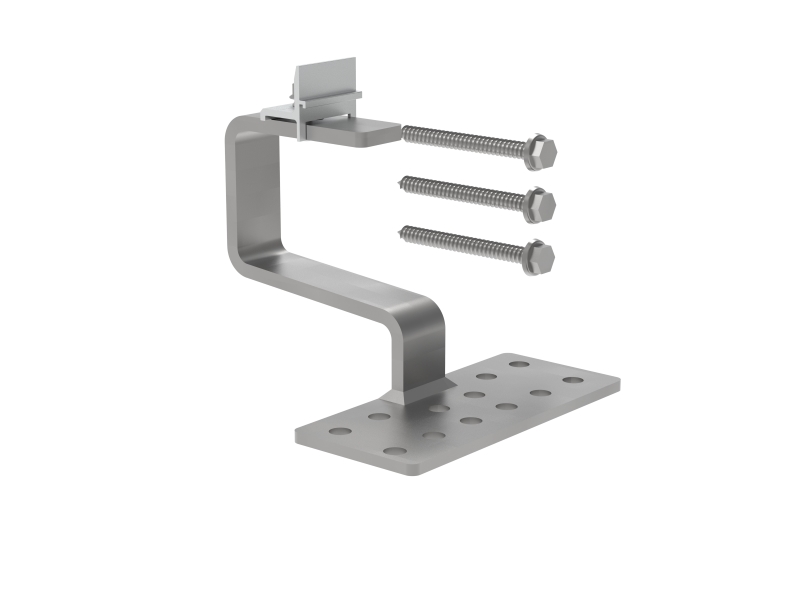

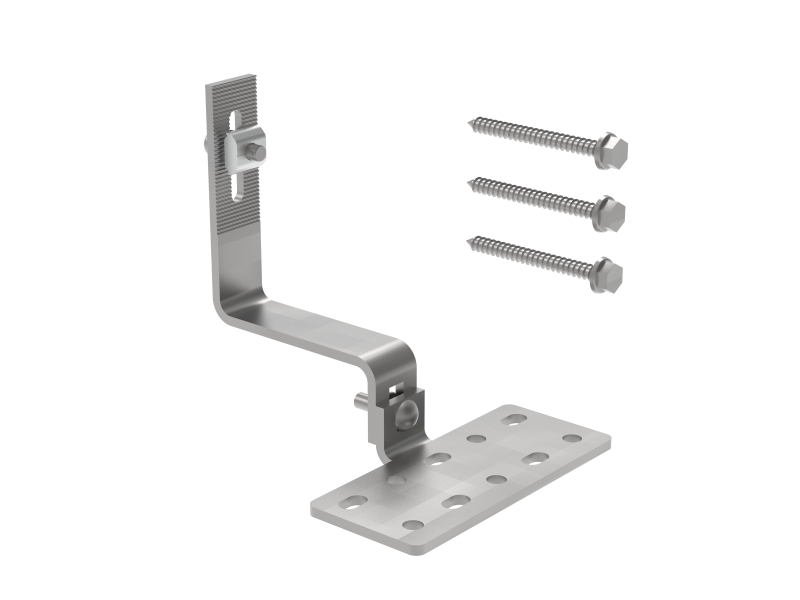

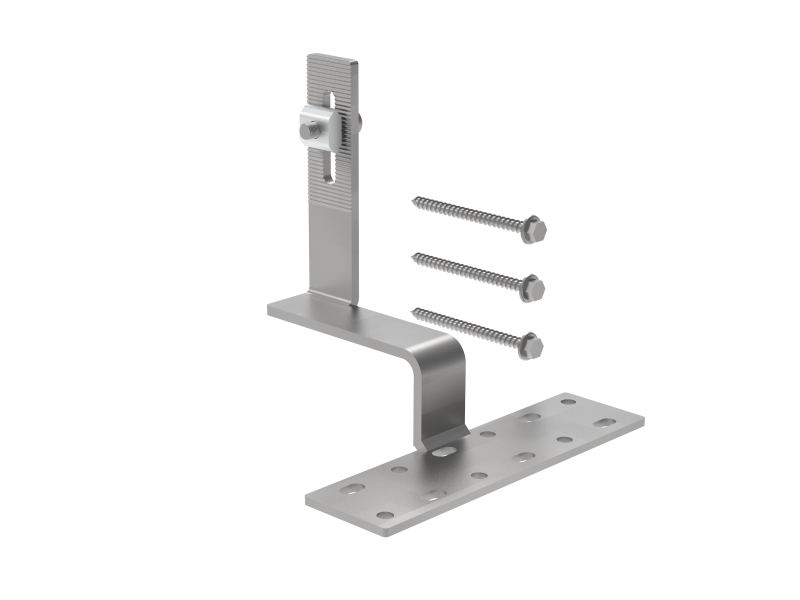

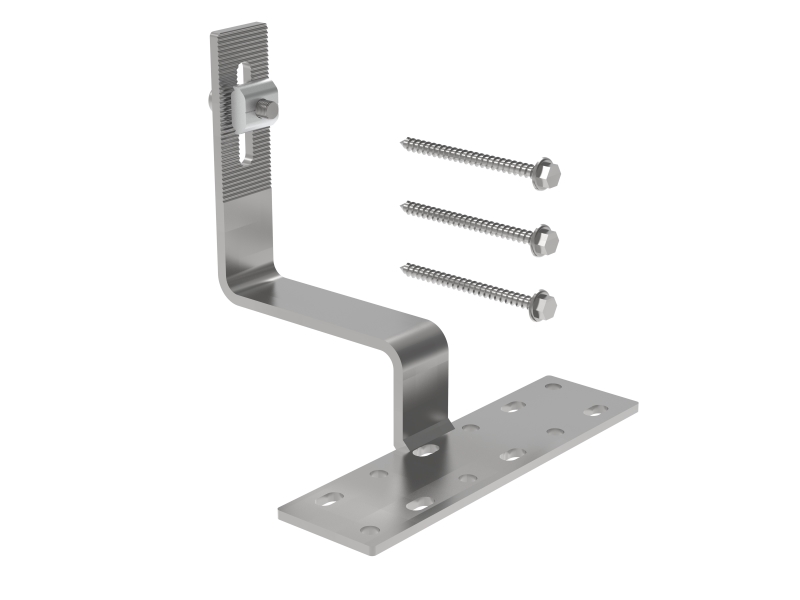

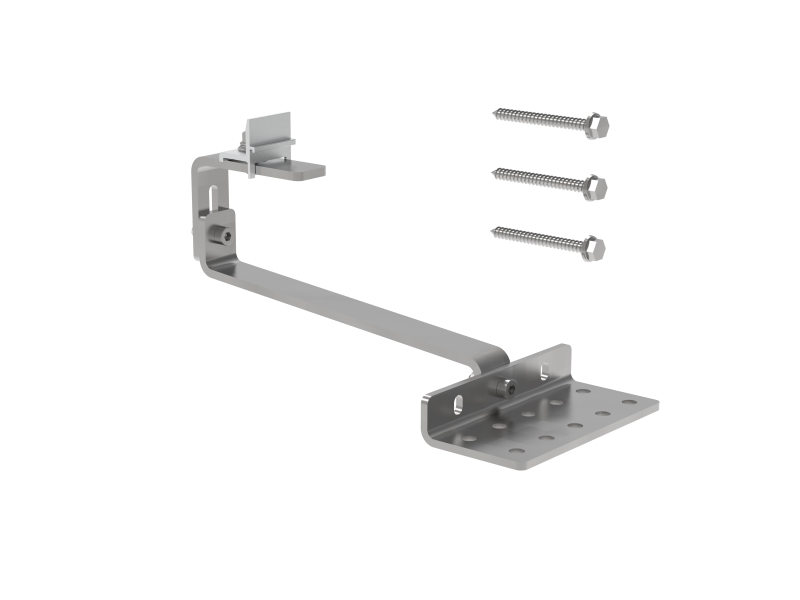

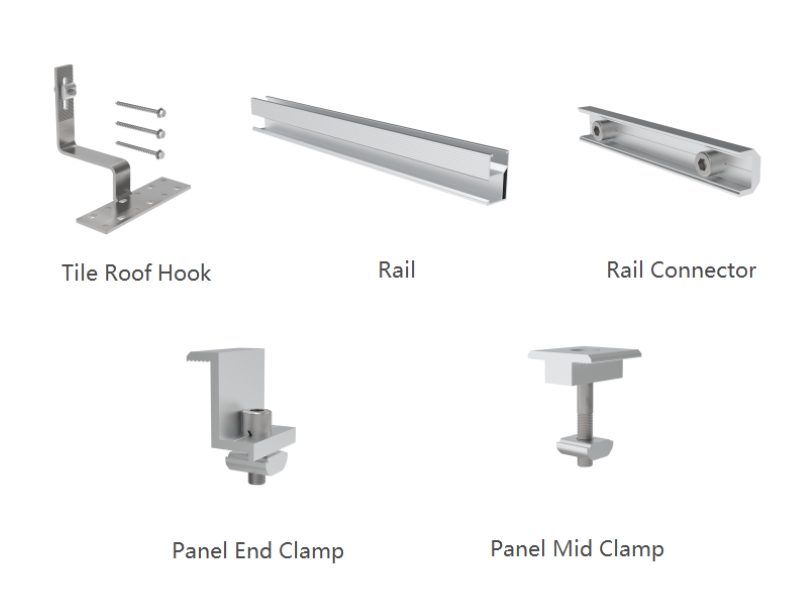

tile roof hooks kits for solar mounting system

Main Features

•√ Diverse types of hooks available to match all kinds of tile rooftops.

•√ Simple components enable easy and fast installation so that to save materials, time and labor cost.

•√ Surface coated steel highly optimized for its strength, durability and corrosion resistance.

Install Steps

PV Panel Mounting Hooks Fixing On Tile Roof

1. Lift the tiles and install the Tile Roof Hook on the roof purlin with the screws, then cover the tiles.



2. Install the Rail on the Tile Roof Hook, lock the bolt tightly and make sure all Rails are in same level.

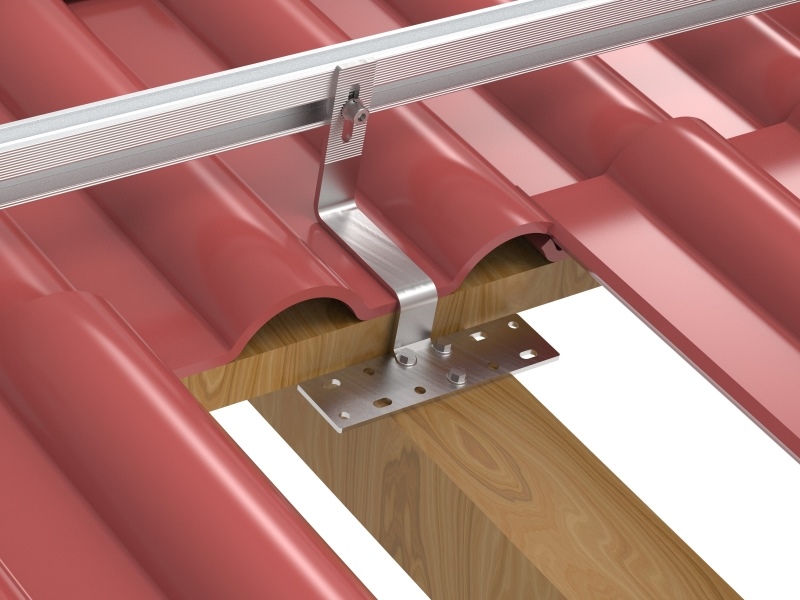

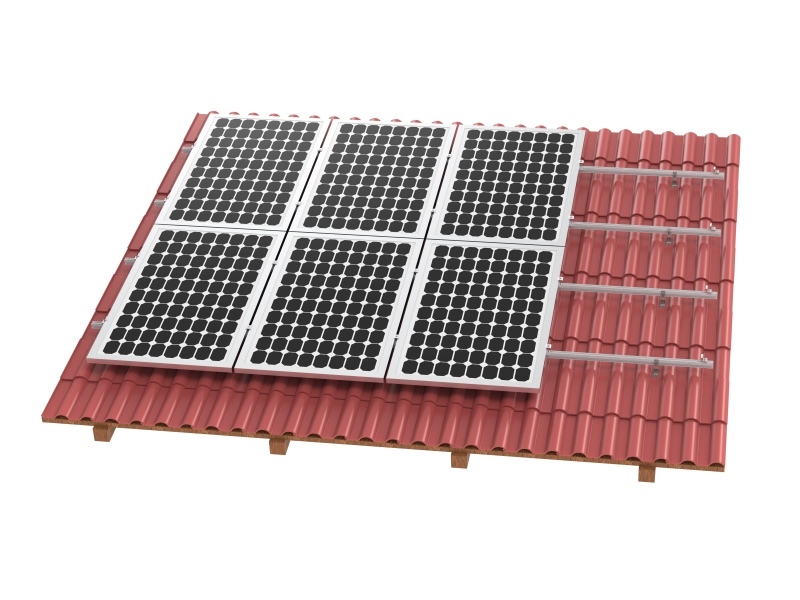

Solar Panel Mounting Hooks Structure on Tile Roof

3. Install the solar panel on the Rails with the End Clamp and Mid Clamp, lock the bolt tightly.-



Installation Case

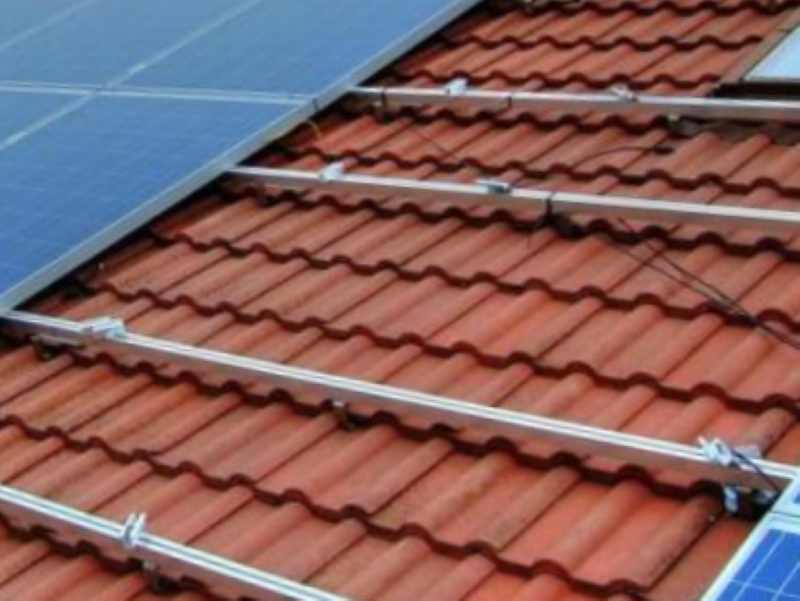

Hook Fixing Tile Roof Solar Mounting System Case

More Hooks

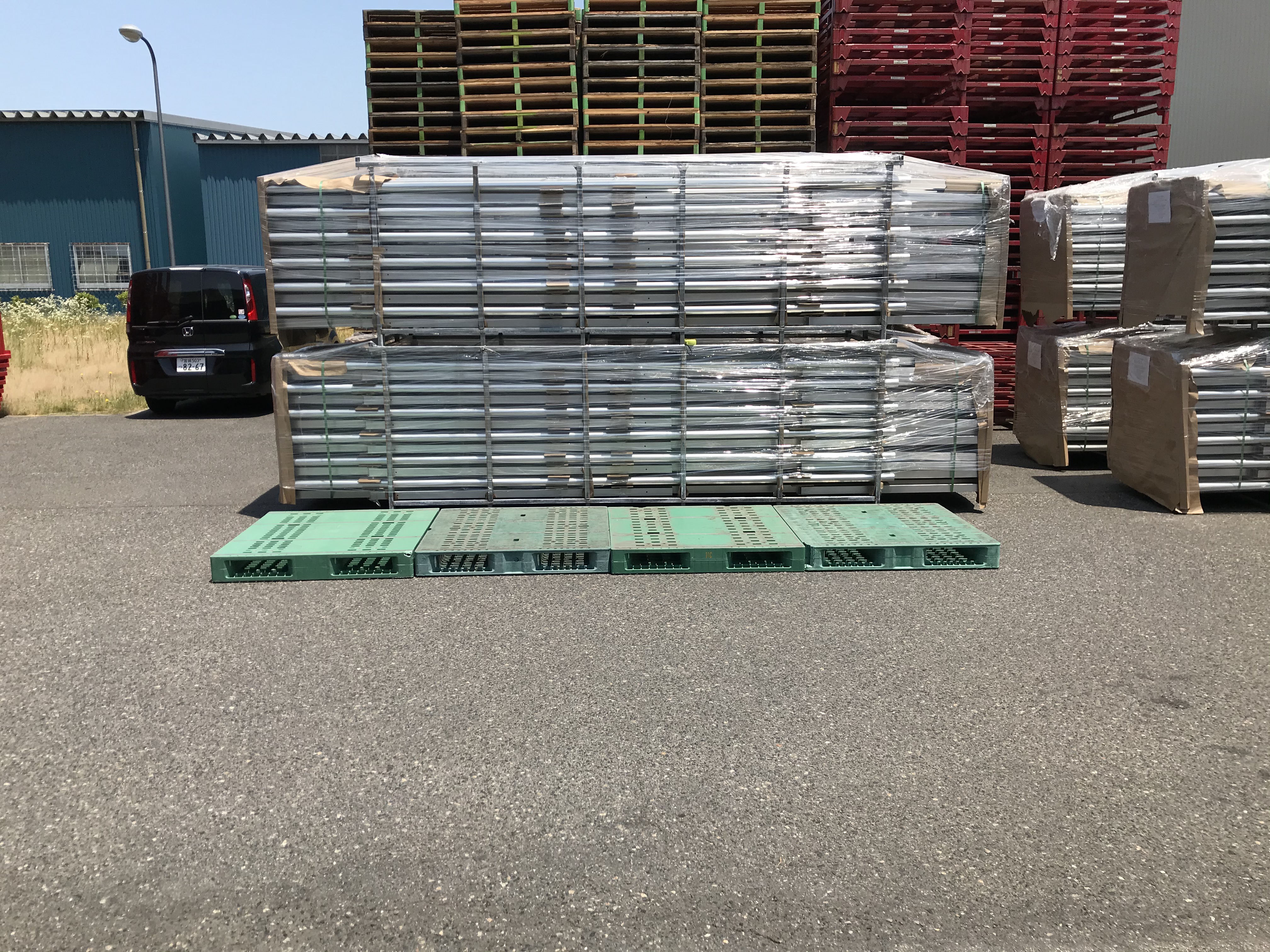

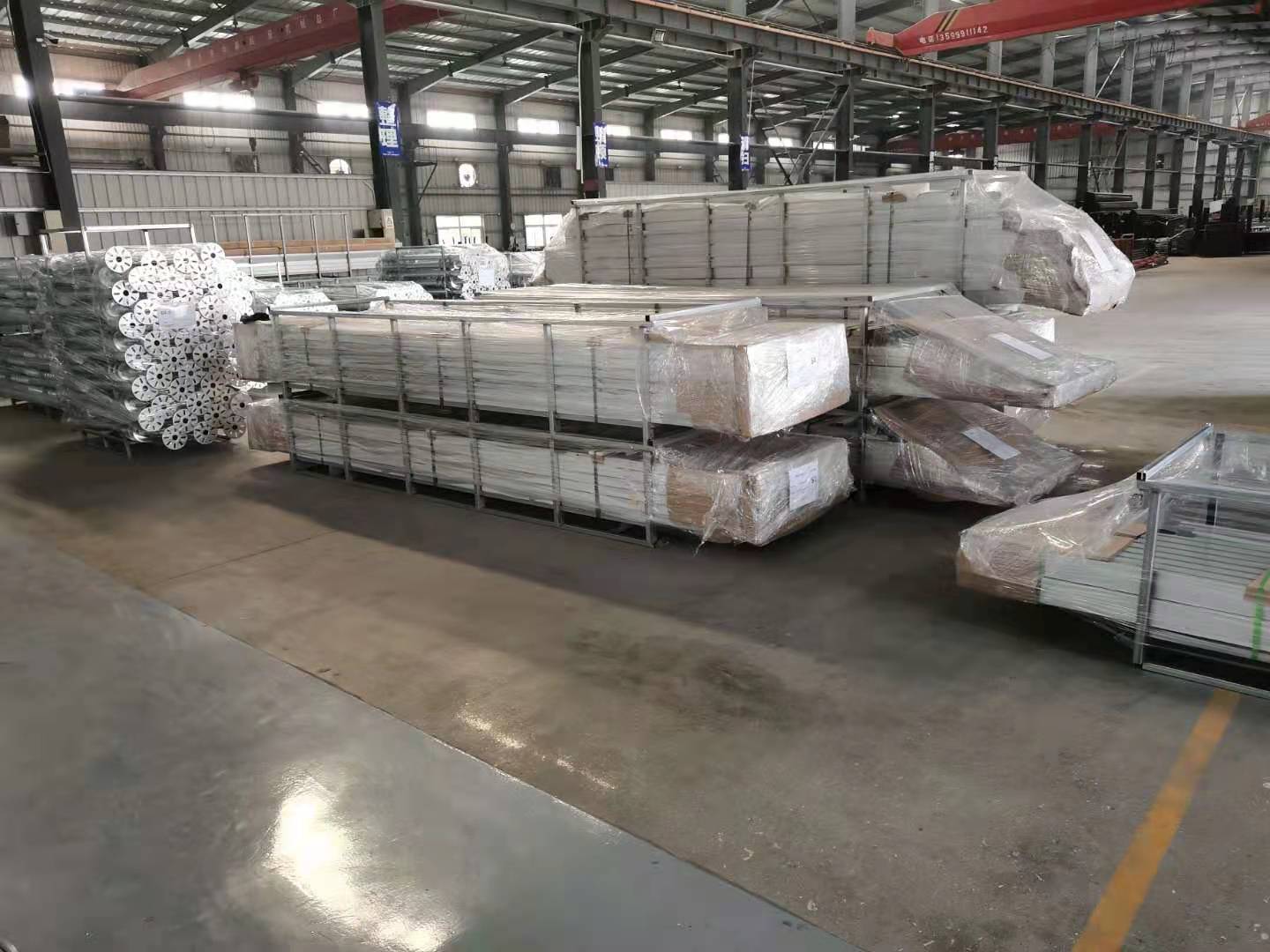

  • Solar Brackets Packaging in Stock

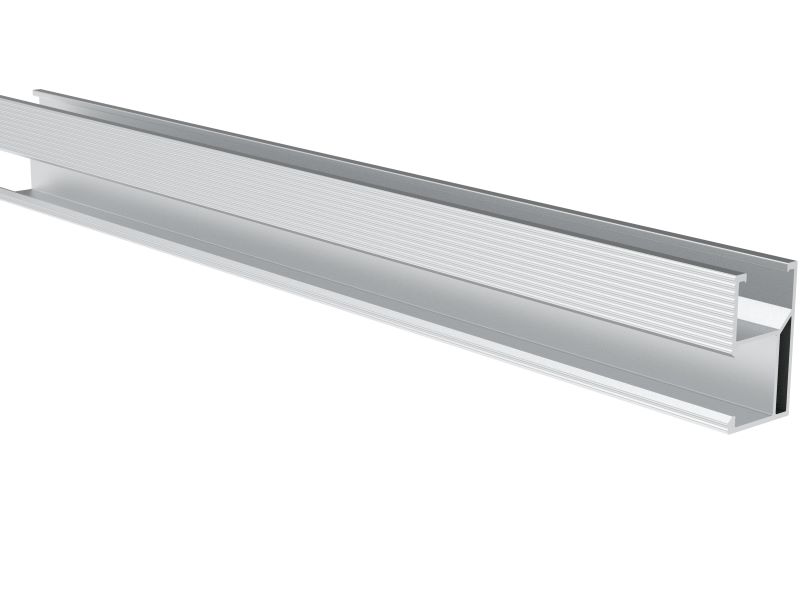

  • Solar Supporting Rails Packed

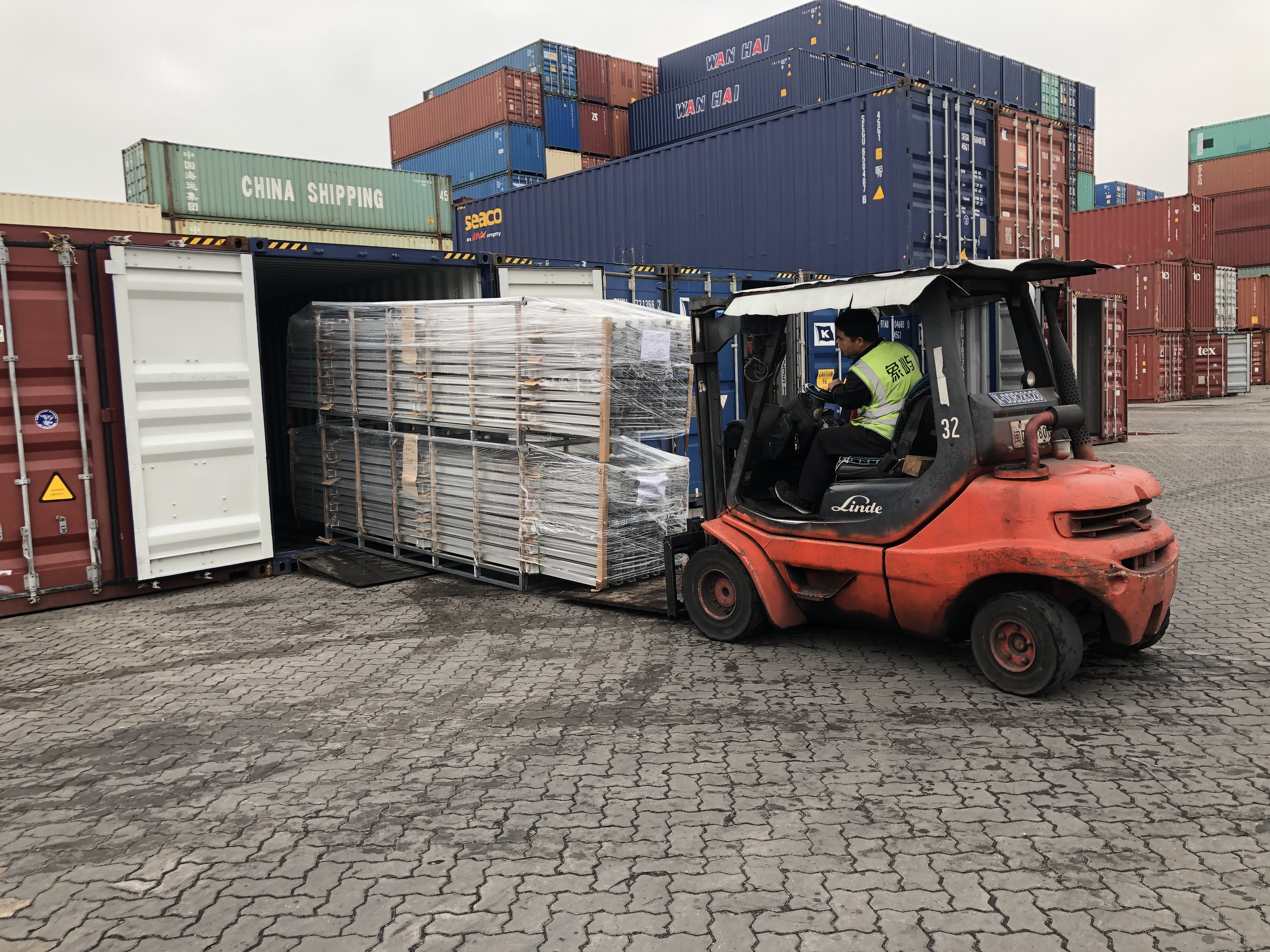

  • Solar Brackets Loading and Shipping

Our Advantages

  • Solar Brackets Factory
    Own Factory & Strict QC

    ZIYUAN has its own factory with more than 100 skilled and experienced workers, the production line is strictly in accordance with high standards and attach great importance to quality control and inspection.

  • Solar Mounting Solution Engineer Team
    Experienced Engineer Team

    The first-class production engineers, technicians and R & D team offer innovative design and reliable solution to customers based on more than 8 years of experience.

  • Solar Mounting Solution Consultant Service Team
    Professional Service

    ZIYUAN has an excellent sales team, can quickly respond to customer inquiries and provide professional advice.


FAQ



FAQ about the product

1/

How far apart should solar roof hooks be placed ?

Generally, the first and last roof hook must be within 0.2m of the end of the mounting rail. The distance between the roof hooks should take many factors into account and the beam distance plays a decisive role as the hooks usually needs to be nailed to the beam.

2/

How high should solar panels be off the roof?

Higher off the roof will tend to have better airflow and keep the panels cooler. Cooler panels will generate more, typically something like 0.4% per deg C. As long as you don't mind the look, and the wind loads are accounted for in the rack design, higher is fine.
