Qianhang New Energy Technology Co.,Ltd built in the year 2015, which covered an area more 40,000 square meters with employees now than 100 persons.With the fast development ,we won the reputation"Technology Innovation Corporation and High New Tech corporation in the year 2017 .In 2019,we added the other two automatic production line ,our Technology and QC dept have matured completely . In 2020 , we start to build our Industrial anti-explosion lithium battery project.We sincerely welcome customers in the world to customize from us!
Quick details

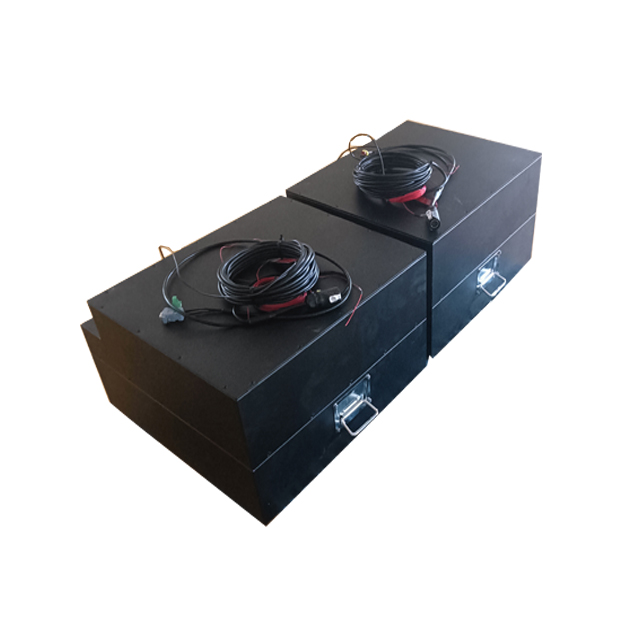

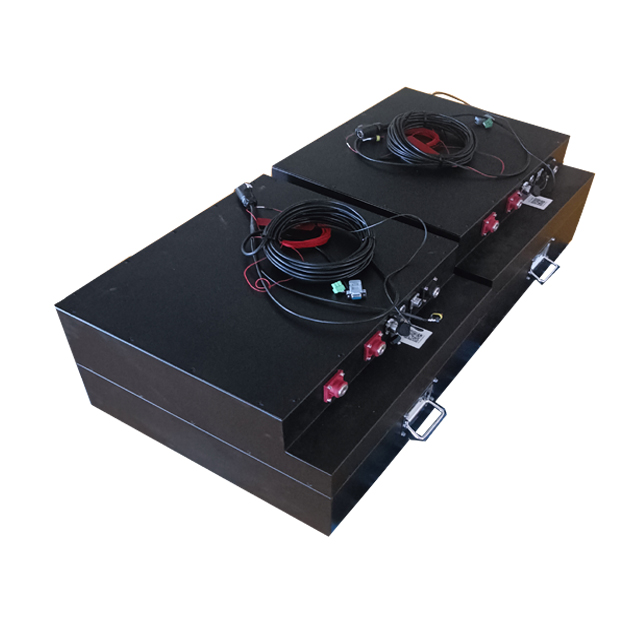

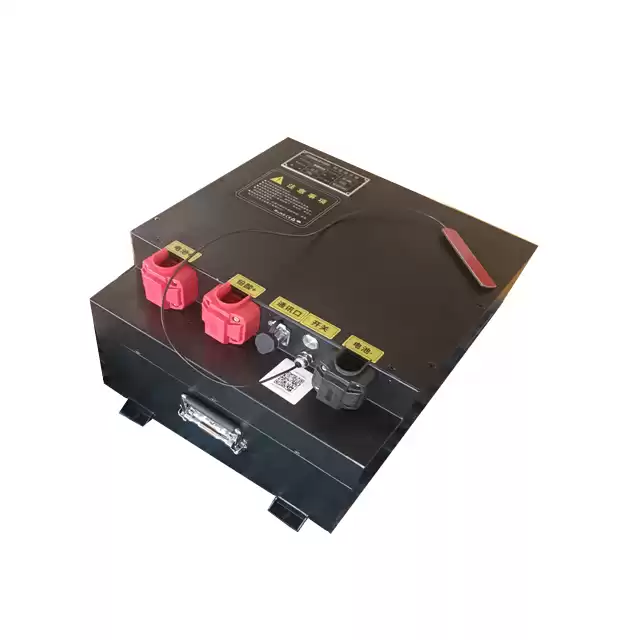

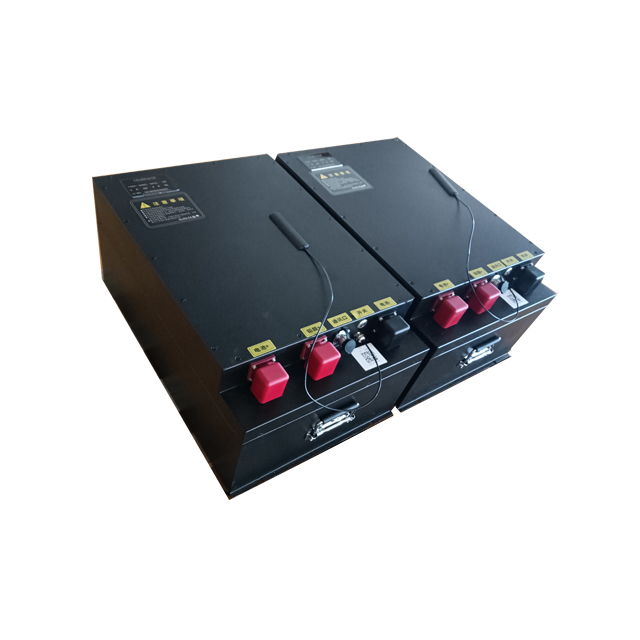

1) Battery model: 12.8V412AH (4S2P)
2)Shell:Q235 d=2mm
3)Charge/discharge:200A/400A
4)Build in BMS (real time monitor)
5) round display gauge
6) Charger optional
7)Dimension: customized
8)Weight:50kg
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Continuous charge current
|
|
|
|
|
|
|
|
Over pressure/Low pressure/Over current/Short-circuit
Over temperature/Low temperature/Relay adhesion test/Wiring falling tes
|
|
|
|
|
|
|
|
Precharge/Insulative testing
|
|
|
|
Voltage screen/Liquid crystal screen
|
|
|
Silicone electric heating
|
|
|
|
Our Advantages
-
Product performance description
-
1，LiFePO4 electrial core with high features of high power and high recycle usages
-
2, With high power, high cycle characteristics, improve the overall electrical safety performance,
-
3,Functions include: monitoring single battery voltage, battery temperature, SOC, communication with the vehicle controller,
communication with the Charger, control the charge and discharge status of battery pack,
-
4,Check the internal information of battery
through PC and battery pack connection,
-
5,External connection with display screen serial port, check the information parameters in battery pack through the display screen
OEM/ODM
Our advantages
