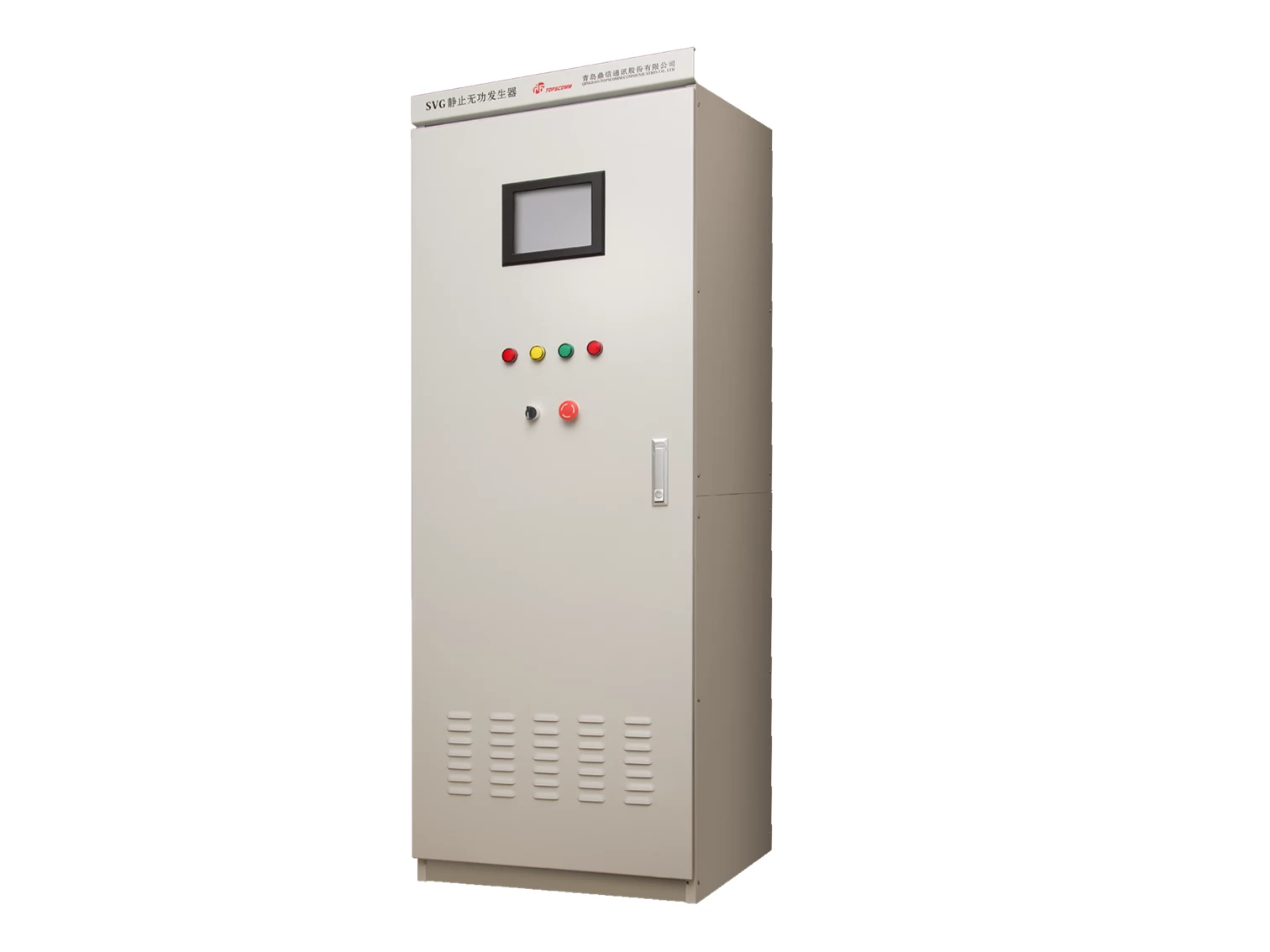

SVG-100/0.4-DXSC Static Var Generator (SVG)

SVG-100/0.4-DXSC vertical type static var generator is Topscomm independently developed reactive power compensation SVG product, it utilizes the latest modular design and reactive power compensation technology, is able to fully meet the large power industrial users demand.



Topscomm advanced static var generator is capable to achieve real-time tracking and compensation of reactive power, harmonics and three-phase unbalance, thus to provide the grid or power users with fast dynamic reactive power compensation and harmonic filtering, and effectively improve the transient stability of the grid voltage, suppress the flicker of bus-voltage suppression flicker, compensate the unbalanced load, filter the load harmonic and high load power factor. The SVG is widely used in industrial fields containing shock loads and large capacity motor such as petrochemical, metallurgy, electric power, coal, electric railway, wind power plants etc.


Rated compensation capacity

100Kvar
Rated voltage
AC380V±15%
Frequency
50Hz±5%

Connection

3P3W

Complete response time

≤10ms
Current control accuracy
±2.5%
Overall active power consumption
≤2.5% of rated capacity of the device
Non-failure operation time
>100, 000 hours
Communication Interface
RS 485, RS 232, CAN, Ethernet etc.
Operating temperature
-10℃~+40℃
Installation Vertical type SVG
Dimension
600mm*800mm*1600mm
