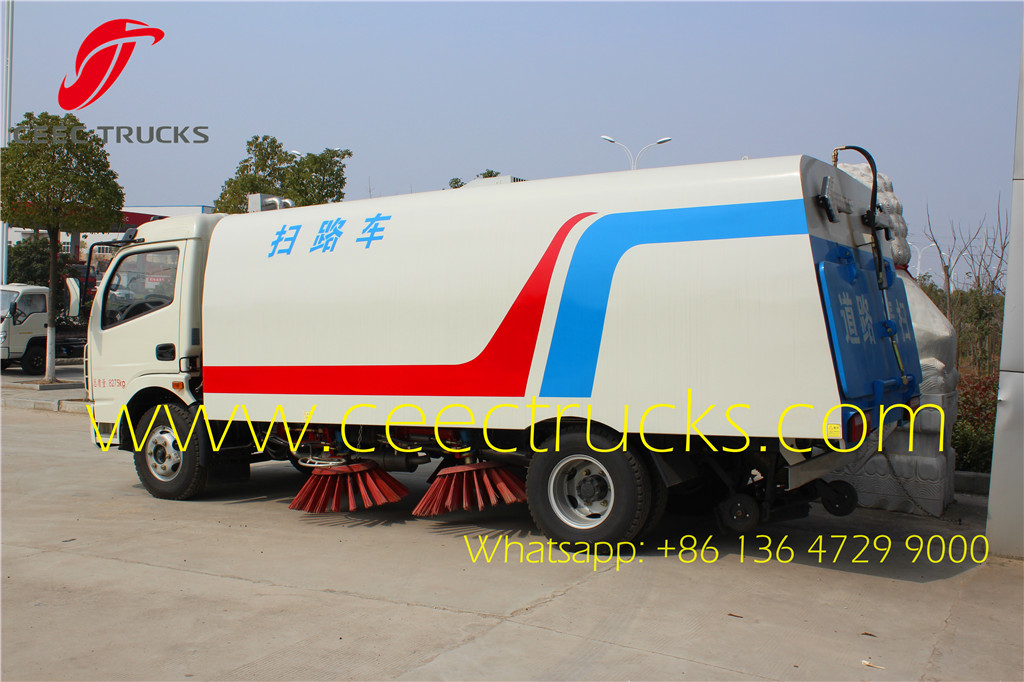

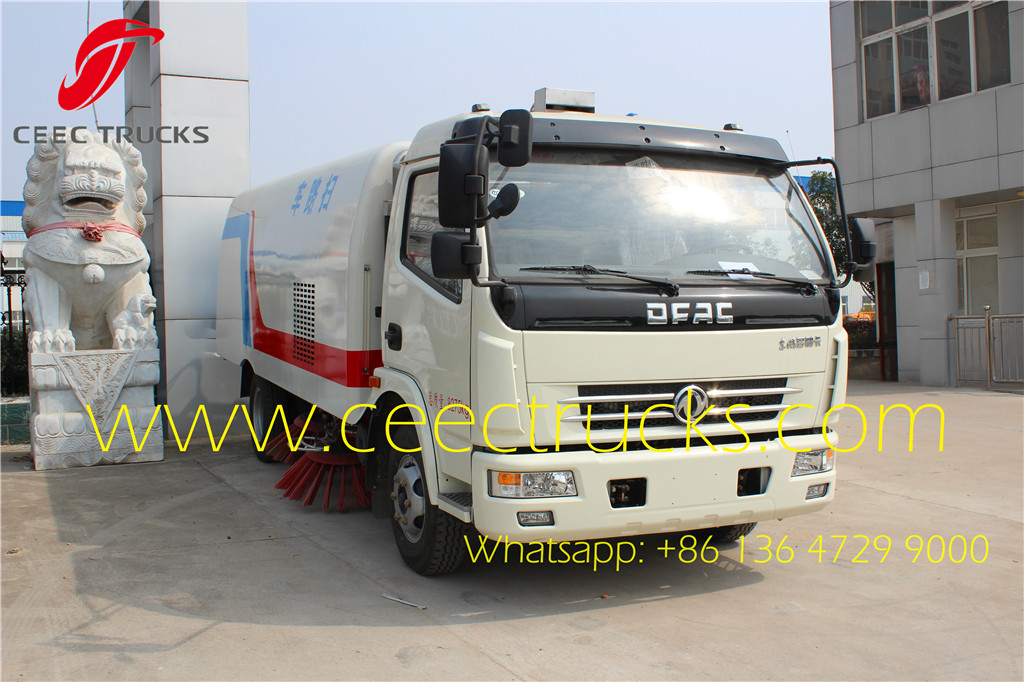

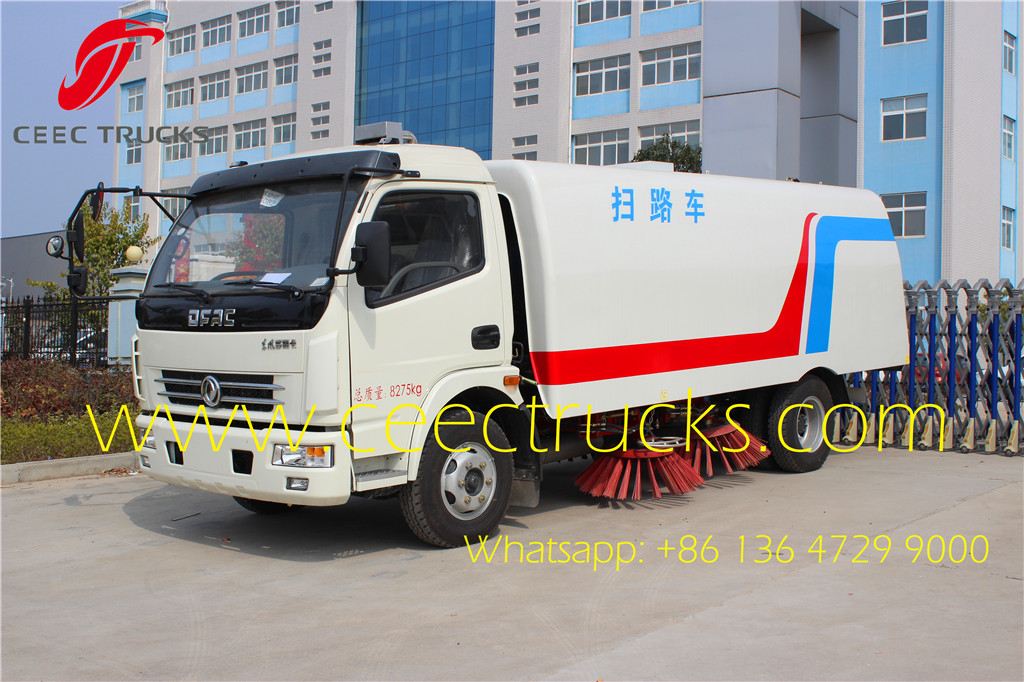

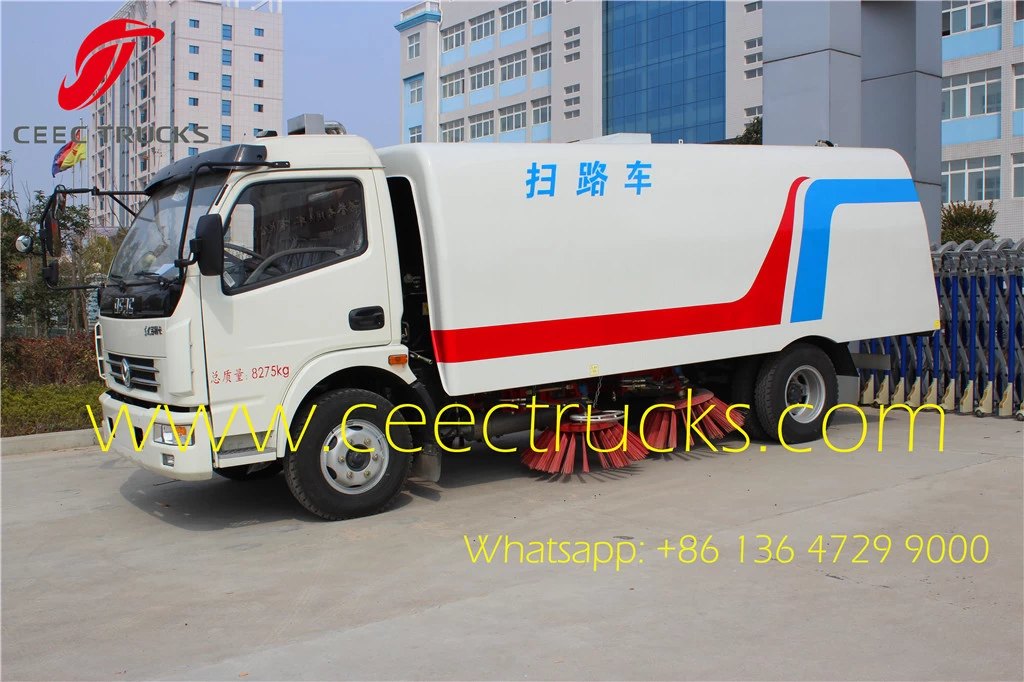

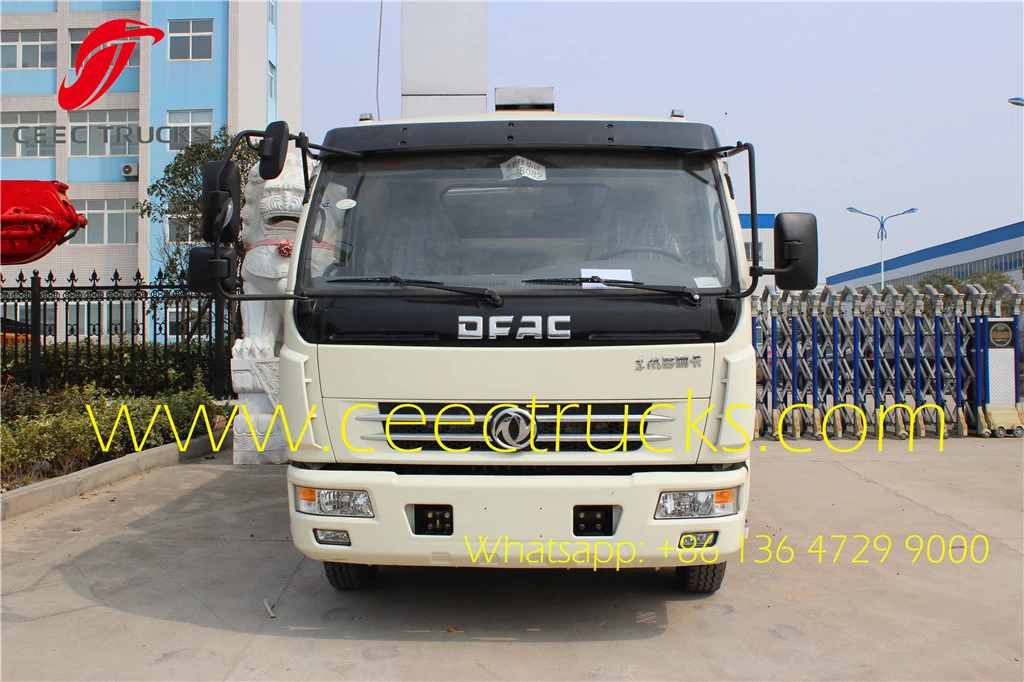

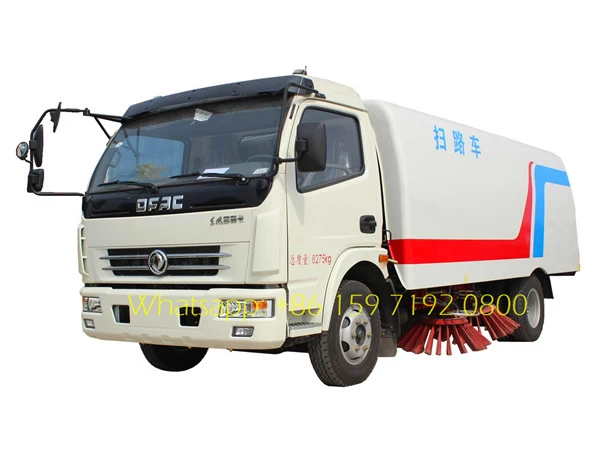

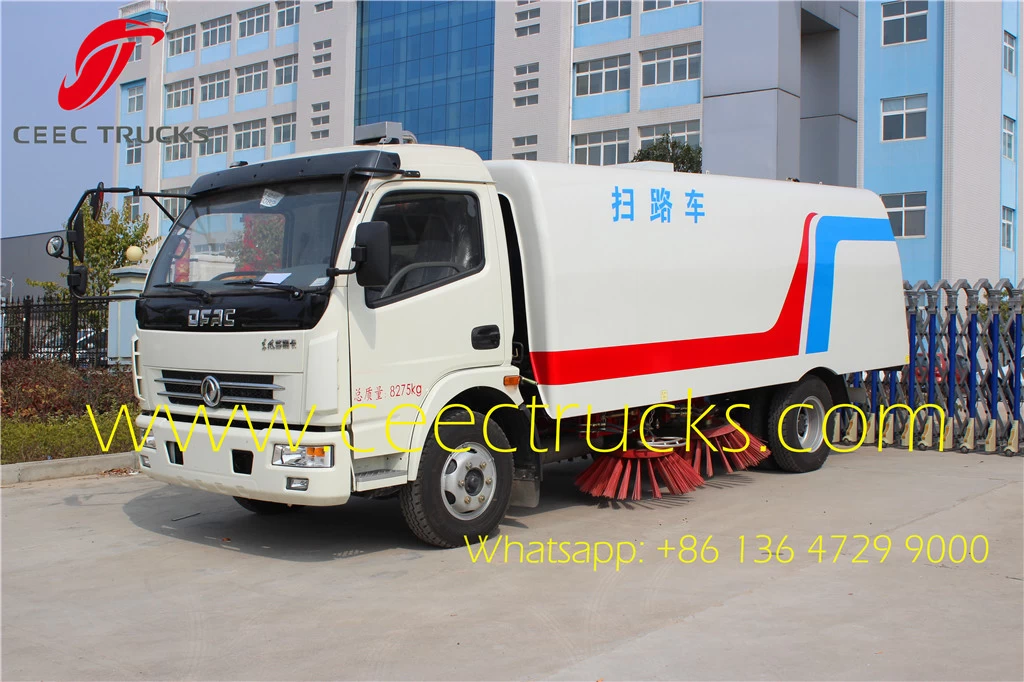

Sweeping Truck Dongfeng 5CBM dustbin & 2CBM water tanker
Road sweeper (also called street sweeper, municipal vehicle, sweeping car, street cleaner sweeper and cleaning truck, street cleaning vehicle) is suitable for brushing, suction and transportation of dusts, leaves, mud, soil, sand, stone chips, gravels and other small particles on the ground of city roads and areas. This unit shall be suitable for dry type cleaning job as well as dust suppression with water spray in the road side and narrow lanes.

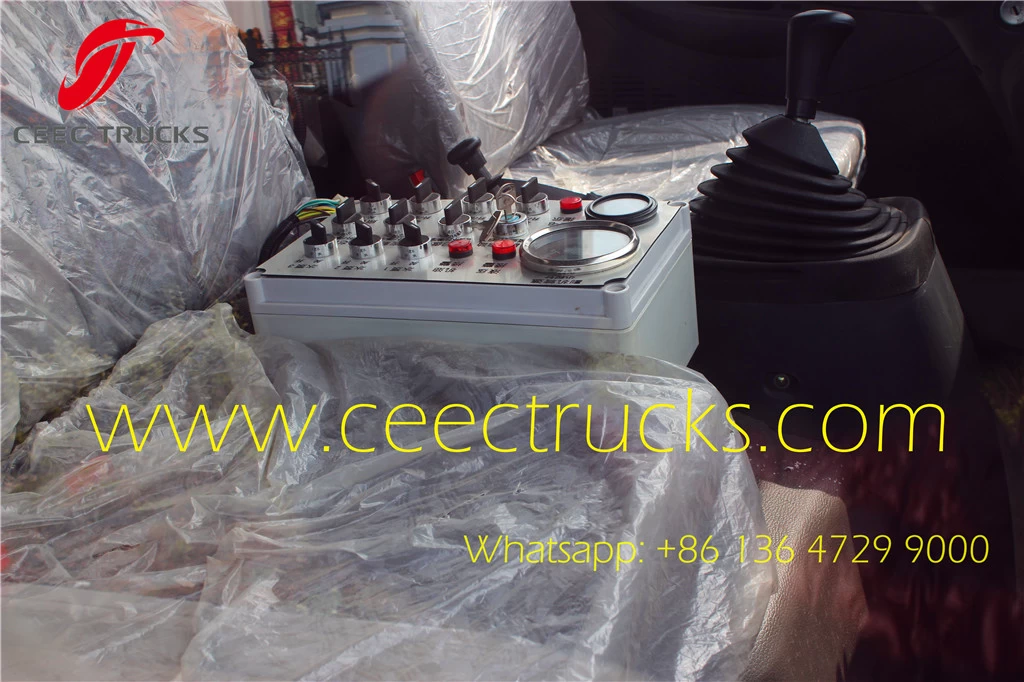

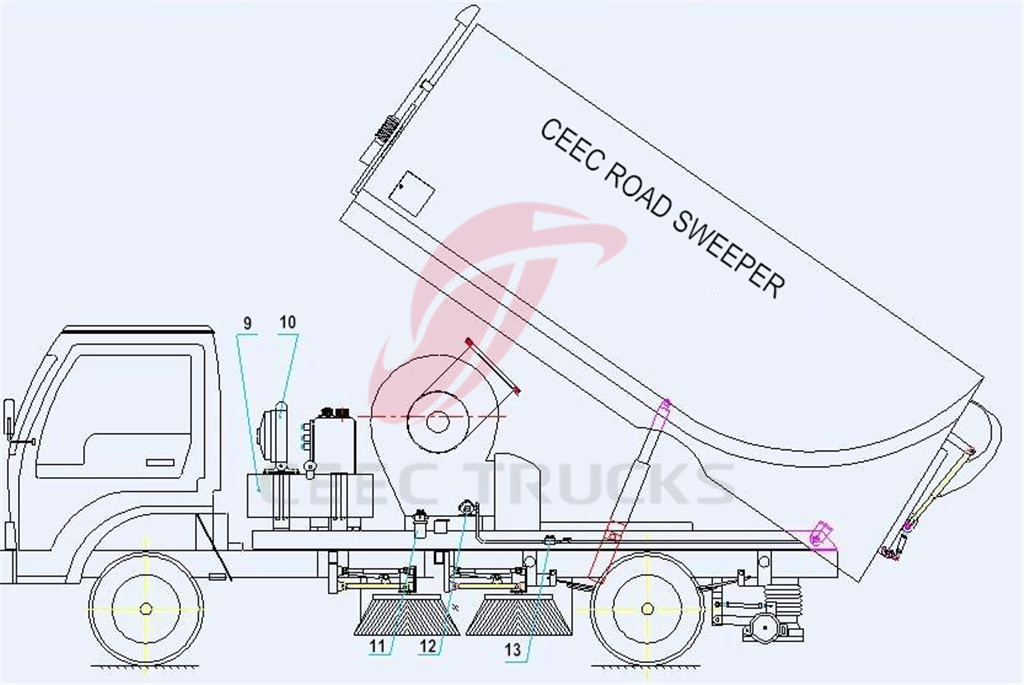

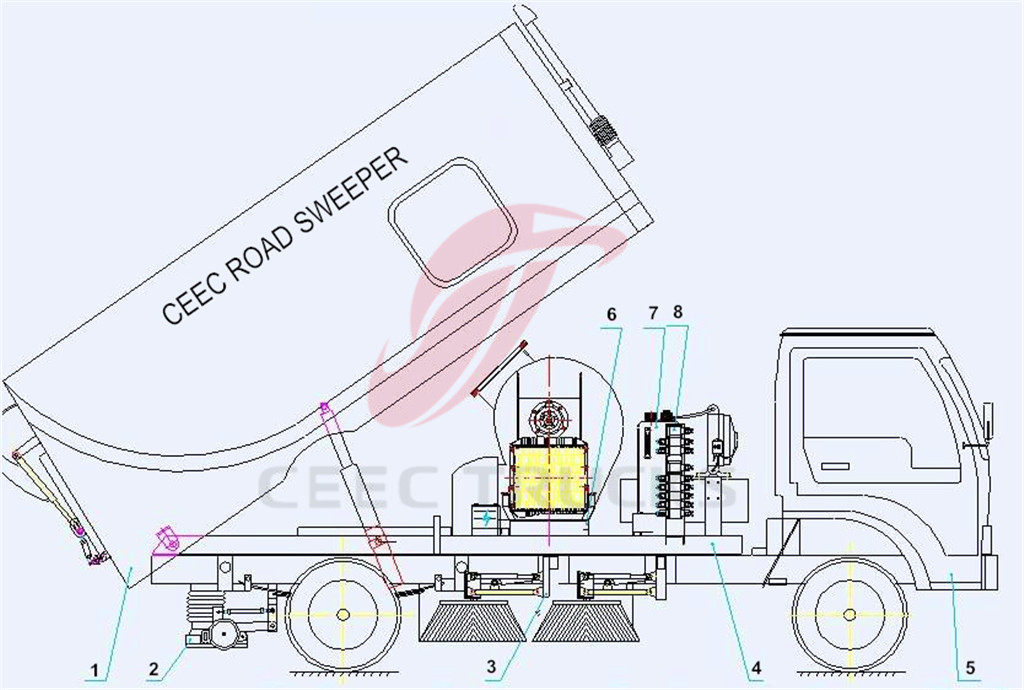

The dongfeng 6CBM road sweeper truck is composed by chassis, auxiliary engine, air blower, magnetic valve, debris bin, water bin, sweeping system, suction system, water sprinkling system, hydraulic system, electrical control system, etc.

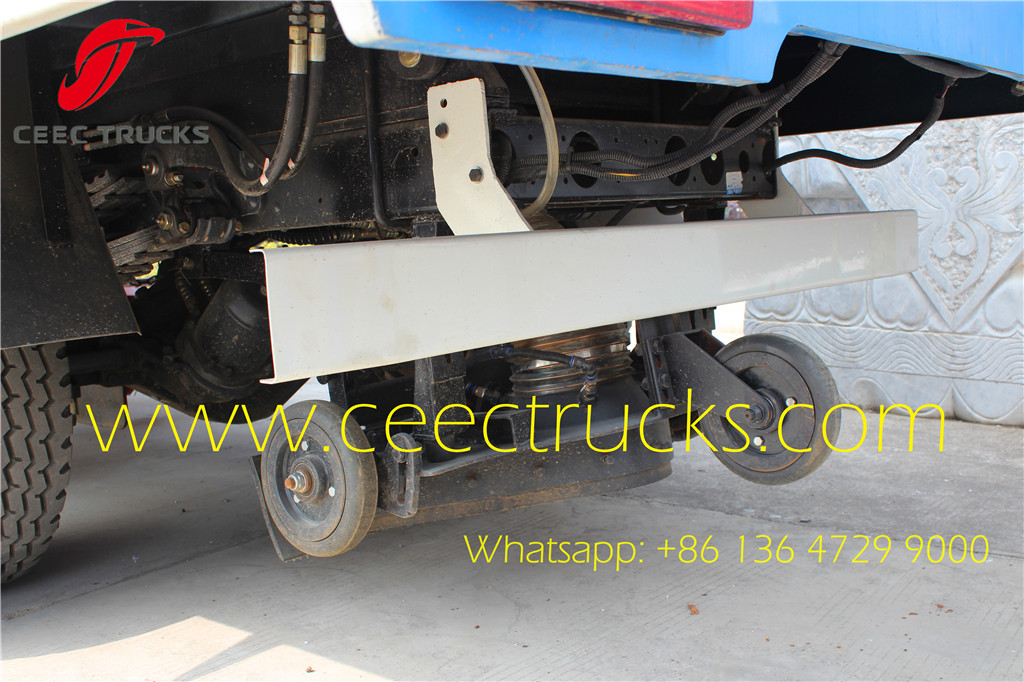

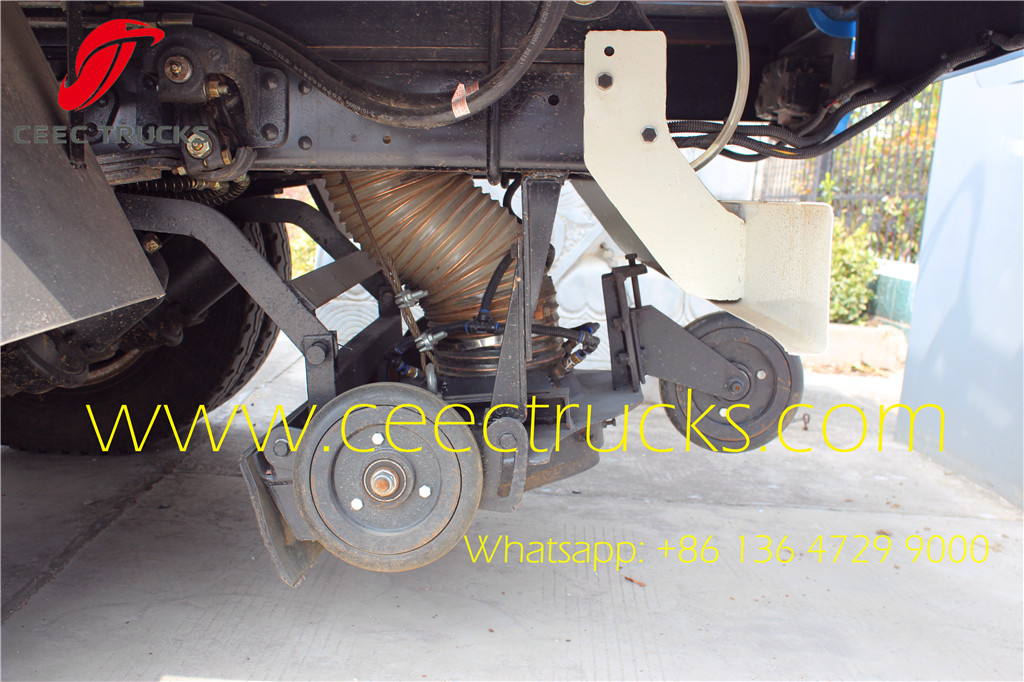

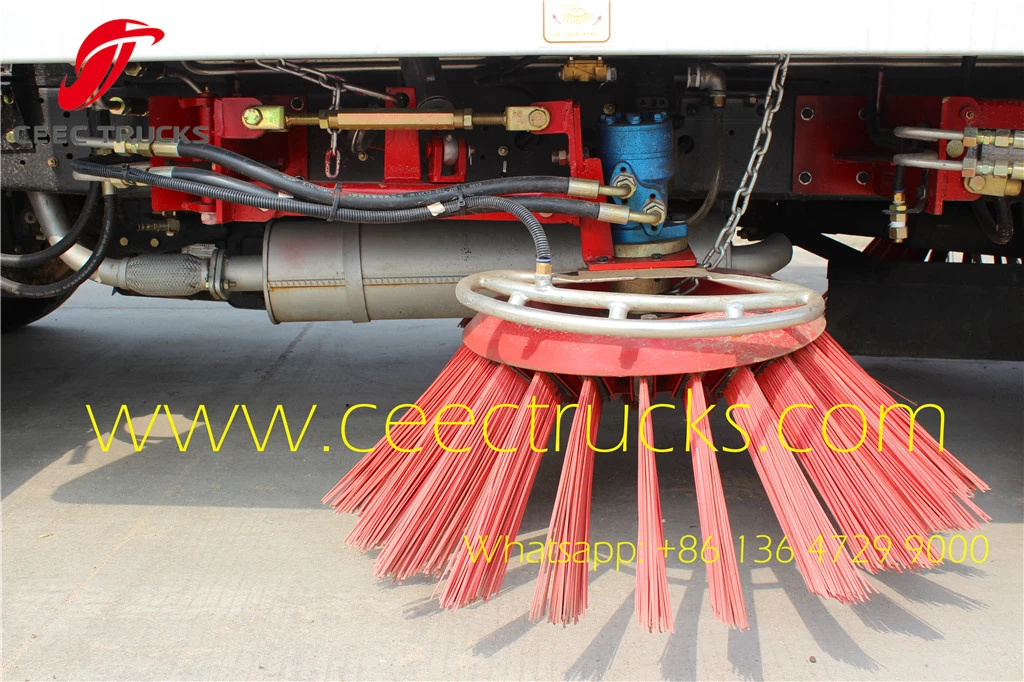

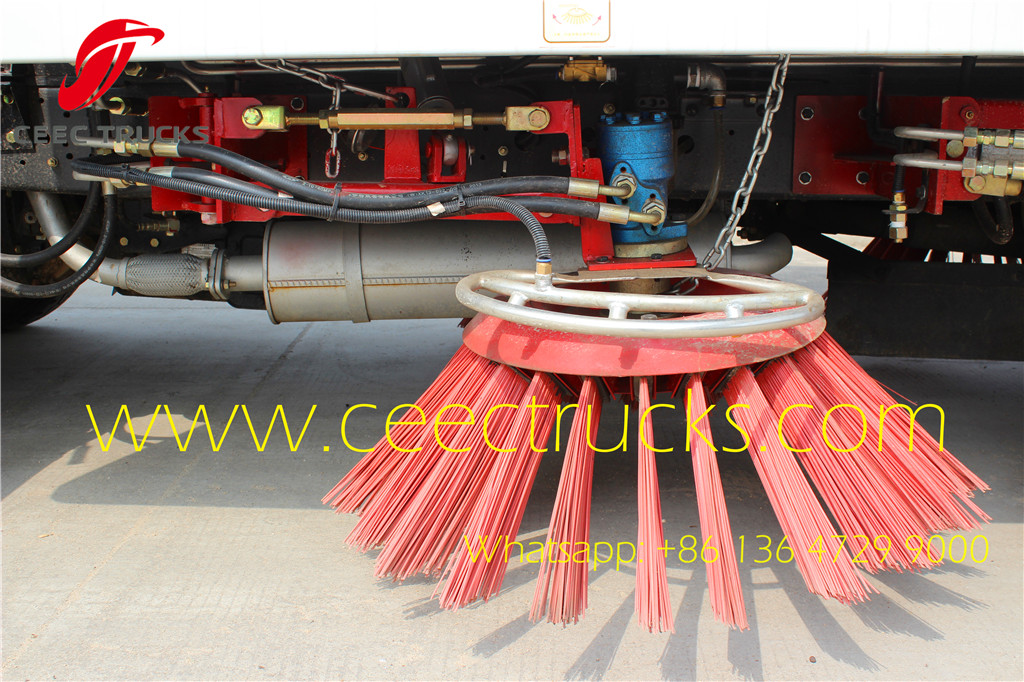

Four brooms Sweeping system and suction system combine working, high efficient. Water sprinklers equipped on brooms, suction nozzle, effective dust suppression
Similar Key Words: street cleaning vehicle, dongfeng road sweeper, street sweeper,sweeper and cleaning truck, municipal vehicle, road sweeper, cleaning truck, pakistan road sweeping truck
| Street Sweeper Dongfeng (4 CBM dustbin and 2 CBM water tank)
|
| General
|
Vehicle Brand
|
CEEC TRUCKS
|
| Chassis Brand
|
Dongfeng
|
| Overall Dimension
|
7200 * 2200 * 2800 mm
|
| GVW / Kerb Weight
|
8,400 kg / 6,900 kg
|
| Cab
|
Cab Capacity
|
2 persons allowed
|
| Air Conditioner
|
Air conditioner is optional
|
| Engine
|
Fuel Type
|
Diesel
|
| Engine Brand
|
Cummins Engine
|
| Power
|
120 Ps (88 KW)
|
| Displacement
|
4500 ml
|
| Emission Standard
|
Euro III
|
| Chassis
|
Drive Type
|
4X2, left hand or right hand drive
|
| Transmission
|
5-speed front, 1 reverse
|
| Wheelbase/No. of axle
|
3800 mm / 2
|
| Tyre Specification
|
8.25-16
|
| Tyre Number
|
6 tyres and 1 spare tyre
|
| Max Speed
|
95 km/h
|
| Paint
|
Metallic paint
|
| Superstructure
|
Water Tank
|
Stainless Steel
|
| Dustbin Capacity
|
5 CBM
|
| Dustbin Material
|
Stainless Steel
|
| Water Tank Capacity
|
2,000 Litres (About 500 gallons)
|
| Sweeping Capacity
|
45,000 - 90,000 m³/h
|
| Sweeping Speed
|
3-25 km/h
|
| Sweeping Width
|
2800 - 3200 mm
|

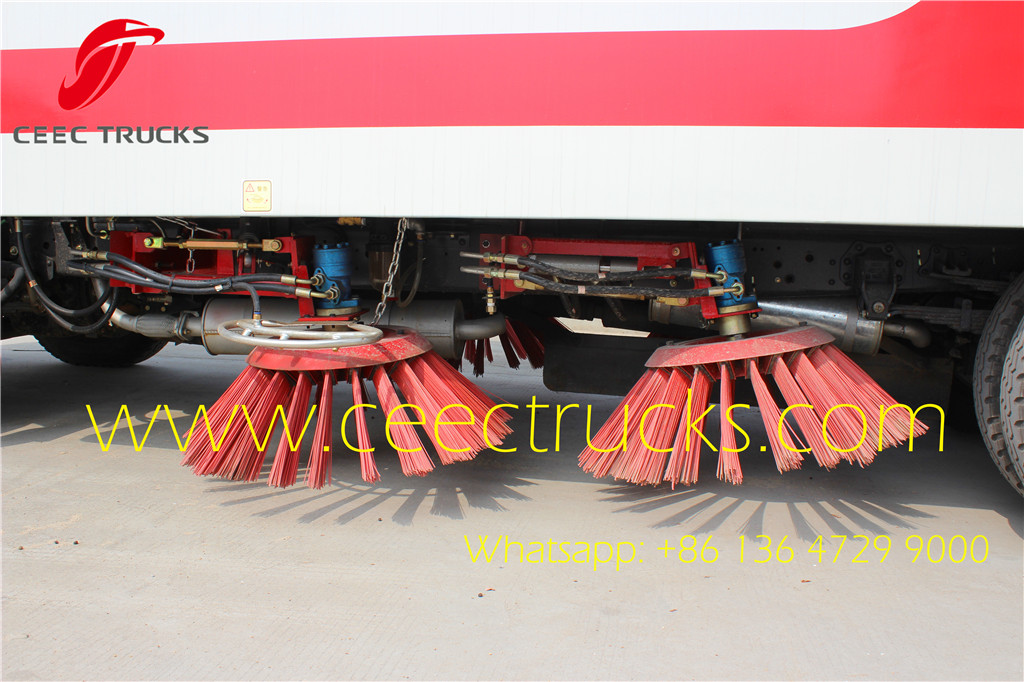

| Brooms
|
2 sets at each side
|
| Auxiliary Engine
|
JX493 (ISUZU technology)
77 HP (57 KW), super powerful
|

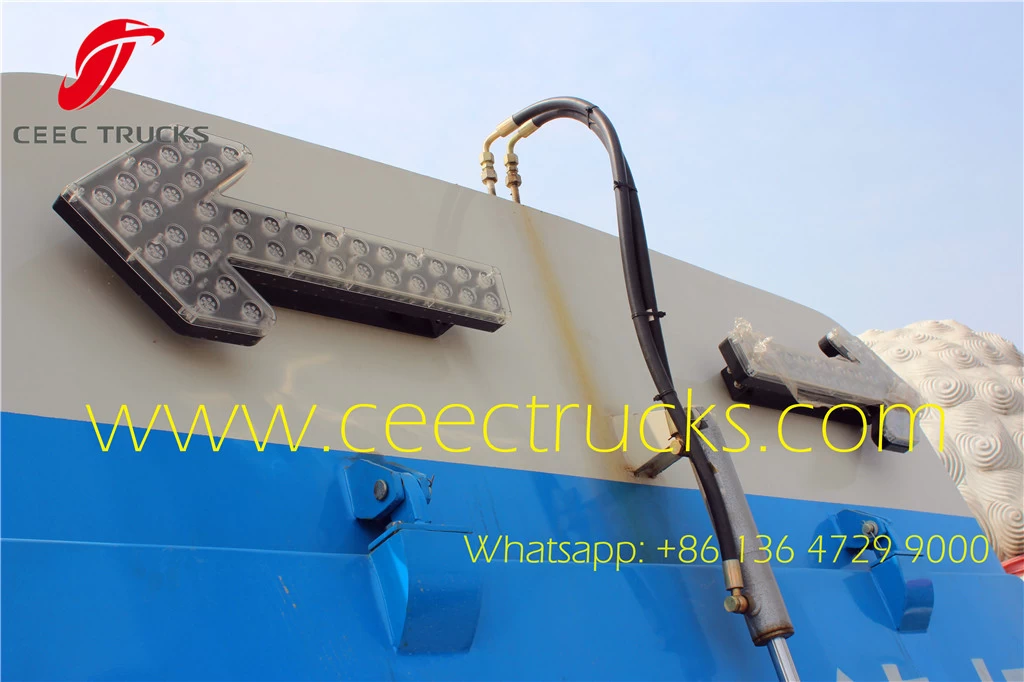

| All standard accessories: Warning lights, music alarm, basic tool kit, English manual……
|
| Optional
|
** Backup alarm can be equipped.
** Camera can be equipped.
** Air blower can be of stainless steel.
|
