TECHNICAL PARAMETER
Item:S252RGB Panel
Voltage: AC 12V
Frequency: 50/60Hz
Power: 18W
Efficiency: 0.8
Draving Mode: Constant current
Shell material: ABS+PC
LED type: SMD3528
LED color / quantity : RGB252pcs
LED Lumen : 800lm
Light collocating mode: LED without lens
Beam angle: 120°
LED PN junction temperature : <65 ℃
Working temperature :-40℃~55℃
Protection : IP68
Life span: 50000 hours
Certification: CE & RoHS
******************************************
RGB ON/OFF WORKING PROGRAM
Cycles Working 15 Modes

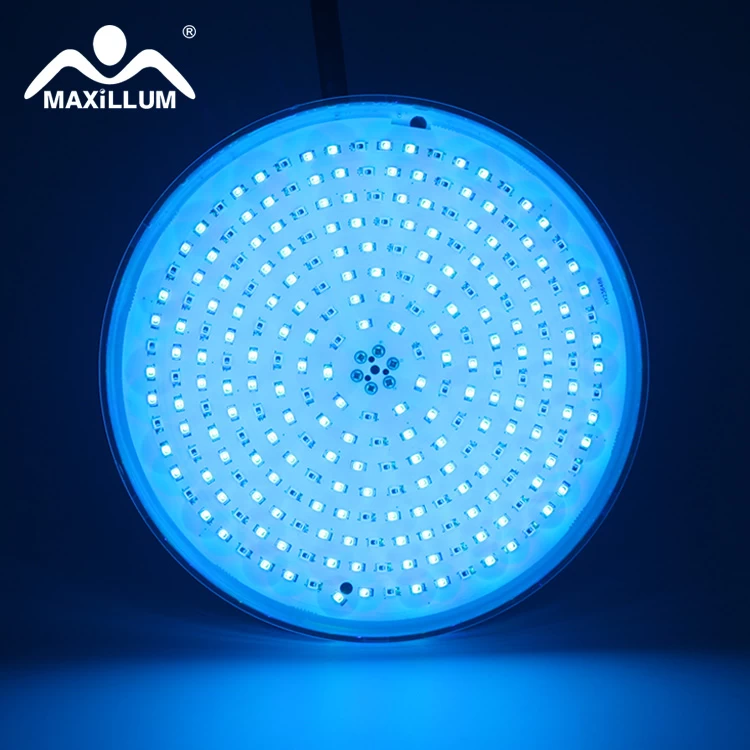

1). Fixed blue
2). Fixed red
3). Fixed green

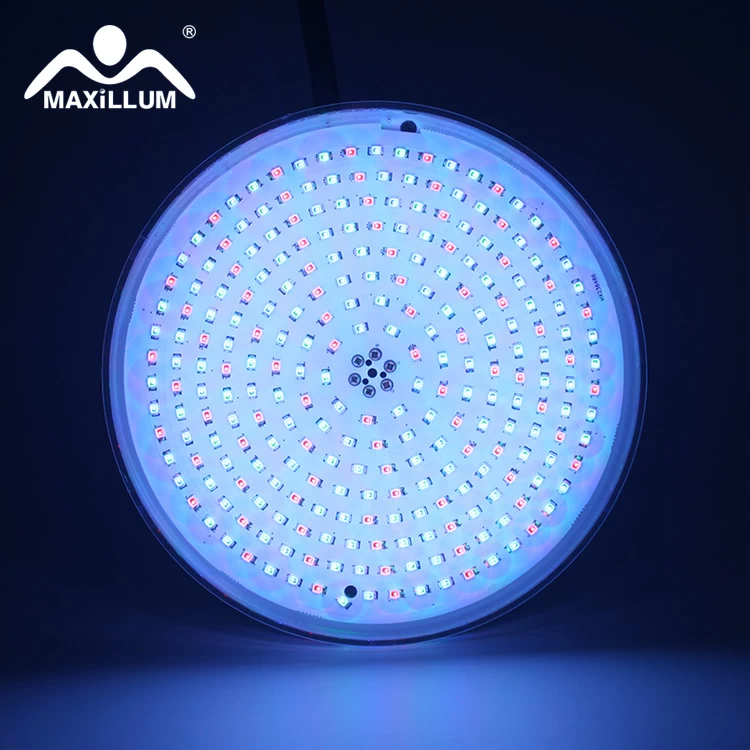

4). Fixed red/blue
5). Fixed blue/green
6). Fixed red/green
7). Fixed white
8). Cycle red-red/green-green.
9). Cycle green-green/blue-blue.
10). Cycle red-red/blue-blue.
11). Cycle red-green-blue. The speed change goes from low to quick.
12). Cycle red-green-blue. The speed change is slower than Mode 11.
13). Cycle green-red/blue-blue-red-white-blue/green-red/green.
14). Gradual change of all colors
15). Gradual change of red-green-blue
Operation:
Changing colors:
Turn the lights OFF and quickly back ON ( 0-3 seconds ).
Synchronizing multiple lights:
1. All the waterproof LED panel should be connected to the same transformer.
2. Turn the lights OFF and back ON within 5-30 seconds.
3. All the lights will be at the fifirst mode( fifixed blue )
Memorizing the last mode:
1. Reach the desired color by the “Changing colors” procedure.
2. Turn OFF the light for more than 34 seconds. The selected color has
now been memorized.
