We are professional transformer factory, we manufacturing various high frequency switching mode power supply transformers, we can design according to customer's requirements, our SMPS transformer widely used in UPS uninterruptible power supply, charging pile power supply device, flyback converters, high frequency induction heating power, communication equipment,etc. If you are interested in our transformers, welcome to contact us.
Quick Details
|
Part No: Flexible SMPS-Transformer EFD15
|
Brand name: MCT
|
|
Insulation test voltage: 500V
|
Custom made: Available
|
|
Low leakage inductance
|
Logo: Can be customized
|
|
Transformer with 6 winding
|
Packing: Carton, can custom
|
|
Operating temperature -40°C~+125°C
|
MOQ: Any quantity
|
|
Certification: ISO9001,ROHS,CE
|
OEM: Available
|
|
Lead time: 25 days after payment
|
Shipping: Air, Ship, etc
|
Part Information

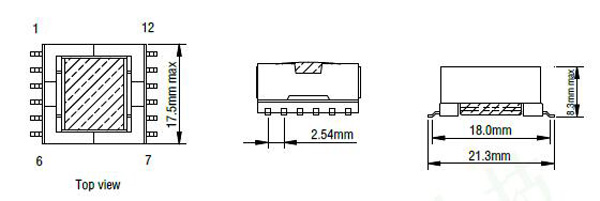

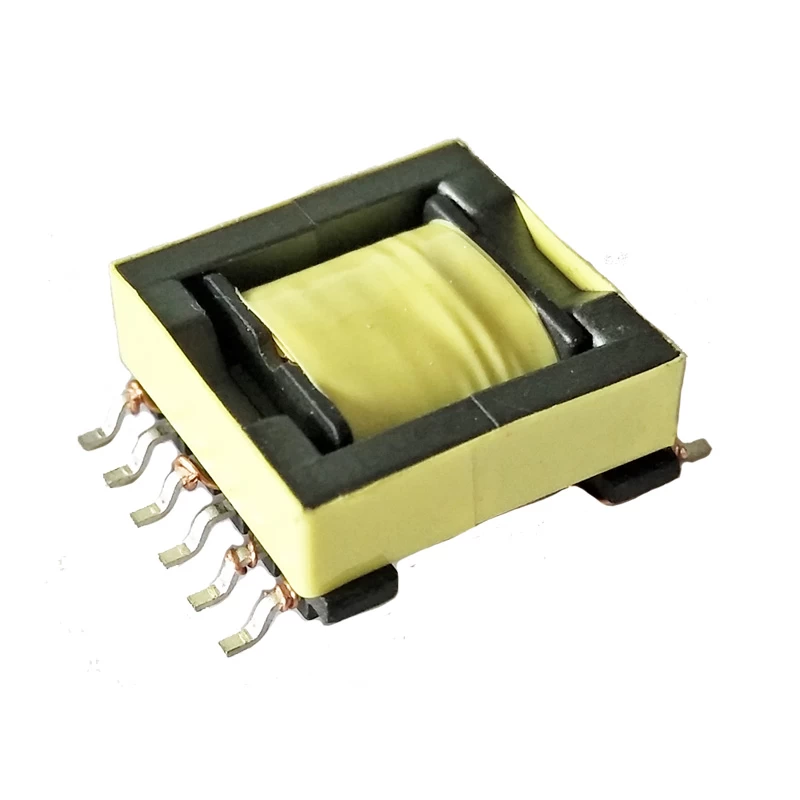

Product Name: Switching Mode Power Supply Transformer EFD15 SMD Transformer
Product Range: Transformers, Inductors, coils, bobbins, ferrite cores.
Applications: Flyback converters. Forward converters. Push-pull converters. Step-Up/Step-down converters. Sepic converters(single ended primary inductor converter)
Packing Details: PP packing belt + Outer packing hard paper carton + inner packing pearl cotton or plastic tray
Samples time: 7-10 days for customized parts, 3-5 days for standard parts.
Product Specifications
Electrical Data and Part Number(PN)
|
L1..L6 in uH
|
L1..L6 in mA
|
Lsat in mA
|
DCR/mΩ
|
MCT PN
|
|
23.0
|
965
|
320
|
140
|
MCT-CBA-B23
|
|
14.5
|
965
|
615
|
140
|
MCT-CBA-B14
|
|
9.0
|
965
|
1075
|
140
|
MCT-CBA-B09
|
|
8.0
|
965
|
1300
|
140
|
MCT-CBA-B08
|
