Swivel Hinges MP2..


MP2 Female Hinge


Facebook Twitter Pinterest LinkedIn 分享

Female Hinge MP2-63

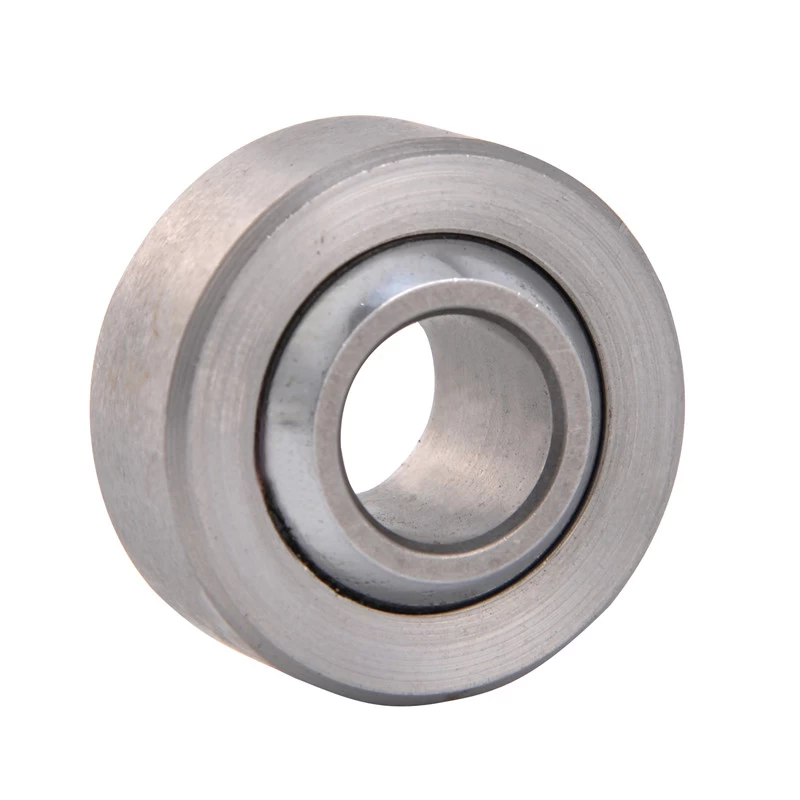

Bearing
NO.

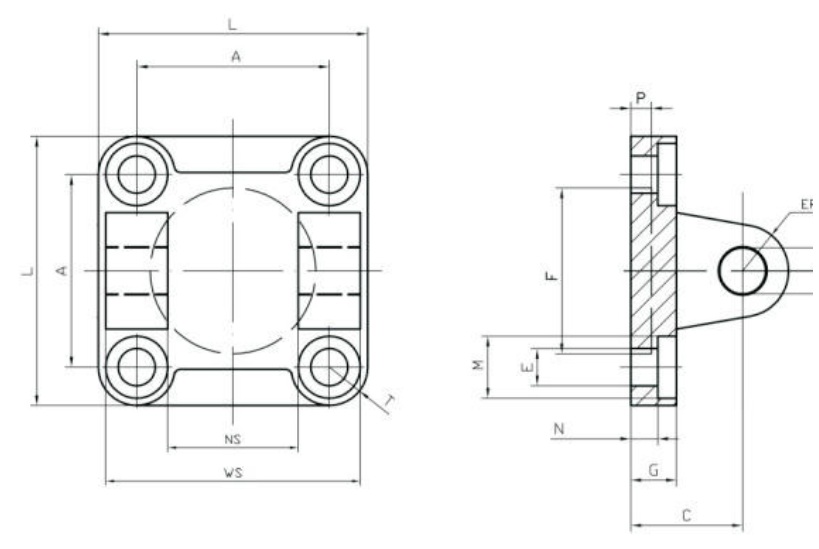

Dimensions(mm)
Weight
≈kg
d
H9
A
±0.2
C
±0.2
NS
H14
WS
H14
ER
max
F
H11
G
±0.5
E
H14
L
M
H14
N
±0.5
P
+0.5
0
T
MP2-32 10 32.5 22 26 45 10 30 9 6.6 45 11 5.5 5 6.25 0.048
MP2-40 12 38 25 28 52 12 35 9 6.6 52 11 5.5 5 8.5 0.074
MP2-50 12 46.5 27 32 60 12 40 11 9 65 15 6.5 5 9.25 0.122
MP2-63 16 56.5 32 40 70 16 45 11 9 75 15 6.5 5 9.25 0.190
MP2-80 16 72 36 50 90 16 45 14 11 95 18 10 5 11.5 0.386
MP2-100 20 89 41 60 110 20 55 14 11 115 18 10 5 13 0.632
MP2-125 25 110 50 70 130 25 60 20 14 140 20 10 7 15 1.228
MP2-160 30 140 55 90 170 25 65 20 18 180 26 10 7 20 1.872
MP2-200 30 175 60 90 170 25 75 25 18 220 26 11 7 22.5 3.175
