Eye Bracket MP4-100

Bearing
NO.

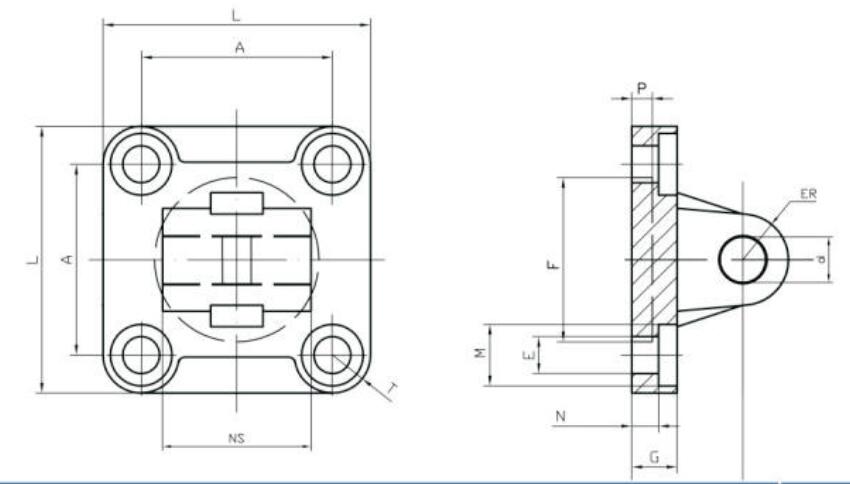

Dimensions(mm)
Weight
≈kg
d
H9
A
±0.2
C
±0.2
NS
0
-0.2
ER
max
F
H11
G
±0.5
E
H14
L
M
H14
N
±0.5
P
+0.5
0
T
MP4-32 10 32.5 22 25.8 10 30 9 6.6 45 11 5.5 5 6.25 0.054
MP4-40 12 38 25 27.8 12 35 9 6.6 52 11 5.5 5 8.5 0.082
MP4-50 12 46.5 27 31.7 12 40 11 9 65 15 6.5 5 9.25 0.132
MP4-63 16 56.5 32 39.7 16 45 11 9 75 15 6.5 5 9.25 0.214
MP4-80 16 72 36 46.7 16 45 14 11 95 18 10 5 11.5 0.424
MP4-100 20 89 41 59.7 20 55 14 11 115 18 10 5 13 0.689
MP4-125 25 110 50 69.7 25 60 20 14 140 20 10 7 15 1.300
MP4-160 30 140 55 89.7 25 65 20 18 180 26 10 7 20 1.950
MP4-200 30 175 60 89.7 25 75 25 18 220 26 11 7 22.5 2.950
