Swivel Hinges MP6..

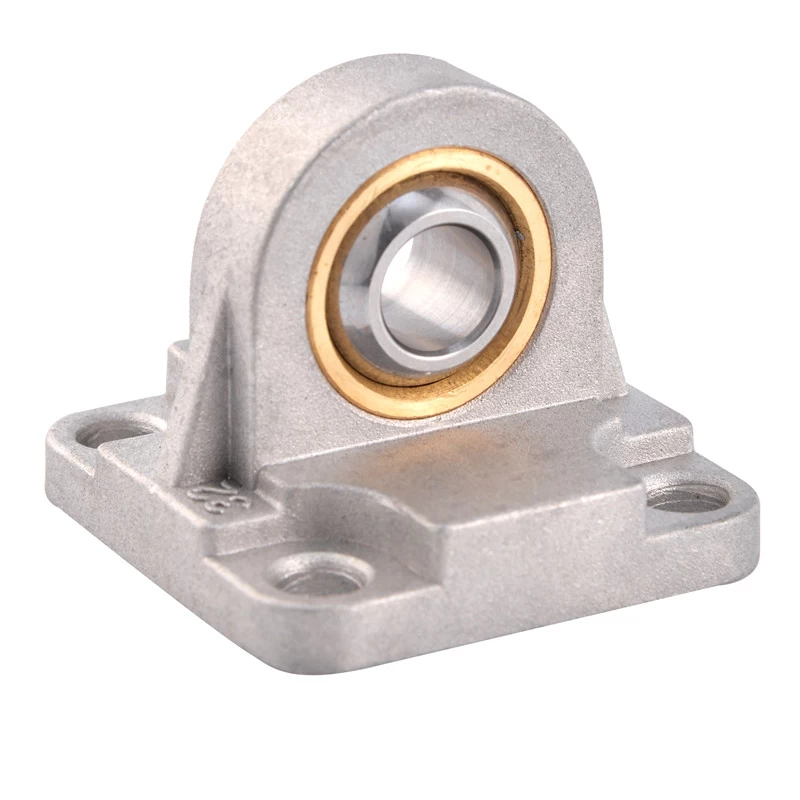

MP6 Male Hinge DIN648K


Facebook Twitter Pinterest LinkedIn 分享

Swivel Hinge MP6-32

Bearing
NO.

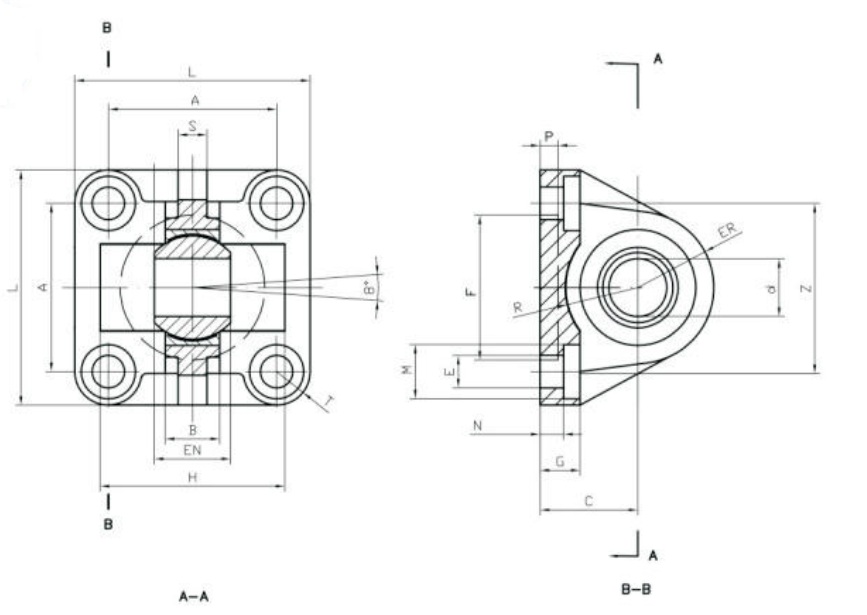

Dimensions(mm)
Weight
≈kg
d
H7
A
±0.2
B
max
C
JS15
EN
ER
max
F
H11
G
E
H13
L
M
H13
N
±0.5
P
H
±0.5
R
±0.5
S Z T
MP6-32 10 32.5 10.5 22 14 16 30 9 6.6 45 11 5.5 5 - - 4 32.5 6.25 0.062
MP6-40 12 38 12 25 16 19 35 9 6.6 52 11 5.5 5 - - 6 39 7 0.100
MP6-50 16 46.5 15 27 21 21 40 11 9 65 15 6.5 5 51 18 8 47 9.25 0.180
MP6-63 16 56.5 15 32 21 24 45 11 9 75 15 6.5 5 - - 8 52 9.25 0.244
MP6-80 20 72 18 36 25 28.5 45 14 11 95 18 10 5 72 24 10 67 11.5 0.476
MP6-100 20 89 18 41 25 30 55 14 11 115 18 10 5 - - 10 77 13 0.646
MP6-125 30 110 25 50 37 40 60 20 13.5 140 20 10 7 - - 13 98 13 1.410
MP6-160 35 140 28 55 43 45 65 20 18 180 26 10 7 - - 14 130 20 2.420
MP6-200 35 175 28 60 43 48 75 25 18 220 26 11 7 - - 14 155 22.5 3.840
