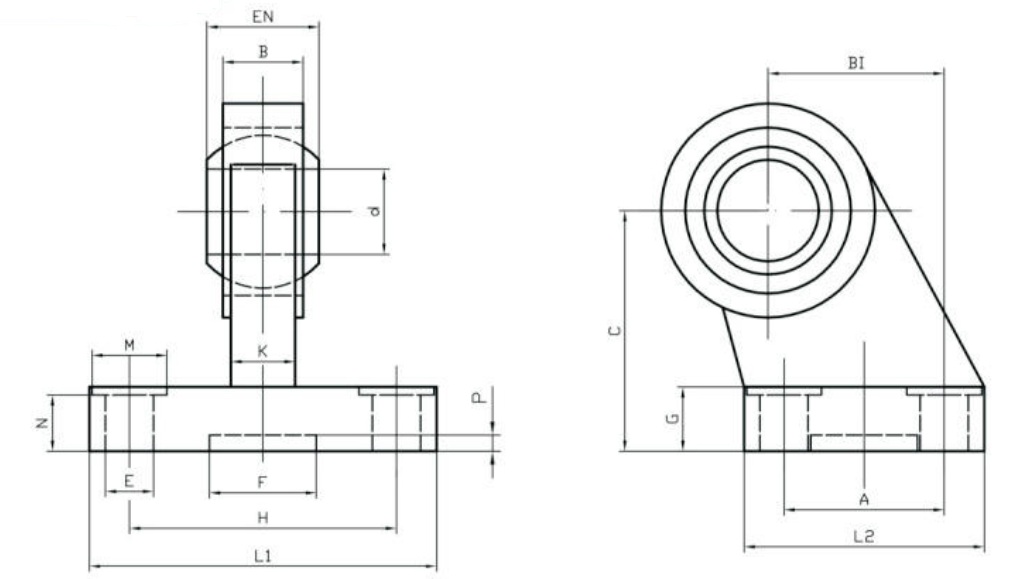

Swivel Flange MP8-40

Bearing
NO.
Dimensions(mm)
Weight
≈kg
d
H7
A
JS14
B
max
C
JS15
EN
ER
max
F
H13
G
E
H13
L1
M
H13
N
0～+0.5
P
L2
max
BI
JS15
H
JS15
K
MP8-32 10 18 10.5 32 14 15 20 10 6.6 51 11 8.5 3 31 21 38 8.5 0.178
MP8-40 12 22 12 36 16 18 20 10 6.6 54 11 8.5 3 35 24 41 10 0.268
MP8-50 16 30 15 45 21 20 20 12 9 65 15 10.5 3 45 33 50 12 0.458
MP8-63 16 35 15 50 21 23 20 12 9 67 15 10.5 3 50 37 52 12 0.550
MP8-80 20 40 18 63 25 27 20 14 11 86 18 11.5 3 60 47 66 14.5 0.970
MP8-100 20 50 18 71 25 30 20 15 11 96 18 12.5 3 70 55 76 14.5 1.326
MP8-125 30 60 25 90 37 40 20 20 13.5 124 20 17 3 90 70 94 20 3.000
