Technical Parameter
Work table: 1200*1500mm
Max. Cutting: 1150*1450mm
Cutting thickness: 0.5-12mm
Cutting parallelism: ≤±0.10mm/500mm
Cutting speed: 0--20m/min (could supply Yaskawa servo system, speed 0-70m/min)
Dimension: 2300*1800*900mm
Power: 1.9kw (fan 1.5kw, X axis motor 0.3kw, Y axis motor 0.3kw, Z axis motor 0.2kw)
Voltage: 380V(fan)/220V(PC)/50HZ
Equipment configuration:
Stepping motor and drive (could supply Japan Yaskawa servo system)
Taiwan Guideway, ball screw rod, ensure accuracy and stability of equipment
Table with resin material, and the flatness is extremely high , and the self - milling treatment. Air suction device is attached to facilitate the upper and lower sheets, without scratching the glass.
Computer WINDOWS operation interface CAD graphics input, automatic cutting of various shapes of glass, easy to operate.
Function

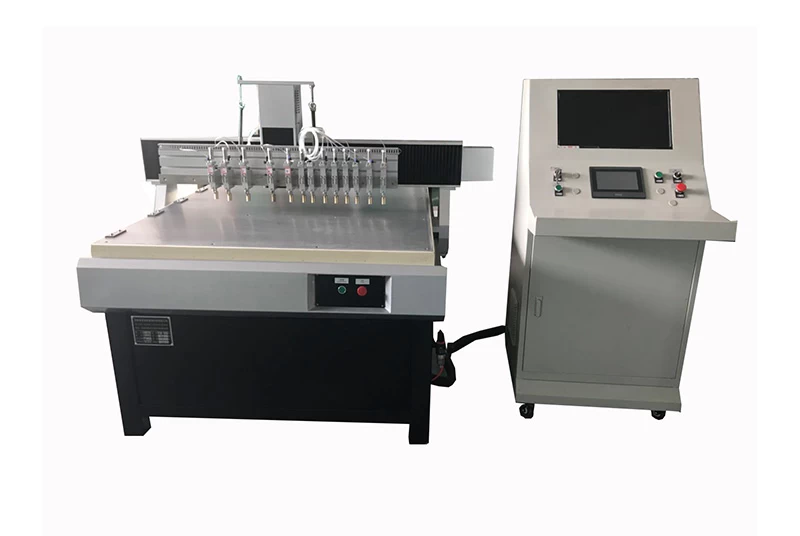

SY-automatic glass cutting machine adopts step motor, driver and NC control system, equipped with imported cutter wheel, can realize all kinds of glass and ultra-thin glass straight, shaped, circular cutting. The machine adopts man-machine interface and can be cut by CAD drawing.
