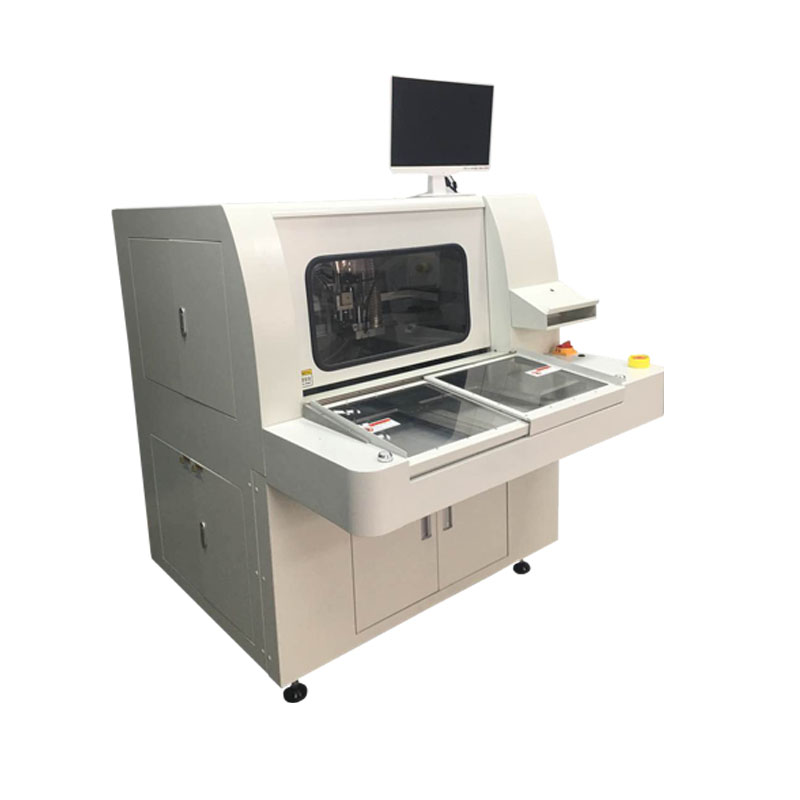

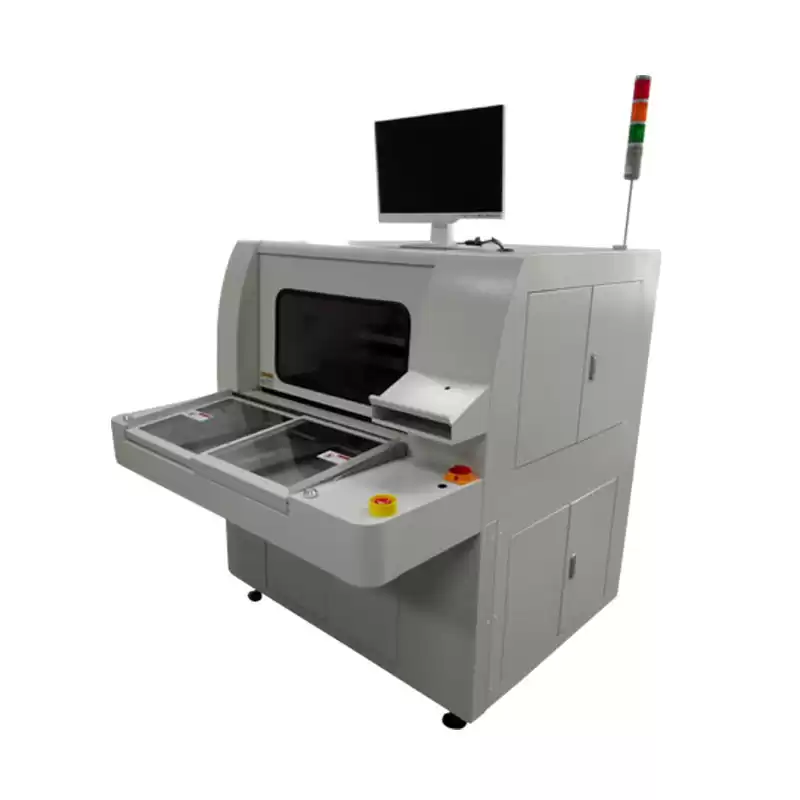

SycoTec 60000RPM Spindle PCB Router Machine
PCB Router Machine Features:
1. X10 zoom-in image makes PCB router machine programming easier & increase the accuracy of point setting.
2. Two sliding table provides simultaneously in-and-out movement to reduce the tack time for better productivity.
3. AUTO MARK offset system. CCD image could check & simulate the path or routing to reduce unnecessary mistake before cutting.
4. This PCB router machine has routing bit life time checking and alarm system to remind operator to change routing bits when it finish 120M cutting. And routing bit first 2mm cut the first milling point, middle 2mm cut the second milling point, the last 2mm cut the third milling point to increase its life time.
5. CCD image could check & simulate the path or routing to reduce unnecessary mistake before cutting.
;
PCB Router Machine Specifications:
|
I. Hardware
|
|
|
SPINDLE
|
SycoTec(KAVO) 4025HY
|
|
CCD
|
Sony 520 line industrial cameras
|
|
LENS
|
Computar EX2C
|
|
Screw
|
TBI Precision ground ball screw imports
|
|
Guide
|
HIWIN widening Imported linear guide rail
|
|
MOTOR
|
Panasonic
|
|
I/O CONTRONL CARD
|
HFC PCI-9074
|
|
DRIVER CONTRONL CARD
|
HFC PCI-9074
|
|
I/O CARD
|
PCI-9074-64pcs/-38pcs
|
|
Static cleanup
|
STATIC-ST401A Series
|
|
Computer
|
(RMC-8401/6113LP4/300ATX/8651VNA/P4 2.8G 2CPU(S)/1G DDR/80G)
|
|
Machine interface
|
AOC LCD17",Logitech mouse
|
|
2. software
|
|
|
Control system
|
Windows XP Professional (Service3,v.3244)
|
|
Operation GUI
|
English Windows XP
|
|
Program edit
|
Inline
|
|
Vision system
|
CCD AOTU offset
|
|
Control system
|
F 1.2.88 version
|
;
PCB Router Machine Advantages:
1. Germany SycoTec spindle 4025 with 60000rpm. Precise cutting, quality improvement.
2. Two sliding tables provide simultaneously in-and-out movement to reduce the production time, improve productivity.
3. Auto Mark offset system. CCD image could check and simulate the cutting path to reduce unnecessary mistake before cutting.
PCB Router Machine ;Application:
PCB Router Machine Packaging:
Certificate:
Company Profile:
2008, Dongguan factory established, and start producing standard v-cut PCB separators and hot bar soldering machines.
2010, Our products are widely sold in local market.
2012, Start producing customized v-cut depaneling and PCB router.
2014, ;Expand our sales team for providing better service to more customers.
2015, Start manufacturing laser depaneling machines.
2017, Start manufacturing ;soldering robot and screwdriver machines.
2018, HK company established.
2019, Huizhou factory established, due to expansion.
2020, Business expansion again, products covering PCB depaneling, PCB soldering, screwdriver system, etc. ;
2021, Our machines cover all Chinese market and also popular in America, Europe, South Asia, East Asia, etc.
