Synthetic rattan plastic chair making machine
Rattan extruder machine: Aiming at the clients continuous request for the quality of exported artificial rattan product, the equipment, based on existing extruder, through some technical reforms, owns the feature of high speed, high extrude output, low melt temperature and fine plasticization effect. double-combined material feeding system and digital mainframe pneumatic material exchange system can produce the cane with unbending colors and can produce many models of top grade plastic artificial rattan that is used to weave craftwork such as corbels, furniture cane chair, sand beach lie follow chair etc.
Quick Details
Application:Profile
Plastic Processed:PE
Screw Design:Single-screw
Voltage:380V 50HZ 3Phase(Customized)
Dimension(L*W*H):10mx1.5mx1.8m
Weight:1.5T
Warranty:More than 5 Years
Ccrew :55mm: rattan color : three color or more
Capacity :40kgs/h: rattan type :roud or flate or other
Automatic Grade:Automatic
Power(W):11KW
After-sales Service Provided:Free spare parts, Engineers available to service machinery overseas
Supply Ability: 50 Set/Sets per Quarter
Packaging Details: wooden package
|

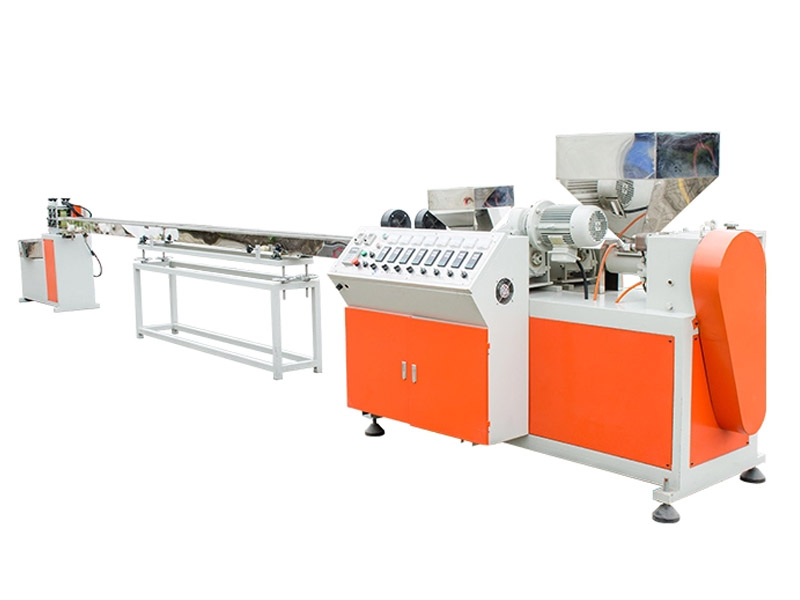

Technical Parameter of Rattan Extrusion line
|
|
Motor Power
|
Motor of 55mm Extruder 1set
|
Kw
|
11
|
|
Motor of 30mm Extruder 2set
|
Kw
|
2.2
|
|
Heating power
|
KW
|
22
|
|
5.5m Cooling Tank
|
Length
|
m
|
5.5
|
|
Width
|
m
|
0.4
|
|
Material
|
SUS 304
|
stainless steel
|
|
Puller and Winder
|
Puller Motor Power
|
KW
|
0.75
|
|
Windrer Motor Power
|
KW
|
0.75
|
|
Speed Control
|
Inverter
|
Delta Brand or ABB Brand
|
Main Features
1) Simple structure in linear type ,easy in installation and maintation and to operate .
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3) High capacity ,about 40kgs/h
4) Running in a high automatization and intellectualization,no pollution
5) Stable and no noise.
Product details
|

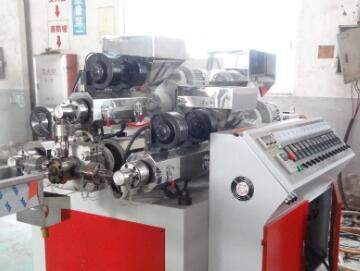

Machine Part 1
Name: Main Extruder
Brand:Reliable
Original: China
Domestic famous engines, strong driving force, low fuel consumption,high capacity .
can produce one color rattan ,two color rattan ,or three color rattan or more colors
|
|
Machine Part 2
Name: Cooling Tank
Brand: Reliable
Original: China
5.5m length and 0.35m width ,the material is for 304 stainless steel
|
|
|

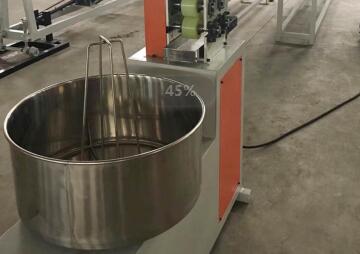

Machine Part 3
Name:Puller and Winder
Brand:Reliable
Original:China
motor power :0.175kw x2 ,inverter controlled
|
|

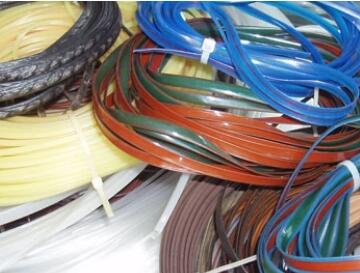

Final Product
one color or two color or three color or more color rattans
rattan shape can be for round or flat or profile
|
|
Related Products
FAQ
Q: Are you a factory or trading company?
A: We are a factory in Guangzhou, welcome to visit and check at any time.
Q: What’s the lead time for a whole production line usually?
A: About 25-60days or depends on different production lines.
Q: Will your company offer install and guide service door to door?
A:Yes, oversea installation service is available.
Q:How to deal with the machine problem after 1 year free warranty?
A:1. 24 hour telephone technical service
2. Offer spare part with cost price
3. Door to door service again .
Q: If your company has passed some certificates?
A: Yes, we have passed CE, ISO.
If you are interested in our plastic rattan extruder,Contact now! Tell us the details of your needing.
