Application:
It is suitable for round edge pillow bag packing for many products, such as black tea, green tea, jasmine tea, white tea etc in grain shape.
Features:
1. The machine can be used with a variety of filling system for powder, grain and liquid products packing.
2. Bag making, filling, sealing, cutting, counting can be done automatically
3. Film pilling and heat sealing is controlled by servo motor, which ensures perfect bag package.
4. Machine parts in direct contact with products to be packed are made of SUS304 stainless steel.
Type: Teabag Packing Machine Series
Technical data:
Product model: T181F

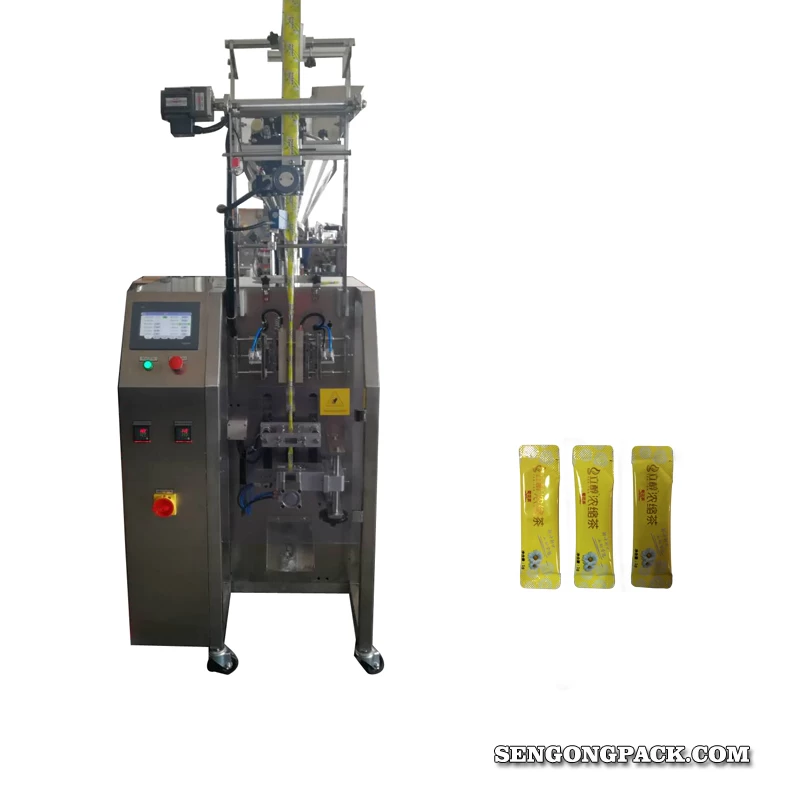

Product name: Automatic Round Edge Pillow Bag Granule Packaging Machine
Pack Materials: paper/plastic, plastic/plastic,
plastic/aluminum/plastic, paper/aluminum/plastic
Filling range: 1~100ml(accuracy: ± 1%)
Packing speed: 40~50 bags/min(single lane,
depending on the bag length and products conditions)
Bag Type: center sealing, pillow bag
Bag Size: L × W= 30~150mm × 15~85mm
Film Width: ≤ 180mm(one piece of bag former
will be provided together with the machine)
Packing Film: composite package materials
Air Pressure: 6kg
Air Consumption: 0.3m3/min
Power: single phase, 220V, 50HZ, 1.5KW
Weight: 450KG
