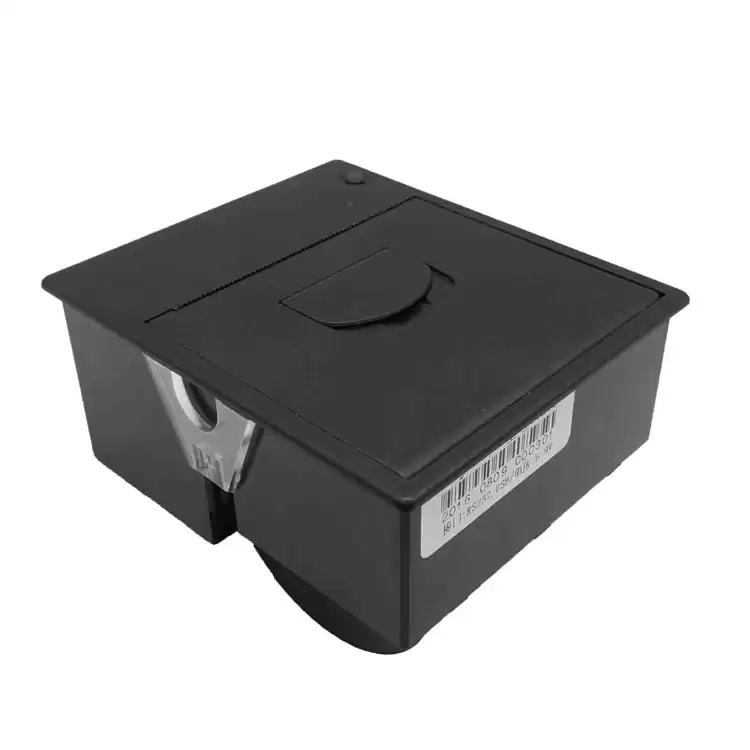

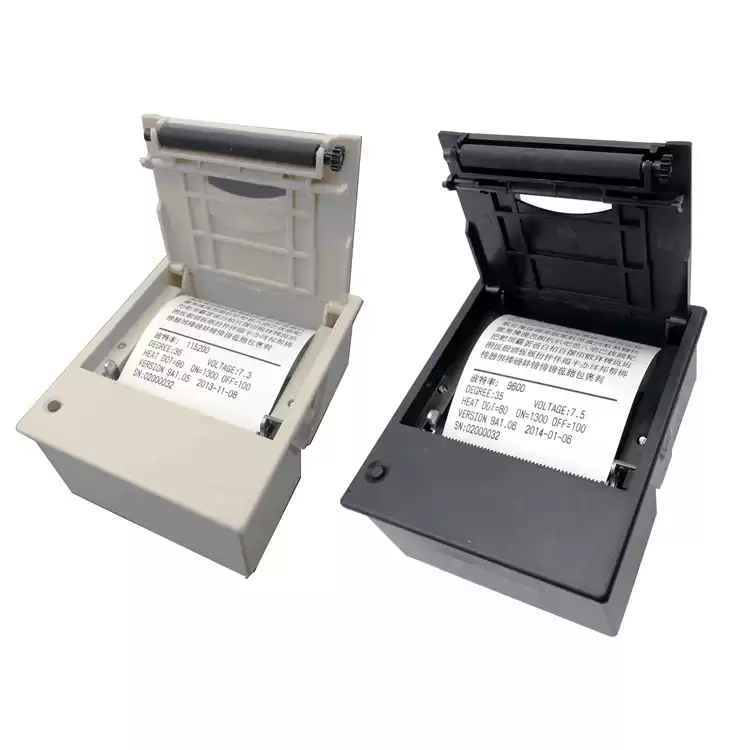

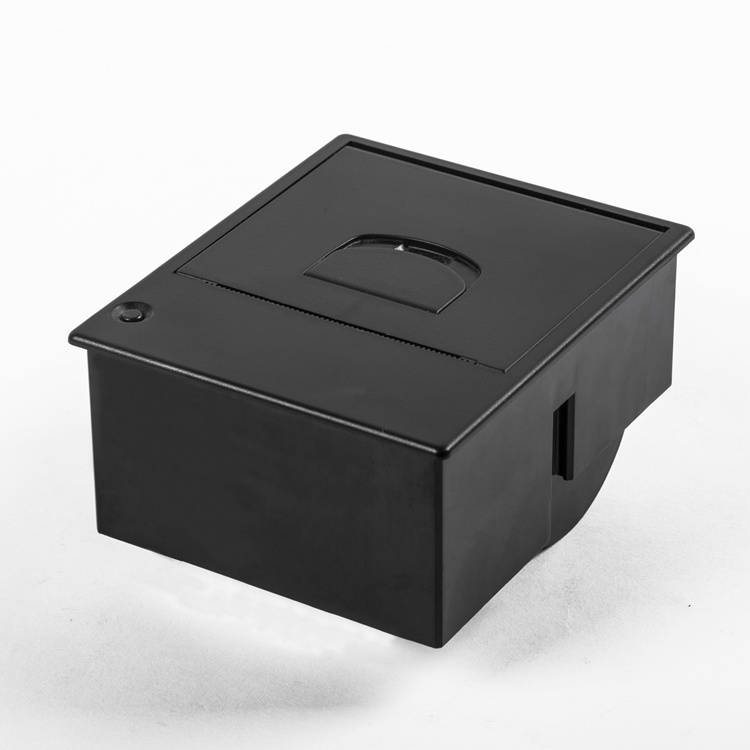

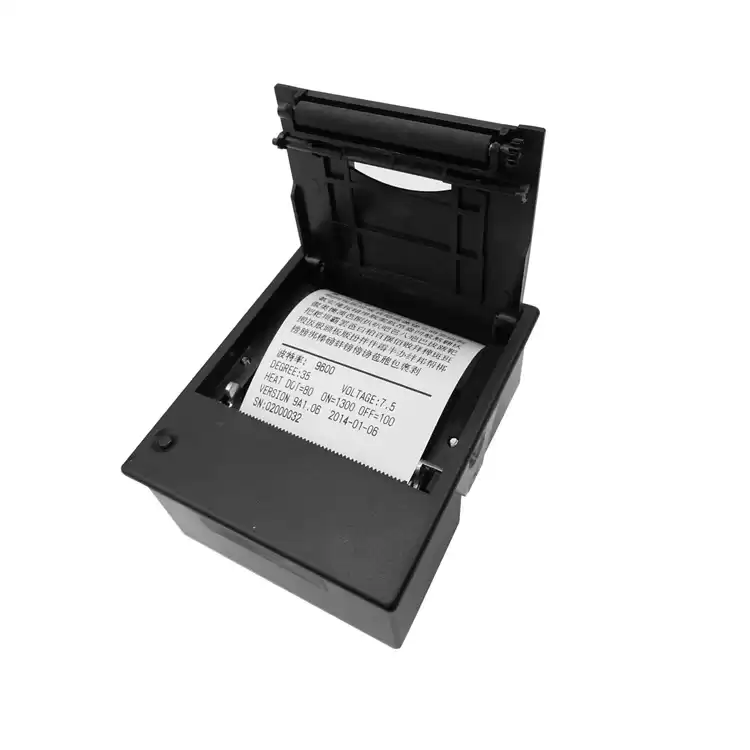

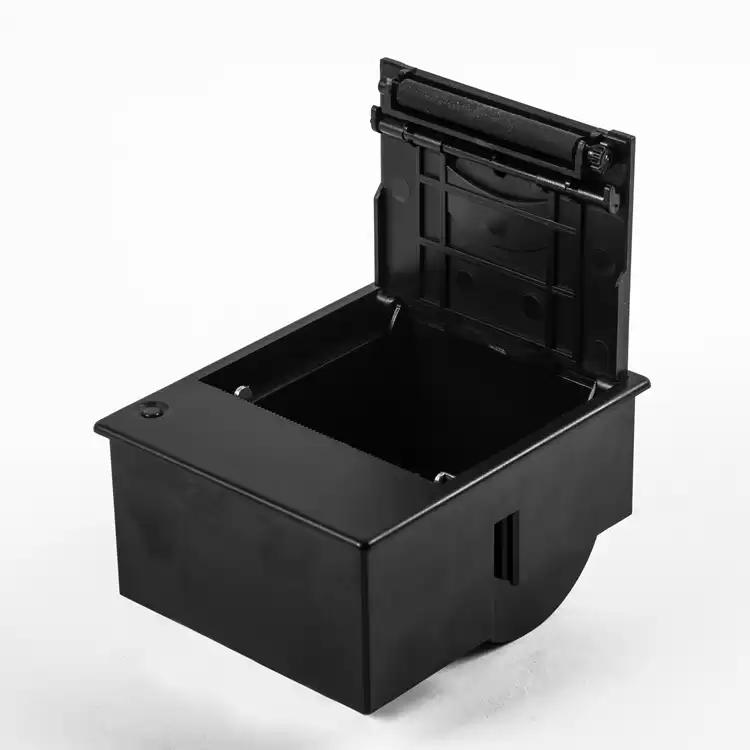

T2US 58mm mini embedded printer with RS232/TTL interface

Technical parameters

Item	T1US(2inch)
Printing method	Thermal printing
Resolution	203DPI, 8 dots/mm
Paper width	57.5±0.5mm
Printing width	48mm
Interfaces	USB+RS232/TTL
Paper tore	Manual
Command set	ESC/POS compatible commands
Print Font	ASCII Font A: 12×24/ASCII Font B: 9×24/Chinese: 24×24
Graphics printing	Support dots printing with different densities, raster bitmap print and downloaded bit image print
Code pages	Support Chinese, English, Japanese and other 45 kinds of international character sets
UTF-8	Support
Bar codes	UPC-A; UPC-E; EAN-8; EAN13; CODE39; ITF; CODEBAR; CODE128; CODE93; QR CODE
External dimension	82mm×58mm×57mm
Opening dimension	77mm×53mm(L×W)
Paper roll diameter	30mm(Max)
TPH life	50km
Power Supply	12V/5-9V
