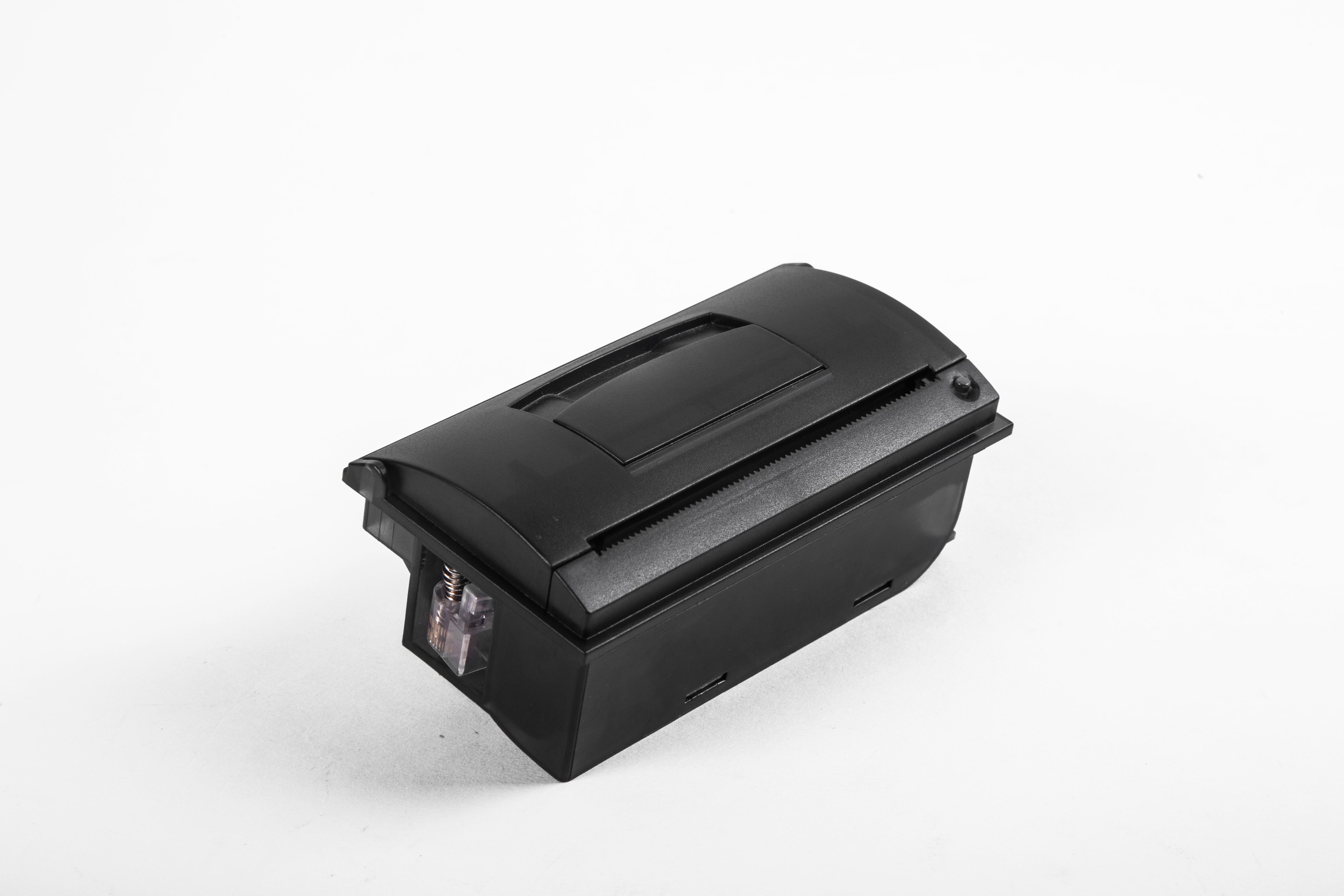

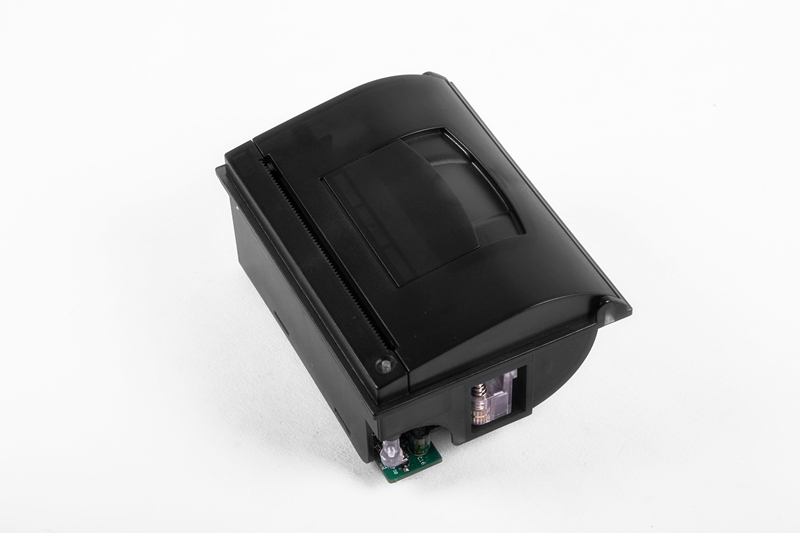

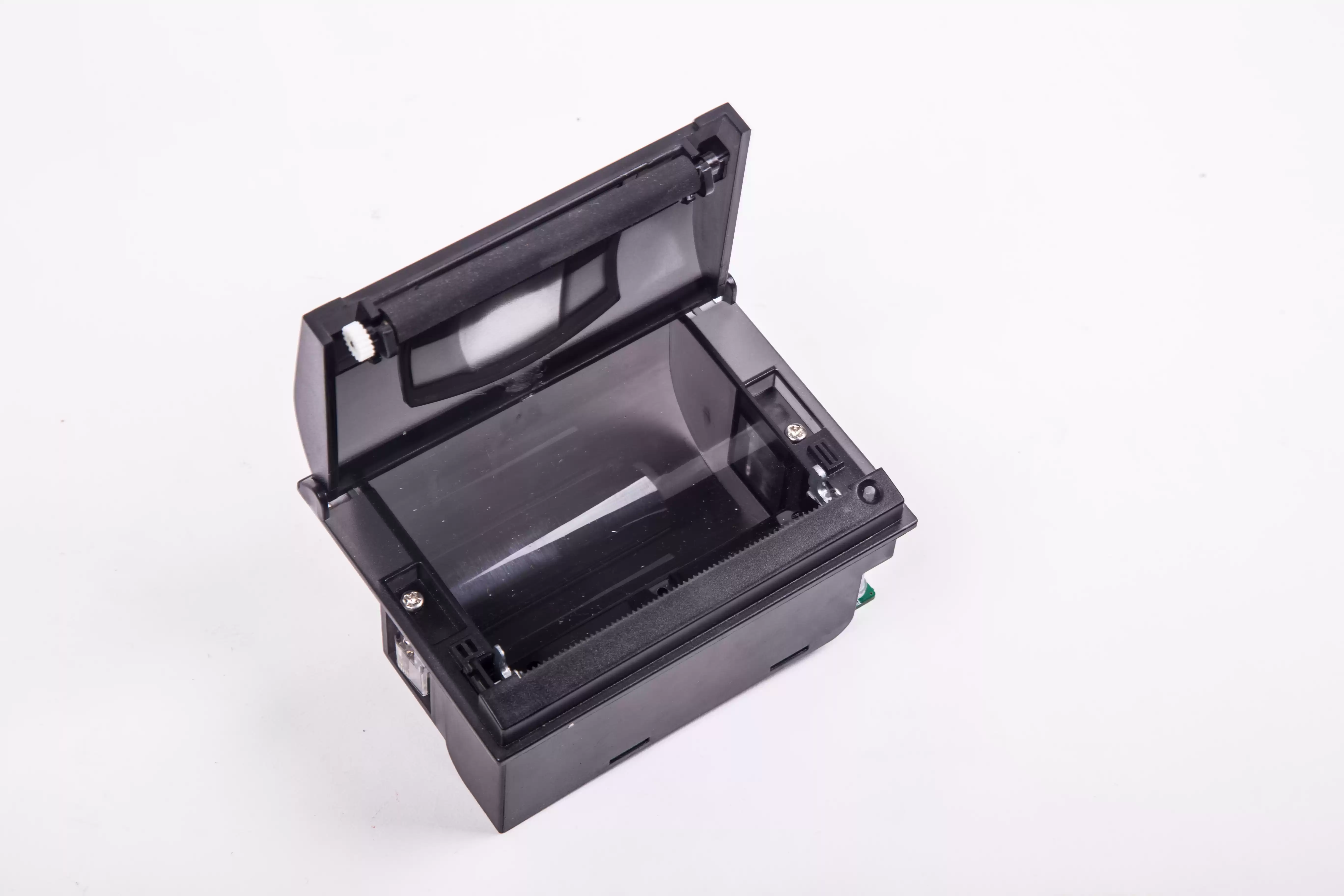

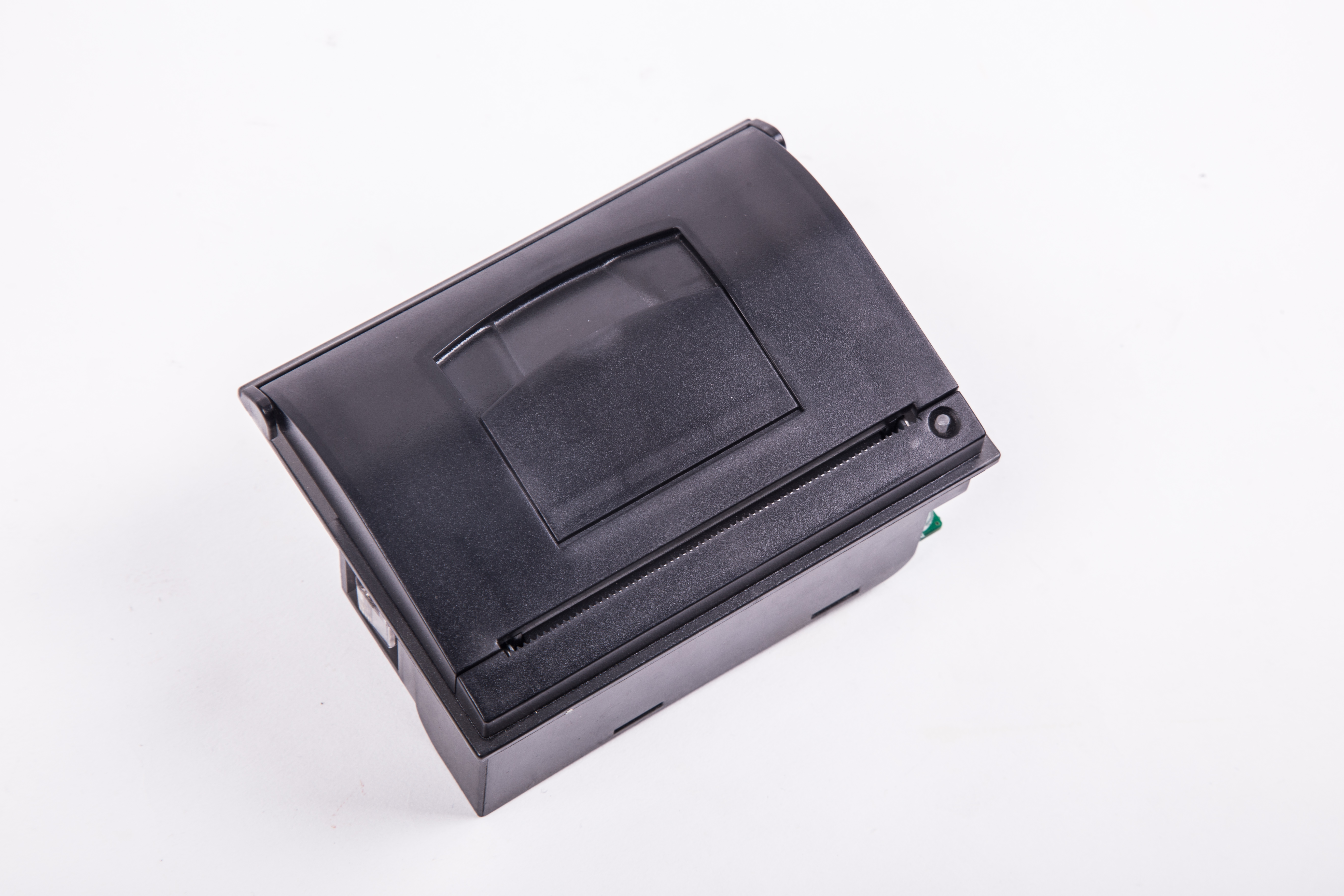

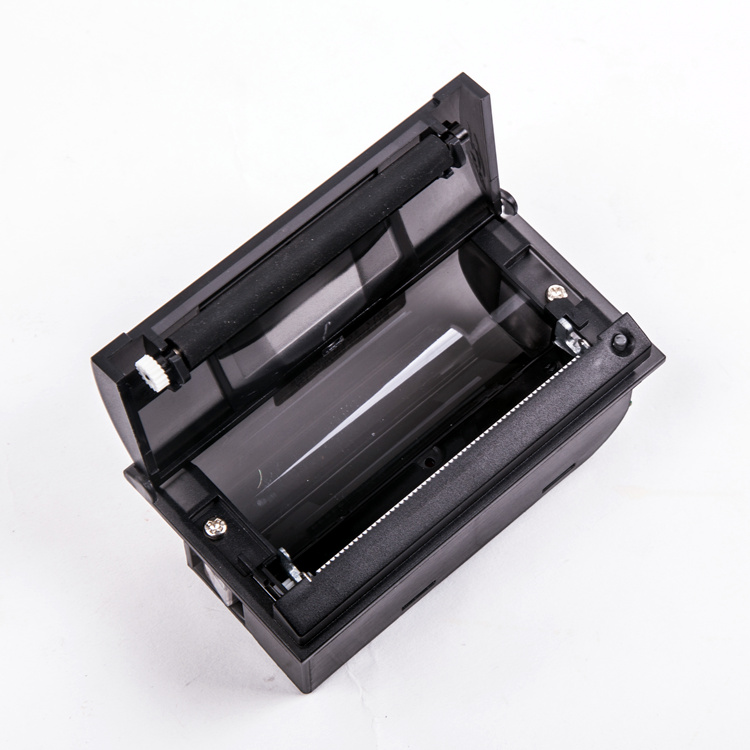

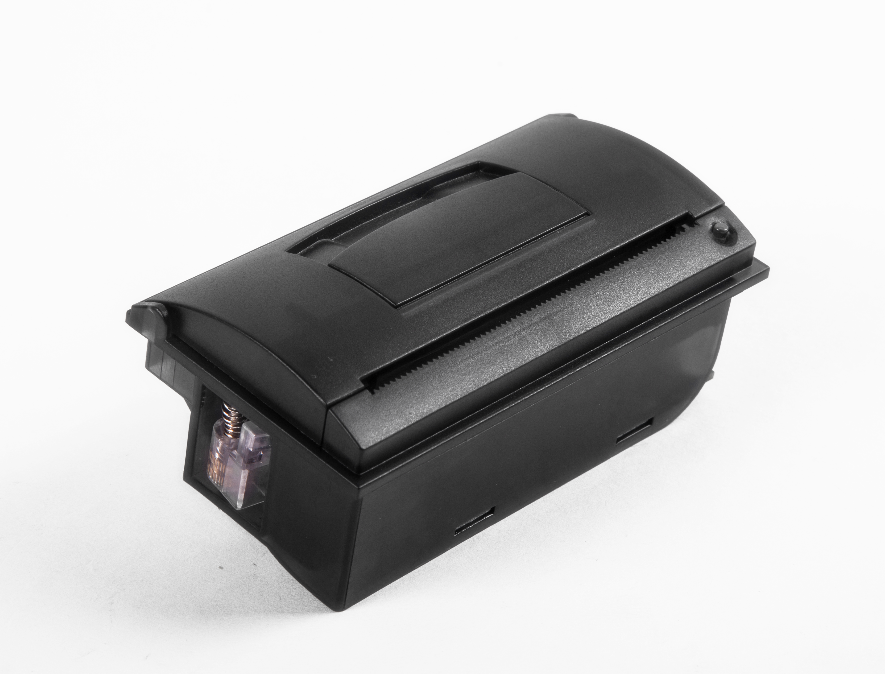

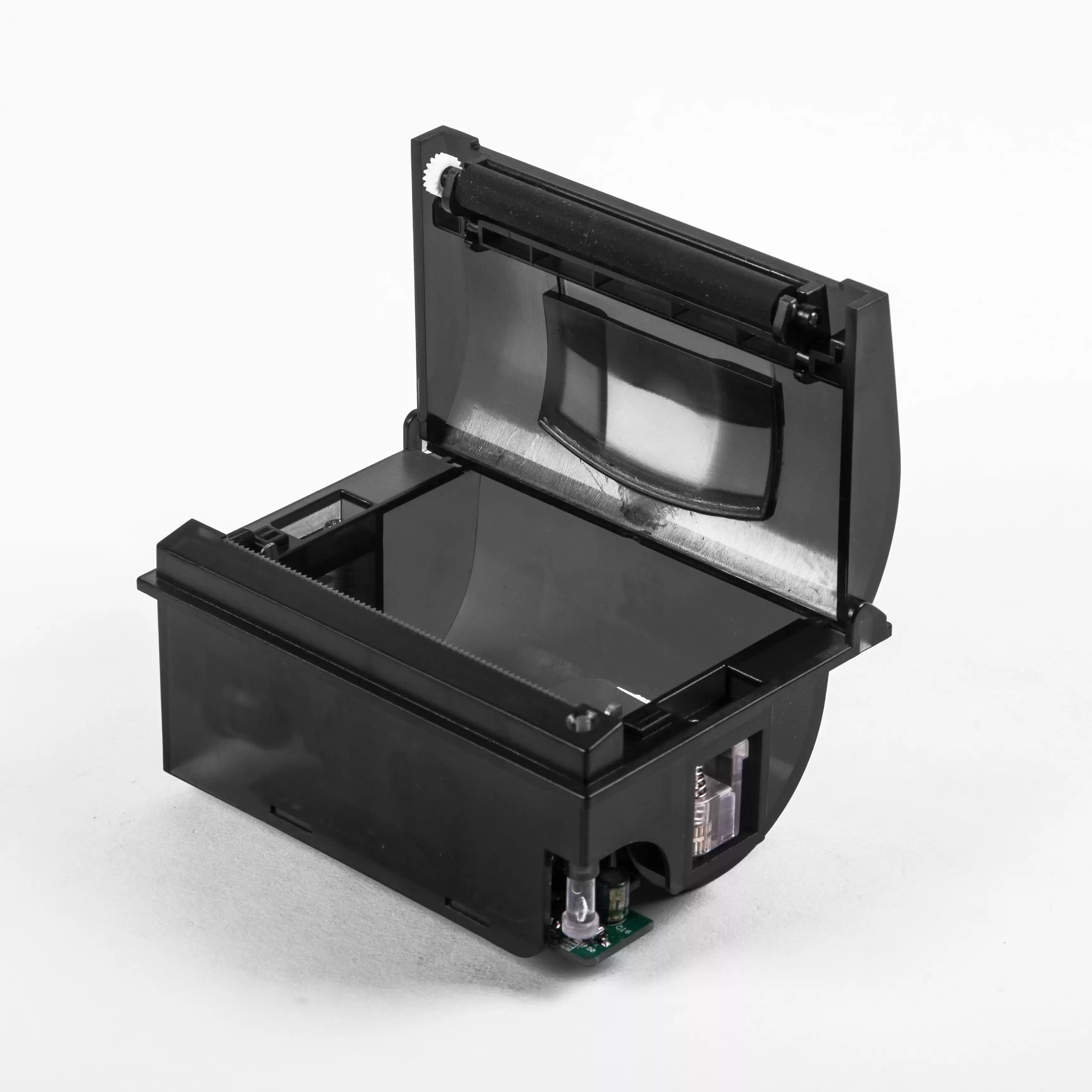

T31-50 thermal panel printer 80mm RS232 /TTL with big paper roll

  • Item No.:

    T31-50
  • Payment:

    Western Union, T/T
  • Product Origin:

     Xiamen, China
  • Color:

    Black
  • Shipping Port:

     Xiamen
  • Lead Time:

    1-2weeks



Specification:
Print Printing Method Thermal Line
Printing Speed 50-80mm/s
Resolution  8 dots/mm, 576 dots/line
Effective Printing Width 72mm
Character Character Set ANK,GB18030(Chinese)
Print Font ANK: 12 x24,9x17, Chinese: 24 x 24
Character per Line 48-font A/64-font B
User defined support
Language(code page) support simplified&traditional Chinese,
English,and other 45 kinds of international character sets.
Paper Spec Paper Type Thermal paper
Paper Width 79.5± 0.5mm
Paper Roll Diameter Max: 50.0mm
Paper Thickness 0.056 to 0.1mm
Paper Supply Method Drop-in paper load
Reliability Auto Cutter null
TPH 50km
Barcodes UPC-A,UPC-E,EAN-13,EAN-8,CODE39,ITF,CODEBAR,CODE93,CODE128,QR CODE
command sets ESC/POS
Driver Windows(WIN7/WIN8/WIN10/Vista/XP/2000)
Ubuntu 12.04 32/64 Ubuntu 14.04 32/64   MAC OS
Sensor paper out
Drawer Port one port
Interface USB+RS232/TTL+Drawer
Power Supply  12V
Auto cutter Type manual
Life null
Physical Net Weight 0.4kg
Gross Weight 0.6kg
Printer Dimension (LxWxH) 108.4x81x57.8mm






Product Tags Panel Thermal Printer          ios receipt printer          mini usb thermal printer          atm receipt printer          ATM printer          barcode printer auto cutter
