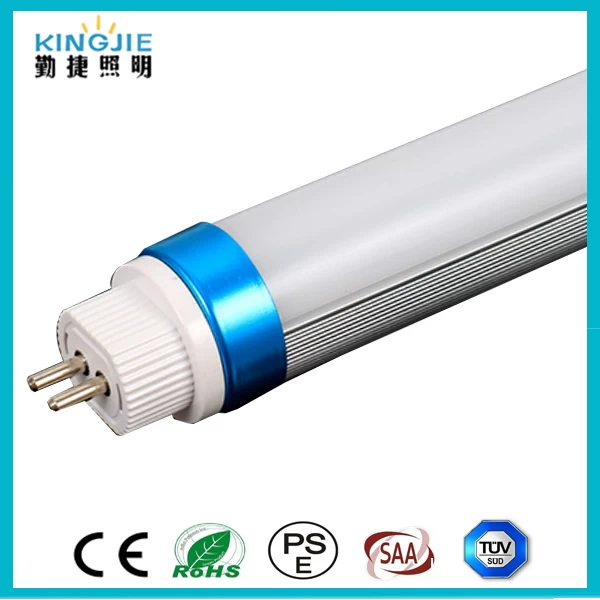

1、G13,G5 cap,rotatable cap and non-rotatable cap,colorful rings are available
2、Constant current internal driver, safety guaranteed
3、High PF value over 0.9 for decrease of electricity loss
4、High quality PCB for good heat dissipation
5、High light efficacy, cost effective
6、No flicker,no delay, Instant on/off
7、Direct replacement for T5 fluorescent tubes is used to quick and easy installation to minimize retrofit and maintenance costs
Model
|
Size (mm)
|
Watt
|
Input Voltage
|
SMD LED
|
Material
|
PF
|
CRI
|
Cap
|
Beam Angle
|
Light efficiency
|
T5-60CM-10W
|
L549mm
|
10w
|
AC85-265V
|
SMD2835
|
6063 aviation Aluminum+ PC cover
|
>0.92
|
>80
|
G5&rotatable cap optional
|
140°
|
100LM/W or more higher
|
T5-120CM-18W
|
L1149mm
|
18w
|
AC85-265V
|
SMD2835
|
6063 aviation Aluminum+ PC cover
|
>0.92
|
>80
|
G5&rotatable cap optional
|
140°
|
100LM/W or more higher
|
|
T5-150CM-25W
|
L1449mm
|
23w
|
AC85-265V
|
SMD2835
|
6063 aviation Aluminum+ PC cover
|
>0.92
|
>80
|
G5&rotatable cap optional
|
140°
|
100LM/W or more higher
|
***Remark: other wattages,sizes,lumen are available
Warning: Switch off power supply BEFORE COMMENCING WORK!
Step1. Remove the fluorescent lamp.
Step2. Cut off all wires which connected to inductive ballast or electrical ballast.
Step3. Install LED tube into lighting fixture with below one(Type I or Type II) wiring method refer to the label on the tube.
Step 4.Switch on power.
Perfect Used for factory, office, parking, shopping mall and Hotel lighting etc
