Application:;
It is;suitable for automatic packing;of;viscous and free flowing;products;such as;oil, sauce, honey, tomato ketchup, syrup, lotion etc.
;Features:;
1.;The machine adopts;4 side sealing;type.
2.;The entire process;from weighing, bag forming, filling, sealing,;cutting, counting;and code printing (with option of date code printer) can be;fully automatically;operated.;
3.;The machine adopts advanced;PLC microcomputer controller. Bag length is controlled by;stepper motor;with stable performance, easy adjustment and accurate testing.
4.;Adopts;PID temperature controller;which ensures that the error range of temperature control is less than 1℃.
;Technical data:;
|
Machine type:
|
General Packing Machine Series
|
|
Machine model:
|
T60CY
|
|
Machine name:
|

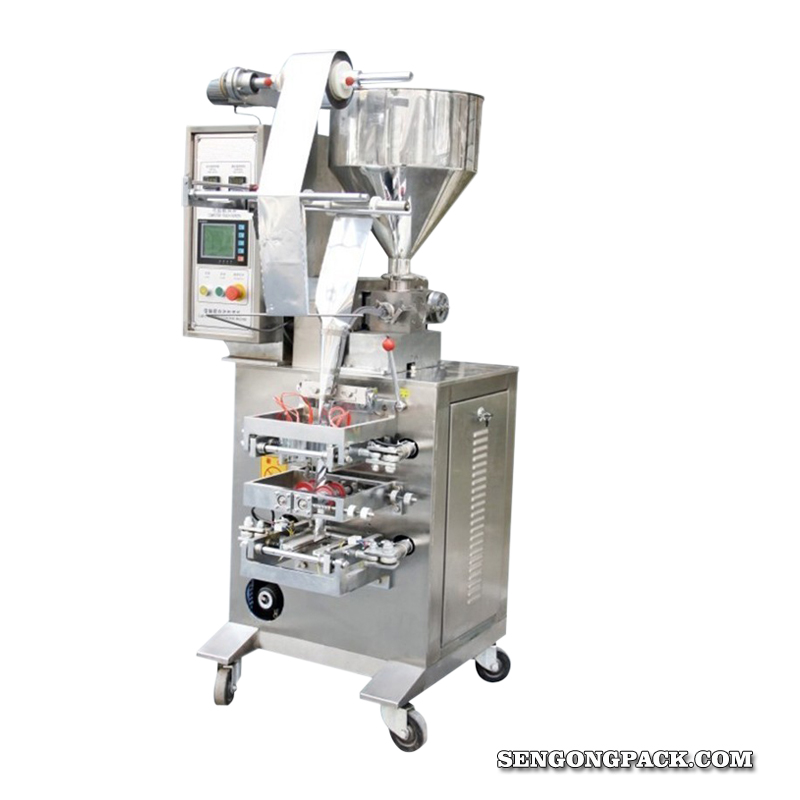

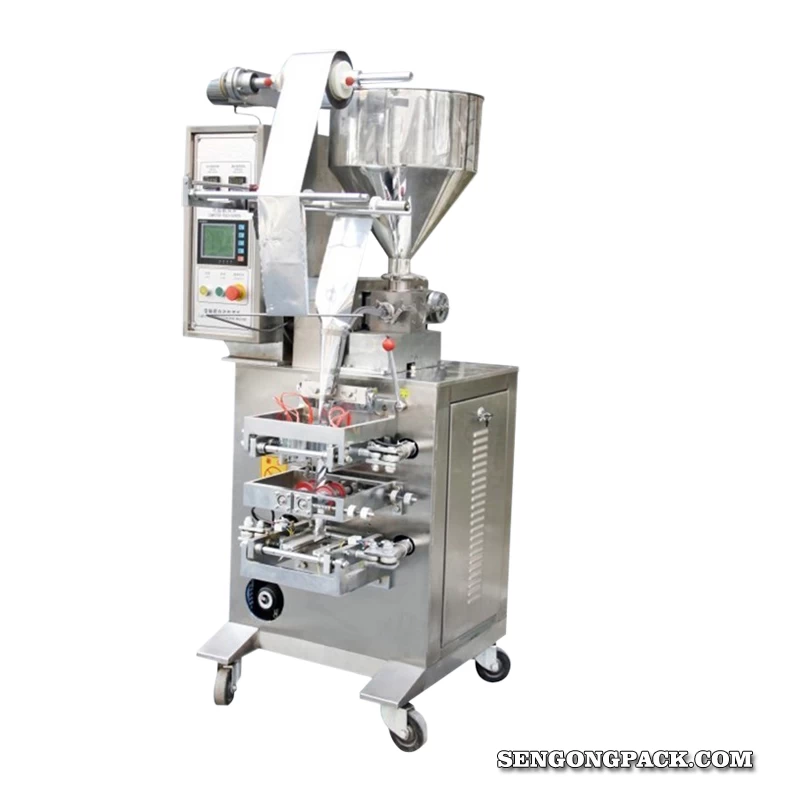

Automatic 4 Side Seal;Liquid Paste Packaging Machine
|
|
Filling range:
|
3-15ml(50-150ml can be customized)
|
|
Bag size range:
|
L:30-150MM, ;W:30-180MM
|
|
Packing capacity:
|
30-60bags/min
|
|
Sealing method:
|
Four sides sealing
|
|
Power:
|
220V，50HZ，1.9KW
|
|
Machine weight:
|
400KGS
|
|
Machine dimension:
|
900mm*700mm*1700mm(L*W*H)
|
|
;
|
