l Application:
It is used to pack kinds of rice grain, seeds grain ,coffee bean,coffee powder and proportional weighing other irregularly-shaped materials.
l Main Structures and Performance Features:

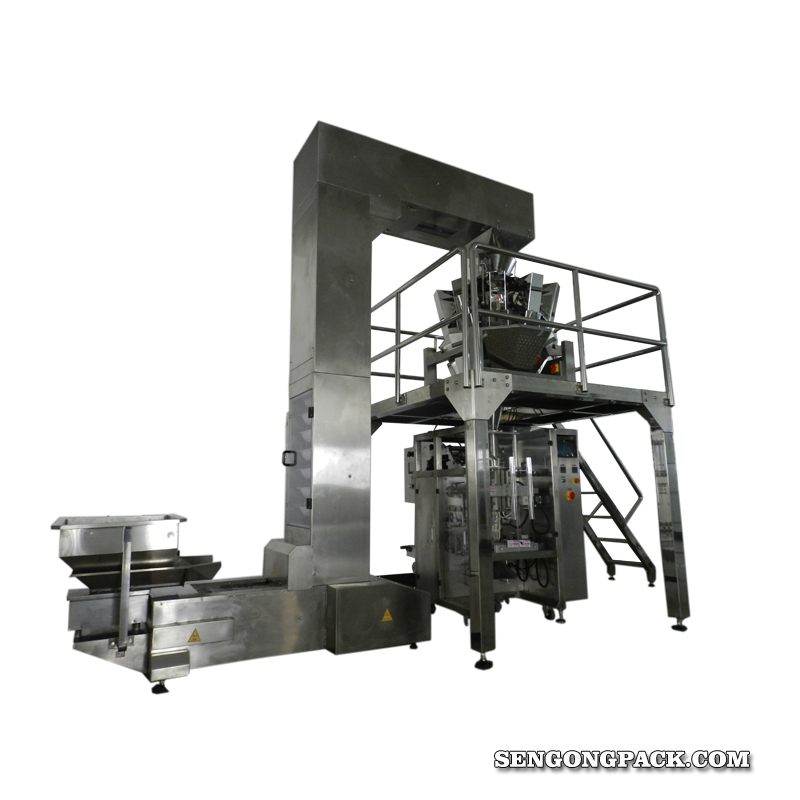

1. The whole production line integrates with stamped automatic packaging machine, dedicated precise combined balance with 10 heads, supporting table-board, dedicated chain drive conveyor and final product conveyor.
2. Servo film conveying system, accurate position, excellent performance, beautiful package effect.
3. Impeccable automatic alarming protection function, reducing the wear and tear to the lowest.
4. The machine can automatically perform the whole process like weighing, feeding, filling and bag-forming, date printing etc.
5. With high precision and high speed, digital weighing sensor makes the precise measurement realized immediately.
6. The balance can adjust fine the open-and-close speed of the hopper way, avoiding breakage and sticking.
7. The conveyor can load large volume, and lift high.
l Technical data:
|
Machine type:
|
Automatic Granule Bean Packing Machine Series
|
|
Machine model:
|
T68S
|
|
Machine name:
|

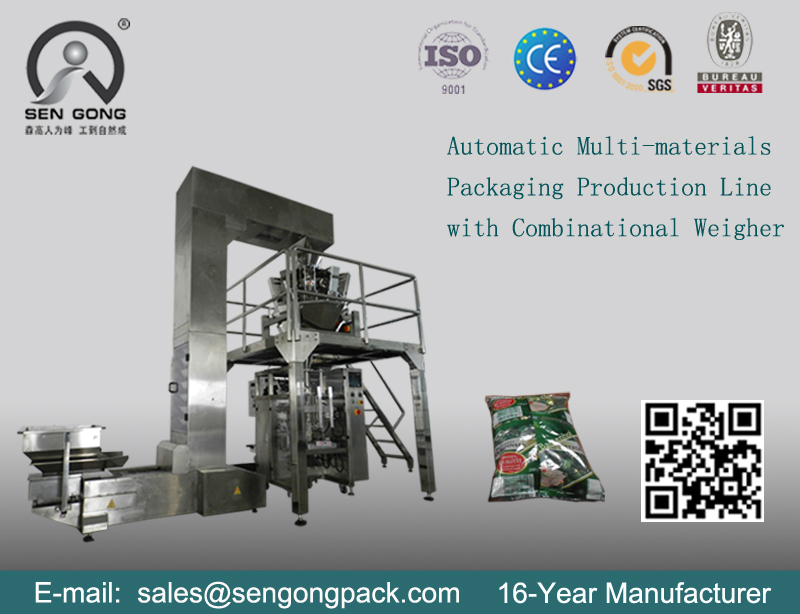

T68S Automatic Multi-Materials Pillow Pouch Packaging Production Line
|
|
Machine form:
|
Lapel stamped automatic packaging machine
|
|
Bag forming shape:
|
Pillow bag, stand-up bag, gusset bag etc.
|
|
Bag size:
|
L:100-325mm; W:100-220mm
|
|
Filling range:
|
15 - 2000g
|
|
Packing speed:
|
25-40 bags/min
|
|
Control method:
|
Touch screen control
|
|
Air Supply:
|
0.4 cube/min, 0.8MPa
|
|
Power supply:
|
380V, 50HZ, three phase four wire
|
|
Gross power:
|
5.6KW
|
|
Thermal fuse power:
|
1.3KW
|
|
Machine dimension:
|
4200*1800*3360mm(L*W*H)
|
|
Machine weight:
|
1500KG
|
