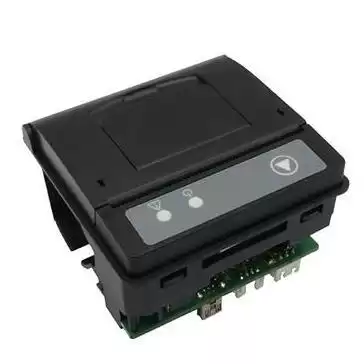

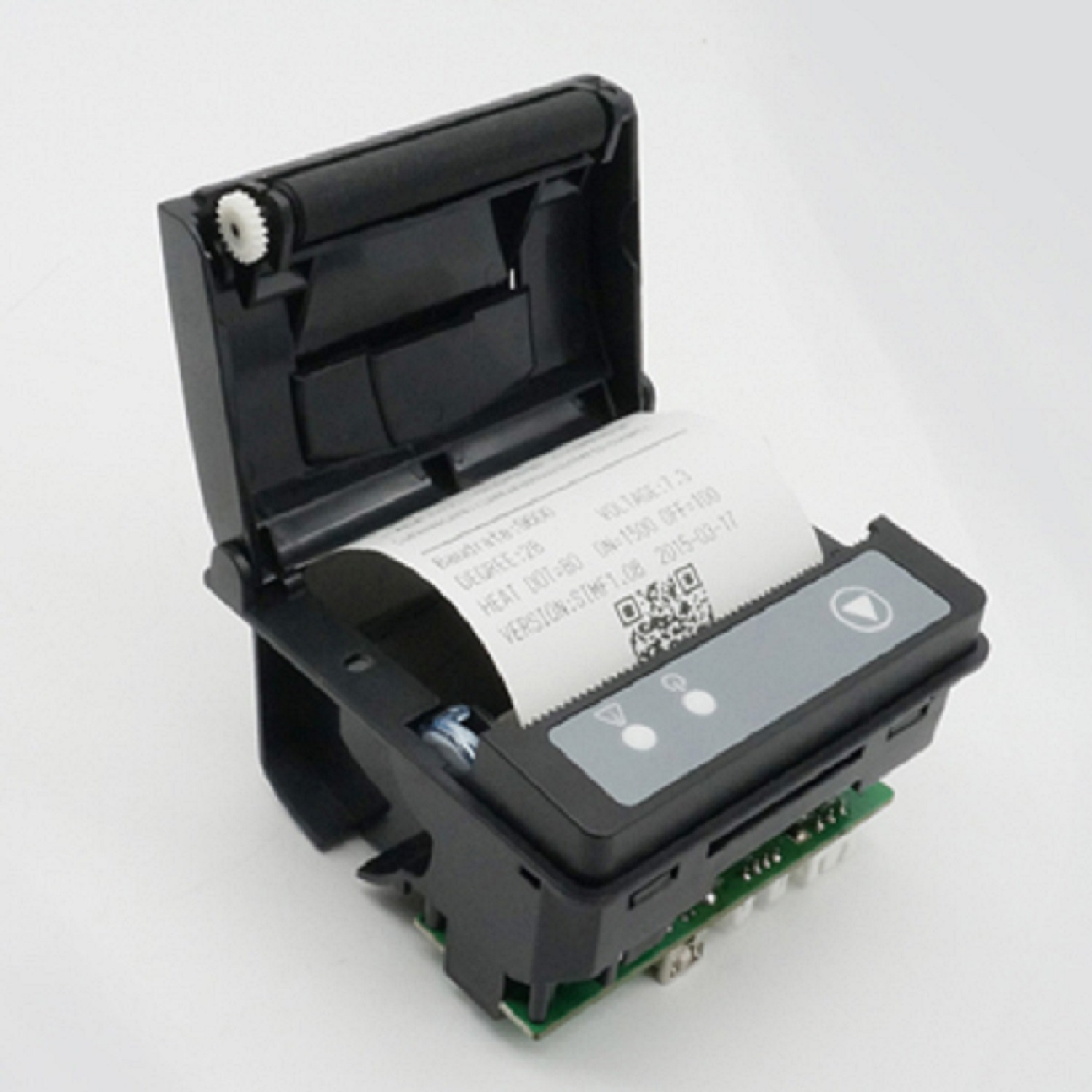

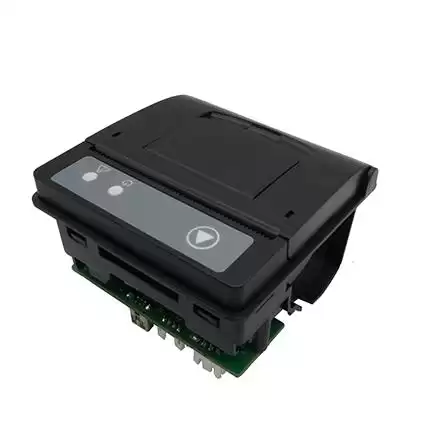

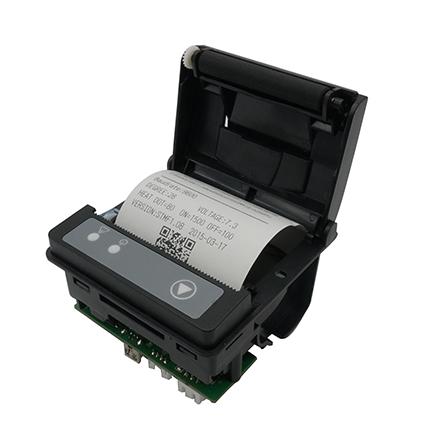

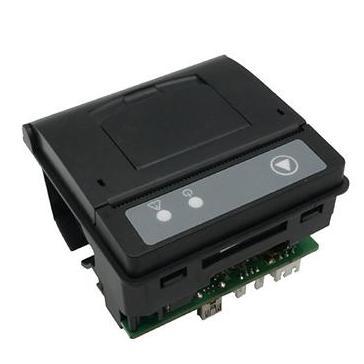

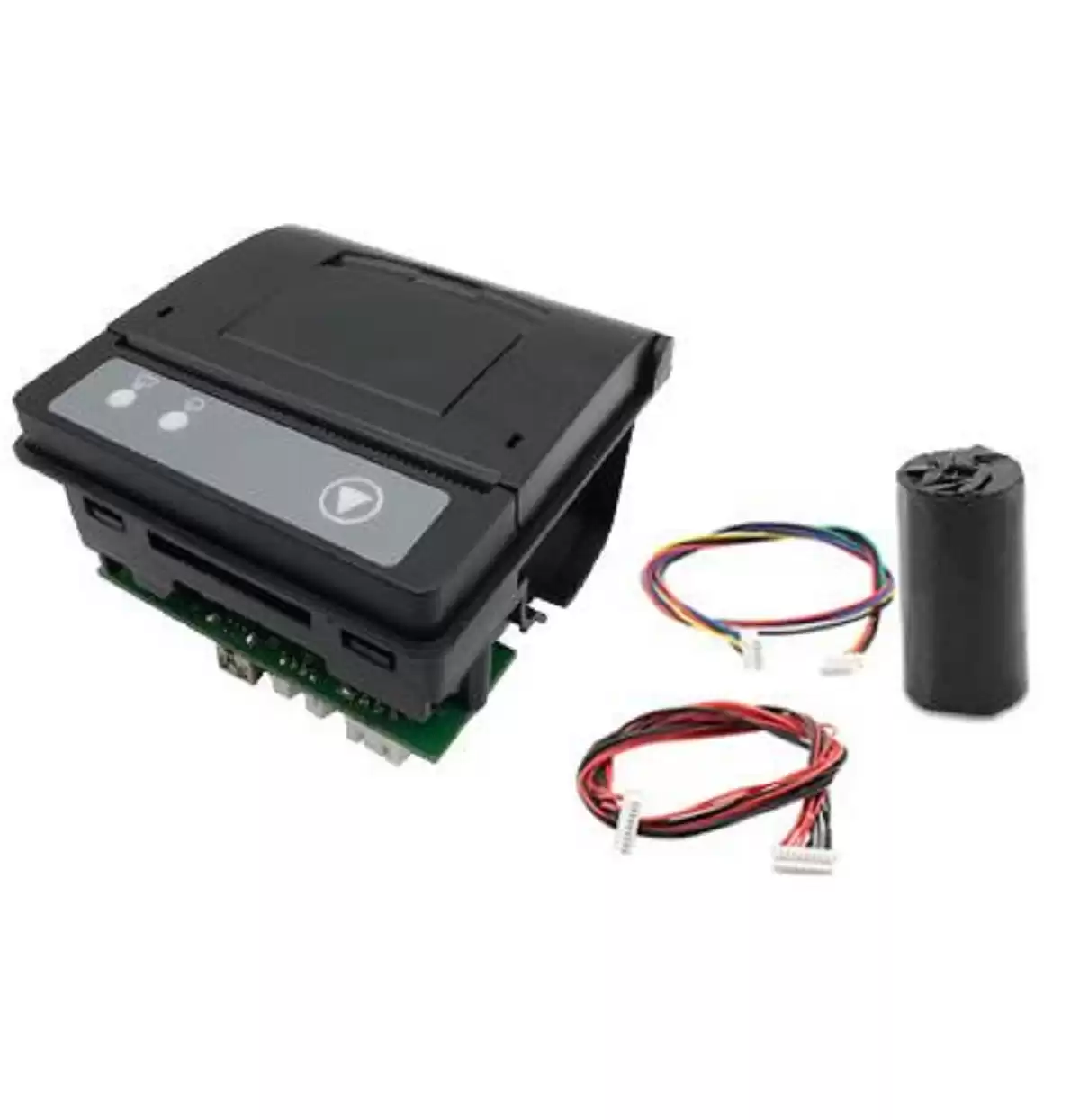

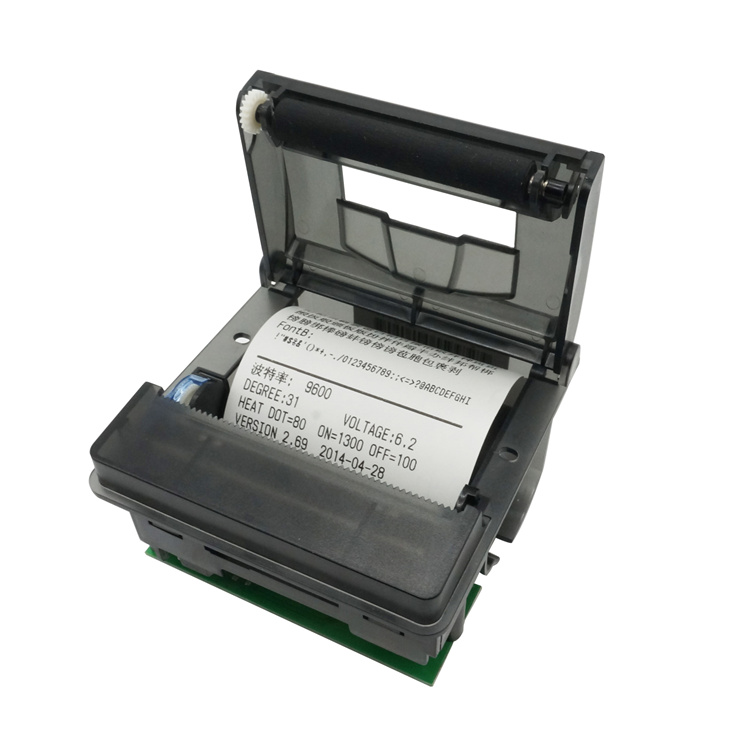

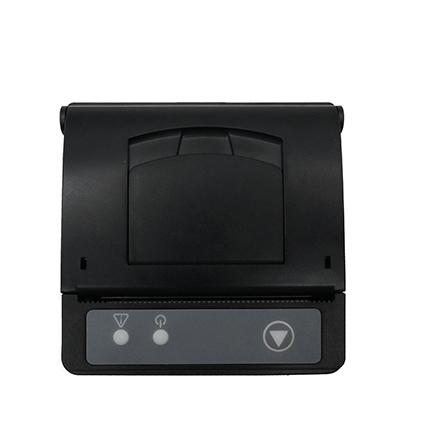

T7US cheap 58mm mini embedded thermal printer multi port optional

Print

Printing Method

Thermal Dot Line

Printing Speed

50-80mm/s

Resolution

8 dots/mm, 384 dots/line

Effective Printing Width

48mm

Character

Character Set

ASCII,GB2312-80(Chinese)

Print Font

ANK:8x16,9x17,9x24,12×24,

GBK: 16×16,24×24

Paper Spec

Paper Type

Thermal paper

Paper Width

57.5± 0.5mm

Paper Thickness

60-85µm

Paper Roll Diameter

Max: 30mm

Reliability

MCBF

5 million lines

Interface

RS232/TTL+USB

Power Supply (Adapter)

5-9V

Physical

Outline Dimension (WxDxH)

75x70x55 mm

Color

black

Environment

Operating Temp

5°C ~ 50°C

Operating Humidity

10% ~ 80%

Storage Temp

-20°C ~ 60°C

Storage Humidity

10% ~ 90%
