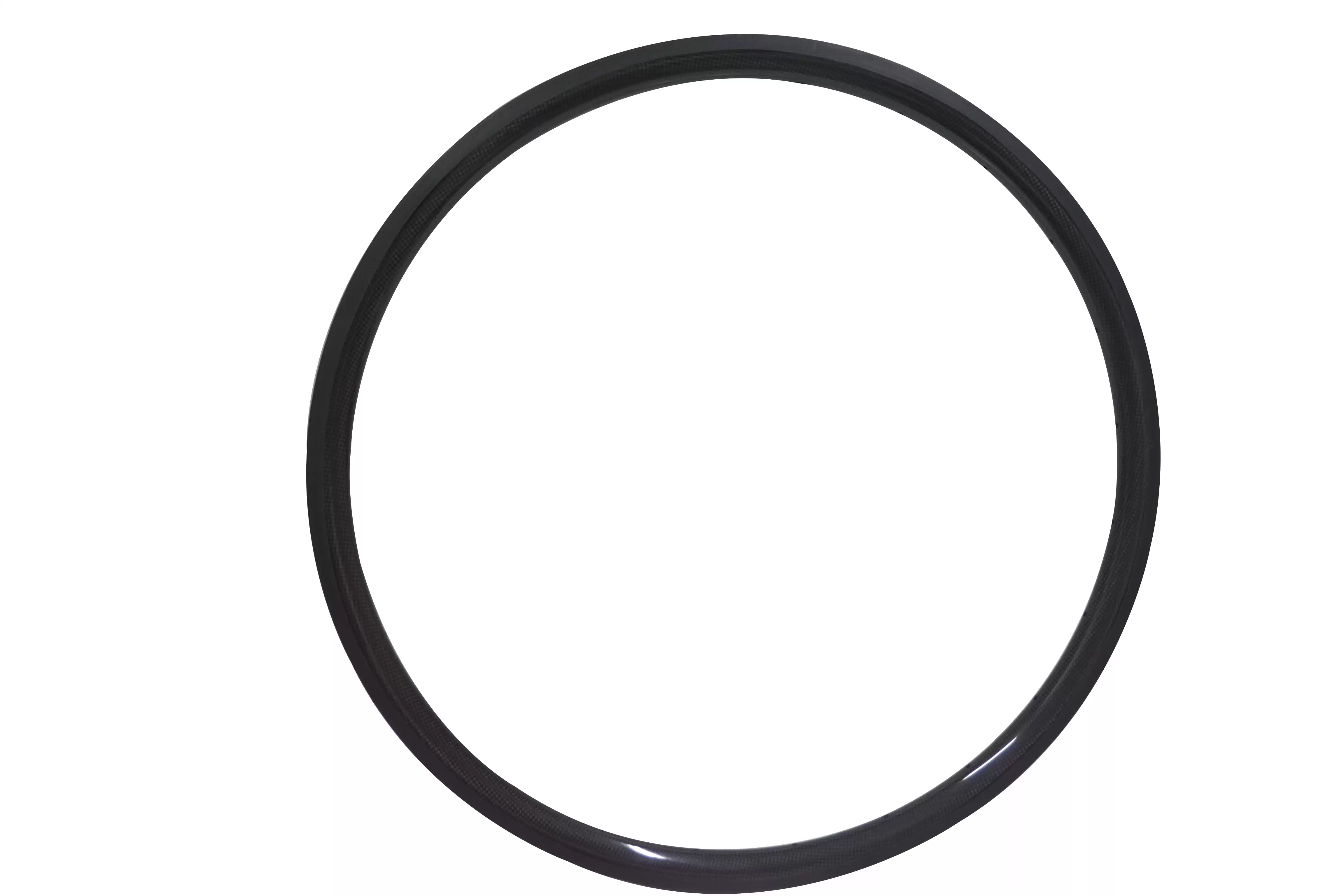

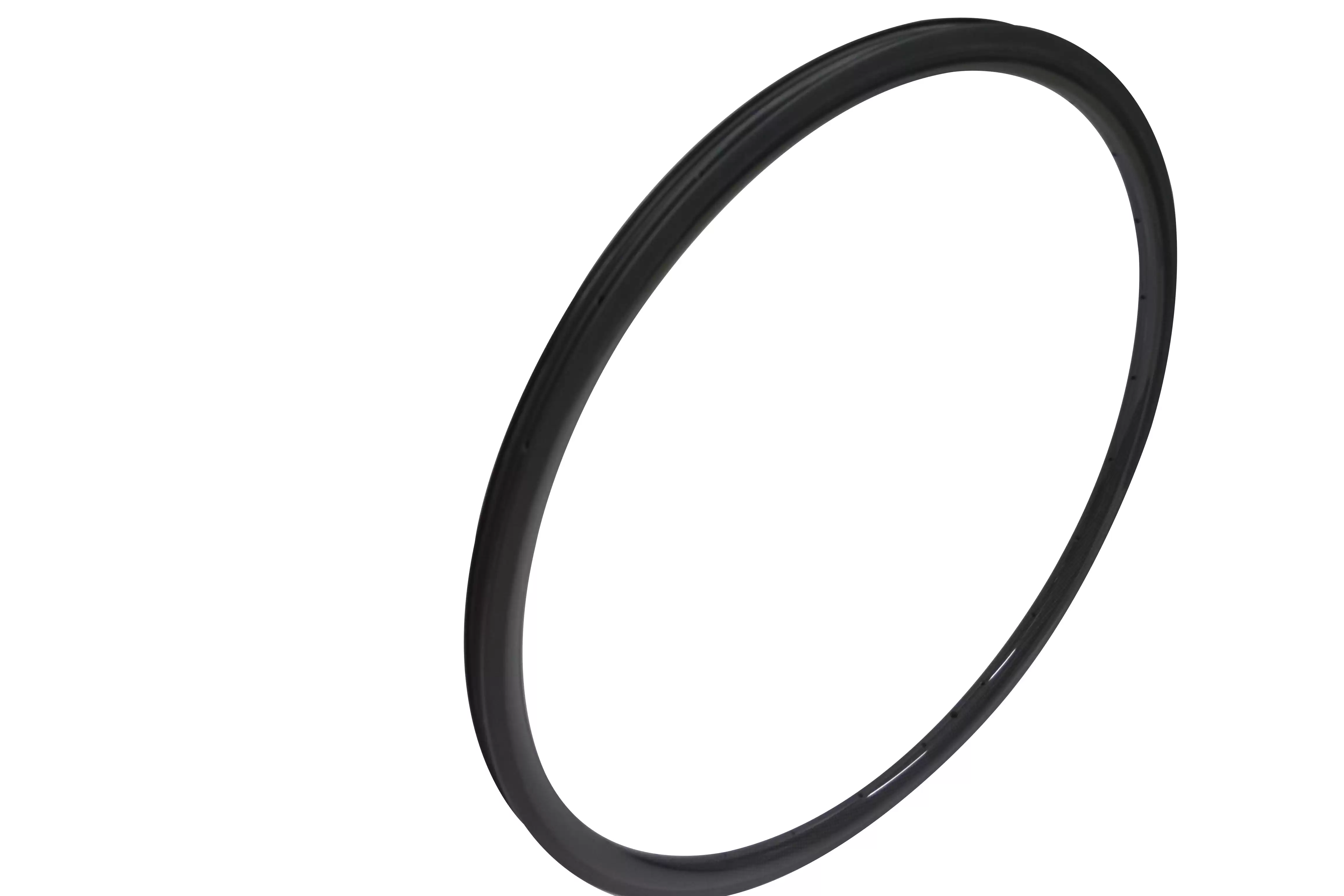

Product Model：700C 38mm Deep Road bicycle Clincher tubeless carbon rims
This Clincher tubeless carbon rims with 23/25/27mm wide,clincher tubeless U shape light bike rims.with 250°C hight TG resin sysytem.use Toray T700 and T800 carbon fiber to make.
25mm wider U shape,Tubeless ready design.Basalt braking surface for road bike.Lightweight road bike clincher rims offers improved aerodynamics.better for racing,climbing and riding.

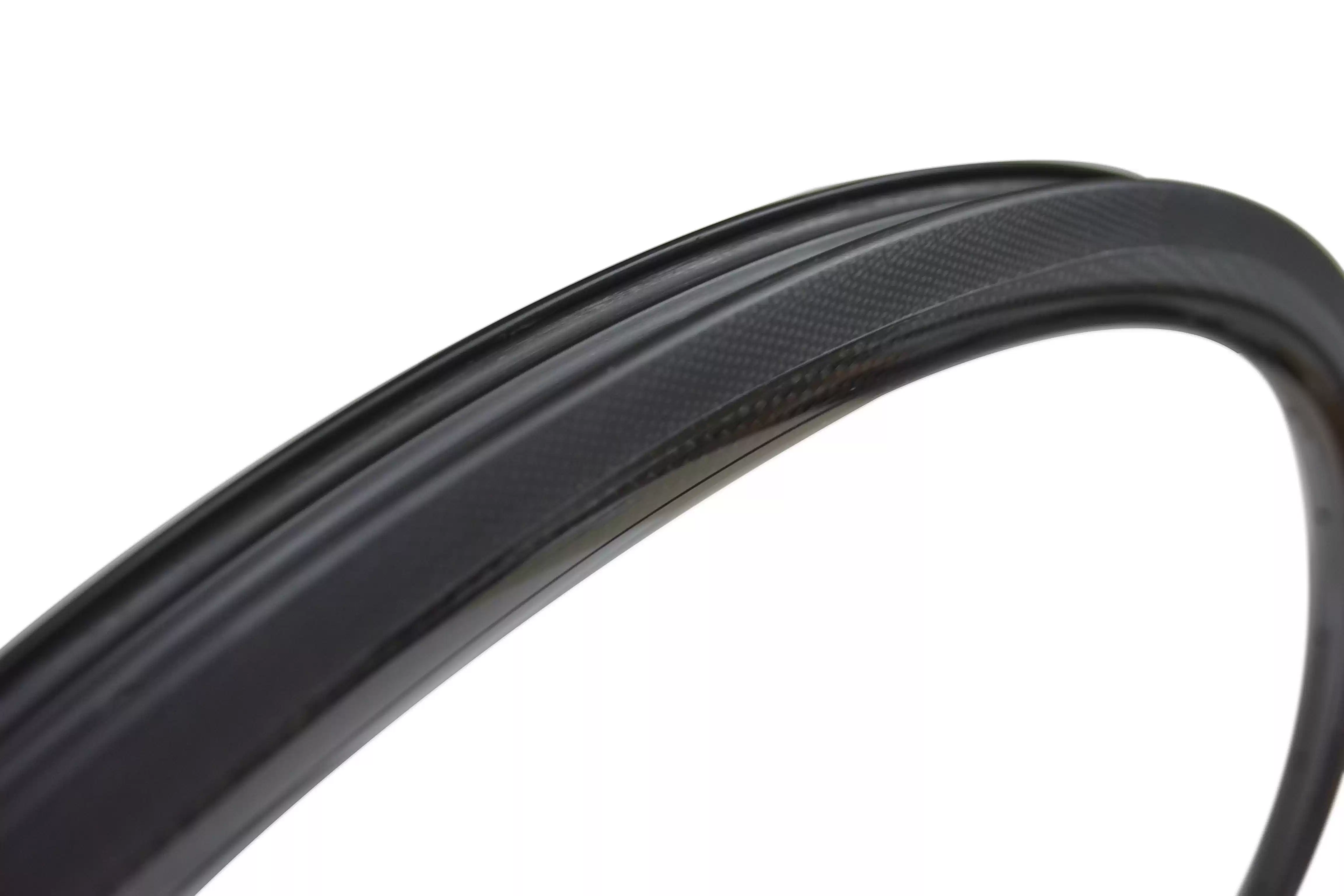

700C Carbon rims with UD Appearance, to be more resistant to high temperature.so has low braking failure rate and stable brake surface.
We can finish Disc brake or basalt brake,matte or glossy.
Features:
1.Use 250°C high TG resin system, can tolerate max 250°C high temperature from braking.
2.Super lightweight, rim constructed with premium Toray T700 & T800 carbon fiber, best strength to weight ratio with no expense spared.

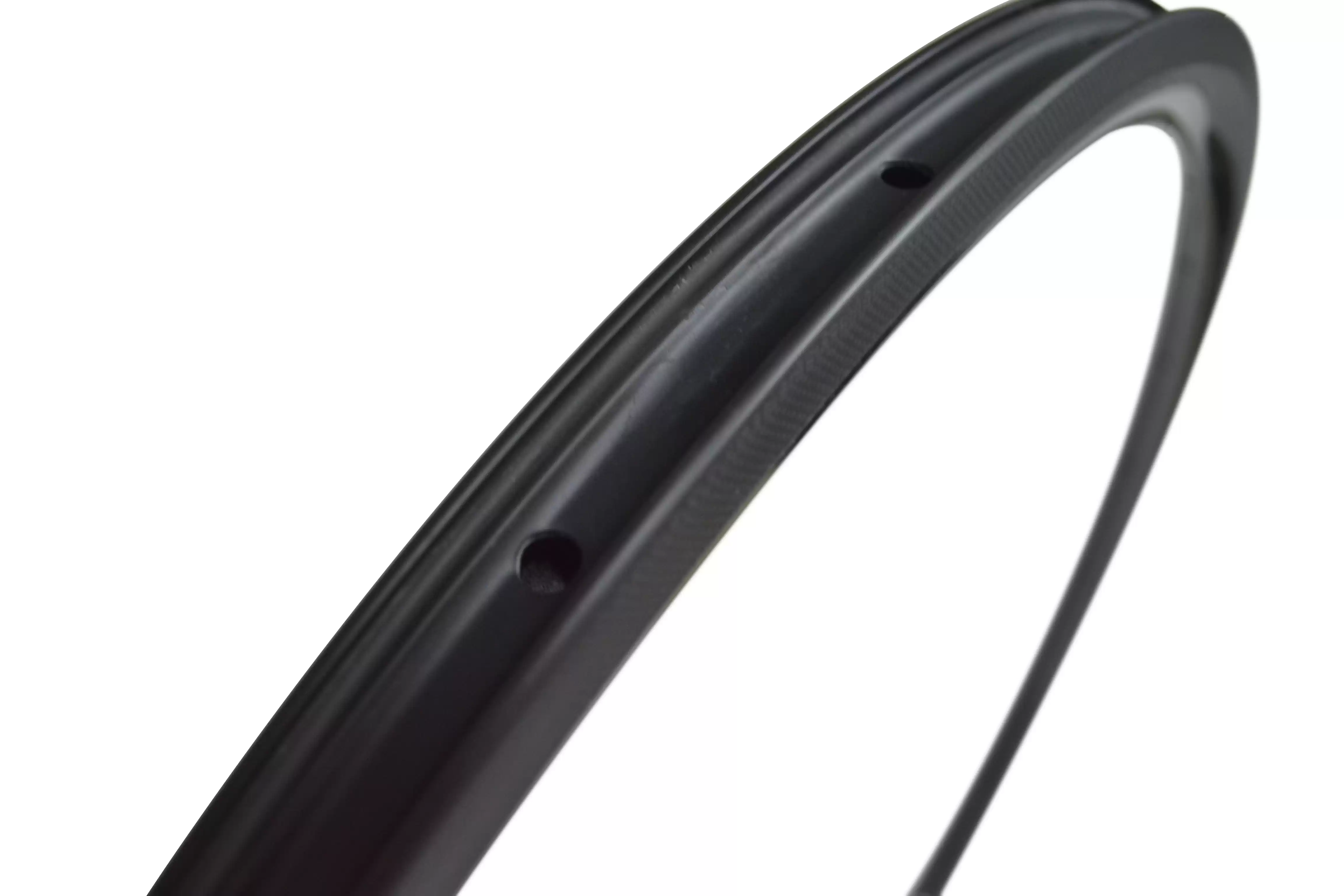

3.Angled spoke holes allows the nipple to pull straight in line with the spoke for reduced stress, this results in fewer broken spokes and nipples
4.U-shape 25mm and 27mm width strong and stiff. Decal and painting service for OEM your brands.
5.Different patterns of brake surface optional (customs patterns can also be made).
6.High quality carbon wheels manufacturer,best service,specially designed,reasonable prices and fast delivery.
7.5 years warranty
Specification:
|
Model
|
TR38C-23
|
TR38C-25
|
TR38C-27
|
|
Size
|
700C
|
700C
|
700C
|
|
Sectional Drawing
|
|
|
|
|
Material
|
Toray T700 & T800
|
Toray T700 & T800
|
Toray T700 & T800
|
|
Depth
|
38mm
|
38mm
|
38mm
|
|
Wide
|
23mm
|
25mm
|
27mm
|
|
Weight
|
460+/-15g
|
465+/-15g
|
475+/-15g
|
|
Appearance
|
3K/UD OrCustomized
|
3K/UD OrCustomized
|
3K/UD OrCustomized
|
|
Spokes holes
|
18-36#Customized
|
18-36#Customized
|
18-36#Customized
|
|
ERD
|
564mm
|
564mm
|
564mm
|
|
Assembly Hole Dia.
|
7.6mm
|
7.6mm
|
7.6mm
|
|
Spokes hole Dia
|
4.2mm
|
4.2mm
|
4.2mm
|
|
Valve hole Dia.
|
6.6mm
|
6.6mm
|
6.6mm
|
|
Flatness
|
<0.25mm
|
<0.25mm
|
<0.25mm
|
|
Roundness
|
<0.5mm
|
<0.5mm
|
<0.5mm
|
|
Max Spoke Tension
|
>280kg
|
>280kg
|
>280kg
|
|
Ultimate Strength
|
>200kg
|
>200kg
|
>200kg
|
|
Torsion Strength
|
>50kg
|
>50kg
|
>50kg
|
|
Tire Size Recommended
|
700*21-23c
|
700*25-28c
|
700*25-28c
|
|
Max Tire Pressure
|
125psi/8.6bar
|
125psi/8.6bar
|
125psi/8.6bar
|
Factory production manufacture
100% Quality Inspection:
Our rims are made of 100% Full carbon fiber material to ensure the high quality of the goods. Each carbon rim by us has its unique serial ID number, which follow every step of the product. And confirm every rim to ensure the best after-sale service.
5 years warranty:
The warranty covers five years form the initial pruchase of the product.
The warranty applies to the original purchaser and the assignmnet is invalid.
The warranty requires proof of pruchase,product serial number and defect picture.
Please keep your proof of purchase for any future warranty problems.
This warranty does not cover:
1. Normal wear and tear and depreciation.
2. Any man-made damage caused by accident,misuse,etc.
3. Improper installation,maintenance or other conduct by an unauthorized technician.
