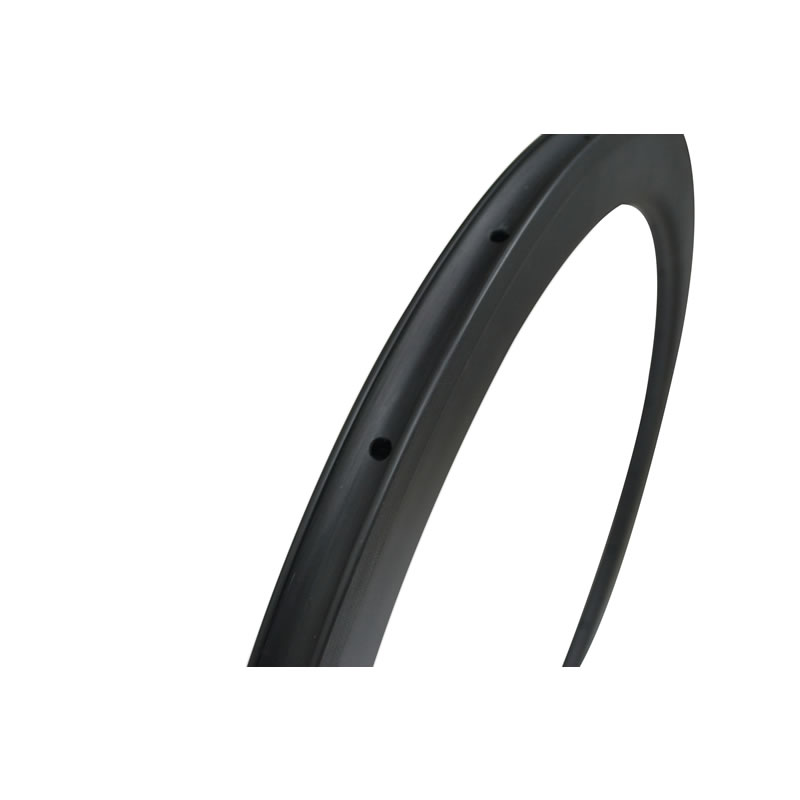

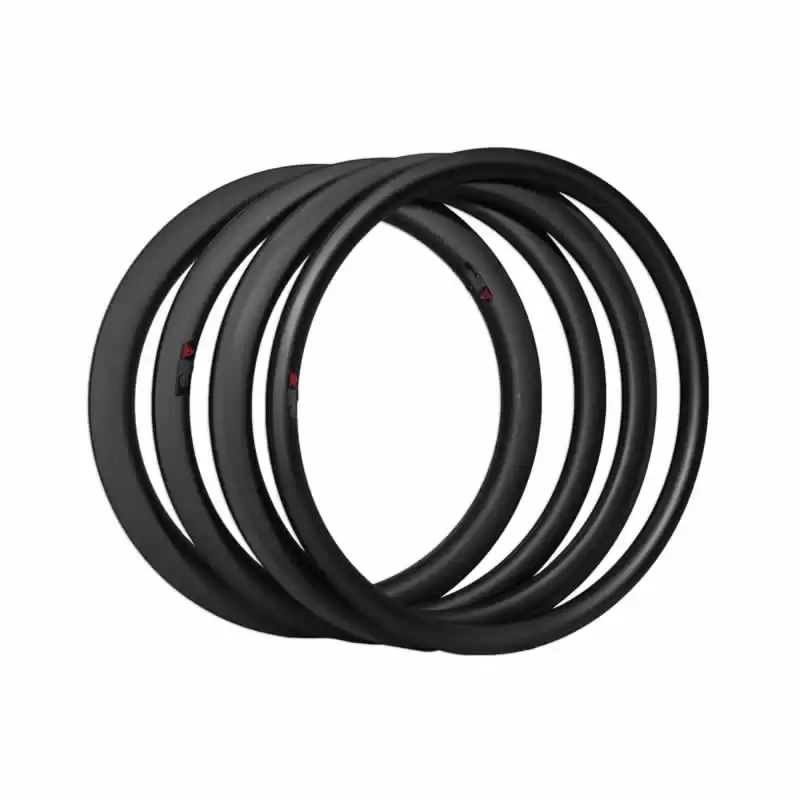

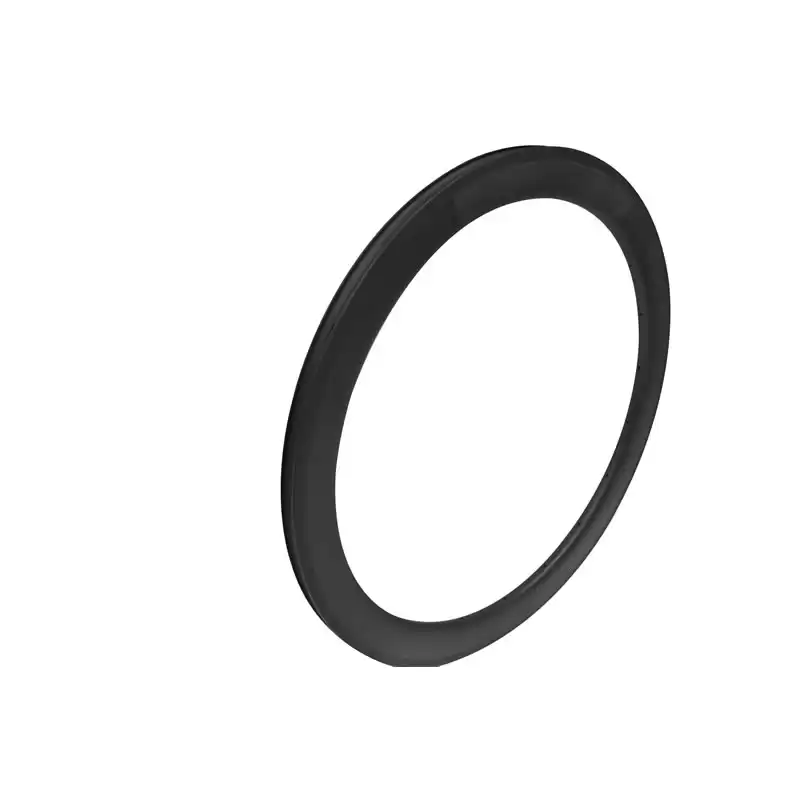

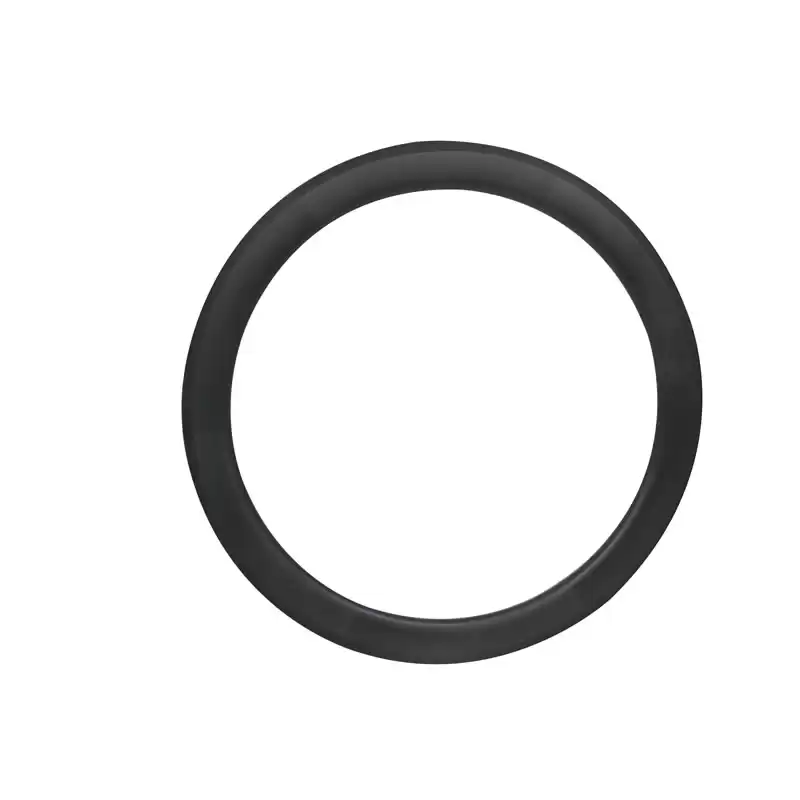

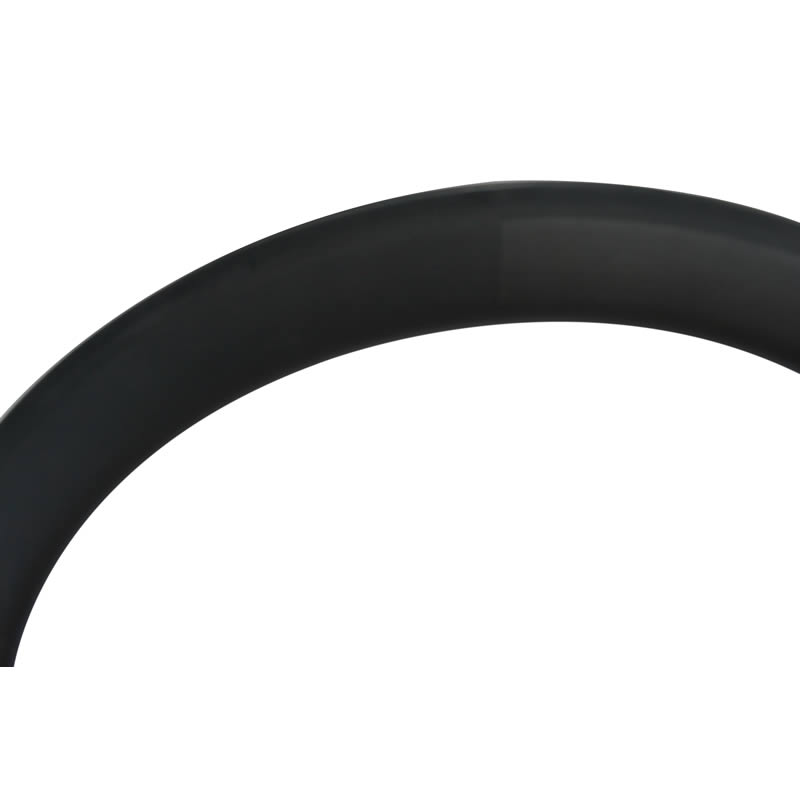

Product Model：55mm Deep 700C Clincher carbon rims
700C 55mm Deep clincher carbon rims U shape wider design.Tubeless ready design,easy for tire mount.Basalt braking surface for road bike.also used for track wheels.Lightweight road bike rims offers improved aerodynamics.better for racing,climbing and riding.
55mm clincher tubeless rims with250°C high TG resin system,can tolerate max 250°C high temperature from braking,solve heating problem on the rim brake clincher bike wheels.
Carbon rims with UD Appearance to be more resistant to high temperature.so has low braking failure rate and stable brake surface.
25mm wide carbon wheels made of Toray T700 and T800 carbon fiber.better for the stiffness and strength.Different patterns of brake surface optional. comfort for track road bike wheels.
High quality tubeless carbon clincher rims with the wholesale price and fast delivery.
Features:
1.2021 New style 55mm Deep clincher carbon rims,Tubeless Ready design,easy for tire mount.
2.U shape wider design,makes road tubeless rims lightweight,better strength and stiffness.keeping them stable in crosswinds condition.
3.250°C high TG resin system,can tolerate max 250°C high temperature from braking.
4.UD appearance to be more resistant to high temperature.
5.Manufacturer of high quality road and MTB Bike carbon wheels.
6.We offer decal and painting service for OEM your brands.
7.We can customized Different patterns of brake surface .
8.5 years warranty
Specification:
|
Model
|
R55C-25
|
TR55C-23
|
TR55C-25
|
|
Size
|
700C
|
700C
|
700C
|
|

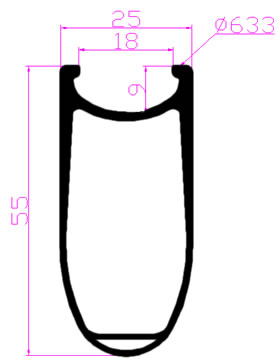

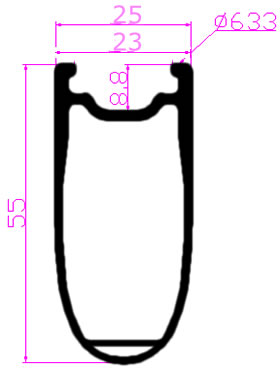

Sectional Drawing
|
|
|
|
|
Material
|
Toray T700 & T800
|
Toray T700 & T800
|
Toray T700 & T800
|
|
Depth
|
55mm
|
55mm
|
55mm
|
|
Wide
|
25mm
|
23mm
|
25mm
|
|
Weight
|
515+/-15g
|
520+/-15g
|
525+/-15g
|
|
Appearance
|
3K/UD OrCustomized
|
3K/UD OrCustomized
|
3K/UD OrCustomized
|
|
Spokes holes
|
18-36#Customized
|
18-36#Customized
|
18-36#Customized
|
|
ERD
|
530mm
|
530mm
|
530mm
|
|
Assembly Hole Dia.
|
7.6mm
|
7.6mm
|
7.6mm
|
|
Spokes hole Dia
|
4.2mm
|
4.2mm
|
4.2mm
|
|
Valve hole Dia.
|
6.6mm
|
6.6mm
|
6.6mm
|
|
Flatness
|
<0.25mm
|
<0.25mm
|
<0.25mm
|
|
Roundness
|
<0.5mm
|
<0.5mm
|
<0.5mm
|
|
Max Spoke Tension
|
>300kg
|
>300kg
|
>300kg
|
|
Ultimate Strength
|
>300kg
|
>300kg
|
>300kg
|
|
Torsion Strength
|
>50kg
|
>50kg
|
>50kg
|
|
Tire Size Recommended
|
700*25-28c
|
700*21-25c
|
700*25-28c
|
|
Max Tire Pressure
|
125psi/8.6bar
|
125psi/8.6bar
|
125psi/8.6bar
|
Factory production manufacture
100% Quality Inspection:
Our rims are made of 100% Full carbon fiber material to ensure the high quality of the goods. Each carbon rim by us has its unique serial ID number, which follow every step of the product. And confirm every rim to ensure the best after-sale service.
5 years warranty:
The warranty covers five years form the initial pruchase of the product.
The warranty applies to the original purchaser and the assignmnet is invalid.
The warranty requires proof of pruchase,product serial number and defect picture.
Please keep your proof of purchase for any future warranty problems.
This warranty does not cover:
1. Normal wear and tear and depreciation.
2. Any man-made damage caused by accident,misuse,etc.
3. Improper installation,maintenance or other conduct by an unauthorized technician.
